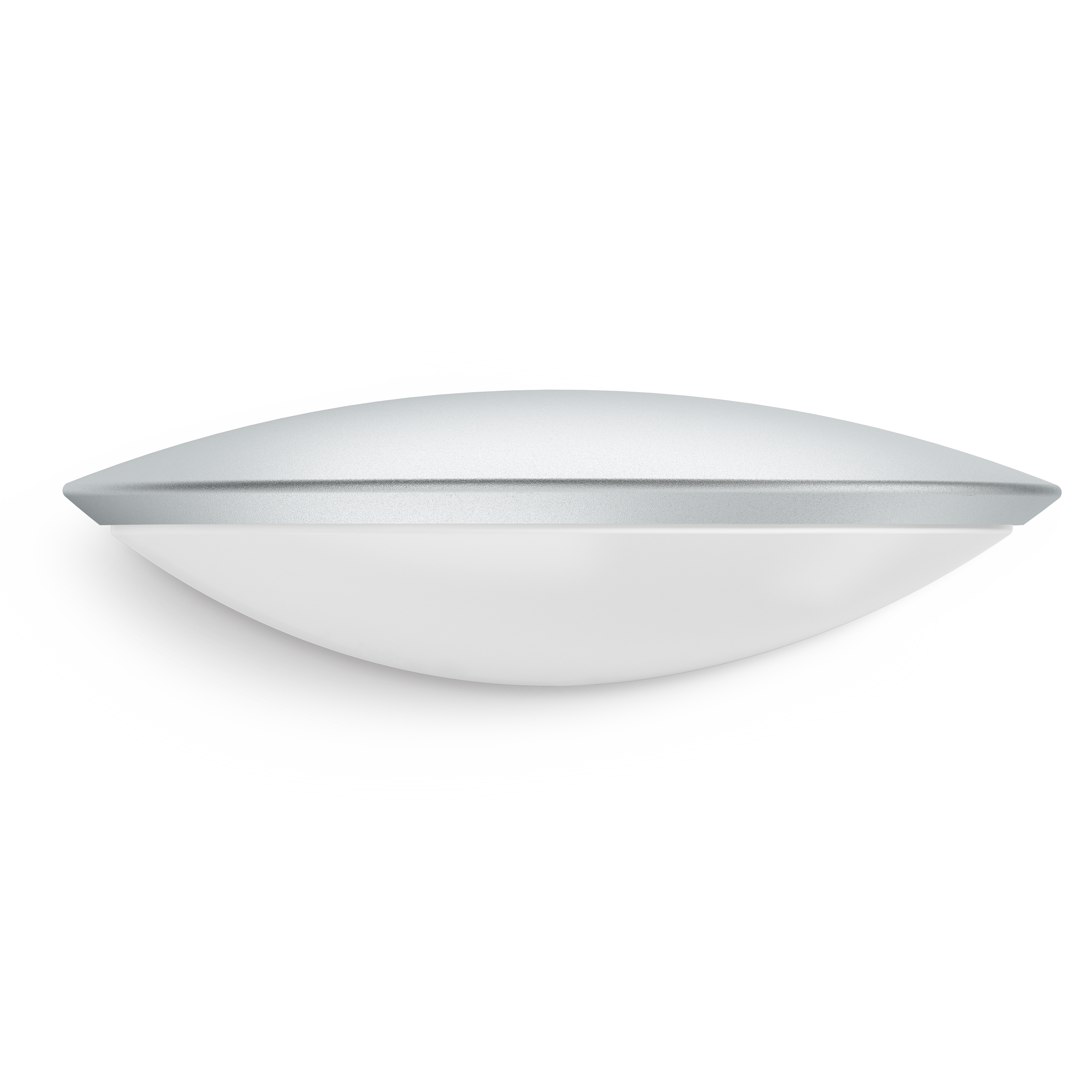

Nevalux L 825 LED iHF Silver
ELDAS® no. 924 352 129
EAN-No. 4007841 007171
This product is being replaced by a successor product.
Go to successor product · L 825 SC Anthracite (059903)Classic outside, future inside. Sensor-switched downlighter L 825 LED iHF with high-frequency sensor, ideal for building entrances and fronts of buildings. 12 W STEINEL LED lighting system, 400 lm, 160° angle of coverage, reach adjustable from 1-7 m, optional 10 % basic light level, optional 4 h manual override and optional manual override for 4 hours.
- Including STEINEL LED system
- Concealed iHF sensor
- Intelligent soft light start
- Optional basic lighting level 10 %
- High-quality aluminium
- 4-hour manual override (optional)
Identification
Variant
Silver
Variants
Luminous flux
400 lm
Dimensions
Dimensions L × W × H
95 x 331 x 157 mm
Electrical
Mains connection
230 – 240 V , 50 / 60 Hz
Power
12 W
Sensor technology
Sensor technology
iHF (intelligent high-frequency technology)
Transmission power
< 1 mW
With motion detector
Yes
Detection angle
160 °
Sneak-under protection
Yes
Electronic scalability
Yes
Mechanical scalability
No
Radial range
r = 5 m (35 m²)
Tangential range
r = 5 m (35 m²)
Lighting technology
Colour temperature
3000 K
Colour rendering index
80-89
With illuminant
Yes, STEINEL LED system
Illuminant
LED cannot be replaced
Base
Other
LED cooling system
Active and Passive Thermo Control
Soft light start
Yes
Continuous light
selectable, 4h
Luminous flux
400 lm
Lifetime
LED lifetime max. °C
50000 h
Luminous flux decline per LM80
L70B10
Settings
Twilight switch
Yes
Twilight setting
2 – 2000 lx
Time setting
5 sec – 15 min
Housing & material
Protection class (IP)
IP44
Protection class
II
Ambient temperature
-20 – 50 °C
Housing material
Aluminium
Cover material
Plastic, opal
Scope of delivery & warranty
Manufacturer warranty
3 years
