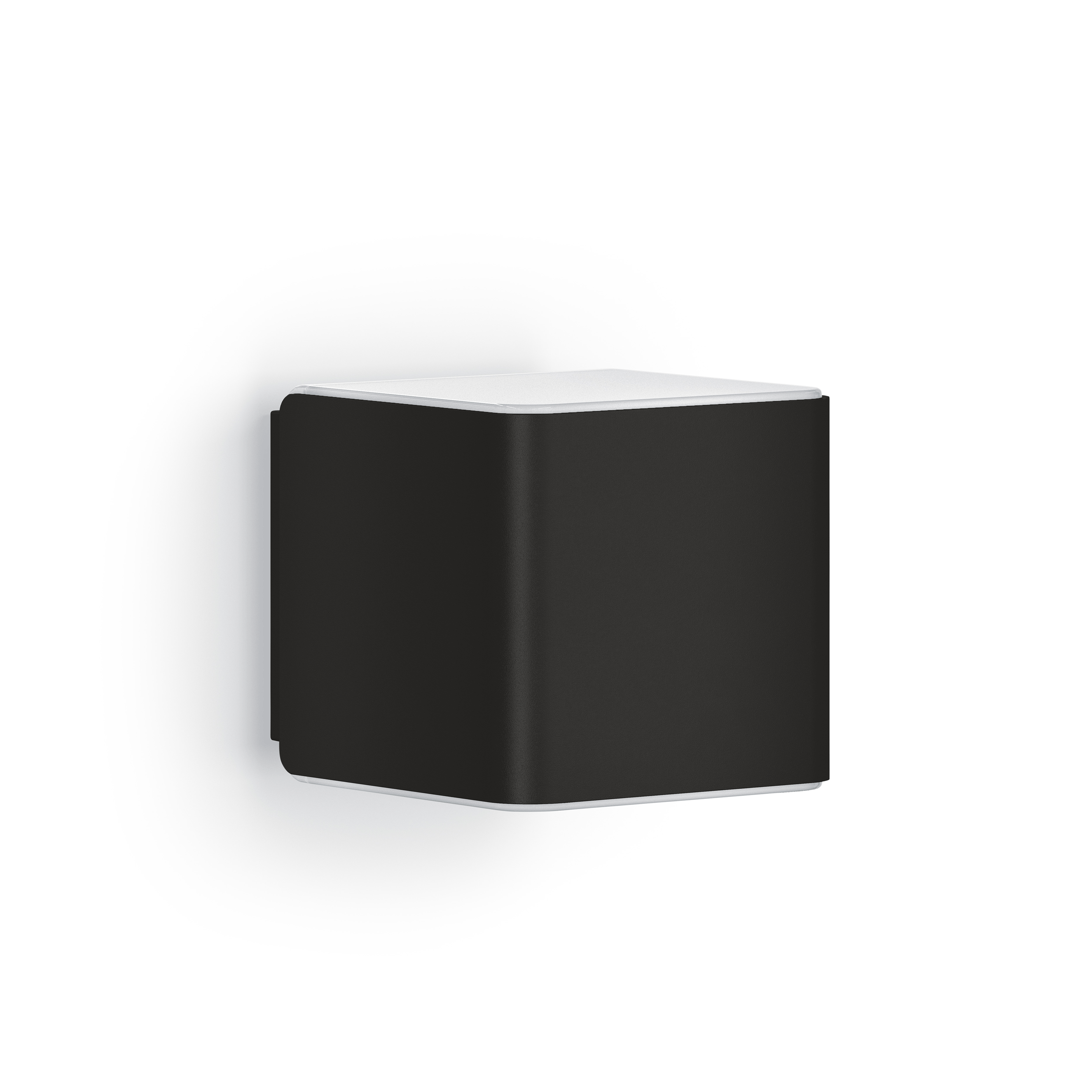

Nevalux L 840 SC black

EAN-No. 4007841 085704

Price: Please log in to see prices

Manufacturer

Steinel Nevalux

Version

Without sensor Sensor

Colour

Anthracite Silver

Light output

Up-Down-Front-Side Up-Down-Front Up-Down

Digital. Interconnected. Intelligent. The Cube series captivates with a classy look and embellishes any building. With concealed 160° iHF sensor (5 m reach) that only responds to human movement. Night-light function, soft light start and 4-hour manual override (3000 K). Wireless interconnection via Bluetooth, any chosen settings via STEINEL app. Three design options. Available in anthracite, silver and black.<br> <br> <b>Note: This product is only sold in the German STEINEL Online Shop.</b>

Intelligent soft light start
Optional basic lighting level 0 - 100 %
Continuous light individually switchable (optional)
UV resistant material

Dimensions

Dimensions L × W × H 134 x 110 x 110 mm

Electrical

Mains connection 220 – 240 V / 50 – 60 Hz

Power 9,1 W

Sensor technology

Max. mounting height 2,50 m

Sensor technology iHF (Intelligente Hochfrequenz-Technik)

With motion detector Yes

Opening angle 160 °

Segment-by-segment masking Yes

Electronic scalability Yes

Mechanical scalability Yes

Range detail Einstellbarer Erfassungsbereich auf 2 Achsen

Radial range r = 5 m (35 m²)

Tangential range r = 5 m (35 m²)

Mounting height 1,80 – 2,50 m

Optimal mounting height 2 m

Connectivity

Networking Ja

Networking via Bluetooth Mesh Connect

Slave mode adjustable Yes

Lighting technology

Efficiency 35 lm/W

Colour temperature 3000 K

Colour rendering index = 82

With illuminant Ja, STEINEL LED-System

Illuminant LED nicht austauschbar

Base Ohne

LED cooling system Passive Thermo Control

Soft light start Yes

Continuous light schaltbar

Lifetime

LED lifetime max. °C 50000 Std

LED lifetime L70B50 25°C > 60000 Std

Settings

Twilight switch Ja

Twilight setting 2 – 2000 lx

Time setting 5 s – 60 Min.

Base light function Ja

Base light function time 10 Sek. - 60 Min.

Main light adjustable 0 - 100 %

Functions Bewegungssensor Aufruf von programmierten Lichtszenen Nachtsparmodus Lichtszene

Settings via Connect Bluetooth Mesh App Smartphone Tablet

With remote control No

Twilight setting teach Yes

Base light function in percent 0 %

Base light function percent from 0

Housing & material

Impact resistance IK03

Protection class (IP) IP44

Protection class II

Ambient temperature -20 – 40 °C

Housing material Kunststoff

Cover material Kunststoff opal

Mounting location Wand

Application location Außenbereich

Mounting type Aufputz

Application room Außenbereich Garten Hauseingang Hof & Einfahrt Rund ums Haus Terrasse / Balkon

Colour Schwarz

Scope of delivery & warranty

Manufacturer warranty 3 Jahre

House number sheet included No

Certificates & EPREL

EPREL category Umgebenes Produkt mit integrierter Lichtquelle

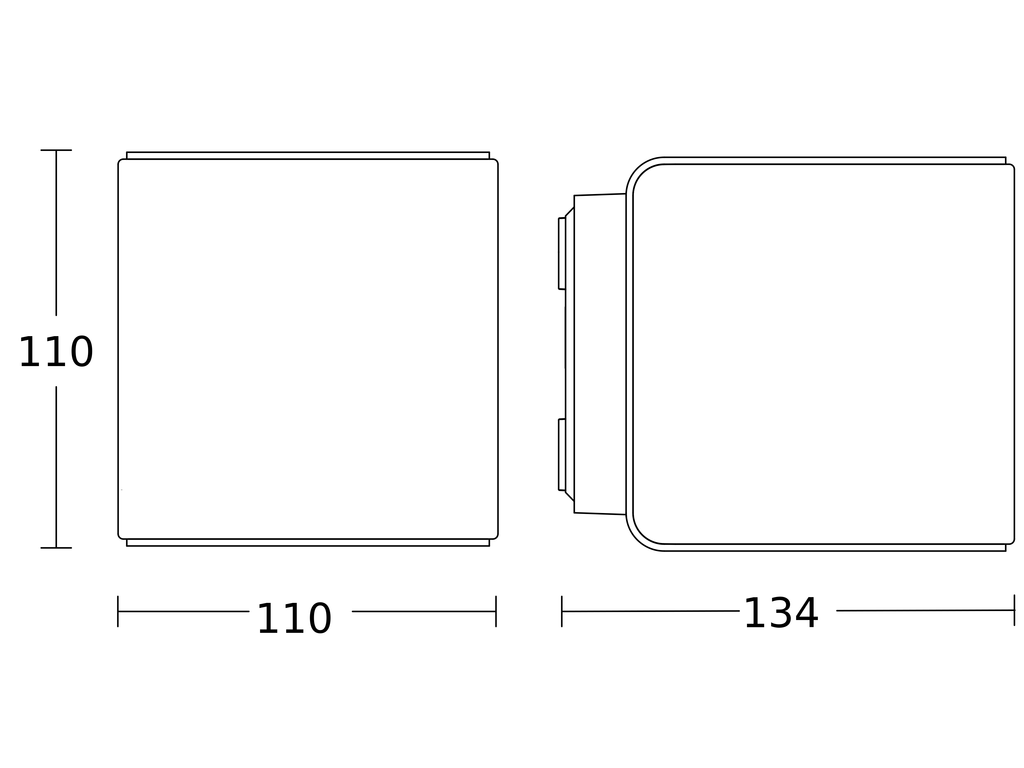

Technical drawing

Lichtverteilungskurve

Sensor detection range

Wiring diagram 1

Master/slave interconnection circuit diagram

Wiring diagram 2

Master/master interconnection circuit diagram

Data sheet User manual Declaration of conformity LDT file (light distribution)
