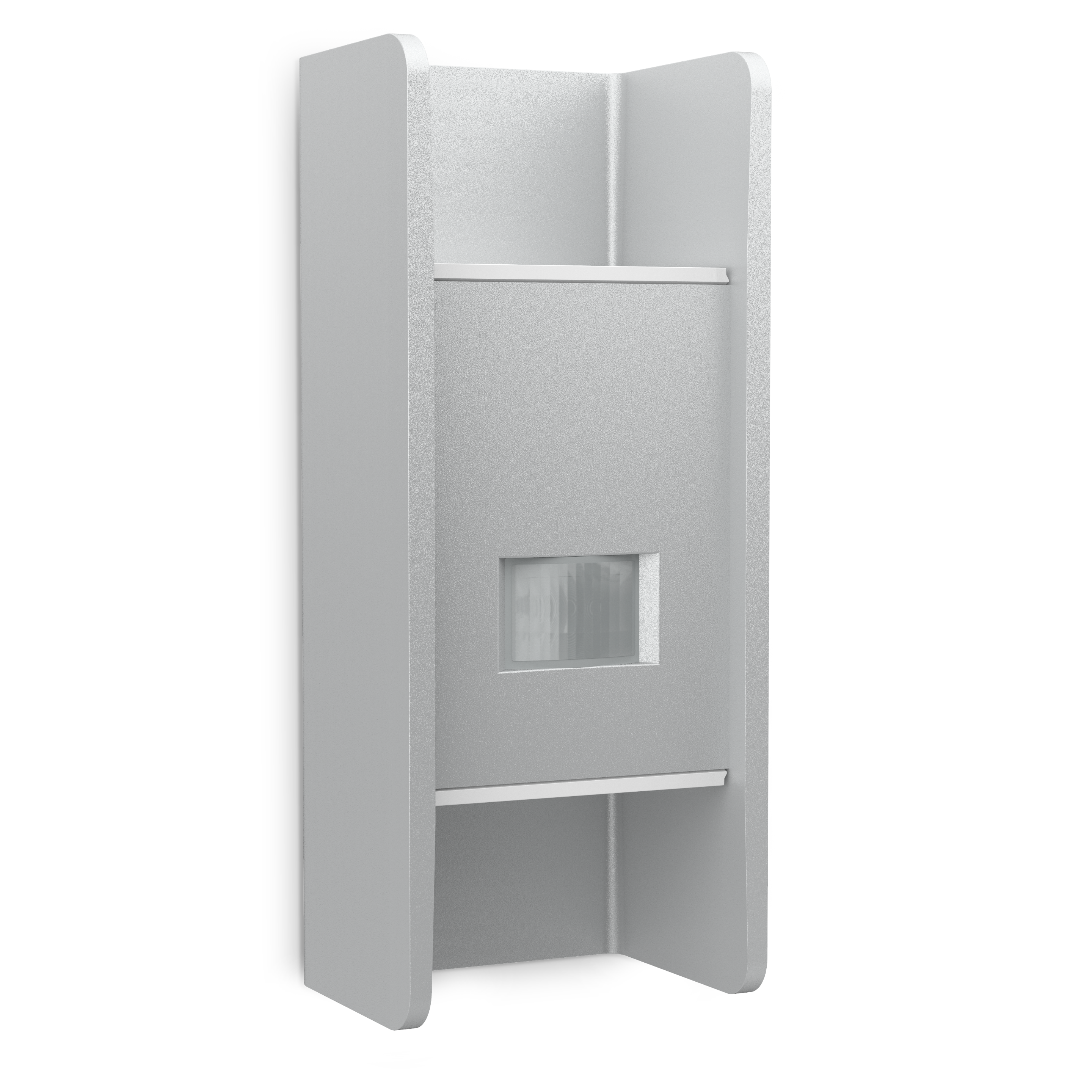

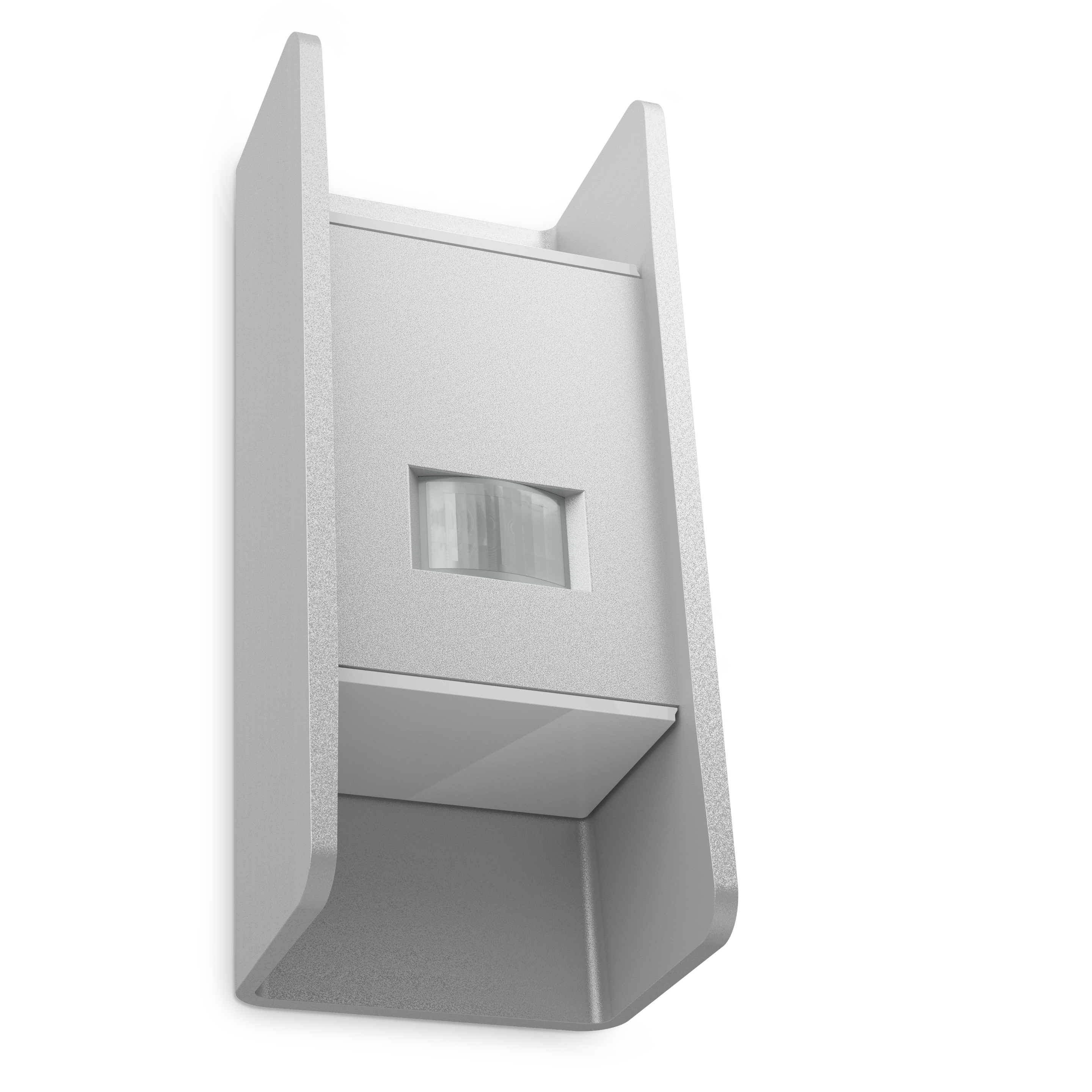

Nevalux L 920 LED Silver

ELDAS® no. 941 200 139

EAN-No. 4007841 056490

Discontinued

This product is being discontinued and is available while stocks last. No successor product has been announced yet.

Inviting accent lighting. As an uplighter/downlighter, the 10 W sensor-switched outdoor light in classy aluminium invitingly sets off building walls in a colour temperature of 3000 K and 571 lm of light. The 140° infrared sensor has a reach of 12 m. Several L 920 LED can easily be interconnected by cable and switched ON and OFF simultaneously. With soft light function, various night-light functions and optional manual override (4 h). Available in anthracite and silver.

Intelligent soft light start
Interconnectable by cable
4-hour manual override (optional)
High-quality aluminium
Setting options protected from the weather and from outside influences

Identification

Variant Silver

Variants

Luminous flux 571 lm

Dimensions

Dimensions L × W × H 225 x 95 x 94 mm

Electrical

Mains connection 220 – 240 V , 50 / 60 Hz

Power 10 W

Sensor technology

Max. mounting height 2,50 m

Sensor technology passive infrared

With motion detector Yes

Detection angle 140 °

Sneak-under protection No

Segment-by-segment masking No

Electronic scalability Yes

Mechanical scalability No

Radial range r = 2 m (5 m²) / r = 4 m (20 m²)

Tangential range r = 5 m (31 m²) / r = 12 m (176 m²)

Connectivity

Networking Yes

Lighting technology

Colour temperature 3000 K

Colour rendering index 80-89

With illuminant Yes, STEINEL LED system

Illuminant LED cannot be replaced

Base without

LED cooling system Passive Thermo Control

Soft light start Yes

Continuous light selectable, 4h

Luminous flux 571 lm

Lifetime

LED lifetime max. °C 50000 h

Settings

Twilight switch Yes

Twilight setting 2 – 20 lx

Time setting 120 sec – 15 min

Base light function Yes

Base light function time 10-30 min, all night

With remote control No

Housing & material

Impact resistance IK00

Protection class (IP) IP44

Protection class II

Ambient temperature -20 – 40 °C

Housing material Aluminium

Cover material Plastic, opal

Scope of delivery & warranty

Manufacturer warranty 3 years

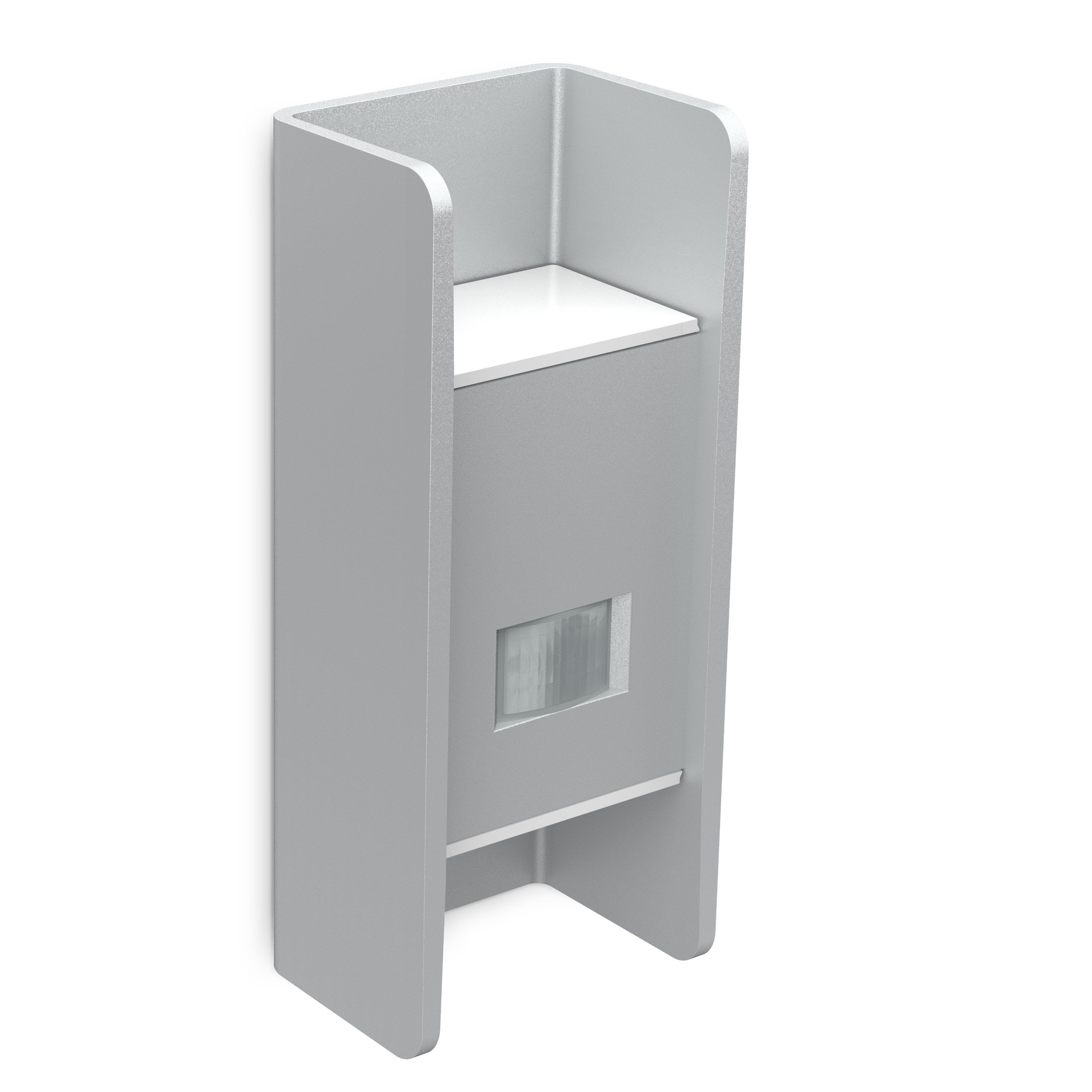

Sensor detection range
