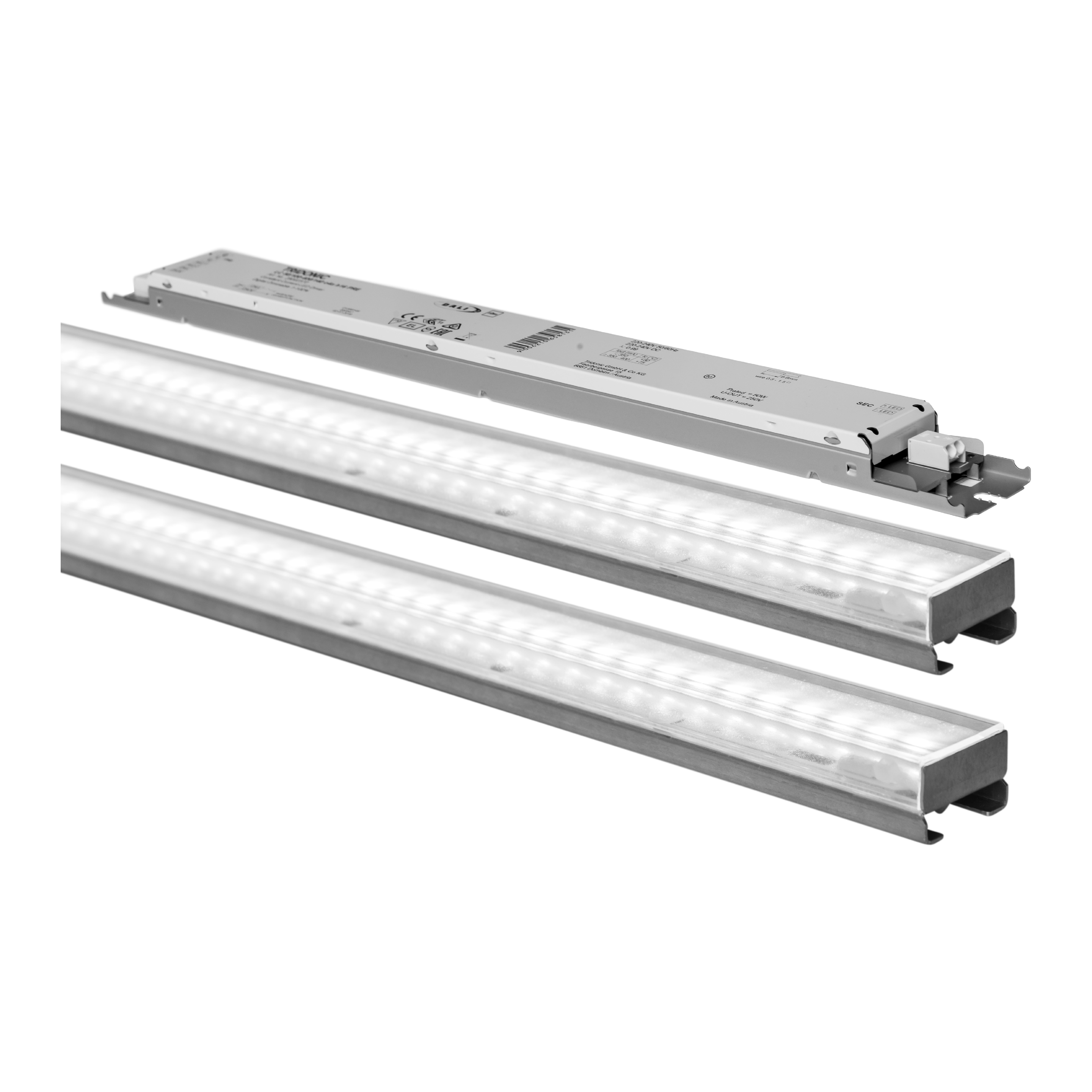

Nevalux LED Insert B450-2T 4K ON-OFF 110°

Product code 221916

Price: Please log in to see prices

Light colour

Warm white (3000K) Neutral white (4000K) Tunable White 2700K - 6500K

Version

DALI ON-OFF

Optics

Wide beam 110° Narrow beam 60° Narrow beam 40°

Luminous flux

9284 lm 9582 lm 10203 lm 10418 lm 3694 lm 11605 lm 11850 lm 11977 lm 12229 lm 3482 lm 3555 lm 9480 lm 9783 lm 3771 lm 3061 lm 3125 lm 4517 lm 4612 lm 4791 lm 4892 lm 4081 lm 4167 lm 8162 lm 8334 lm 6775 lm 6918 lm 7187 lm 7338 lm 6122 lm 6251 lm

The linear LED inserts are designed for the professional replacement of conventional T5 or T8 fluorescent tubes. Thanks to comparable space requirements and magnetic mounting, they can be installed quickly and easily in older luminaires of various designs. Only LED drivers, LED modules and lenses from quality manufacturers are installed in the luminaire inserts. This achieves very good efficiency classes with outstanding quality and durability. The LED inserts from nevalux are often used for refurbishing luminaires in gymnasiums and warehouses, but also in offices and traffic zones.

For professional refurbishment of luminaires with T5 or T8 fluorescent tubes
Set consisting of 2 LED inserts and matching LED driver
Universal use for all lighting tasks
Excellent efficiency and durability
Connect accessories available with powerful IoT lighting control for next-generation lighting projects (swarm function, grouping, cleaning light, etc.)
Magnetic attachment for easy and quick mounting
5 lengths, 3 optics and 3 light colors available

Identification

Variant 2 Tubes, wide beam

Variants

Length 441 mm

Dimensions

Dimensions L × W × H 441 x 32 x 24 mm

Electrical

Mains connection 220...240 V / 50 – 60 Hz

Power 21.9 W

Replaceable driver Yes

Type of wiring Suitable for through wiring

LED rated current 300 mA

Sensor technology

With motion detector No

Lighting technology

Colour temperature 4000 K

Colour rendering index 80-89

Illuminant LED

Luminous flux 3694 lm

Beam angle 110°

Luminaire luminous efficacy 169 lm/W

Lifetime

LED lifespan (25 °C) 72000 h

Settings

DALI dimming No

With emergency light No

Suitable for light band configuration Yes

Housing & material

Protection class (IP) IP20

Protection class I

Ambient temperature -25...55 °C

Housing material Aluminum

Cover material PMMA

Mounting type lighting insert

Colour Aluminum

Scope of delivery & warranty

Manufacturer warranty 5 years

Certificates & EPREL

EPREL energy efficiency class C

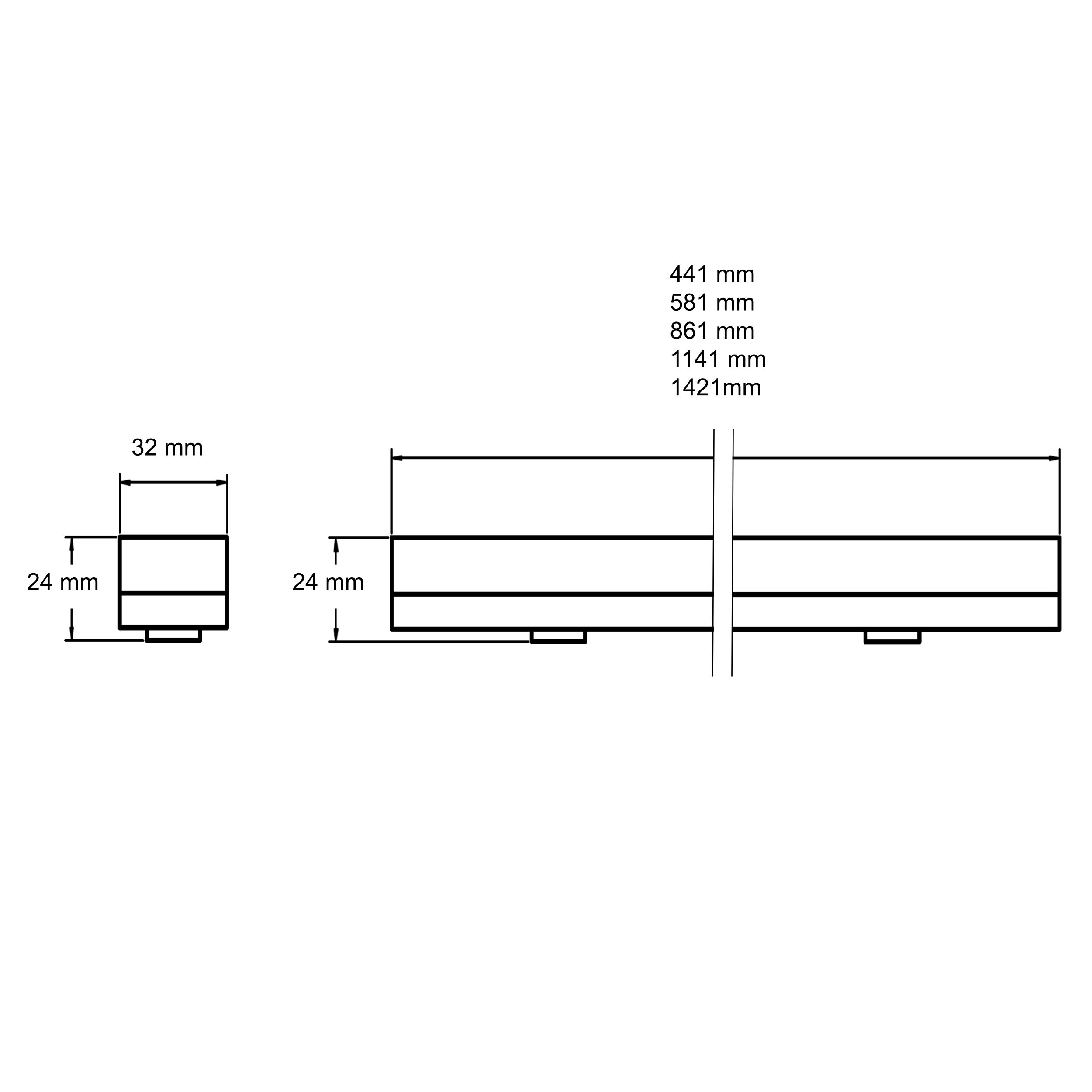

Technical drawing

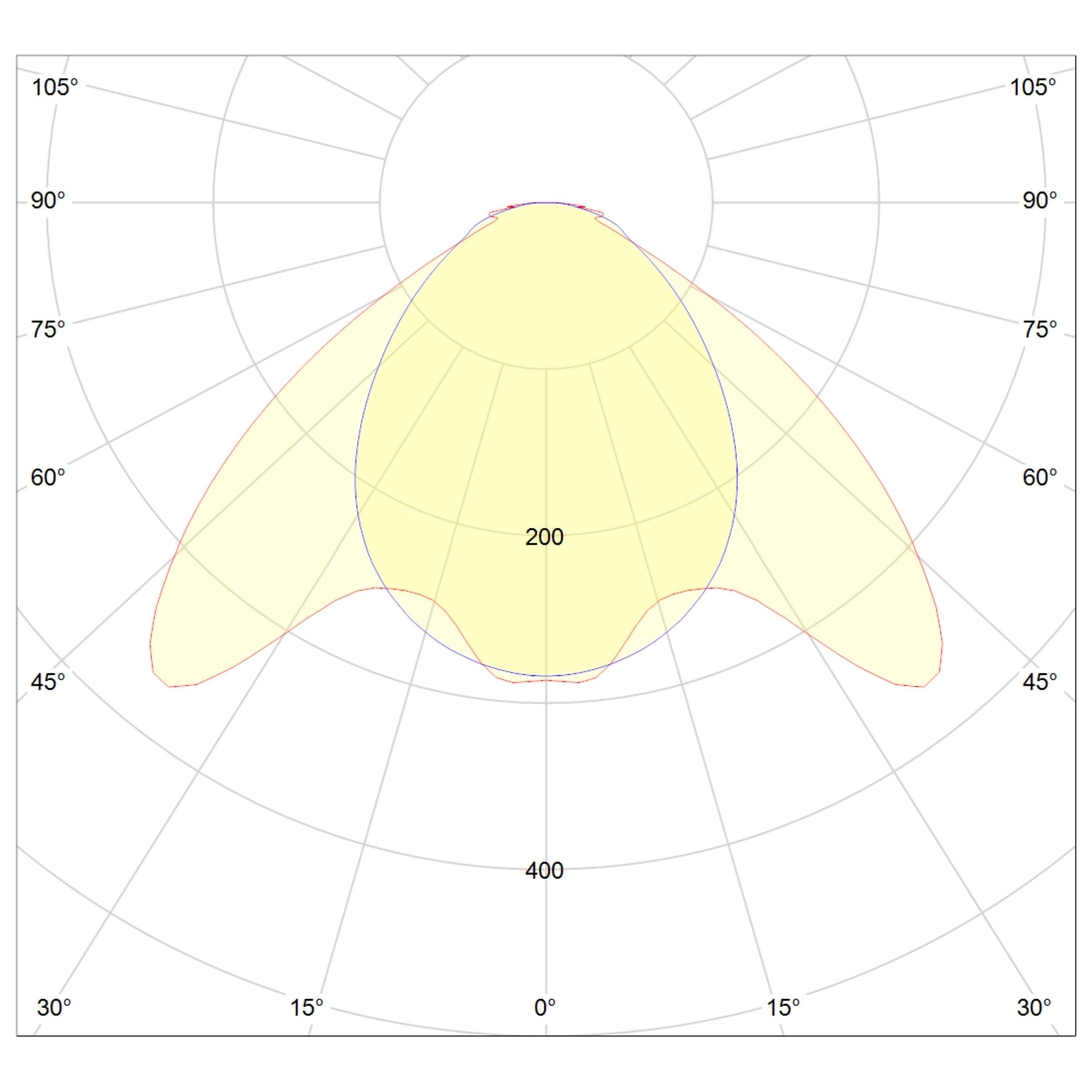

Lichtverteilungskurve

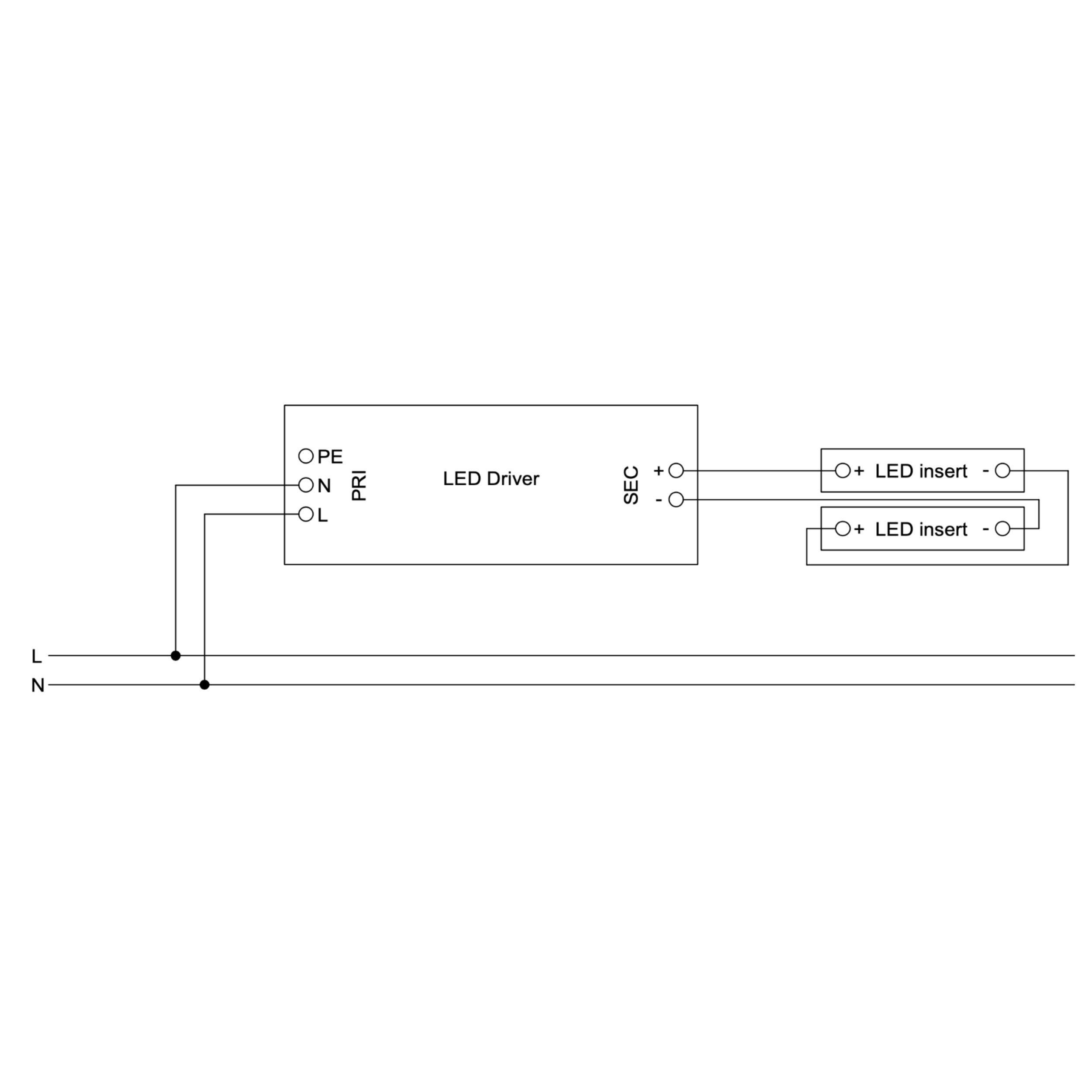

Wiring diagram 1

Wiring diagram

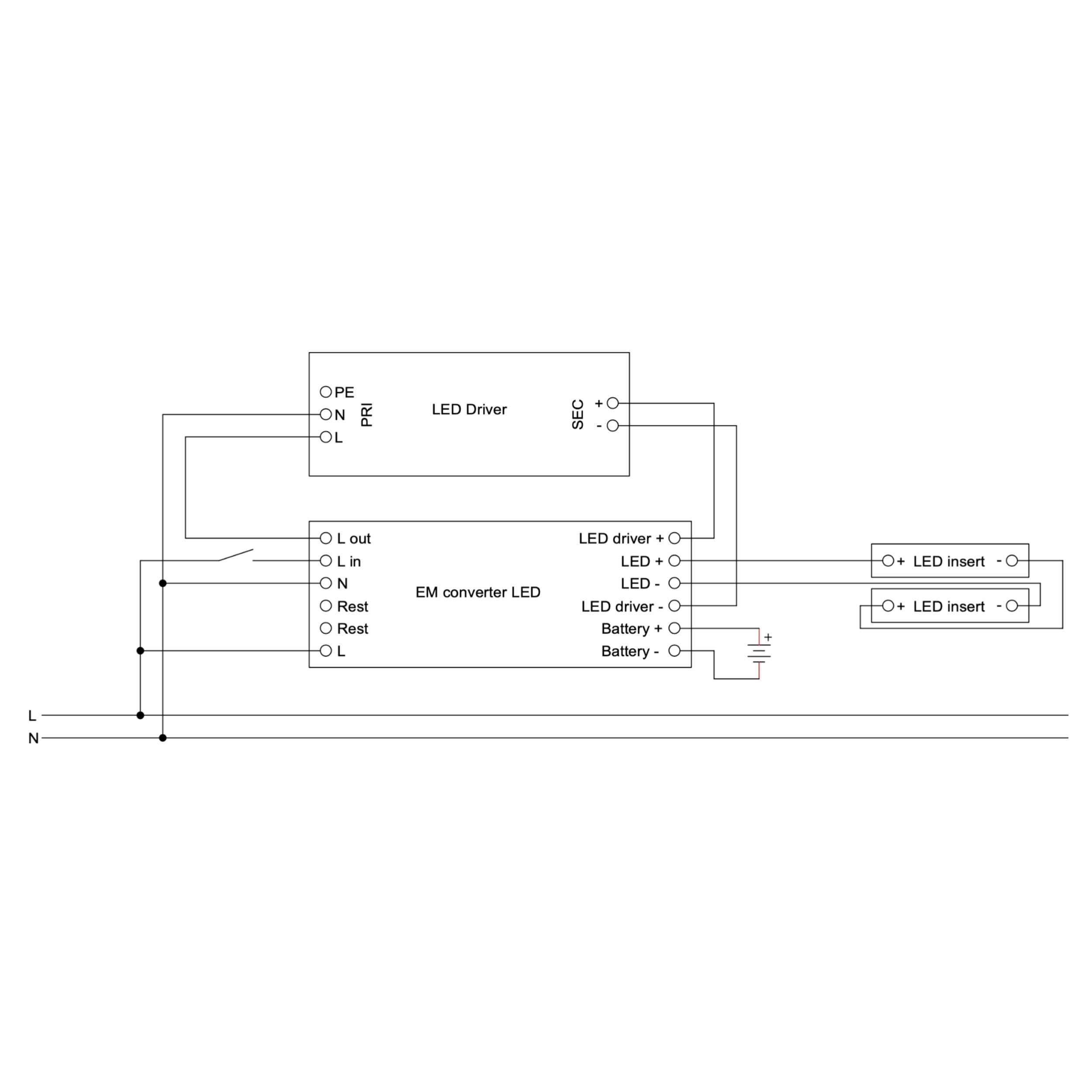

Wiring diagram 2

Wiring diagram Self-contained Emergency light

Data sheet
