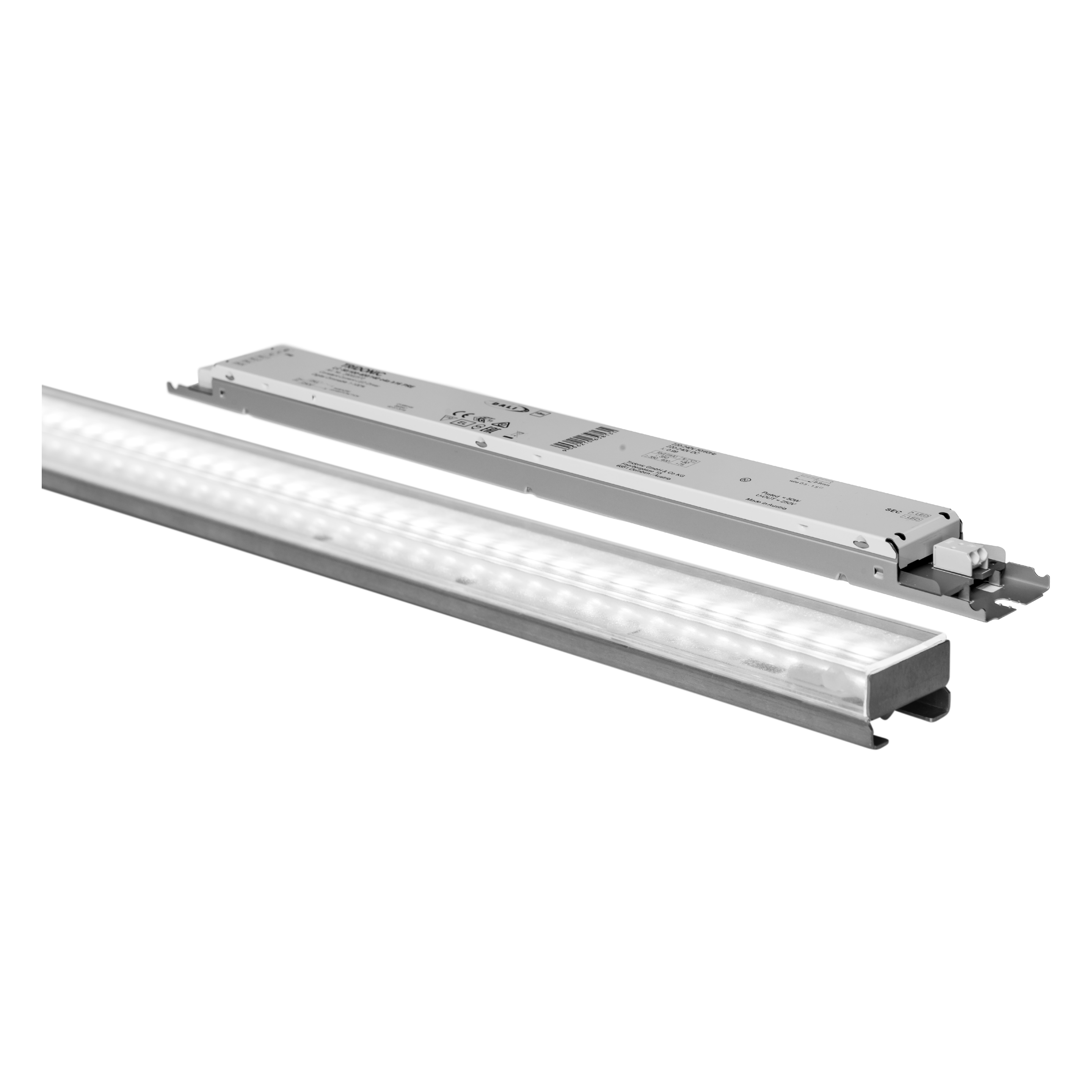

Nevalux LED Insert B600 3K ON-OFF 60°

Product code 221718

Price: Please log in to see prices

Light colour

Warm white (3000K) Neutral white (4000K) Tunable White 2700K - 6500K

Version

DALI ON-OFF

Optics

Wide beam 110° Narrow beam 60° Narrow beam 40°

Luminous flux

2396 lm 2446 lm 4924 lm 5028 lm 7186 lm 1777 lm 1530 lm 1563 lm 9231 lm 9425 lm 5925 lm 5803 lm 3669 lm 2258 lm 2306 lm 1847 lm 7337 lm 4642 lm 4739 lm 5102 lm 5209 lm 4081 lm 3593 lm 3388 lm 3459 lm 2041 lm 2084 lm 1886 lm 1740 lm 4167 lm 6154 lm 6284 lm 3061 lm 3125 lm

The linear LED inserts are designed for the professional replacement of conventional T5 or T8 fluorescent tubes. Thanks to comparable space requirements and magnetic mounting, they can be installed quickly and easily in older luminaires of various designs. Only LED drivers, LED modules and lenses from quality manufacturers are installed in the luminaire inserts. This achieves very good efficiency classes with outstanding quality and durability. The LED inserts from nevalux are often used for refurbishing luminaires in gymnasiums and warehouses, but also in offices and traffic zones.

For professional refurbishment of luminaires with T5 or T8 fluorescent tubes
Universal use for all lighting tasks
Excellent efficiency and durability
Connect accessories available with powerful IoT lighting control for next-generation lighting projects (swarm function, grouping, cleaning light, etc.)
Magnetic attachment for easy and quick mounting
2 power classes, 5 lengths, 3 optics and 3 light colors available

Identification

Variant Narrow beam 60°

Variants

Length 581 mm

Dimensions

Dimensions L × W × H 581 x 32 x 24 mm

Electrical

Mains connection 220...240 V / 50 – 60 Hz

Power 14.6 W

Replaceable driver Yes

Type of wiring Suitable for through wiring

LED rated current 300 mA

Sensor technology

With motion detector No

Lighting technology

Colour temperature 3000 K

Colour rendering index 80-89

Illuminant LED

Luminous flux 2306 lm

Beam angle 60°

Luminaire luminous efficacy 158 lm/W

Lifetime

LED lifespan (25 °C) 72000 h

Settings

DALI dimming No

With emergency light No

Suitable for light band configuration Yes

Housing & material

Protection class (IP) IP20

Protection class I

Ambient temperature -25...55 °C

Housing material Aluminum

Cover material PMMA

Mounting type lighting insert

Colour Aluminum

Scope of delivery & warranty

Manufacturer warranty 5 years

Certificates & EPREL

EPREL energy efficiency class C

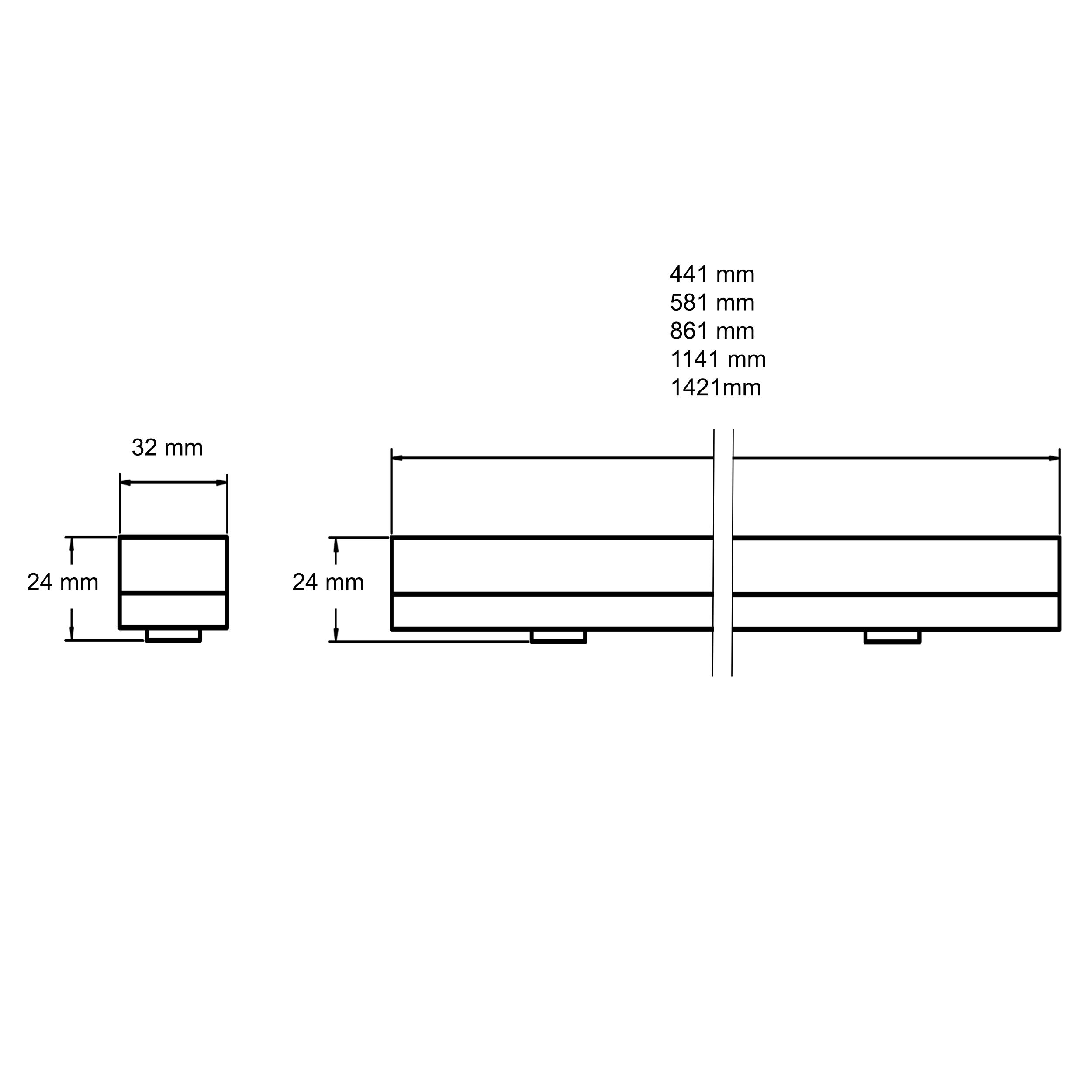

Technical drawing

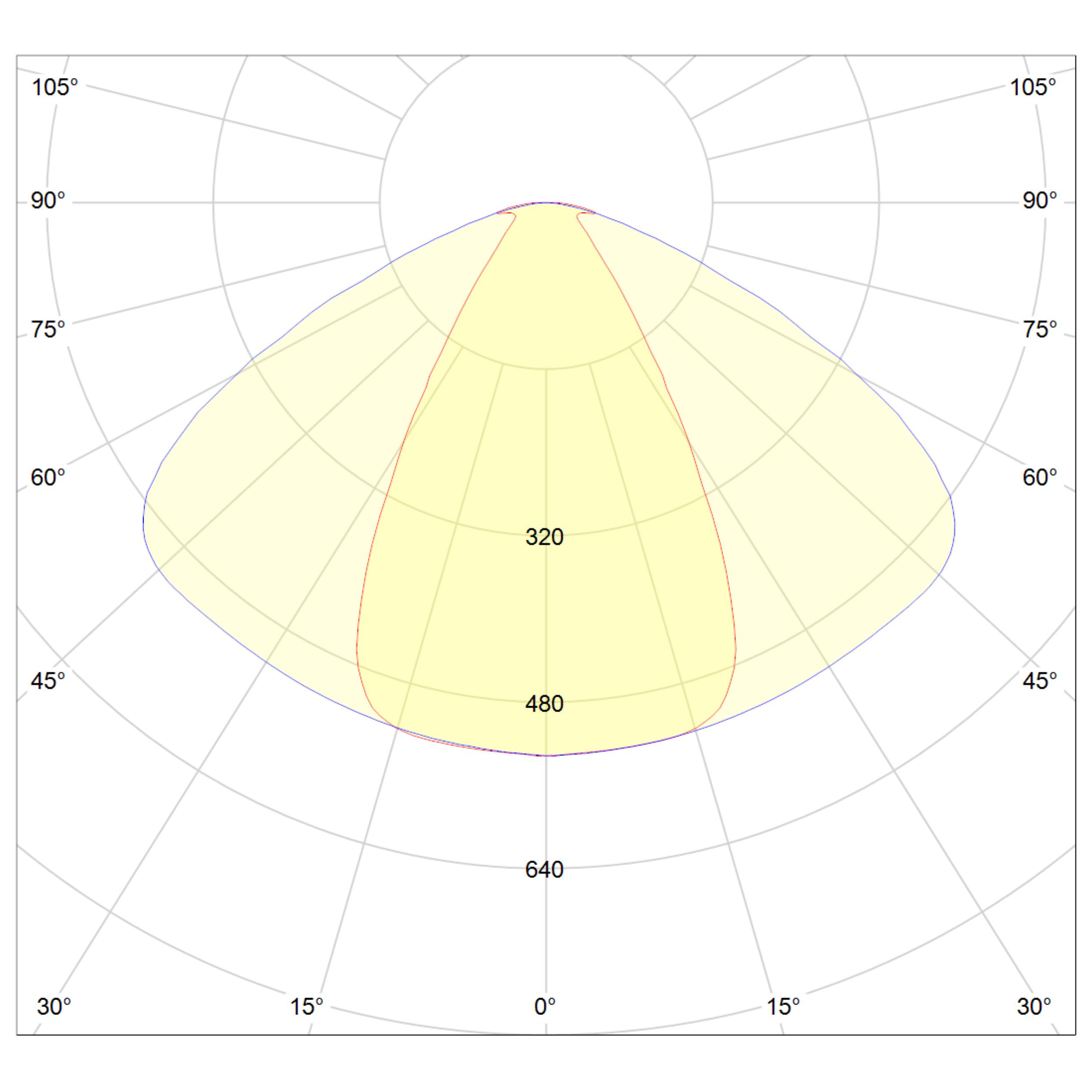

Lichtverteilungskurve

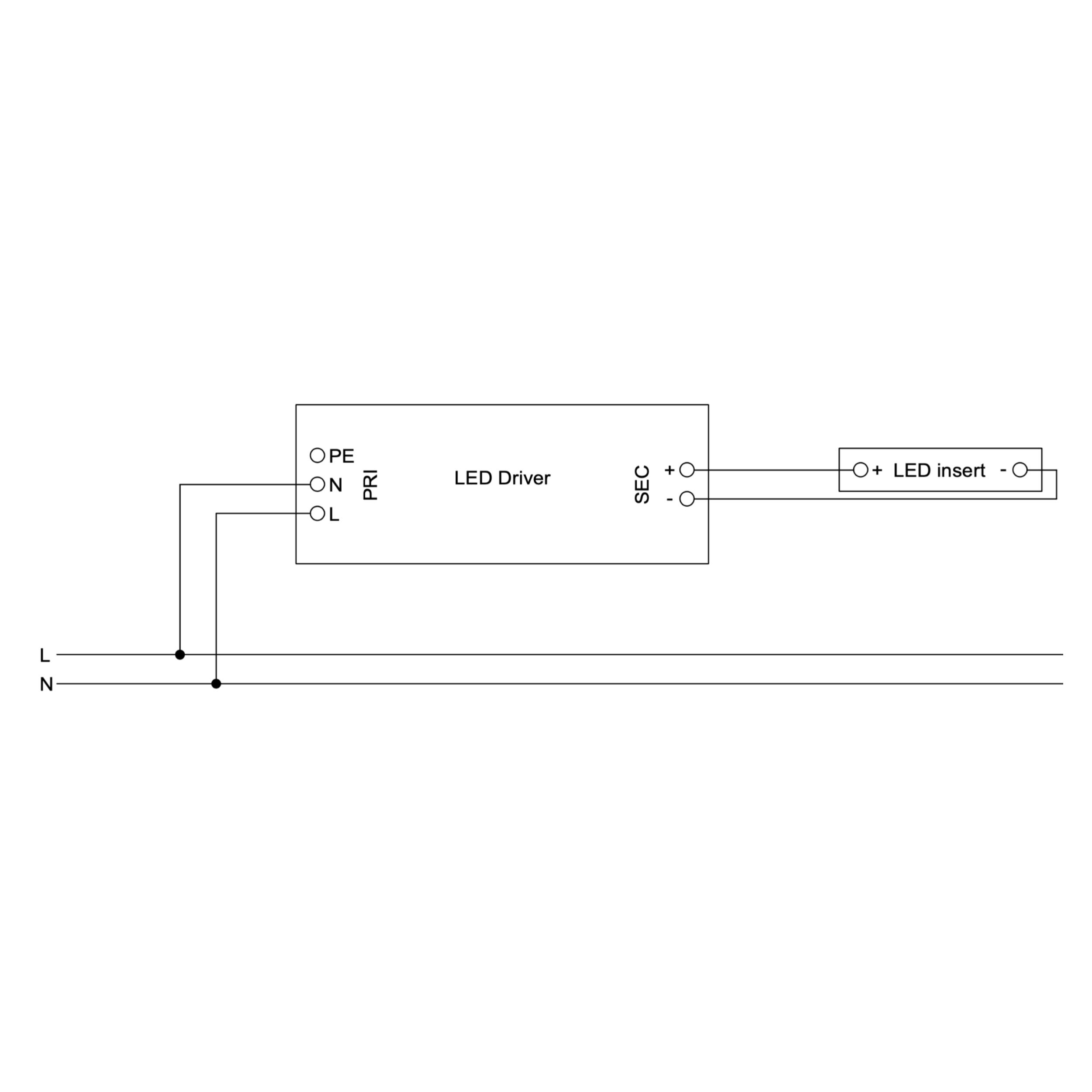

Wiring diagram 1

Wiring diagram

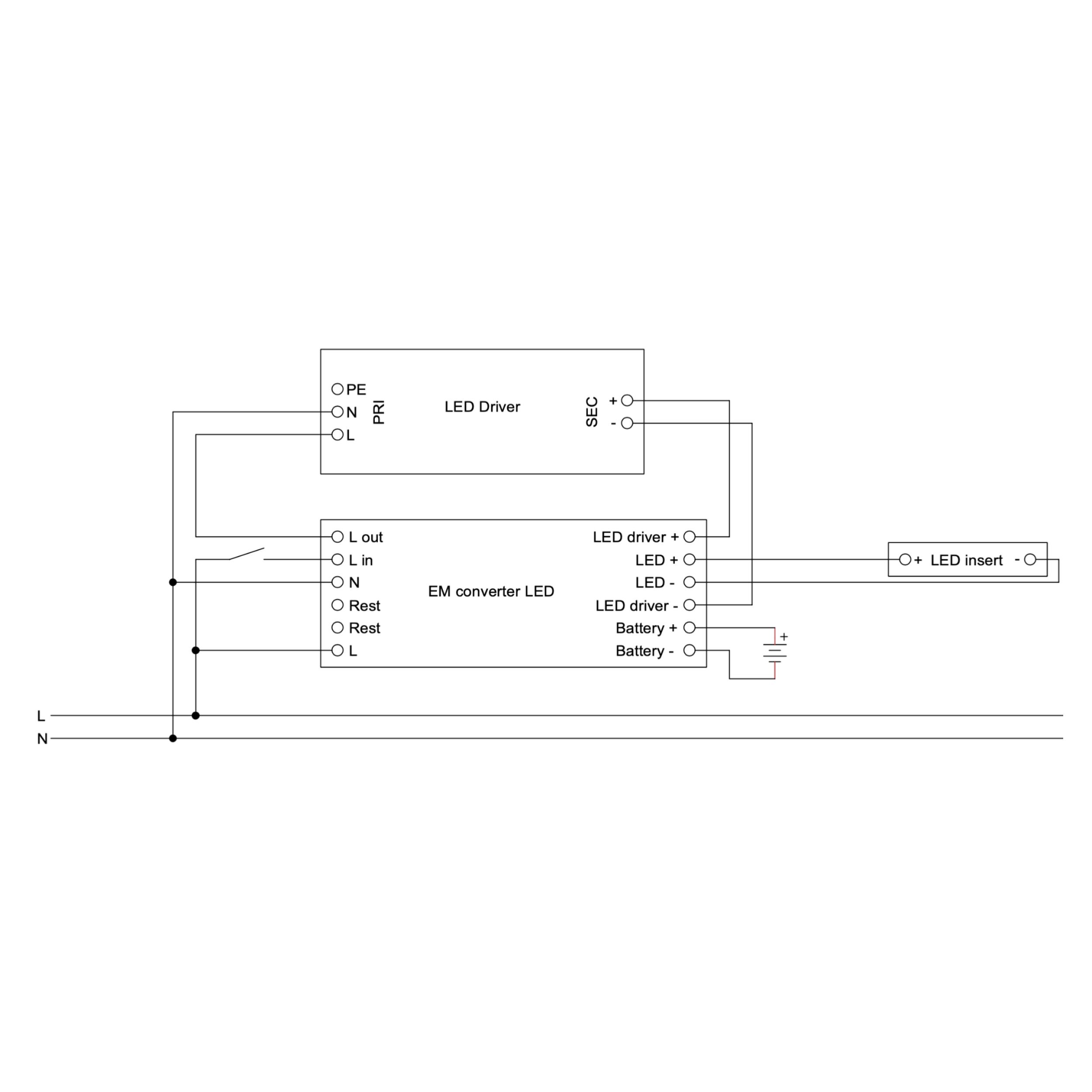

Wiring diagram 2

Wiring diagram Self-contained Emergency light
