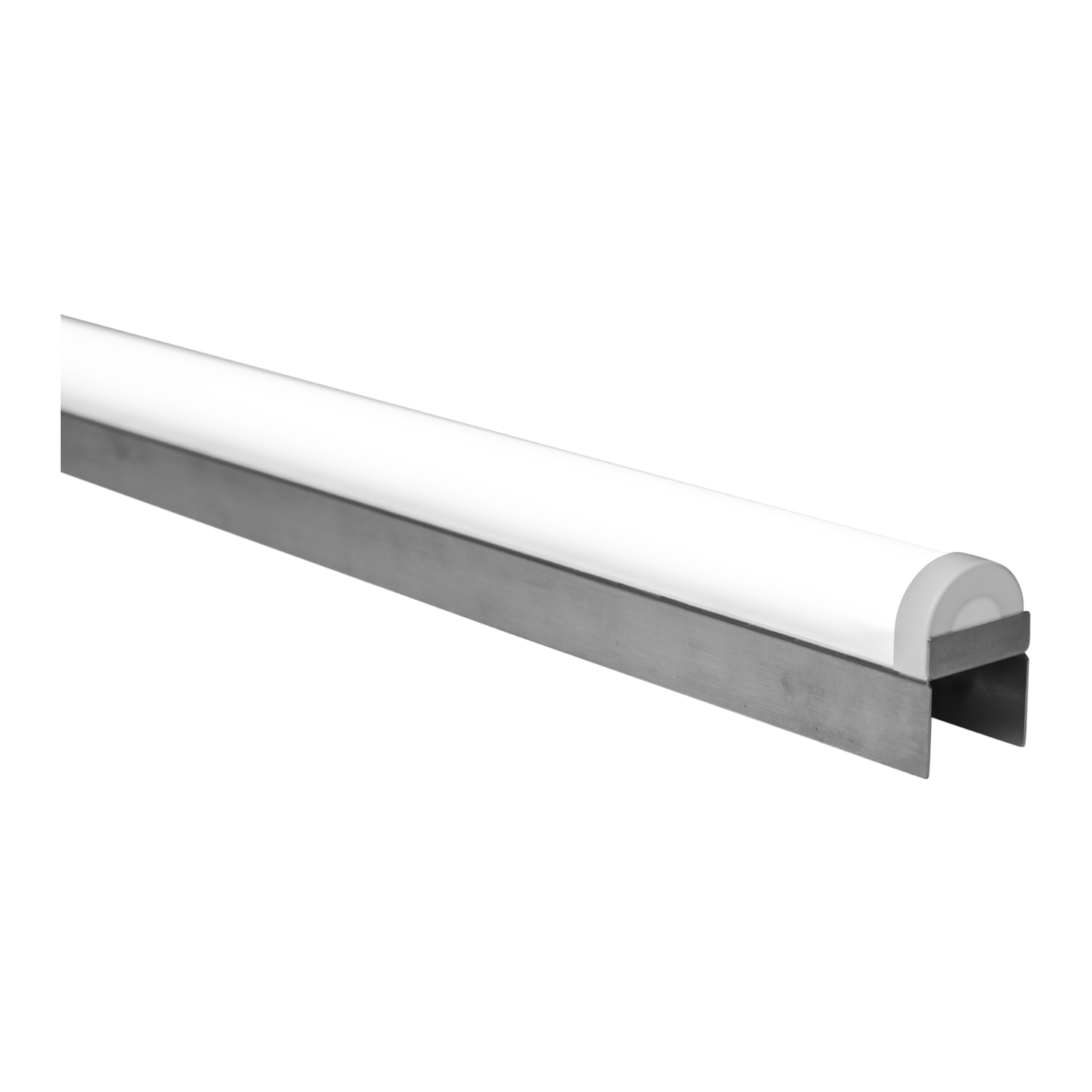

Nevalux LED Insert BT1200 4K DALI DIF

Product code 221214

Price: Please log in to see prices

Light colour

Warm white (3000K) Neutral white (4000K) Tunable White 2700K - 6500K

Version

DALI ON-OFF

Luminous flux

3939 lm 5749 lm 7385 lm 3713 lm 4642 lm 4081 lm 3265 lm 4923 lm 2874 lm 2710 lm 2449 lm 1917 lm 1807 lm 1632 lm

The linear LED inserts are designed for the professional replacement of conventional T5 or T8 fluorescent tubes. Thanks to comparable space requirements and magnetic mounting, they can be installed quickly and easily in older luminaires of various designs. Only LED drivers, LED modules and lenses from quality manufacturers are installed in the luminaire inserts. This achieves very good efficiency classes with outstanding quality and durability. The LED inserts from nevalux are often used for refurbishing luminaires in gymnasiums and warehouses, but also in offices and traffic zones.

For professional refurbishment of luminaires with T5 or T8 fluorescent tubes
Universal use for all lighting tasks
Excellent efficiency and durability
Connect accessories available with powerful IoT lighting control for next-generation lighting projects (swarm function, grouping, cleaning light, etc.)
Magnetic attachment for easy and quick mounting
2 power classes, 4 lengths and 3 light colors available
Built-in LED driver, optionally DALI or ON-OFF

Identification

Variant Gear tray, diffuse optics

Variants

Length 1141 mm

Dimensions

Dimensions L × W × H 1141 x 38 x 63.5 mm

Electrical

Mains connection 220...240 V / 50 – 60 Hz

Power 29.3 W

Replaceable driver Yes

Type of wiring Suitable for through wiring

LED rated current 300 mA

Sensor technology

With motion detector No

Lighting technology

Colour temperature 4000 K

Colour rendering index 80-89

Illuminant LED

Luminous flux 3939 lm

Beam angle 120°

Luminaire luminous efficacy 134 lm/W

Lifetime

LED lifespan (25 °C) 72000 h

Settings

DALI dimming Yes

With emergency light No

Suitable for light band configuration Yes

Housing & material

Protection class (IP) IP20

Protection class I

Ambient temperature -25...55 °C

Housing material Aluminum

Cover material PMMA

Mounting type lighting insert

Colour Aluminum

Scope of delivery & warranty

Manufacturer warranty 5 years

Certificates & EPREL

EPREL energy efficiency class D

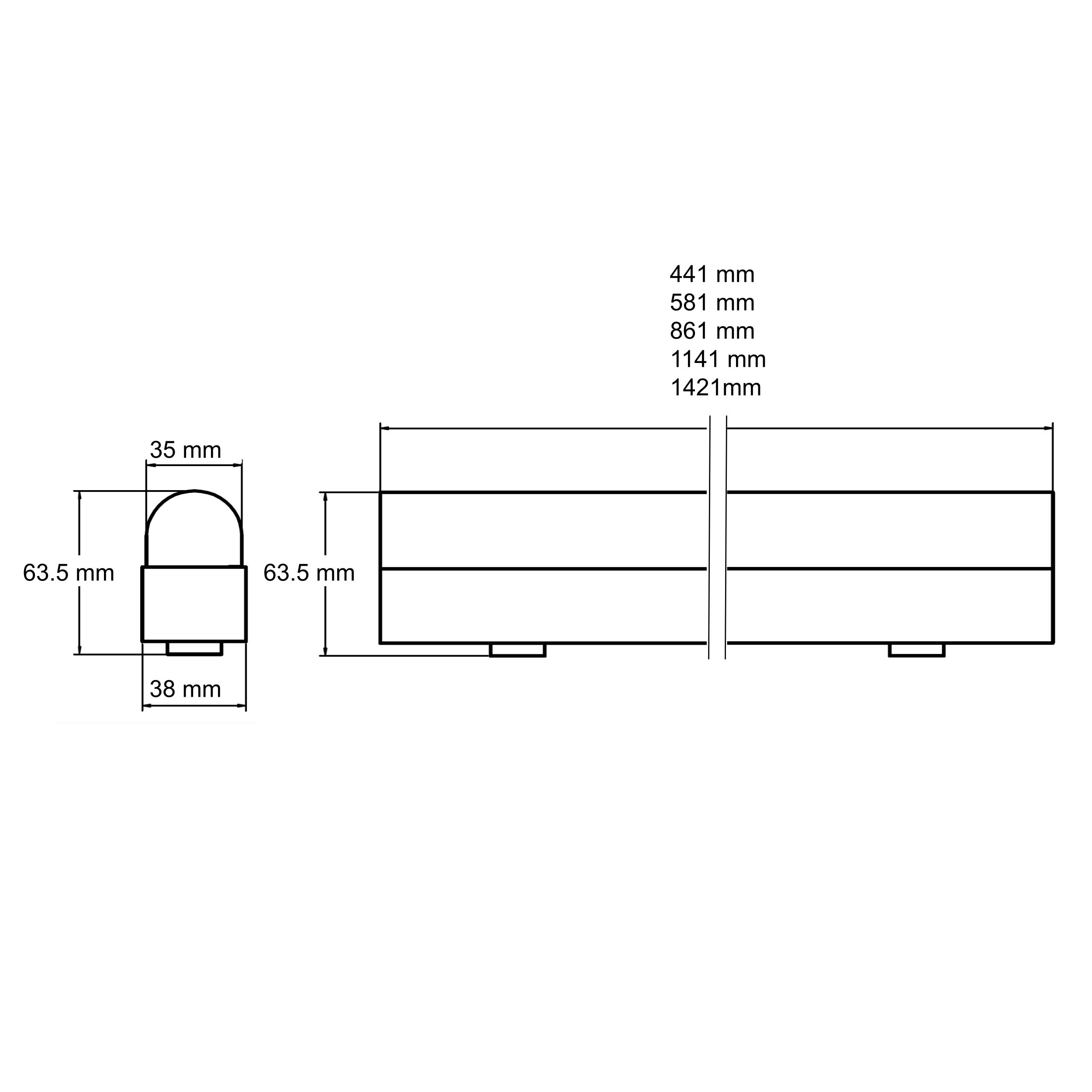

Technical drawing

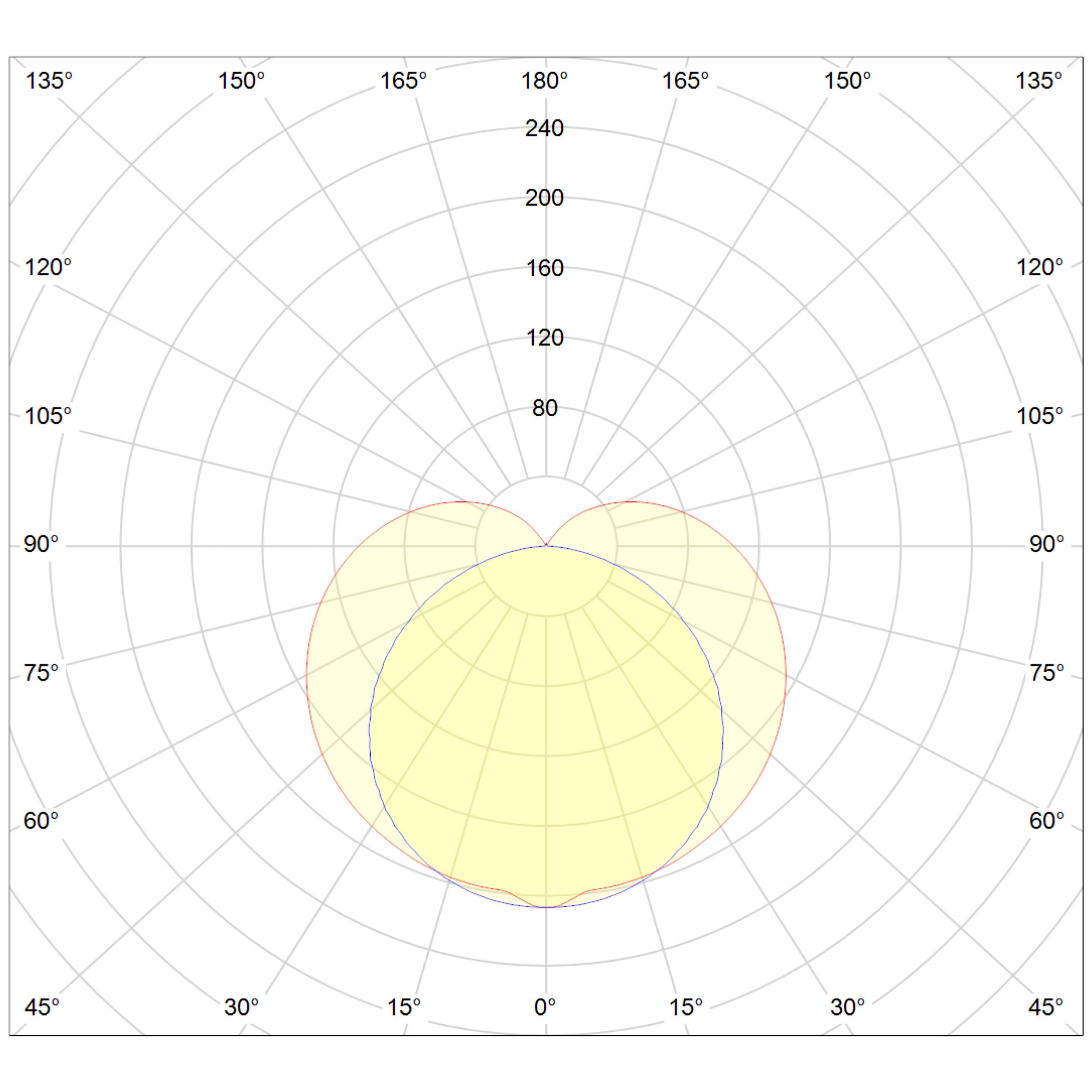

Lichtverteilungskurve

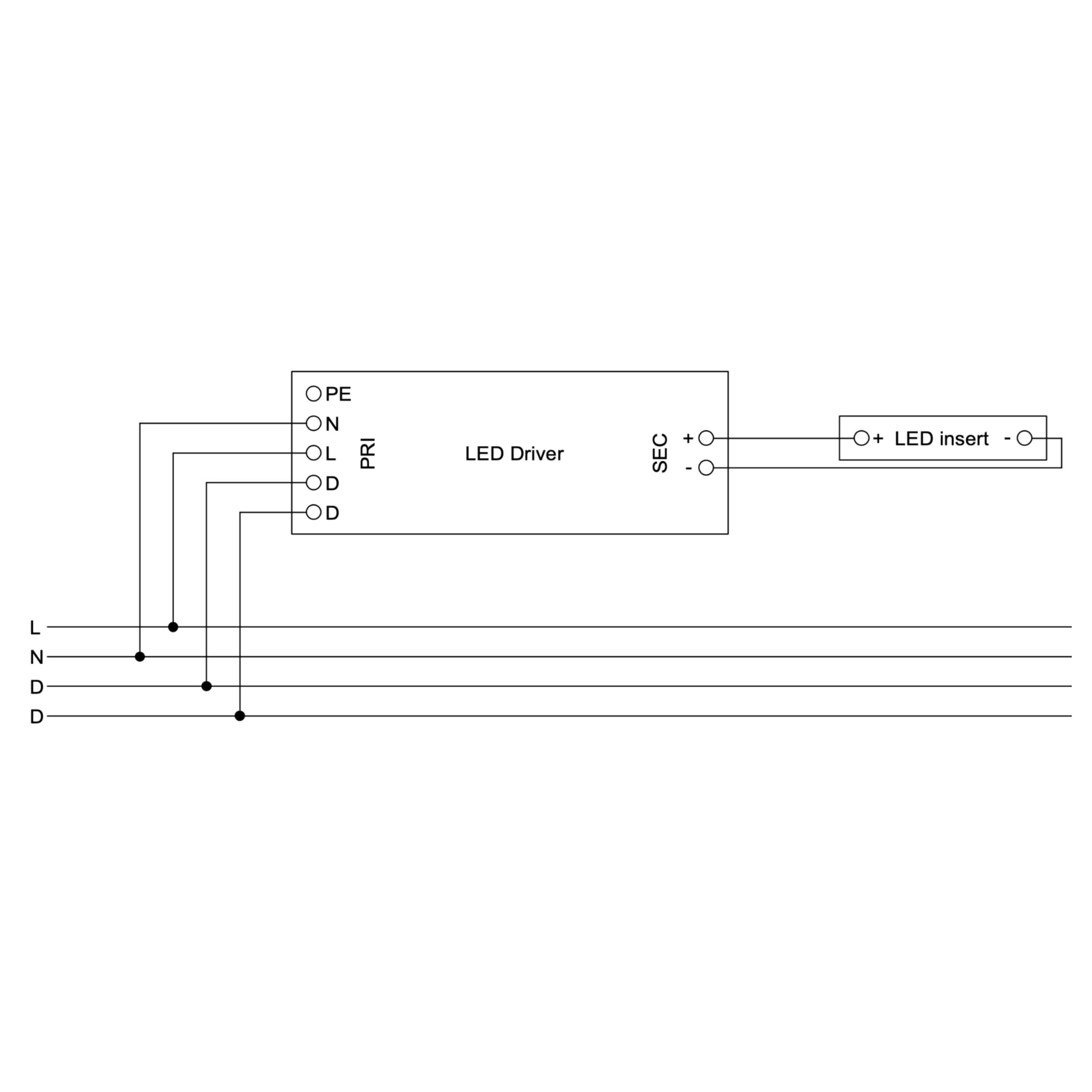

Wiring diagram 1

Wiring diagram

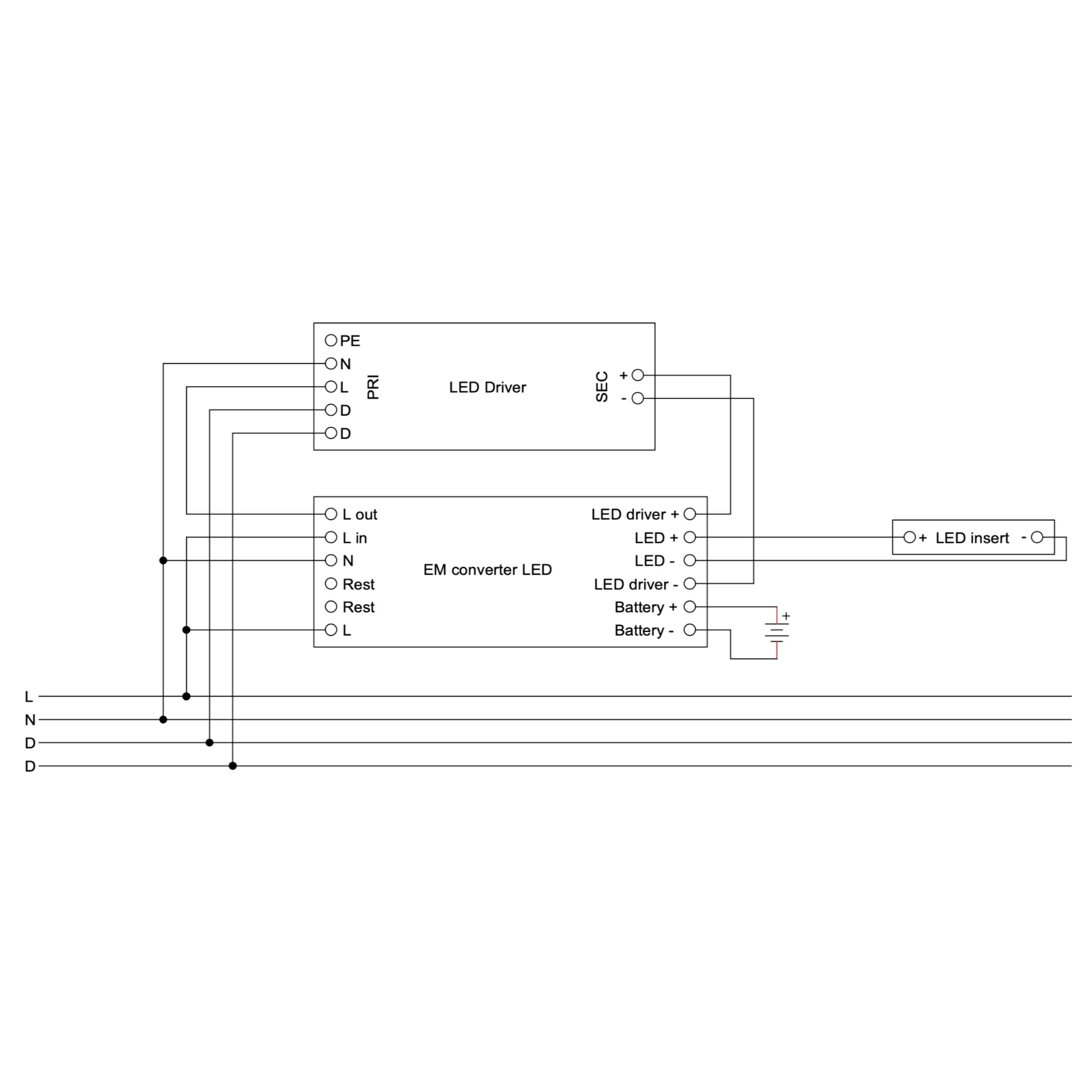

Wiring diagram 2

Wiring diagram Self-contained Emergency light

Data sheet LDT file (light distribution)
