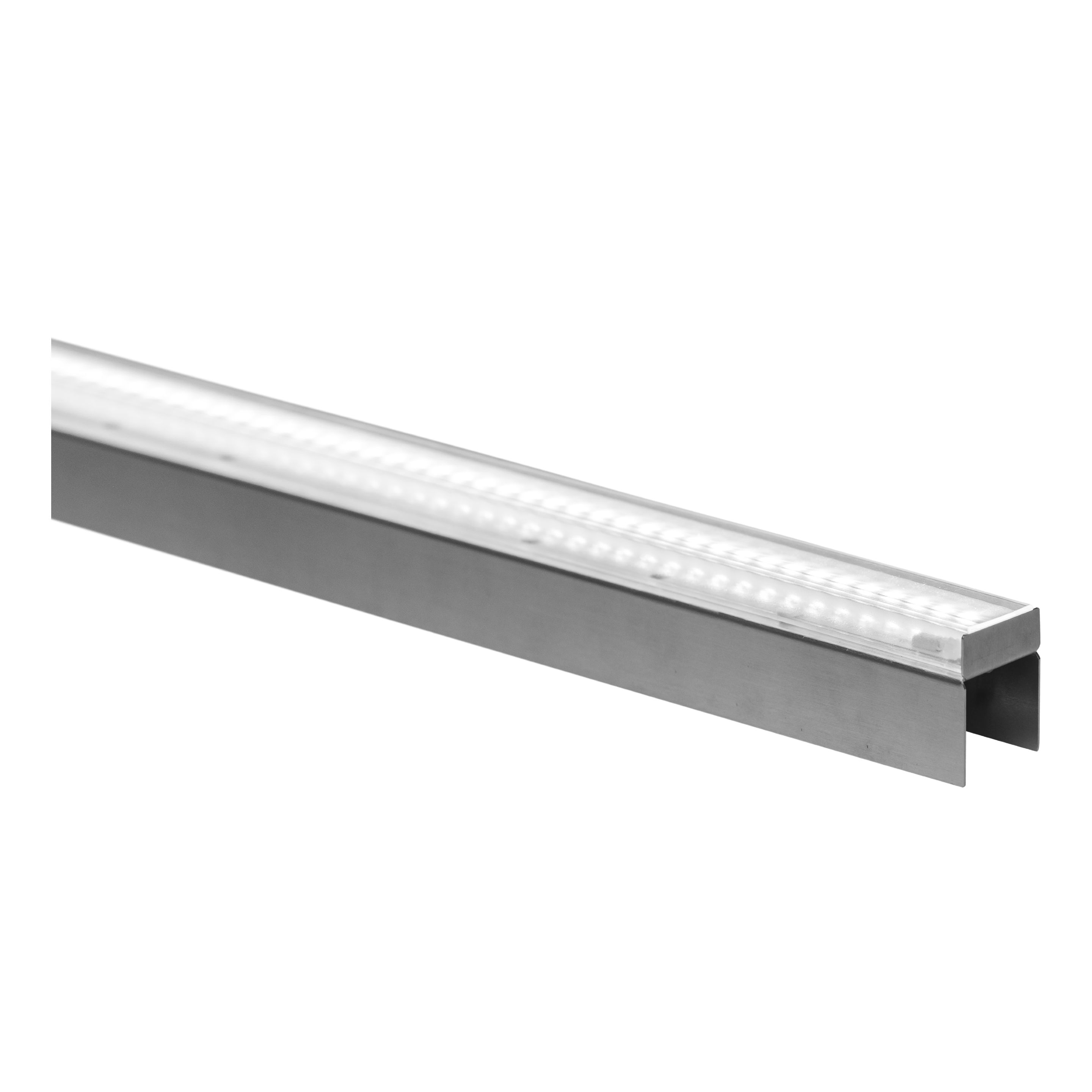

The linear LED inserts are designed for the professional replacement of conventional T5 or T8 fluorescent tubes. Thanks to comparable space requirements and magnetic mounting, they can be installed quickly and easily in older luminaires of various designs. Only LED drivers, LED modules and lenses from quality manufacturers are installed in the luminaire inserts. This achieves very good efficiency classes with outstanding quality and durability. The LED inserts from nevalux are often used for refurbishing luminaires in gymnasiums and warehouses, but also in offices and traffic zones.
- For professional refurbishment of luminaires with T5 or T8 fluorescent tubes
- Universal use for all lighting tasks
- Excellent efficiency and durability
- Connect accessories available with powerful IoT lighting control for next-generation lighting projects (swarm function, grouping, cleaning light, etc.)
- Magnetic attachment for easy and quick mounting
- 2 power classes, 4 lengths, 3 optics and 3 light colors available
- Built-in LED driver, optionally DALI or ON-OFF
Variants
Version
DALI
Luminous flux
5209 lm
Length
1421 mm
Dimensions
Dimensions L × W × H
1421 x 38 x 47 mm
Electrical
Mains connection
230 V / 50 – 60 Hz
Power
32,5 W
Replaceable driver
Yes
Type of wiring
Suitable for through wiring
LED rated current
900 mA
Sensor technology
With motion detector
No
Connectivity
Networking via
DALI 2
Lighting technology
Colour temperature
2700...6500 K
Colour rendering index
80 - 89
Illuminant
LED
Luminous flux
5209 lm
Beam angle
60°
Luminaire luminous efficacy
160 lm/W
Lifetime
LED lifespan (25 °C)
72000 h
Settings
DALI dimming
Yes
With emergency light
No
Suitable for light band configuration
Yes
Housing & material
Protection class (IP)
IP20
Protection class
I
Ambient temperature
-25...+55 °C
Housing material
Aluminium
Cover material
PMMA
Mounting type
Luminaire insert
Colour
Aluminum
Scope of delivery & warranty
Manufacturer warranty
5 years
Certificates & EPREL
EPREL energy efficiency class
C

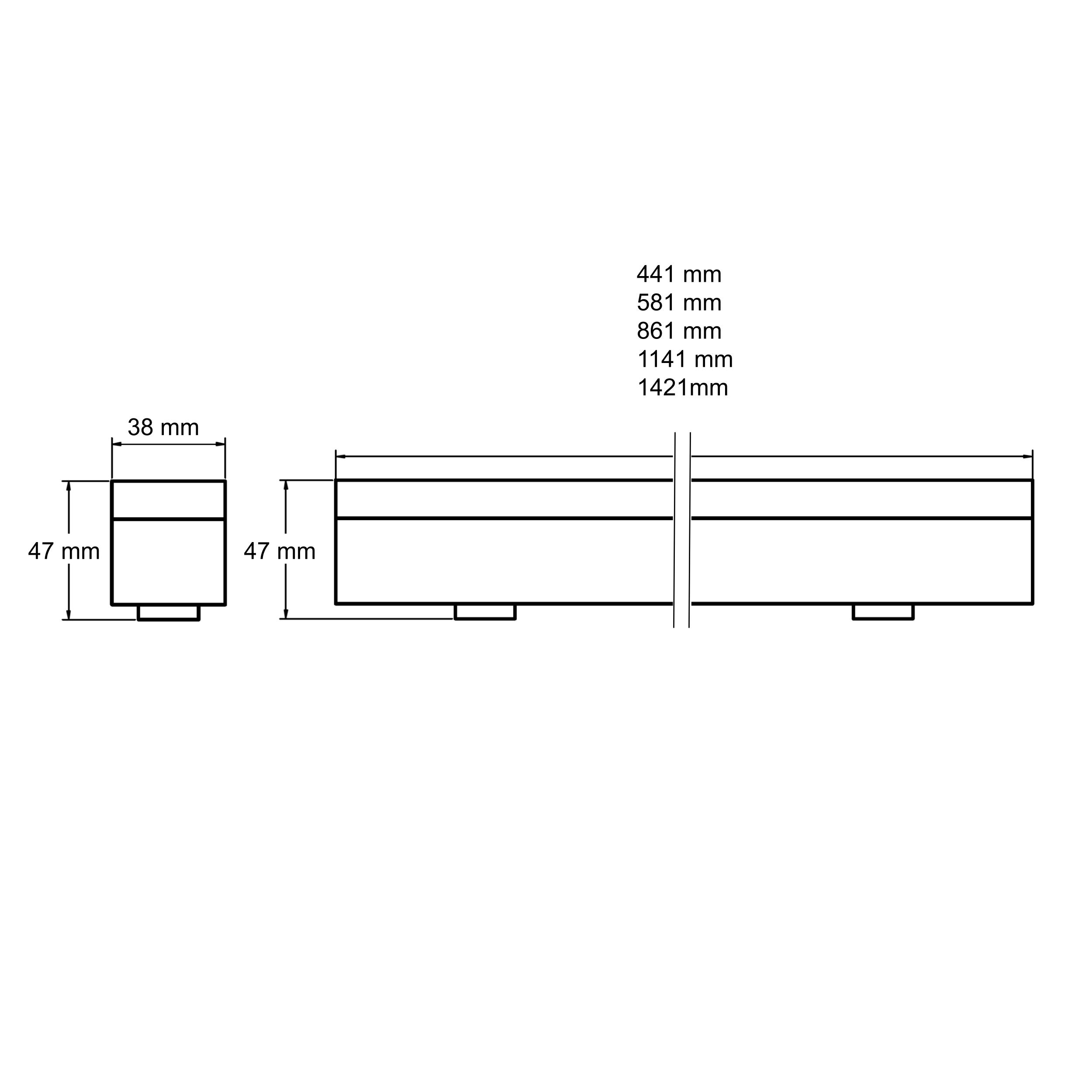

Technical drawing

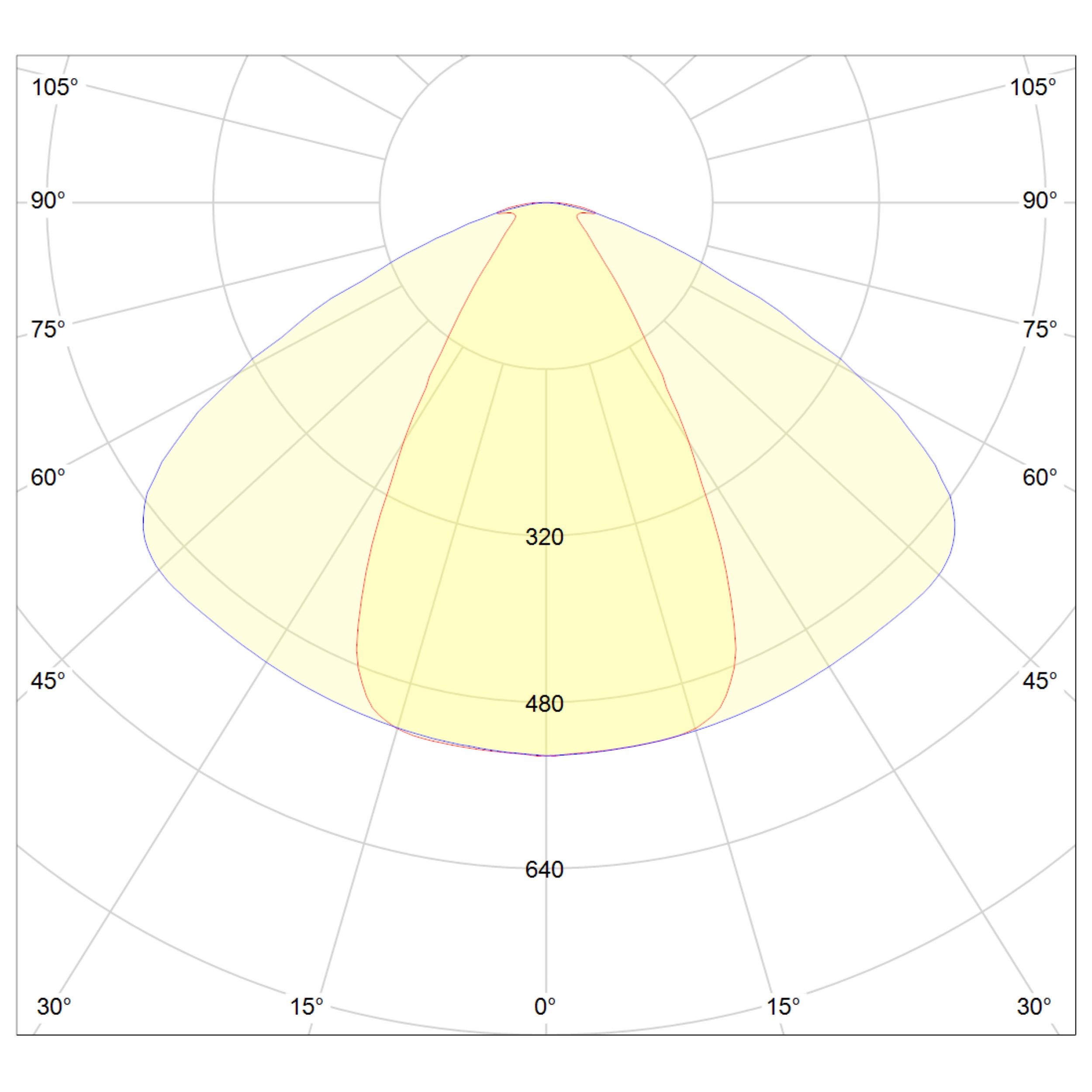

Lichtverteilungskurve

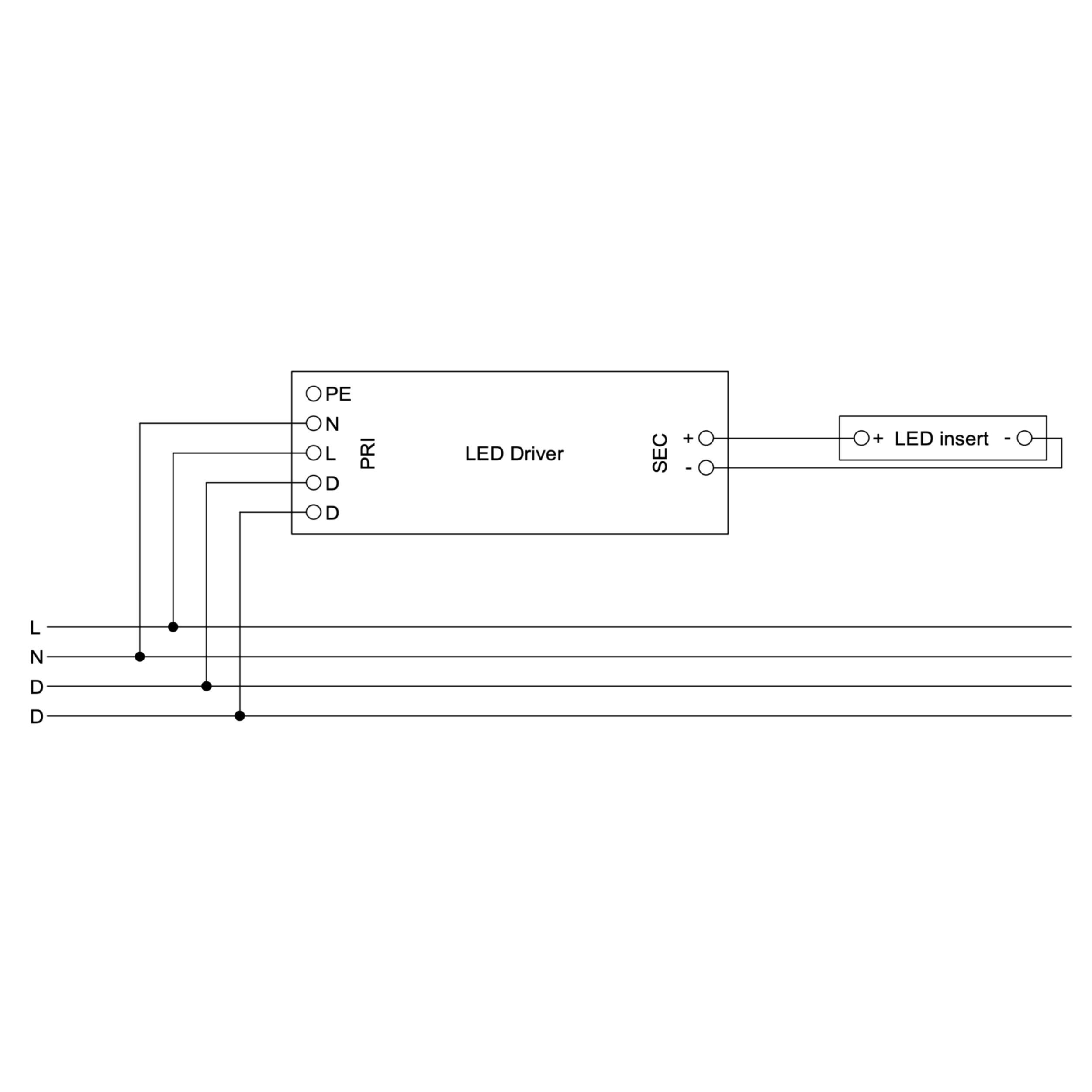

Wiring diagram 1
Wiring diagram

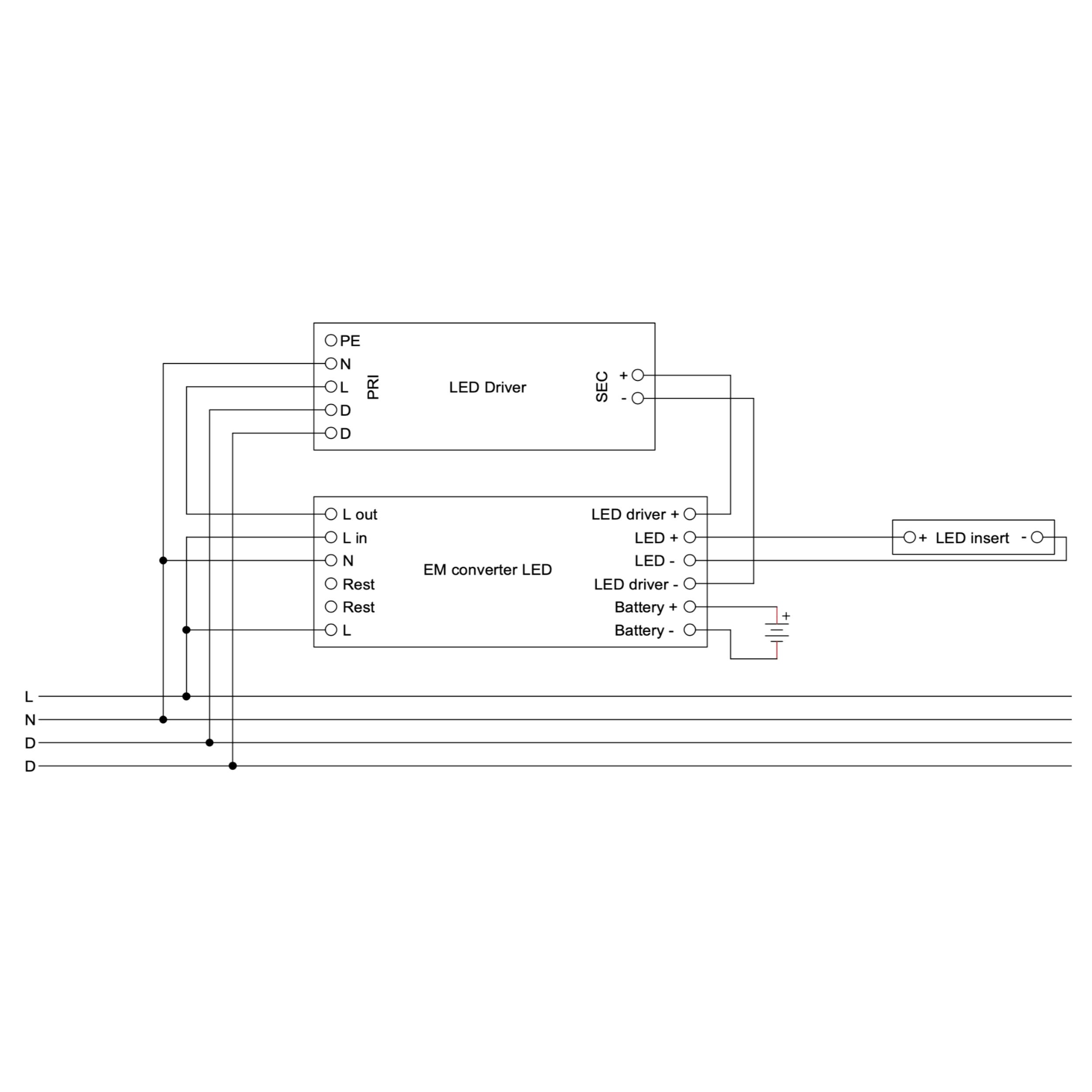

Wiring diagram 2
Wiring diagram Self-contained Emergency light
