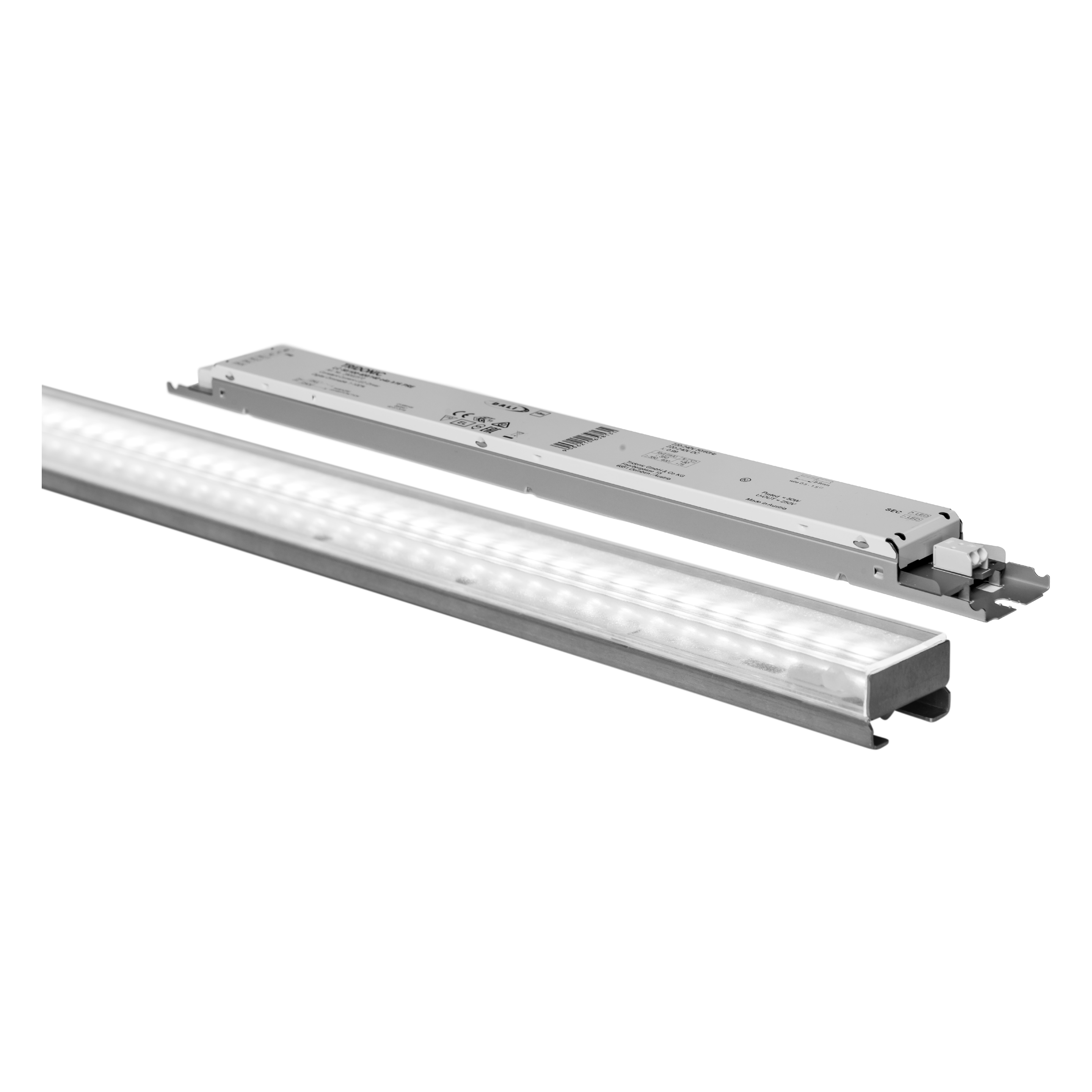

The linear LED inserts are designed for the professional replacement of conventional T5 or T8 fluorescent tubes. Thanks to comparable space requirements and magnetic mounting, they can be installed quickly and easily in older luminaires of various designs. Only LED drivers, LED modules and lenses from quality manufacturers are installed in the luminaire inserts. This achieves very good efficiency classes with outstanding quality and durability. The LED inserts from nevalux are often used for refurbishing luminaires in gymnasiums and warehouses, but also in offices and traffic zones.
- The linear LED inserts are designed for the professional replacement of conventional T5 or T8 fluorescent tubes. Thanks to comparable space requirements and magnetic mounting, they can be installed quickly and easily in older luminaires of various designs. Only LED drivers, LED modules and lenses from quality manufacturers are installed in the luminaire inserts. This achieves very good efficiency classes with outstanding quality and durability. The LED inserts from nevalux are often used for refurbishing luminaires in gymnasiums and warehouses, but also in offices and traffic zones.
Identification
Variant
Wide beam
Variants
Luminous flux
4779 lm
Dimensions
Dimensions L × W × H
1141 x 32 x 24 mm
Electrical
Mains connection
220...240 V / 50 – 60 Hz
Power
28.7 W
Replaceable driver
Yes
Type of wiring
Suitable for through wiring
LED rated current
300 mA
Sensor technology
Sensor technology
High frequency
With motion detector
Yes
Detection angle
360 °
Radial range
Ø 8 m (50 m²)
Tangential range
Ø 8 m (50 m²)
Mounting height
< 3 m
With light sensor
Yes
Connectivity
With radio network control
Yes
Lighting technology
Colour temperature
4000 K
Colour rendering index
80-89
Illuminant
LED
Luminous flux
4779 lm
Beam angle
110°
Luminaire luminous efficacy
167 lm/W
Lifetime
LED lifespan (25 °C)
72000 h
Settings
DALI dimming
Yes
With emergency light
No
Suitable for light band configuration
Yes
With program-controlled lighting control
Yes
Constant light output control
Yes
Housing & material
Protection class (IP)
IP20
Protection class
I
Ambient temperature
-25...55 °C
Housing material
Aluminum
Cover material
PMMA
Mounting type
lighting insert
Colour
Aluminum
Scope of delivery & warranty
Manufacturer warranty
5 years
Certificates & EPREL
EPREL energy efficiency class
C

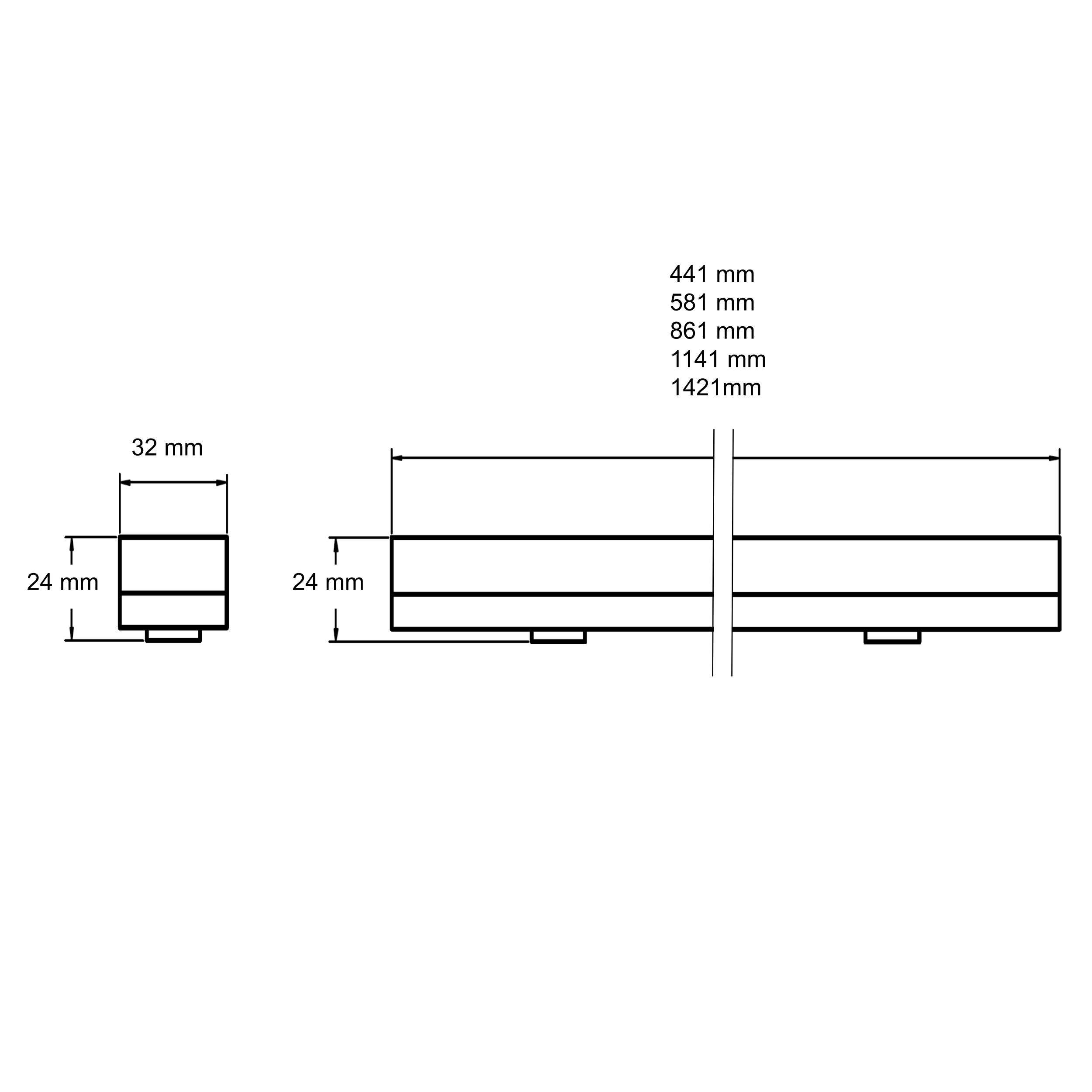

Technical drawing

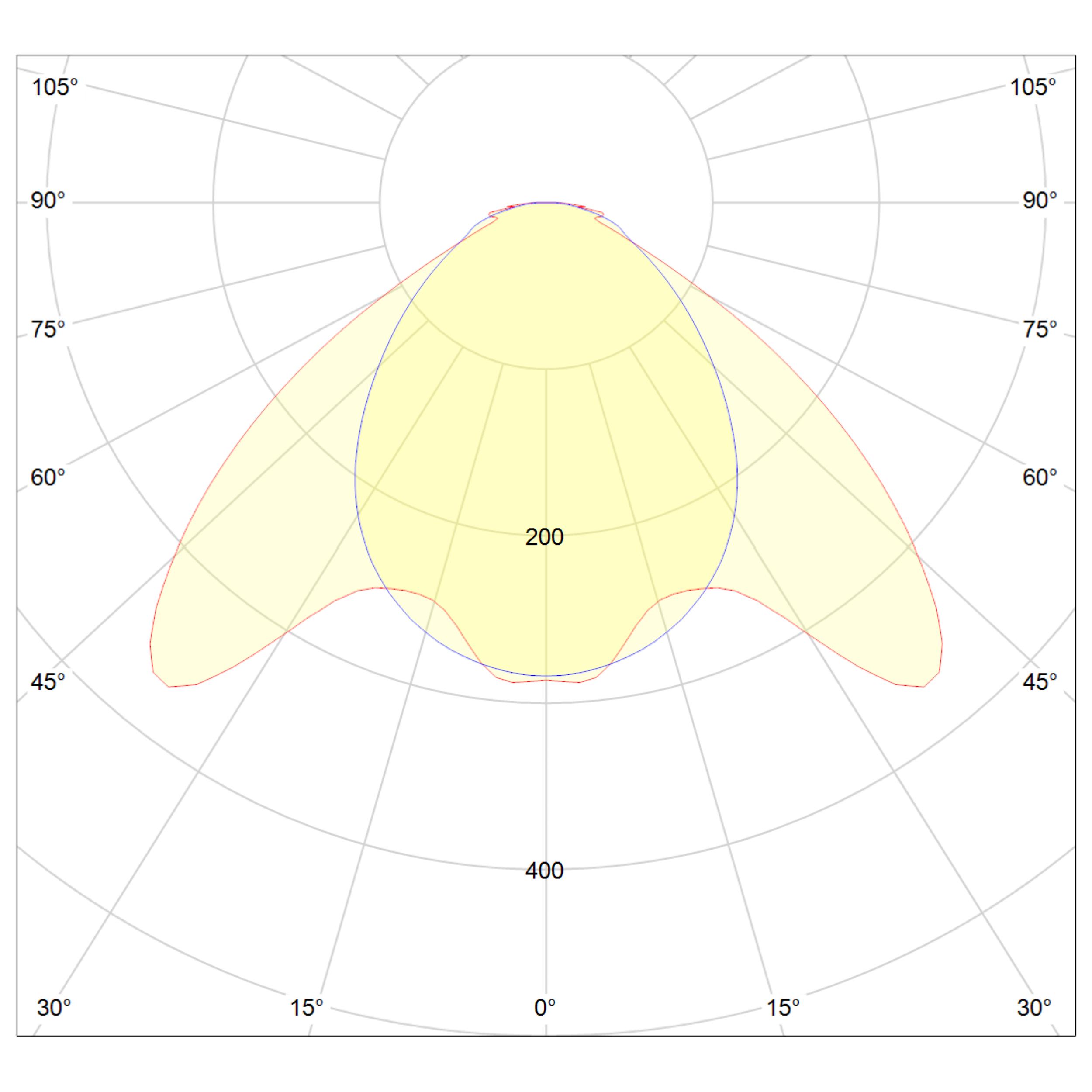

Lichtverteilungskurve

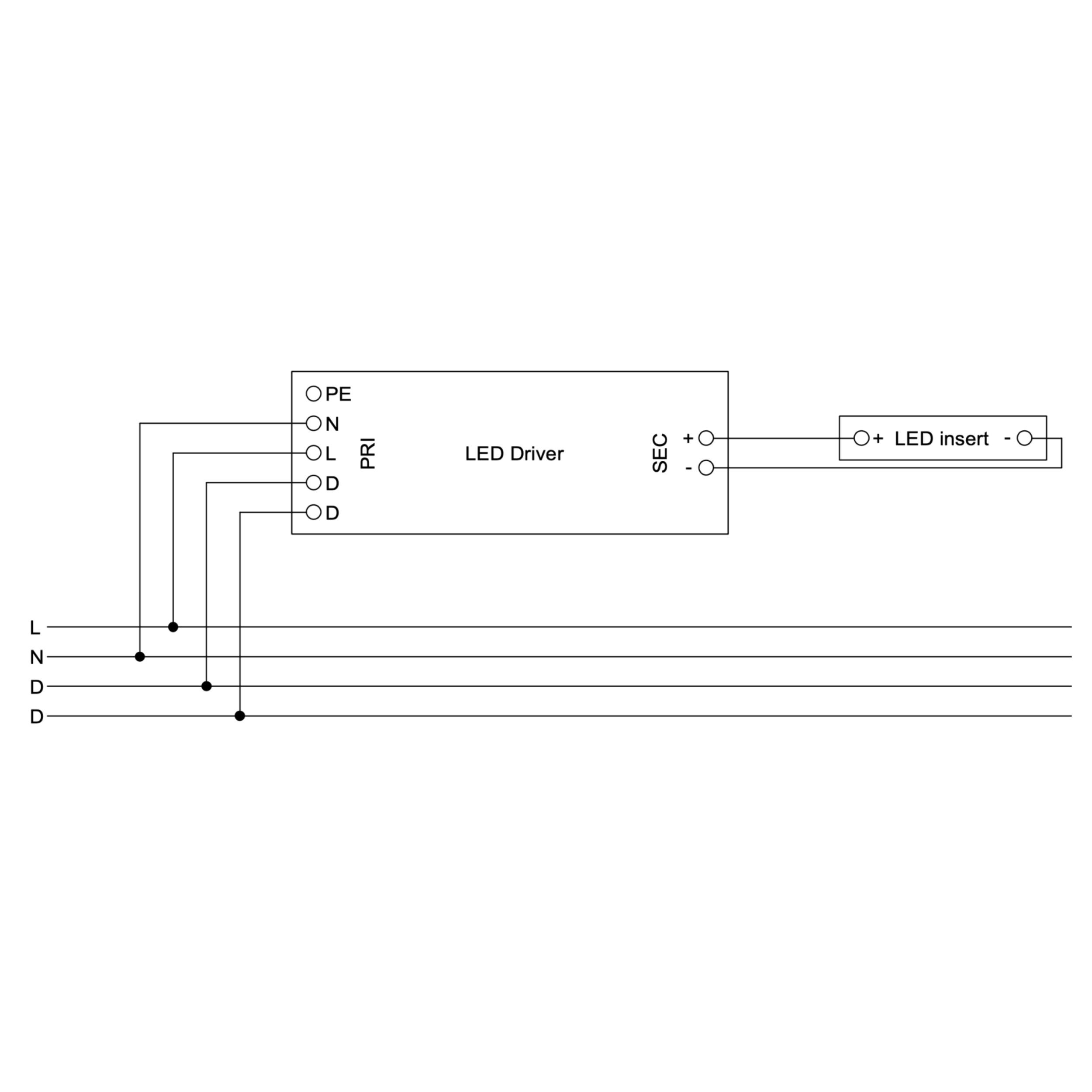

Wiring diagram 1
Wiring diagram

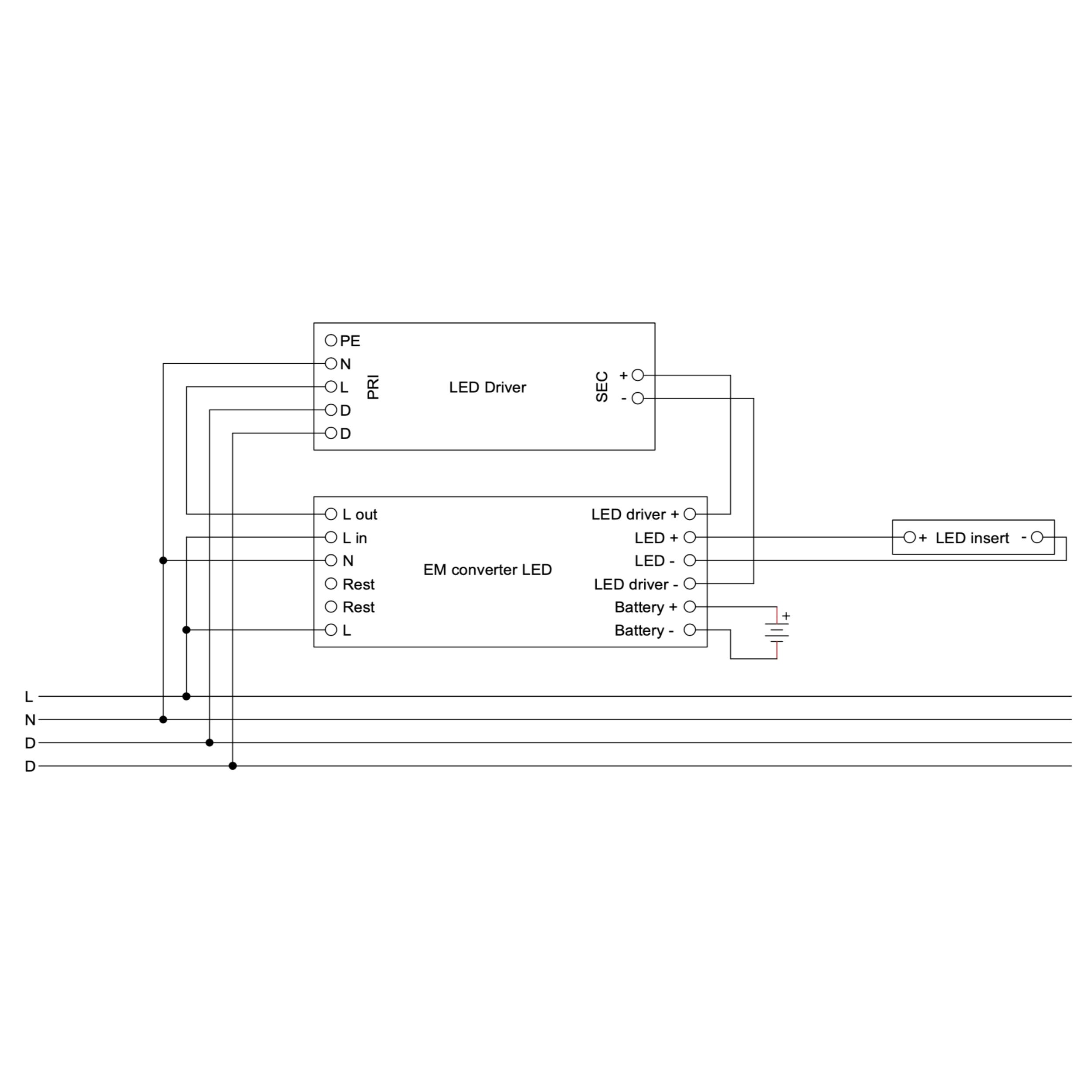

Wiring diagram 2
Wiring diagram Self-contained Emergency light
