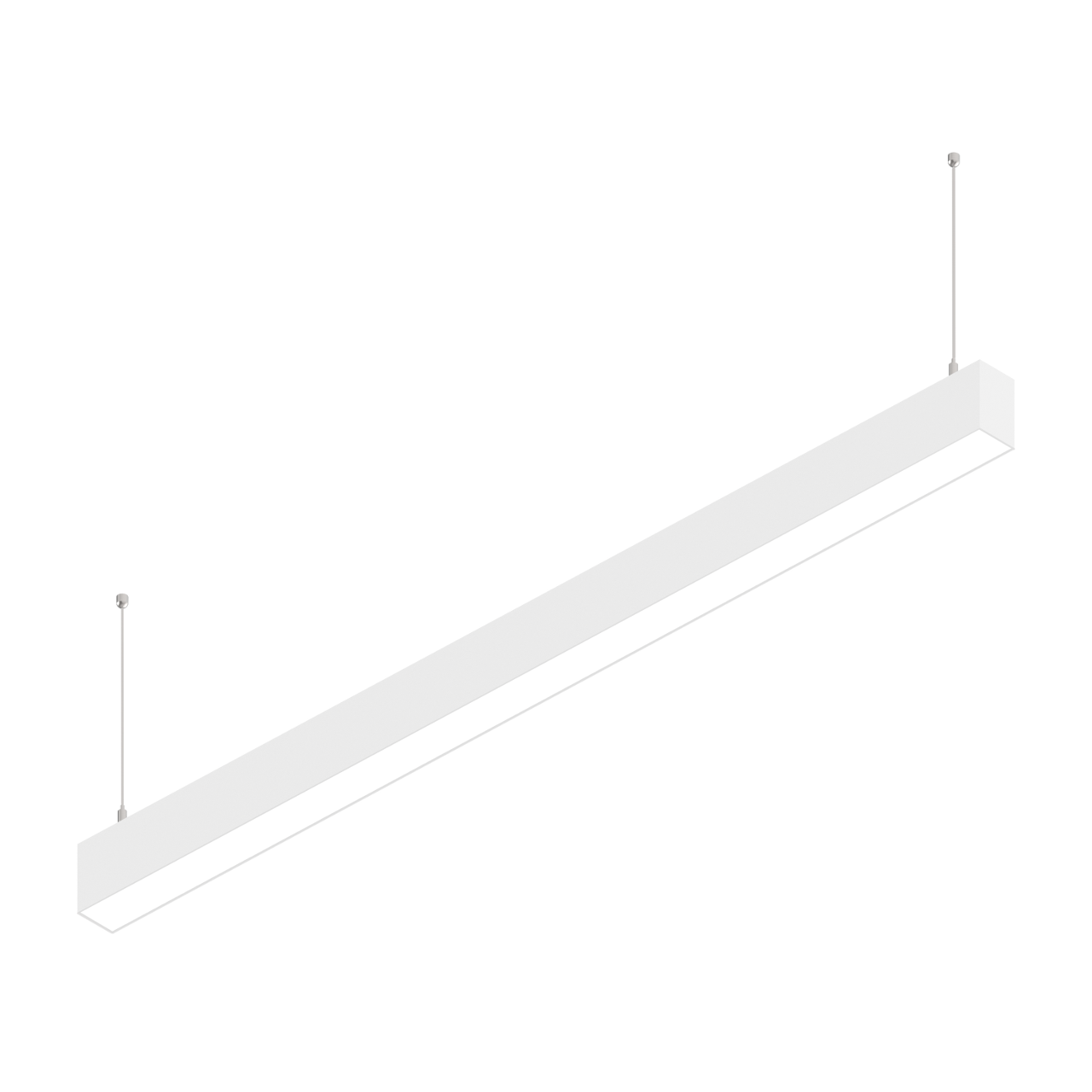

Nevalux lisha connect P1200 4K
Product code 221487
This product is being replaced by a successor product.
Go to successor product · lisha V2 connect PIR C1200 4K (221977)Version
1200mm
1800mm
Intelligence
DALI without intelligence
Connect incl. light control
Luminous flux
5500 lm (Down 3800, Up 1700)
7900 lm (Down 5500, Up 2400)
3800 lm
5500 lm
2700 lm
3700 lm
6100 lm (Down 3700, Up 2400)
4400 lm (Down 2700, Up 1700)
- For universal use for lighting offices, schools, traffic zones, etc.
- Available as intelligent Connect version or as conventional DALI luminaire
- Connect variant with powerful IoT lighting control for next-generation lighting projects (swarm function, grouping, cleaning light, etc.)
- Direct and indirect light proportion separately controllable
- Link technology for seamless extension of the luminaire with continuous wiring
- Variants with 1.2 and 1.8 meter length available
- Housing Aluminium RAL9016, white
Dimensions
Dimensions L × W × H
1205 x 50 x 95 mm
Suspension length
1500 mm
Electrical
Mains connection
200...240 V / 50 – 60 Hz
Power
49 W
Replaceable driver
Yes
Type of wiring
Through wiring included
LED rated current
700 mA / 250 mA
Maximum number of luminaires per circuit breaker
C10: 15x, C16: 23x, C20: 29x, B10: 9x, B16: 14x, B25: 17x
Sensor technology
Sensor technology
passive infrared
With motion detector
Yes
Detection angle
360 °
Radial range
4 x 4 m (16 m²)
Tangential range
6 x 6 m (36 m²)
Mounting height
< 10 m
Presence range
4 x 4 m (16 m²)
With light sensor
Yes
Connectivity
With radio network control
Yes
Lighting technology
Colour temperature
4000 K
LED colour deviation
SDCM3
Colour rendering index
80-89
Illuminant
LED
Luminous flux
5500 lm (Down 3800, Up 1700)
Beam angle
Down 105°, Up 115°
Luminaire luminous efficacy
112 lm/W
Glare value
UGR < 22
Lifetime
LED lifespan (25 °C)
50000 h
Settings
DALI dimming
Yes
With emergency light
No
Suitable for light band configuration
Yes
Direct/indirect ratio separately controllable
Yes
With program-controlled lighting control
Yes
Constant light output control
Yes
Housing & material
Protection class (IP)
IP20
Protection class
I
Ambient temperature
-20...45 °C
Housing material
Aluminum
Cover material
Acrylic glass opal
Mounting type
Ceiling pendant
Colour
white
Scope of delivery & warranty
Manufacturer warranty
5 years
Certificates & EPREL
EPREL energy efficiency class
E
Technical drawing

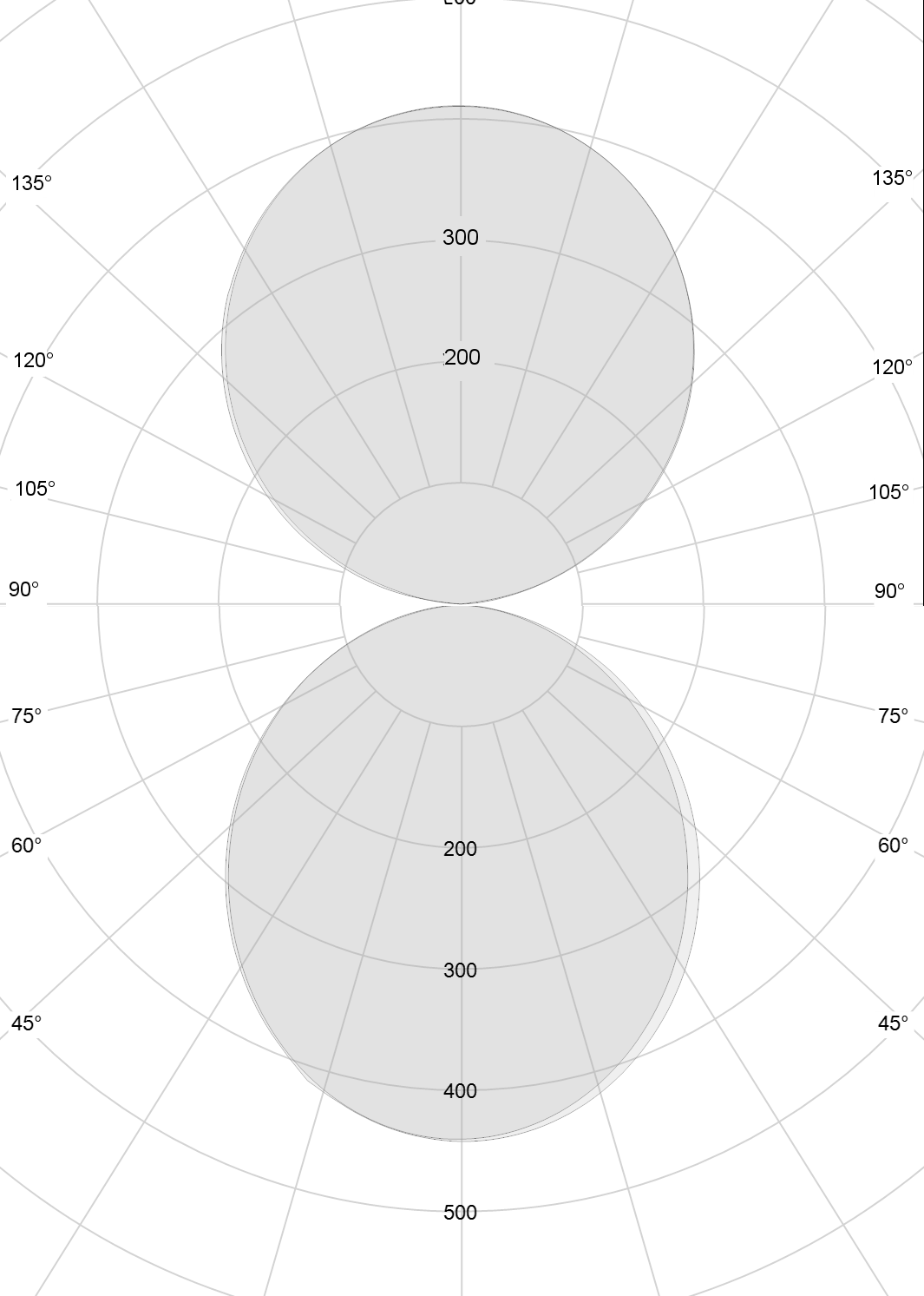

Lichtverteilungskurve

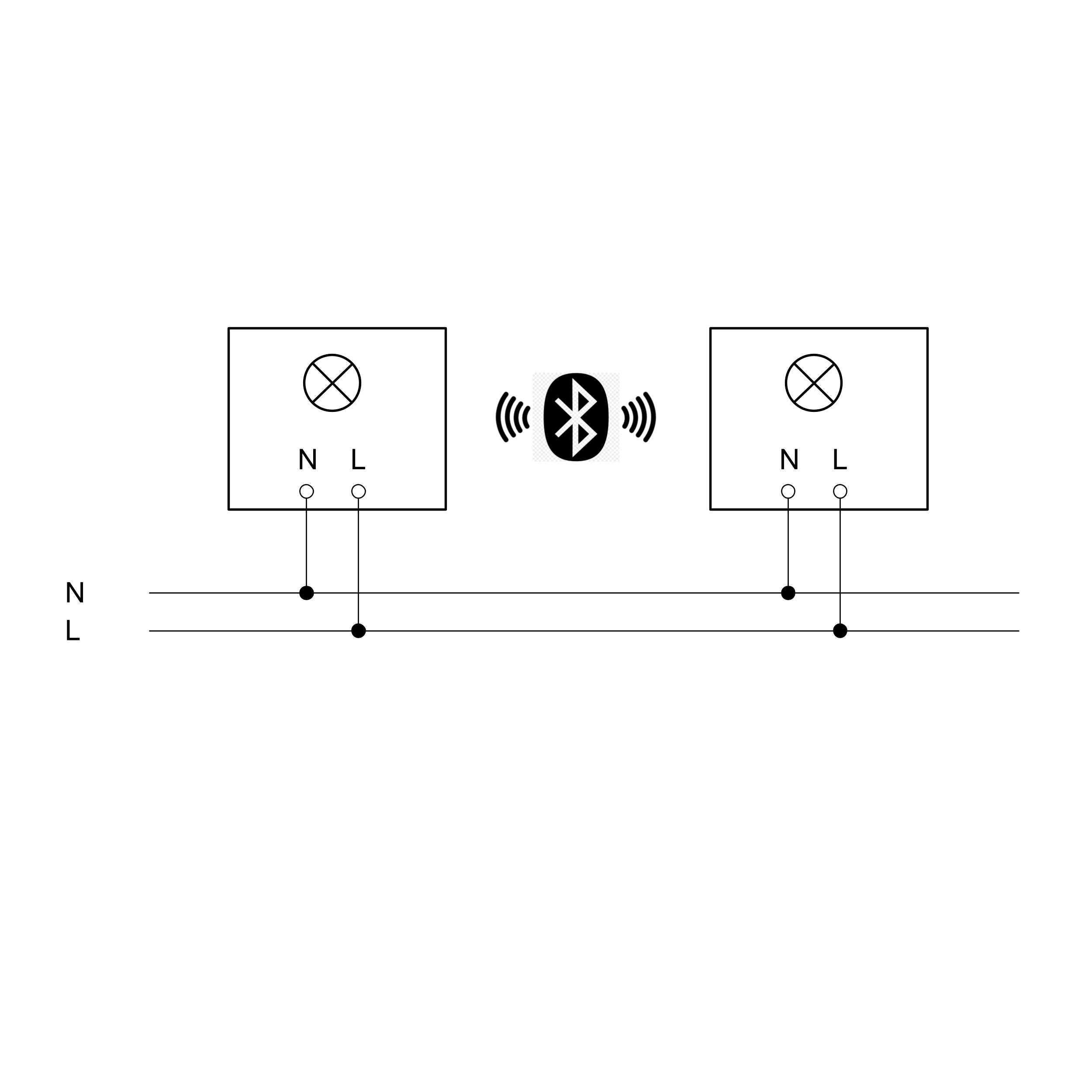

Wiring diagram 1
Wiring diagram networking radio

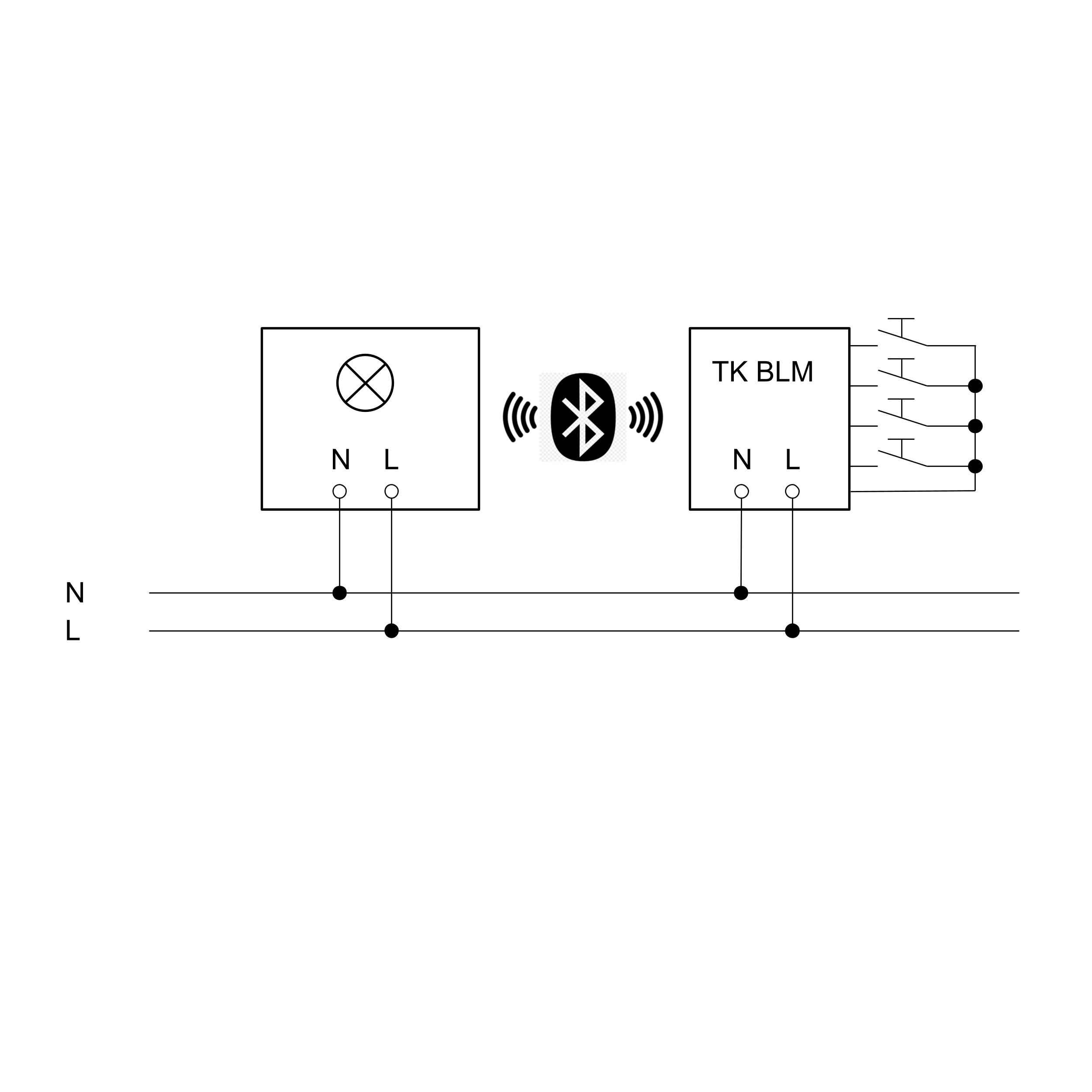

Wiring diagram 2
Wiring diagram pushbutton coupler
