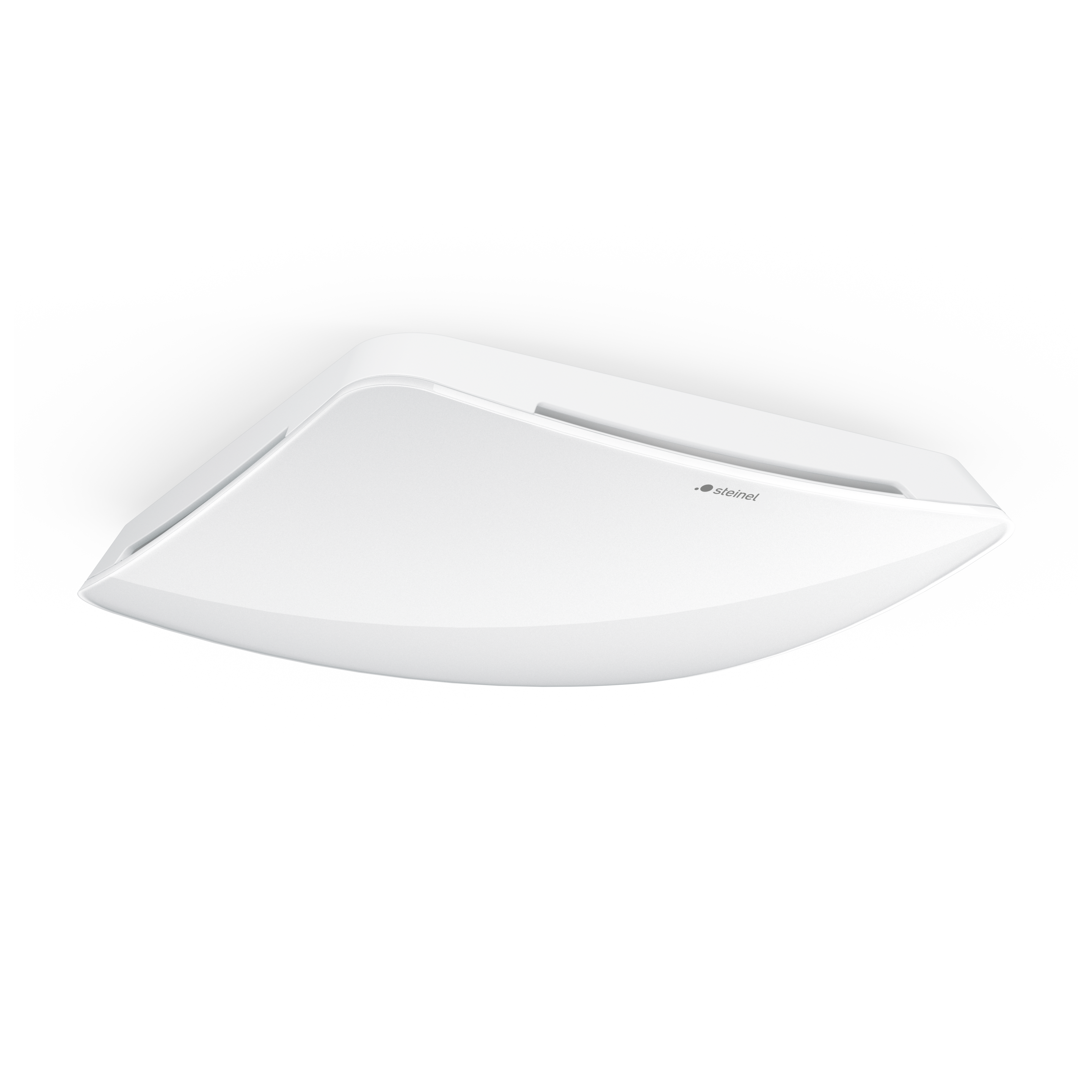

Nevalux Multisensor Aerosol KNX

ELDAS® no. 535 932 708

EAN-No. 4007841 079192

Discontinued

This product is being discontinued and is available while stocks last. No successor product has been announced yet.

The professional for better conditions to learn and work in. Multisensor Aerosol KNX not only delivers reliable additional information to the building management system, such as temperature, humidity, air pressure, volatile organic compounds (VOC), CO2 concentration as well a light level. It also uses this as the basis for identifying the potential risk of infection in air and displays such as a communication object for KNX. For a healthy interior climate. Without True Presence® detection.

UV-resistant plastic

Identification

Version Other

Variants

Version KNX Aerosol

Mounting type Flush-mounted

Dimensions

Dimensions L × W × H 33 x 123 x 123 mm

Electrical

Mains connection 30 V

Own consumption 0,5 W

Supply voltage detail KNX bus

Sensor technology

Sensor technology Multisensor

With motion detector No

Optimal mounting height 2,8 m

Connectivity

Networking Yes

Networking via KNX bus

KNX functions Risk of infection\nUdes air\nComfort\nCO2\nLight level\nHVAC output\nLogic gate\nAir pressure\nHumidity output\nDay / night function\nDewpoint\nTemperature output\nVOC

With bus coupler Yes

Lighting technology

Continuous light selectable

Constant light regulation No

Settings

Twilight switch Yes

Twilight setting 2 – 1000 lx

Settings via ETS software\nBluetooth\nBus

With remote control No

Twilight setting teach Yes

Housing & material

Protection class (IP) IP20

Ambient temperature from 0 up to 40 °C

Mounting location ceiling

Application location Indoors

Mounting type Concealed wiring

Material Plastic

Application room Indoors classroom conference room / meeting room duty room kitchenette lecture hall one-person office recreation room

Colour white

RAL colour 9003

Scope of delivery & warranty

Manufacturer warranty 5 years

Corner wall bracket included No

Technical drawing

Data sheet User manual Declaration of conformity

Surface-mounting adapter for Multisensor white

Item no. 063870
