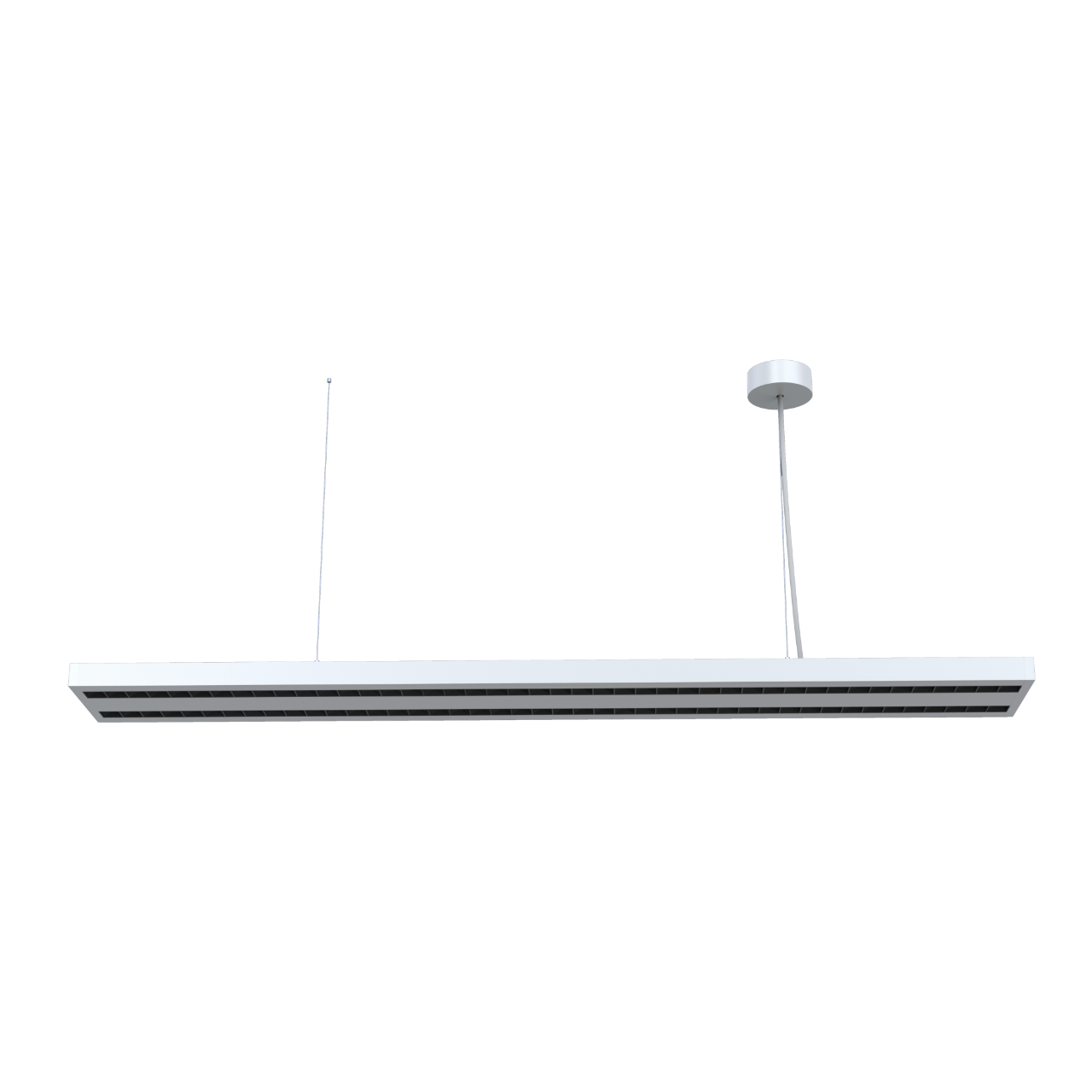

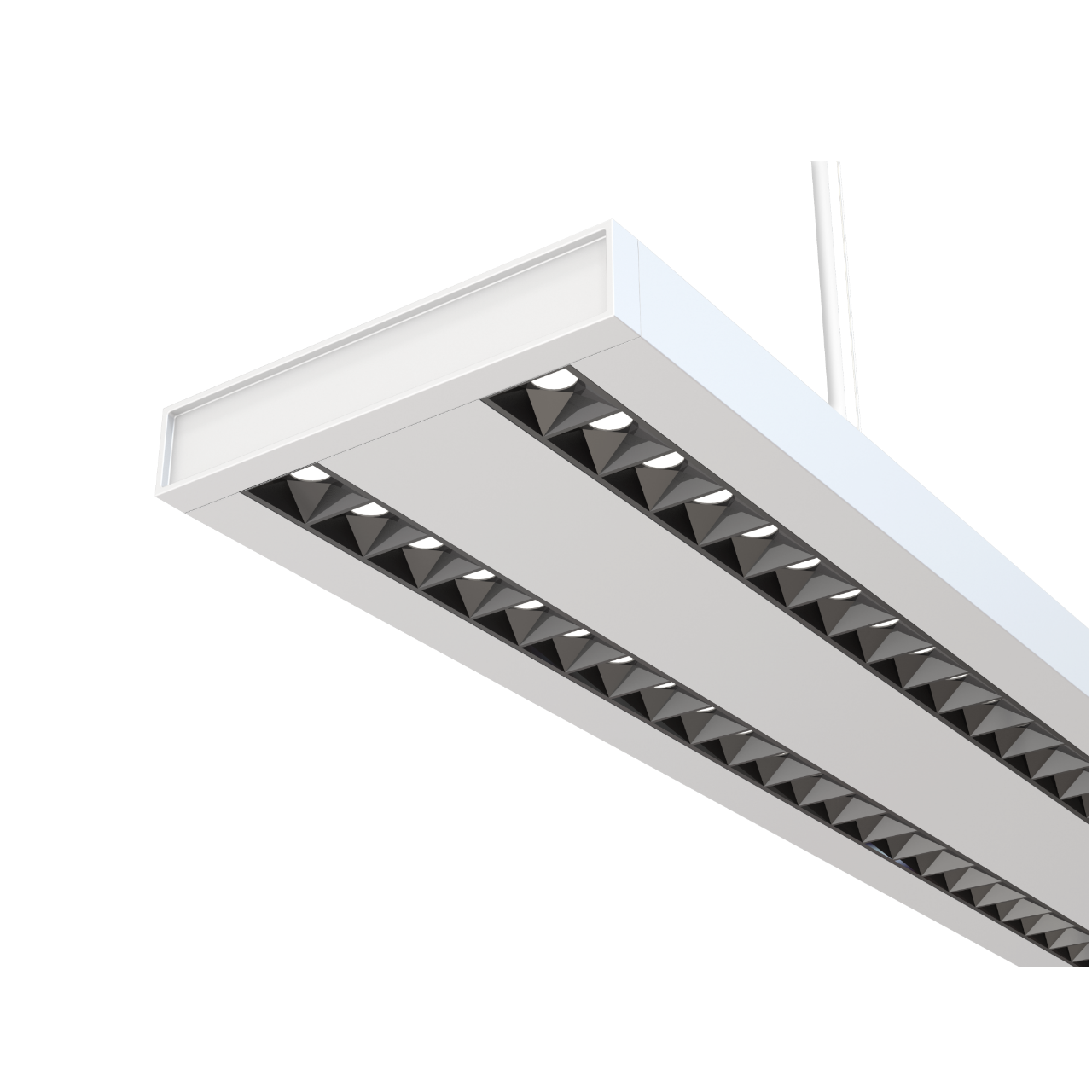

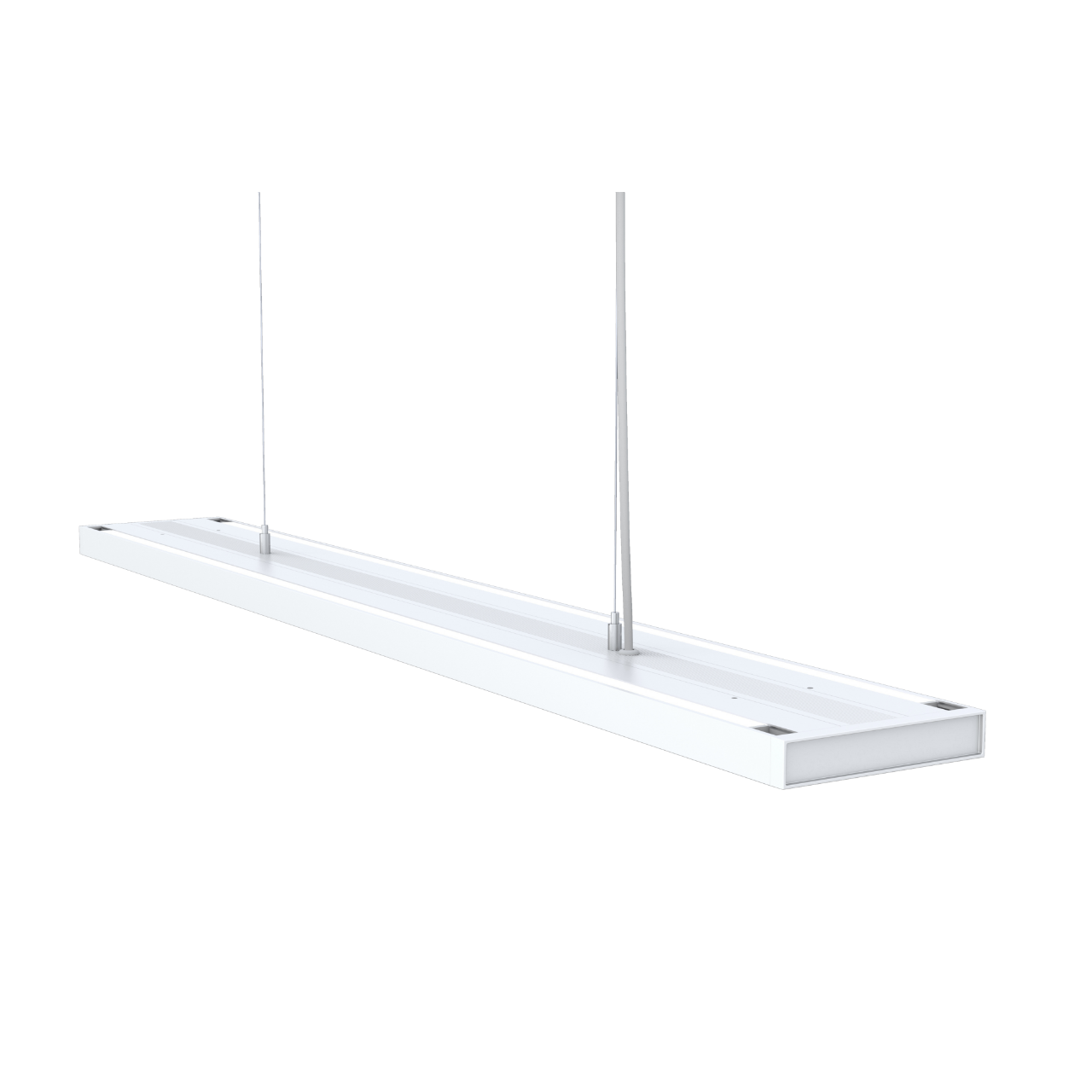

nevalux nayo P 4K
Linkable pendant for office workstations. Direct and indirect light, very low glare.
Product code 220175
Price: Please log in to see prices
- Focused light for conference rooms, counters, workplaces
- High luminaire efficiency with 130 lm/W
- Ideal for narrow beam illumination
- Direct and indirect light distribution
- Deeply recessed, absolutely glare-free optics (UGR < 10)
- Link technology for seamless extension of luminaire with plugs
- Dimmable DALI, LiveLink compatible
- Housing Aluminium RAL9016, white
Variants
Luminous flux
6700 lm (Down 3400, Up 3300)
Dimensions
Dimensions L × W × H
1190 x 160 x 30 mm
Suspension length
1500 mm
Electrical
Mains connection
230 V / 50 – 60 Hz
Power
60 W
Replaceable driver
Yes
Type of wiring
Through wiring included
Sensor technology
With motion detector
No
With light sensor
No
Connectivity
Networking via
DALI 2
Lighting technology
Colour temperature
4000 K
LED colour deviation
SDCM3
Colour rendering index
80 - 89
Illuminant
LED
Luminous flux
6700 lm (Down 3400, Up 3300)
Beam angle
Down 50°, Up 115°
Luminaire luminous efficacy
112 lm/W
Glare value
UGR < 10
Lifetime
LED lifespan (25 °C)
50000 h
Settings
DALI dimming
Yes
With emergency light
No
Suitable for light band configuration
Yes
Direct/indirect ratio separately controllable
No
Constant light output control
Yes
Housing & material
Protection class (IP)
IP20
Protection class
I
Ambient temperature
-20...+45 °C
Housing material
Aluminium
Cover material
Darklight Optics
Mounting type
Pendant mounting
Colour
White
Scope of delivery & warranty
Manufacturer warranty
5 years
Certificates & EPREL
EPREL energy efficiency class
E

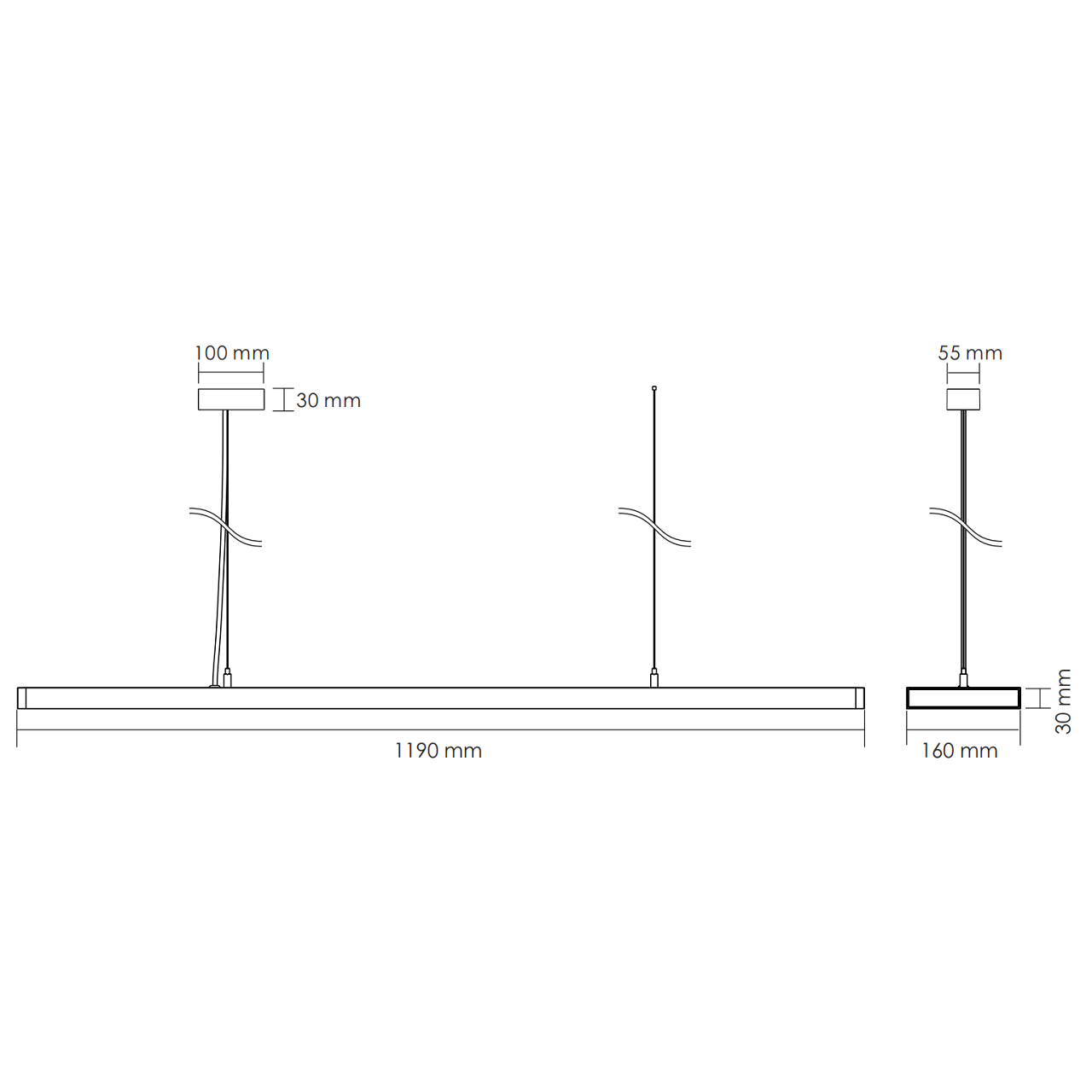

Technical drawing

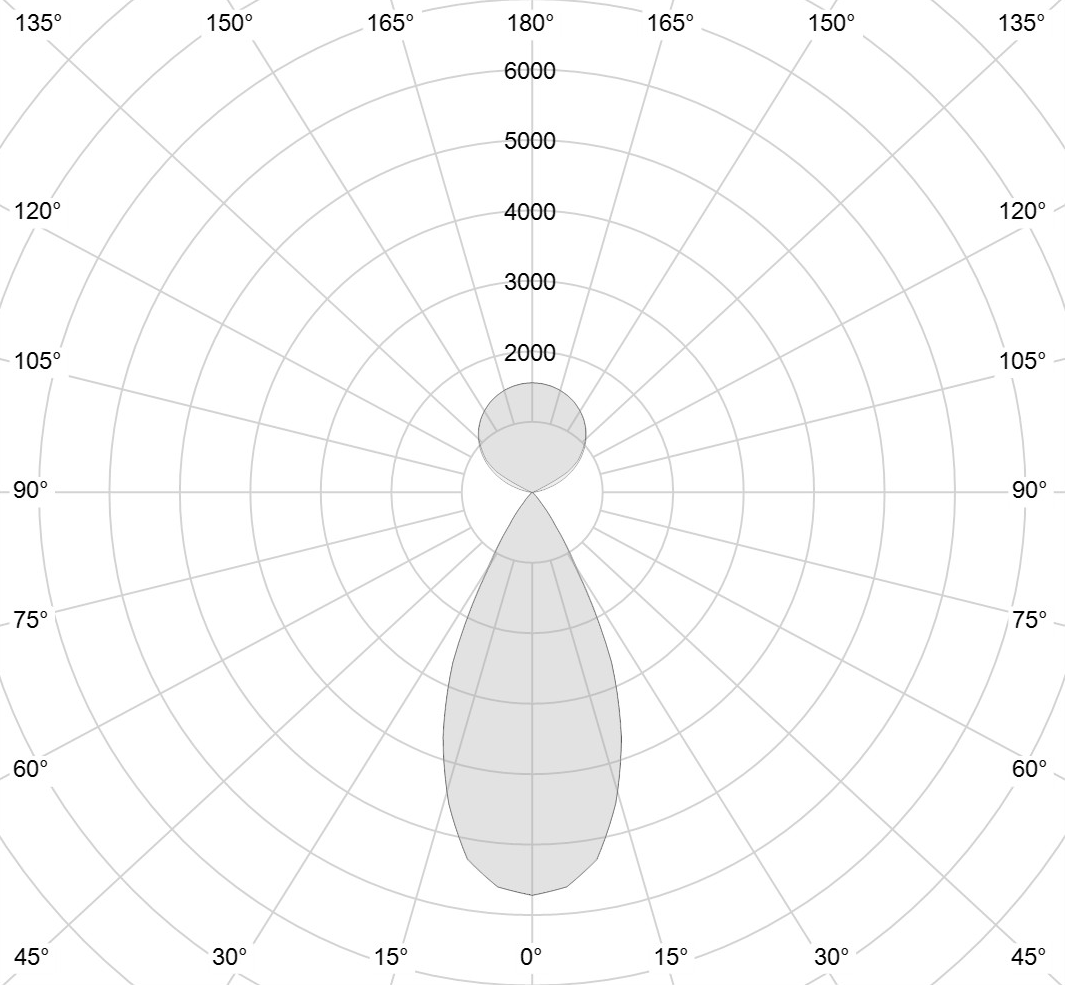

Lichtverteilungskurve

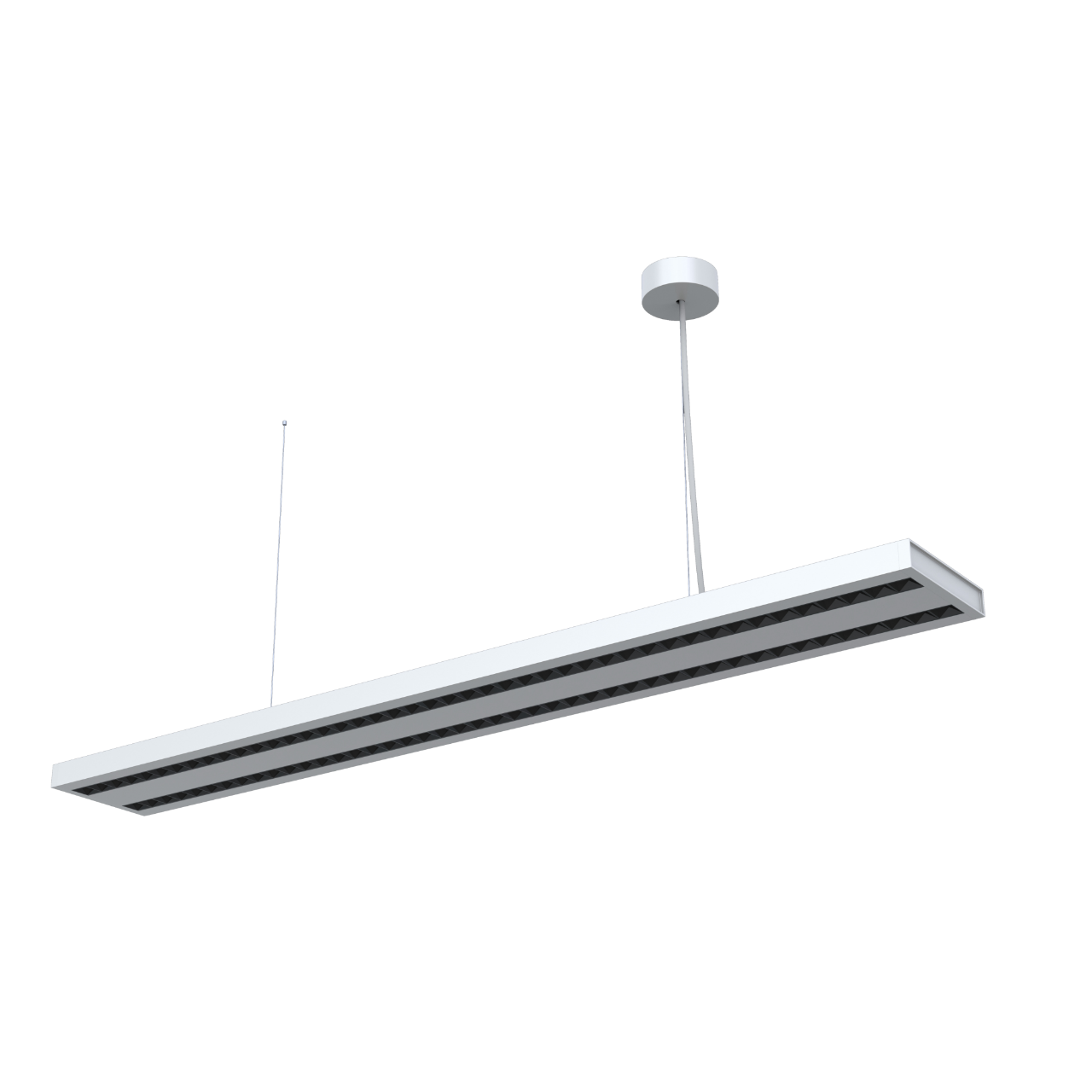

Sensor detection range
Wiring diagram 1
Wiring diagram
