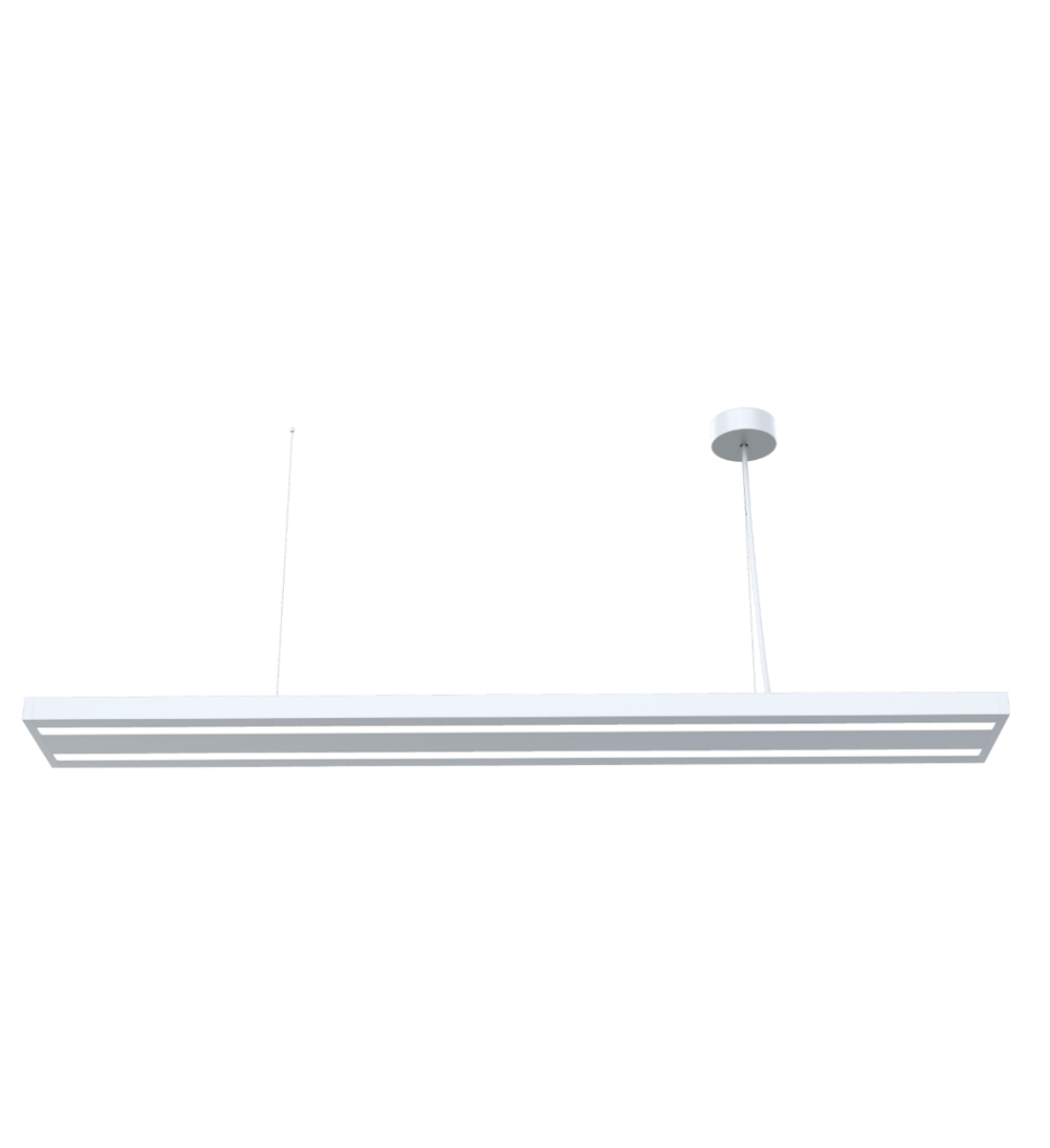

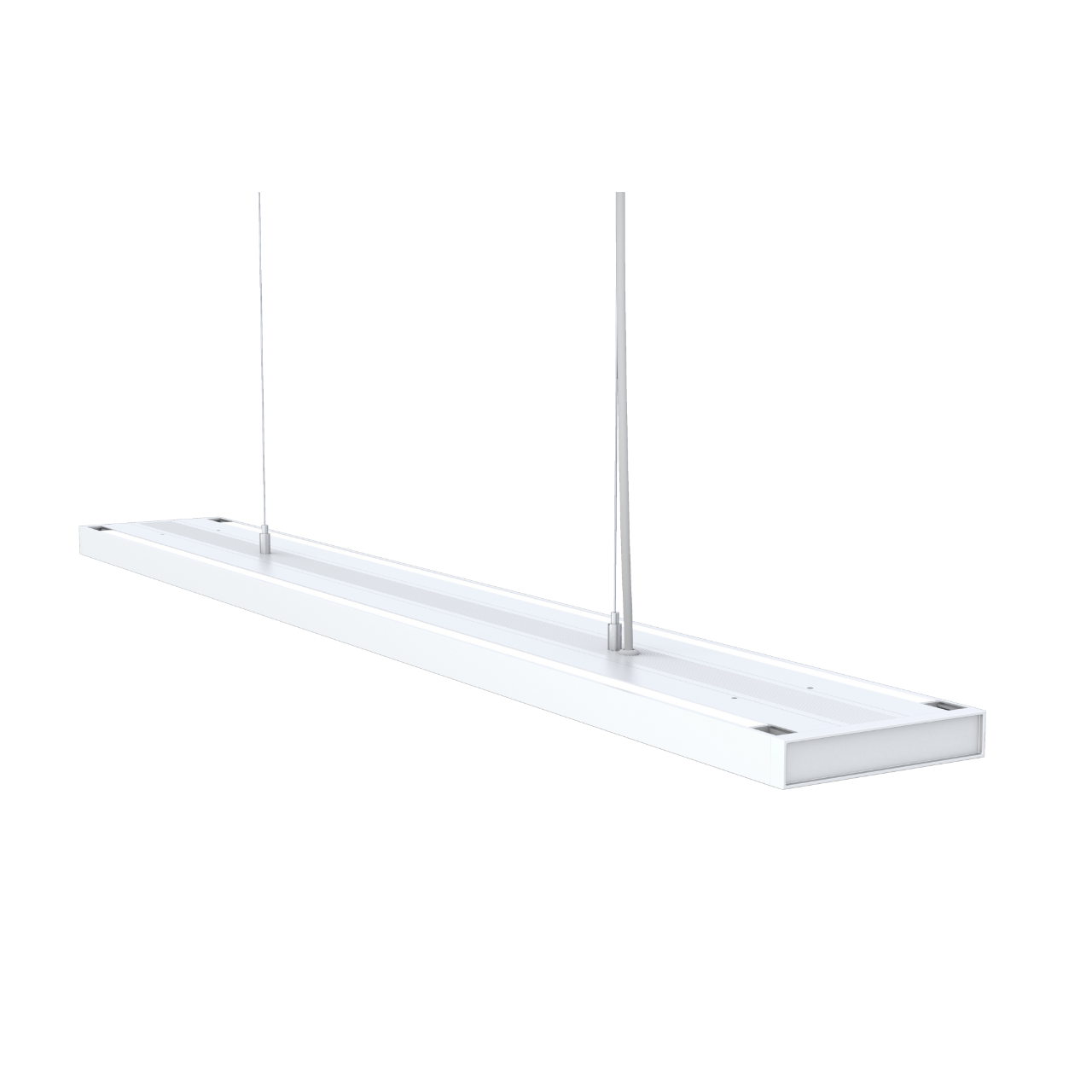

nevalux nayo P Diffused 4K
Linkable pendant with diffuse cover. Equal light up and down.
Product code 220463
Discontinued
This product is being discontinued and is available while stocks last. No successor product has been announced yet.
Price: Please log in to see prices
- High luminaire efficiency with 120 lm/W
- Direct and indirect light distribution
- Diffuser optics for large-area illumination (UGR < 19)
- Link technology for seamless extension of the light profile with connectors
- Dimmable DALI, LiveLink compatible
- Housing Aluminium RAL9016, white
Variants
Luminous flux
7200 lm (Down 3600, Up 3600)
Dimensions
Dimensions L × W × H
1190 x 160 x 30 mm
Suspension length
1500 mm
Electrical
Mains connection
230 V / 50 – 60 Hz
Power
60 W
Replaceable driver
Yes
Type of wiring
Through wiring included
Sensor technology
With motion detector
No
With light sensor
No
Connectivity
Networking via
DALI 2
Lighting technology
Colour temperature
4000 K
LED colour deviation
SDCM3
Colour rendering index
80 - 89
Illuminant
LED
Luminous flux
7200 lm (Down 3600, Up 3600)
Beam angle
Down 105°, Up 115°
Luminaire luminous efficacy
120 lm/W
Glare value
UGR < 19
Lifetime
LED lifespan (25 °C)
50000 h
Settings
DALI dimming
Yes
With emergency light
No
Suitable for light band configuration
Yes
Direct/indirect ratio separately controllable
No
Constant light output control
Yes
Housing & material
Protection class (IP)
IP20
Protection class
I
Ambient temperature
-20...+45 °C
Housing material
Aluminium
Cover material
Microprismatic acrylic glass
Mounting type
Pendant mounting
Colour
White
Scope of delivery & warranty
Manufacturer warranty
5 years
Certificates & EPREL
EPREL energy efficiency class
E

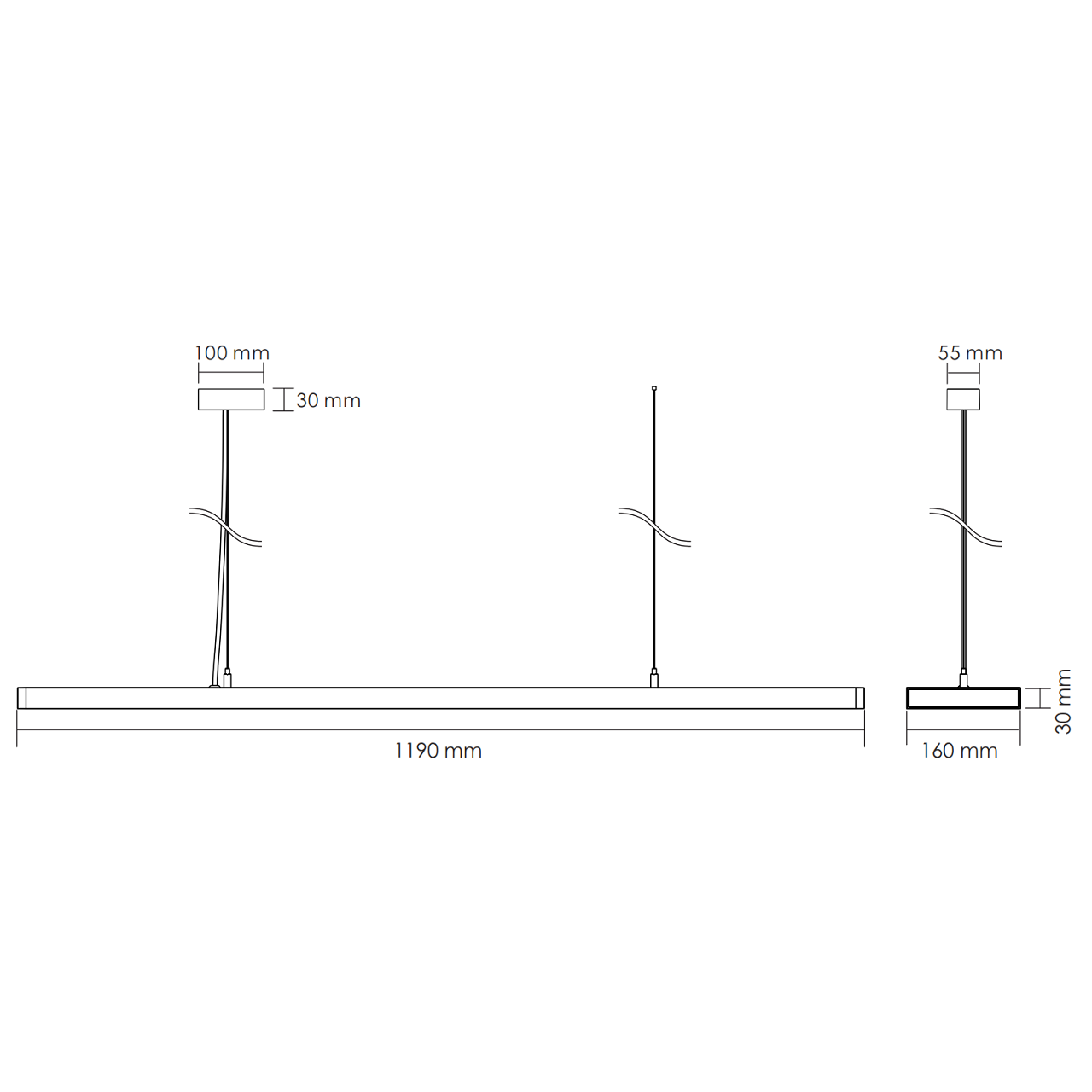

Technical drawing

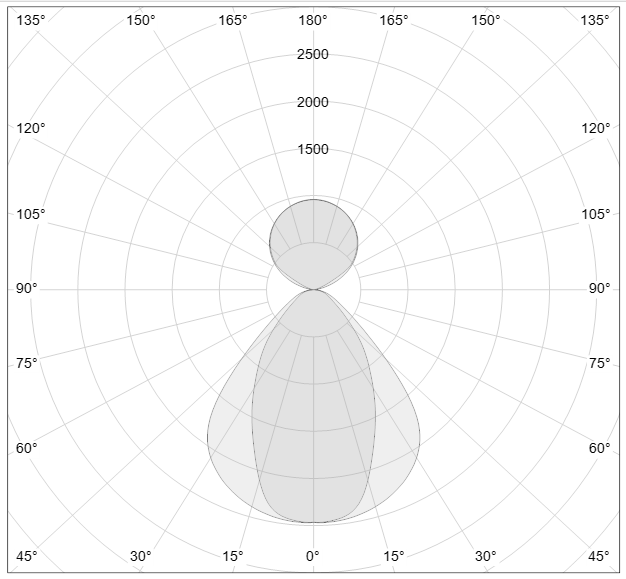

Lichtverteilungskurve
Sensor detection range

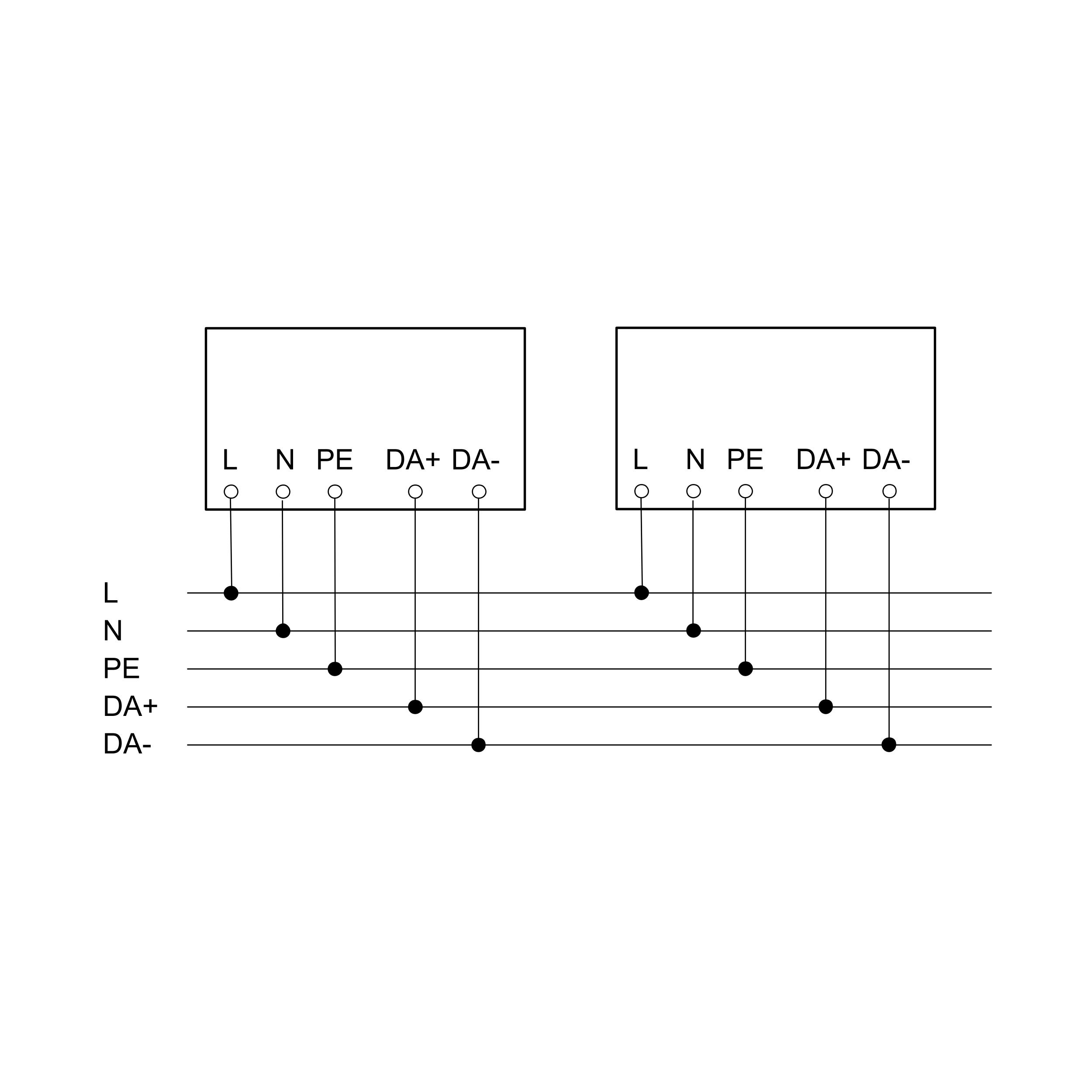

Wiring diagram 1
Wiring diagram
