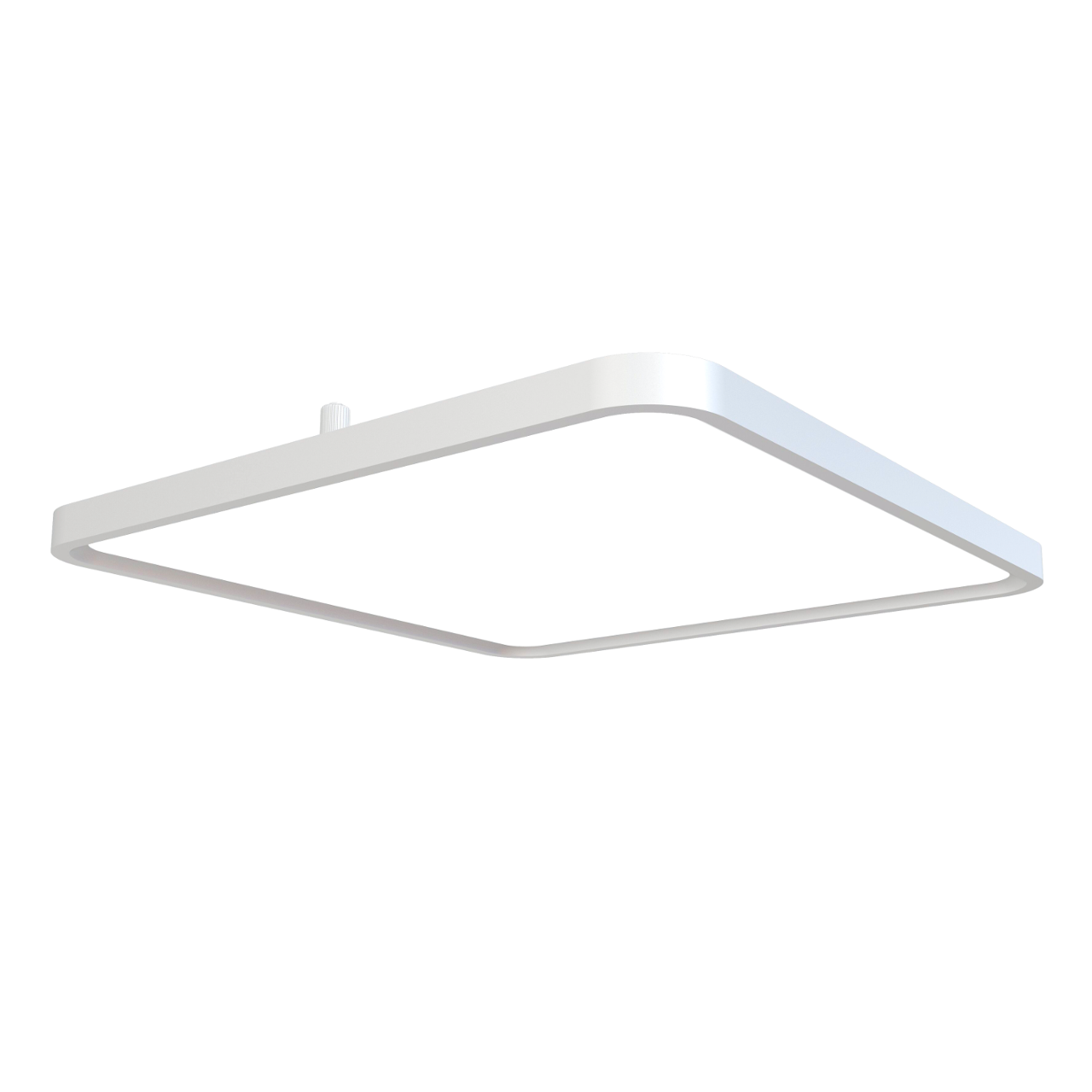

nevalux nefera C60 4K
Product code 220172
Price: Please log in to see prices
Mounting type
Ceiling surface mounted
Dimensions L × W × H
610 x 610 x 30 mm
1200 x 260 x 30 mm
Switch selection
The requested variant is not available. Please choose one of the following options.
- For universal use in office and school lighting, Traffic zones etc.
- Flat design and completely homogeneous illumination
- High quality finish
- Direct and indirect light distribution
- Very good glare control values (UGR<17)
- Dimmable DALI
- Housing Aluminium white
Variants
Mounting type
Ceiling 60 x 60 cm
Luminous flux
5300 lm (Down 4000, Up 1300)
Electrical
Mains connection
230 V / 50 – 60 Hz
Power
60 W
Replaceable driver
Yes
Type of wiring
Suitable for through wiring
LED rated current
1500 mA
Sensor technology
With motion detector
No
With light sensor
No
Connectivity
Networking via
DALI 2
Lighting technology
Colour temperature
4000 K
LED colour deviation
SDCM3
Colour rendering index
80 - 89
Illuminant
LED
Luminous flux
5300 lm (Down 4000, Up 1300)
Beam angle
Down 90°, Up 110°
Luminaire luminous efficacy
88 lm/W
Glare value
UGR < 19
Lifetime
LED lifespan (25 °C)
50000 h
Settings
DALI dimming
Yes
With emergency light
No
Housing & material
Protection class (IP)
IP20
Protection class
I
Ambient temperature
-20...+45 °C
Housing material
Aluminium
Cover material
Microprismatic acrylic glass
Colour
White
Scope of delivery & warranty
Manufacturer warranty
5 years
Certificates & EPREL
EPREL energy efficiency class
F

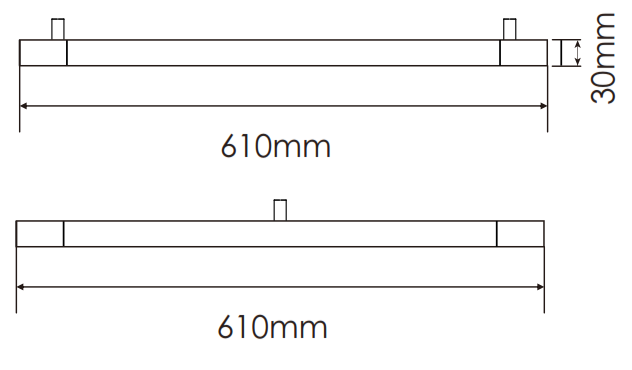

Technical drawing

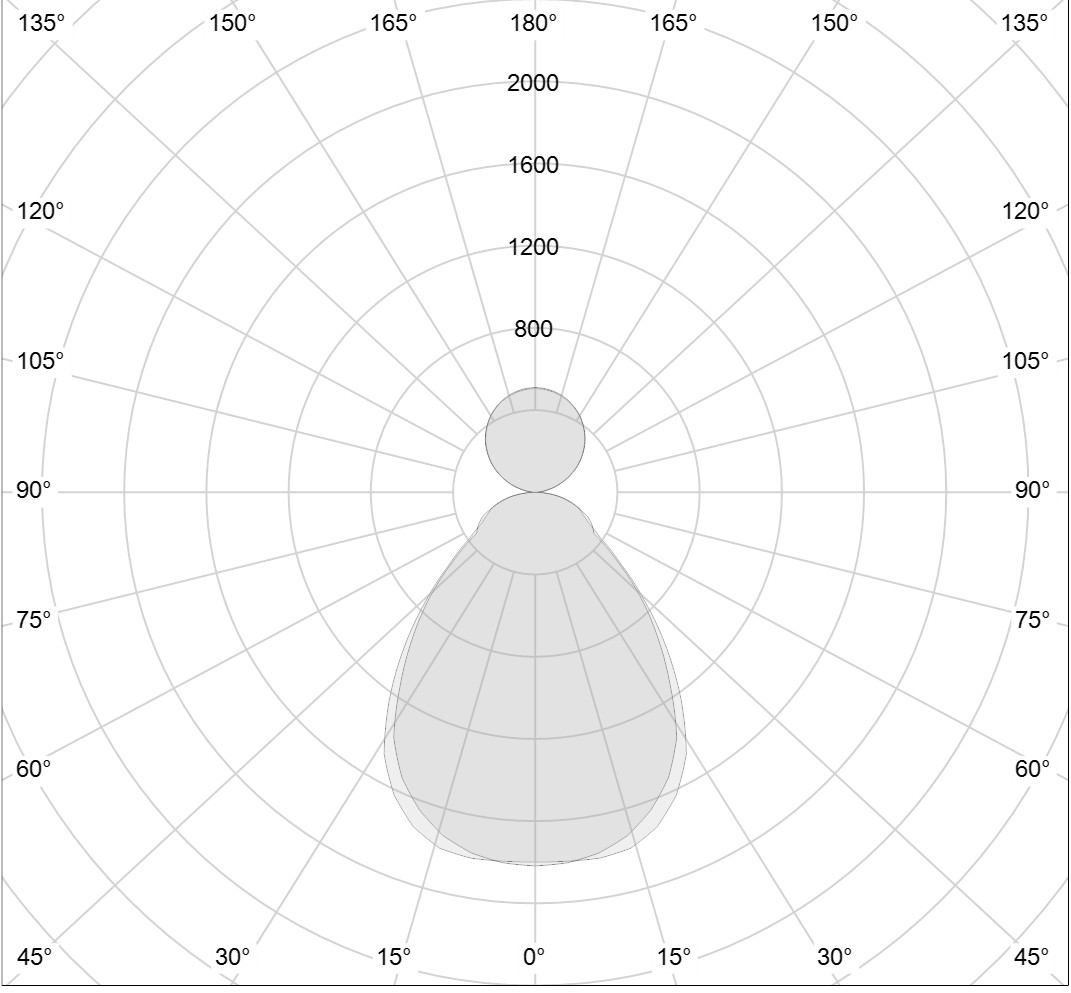

Lichtverteilungskurve

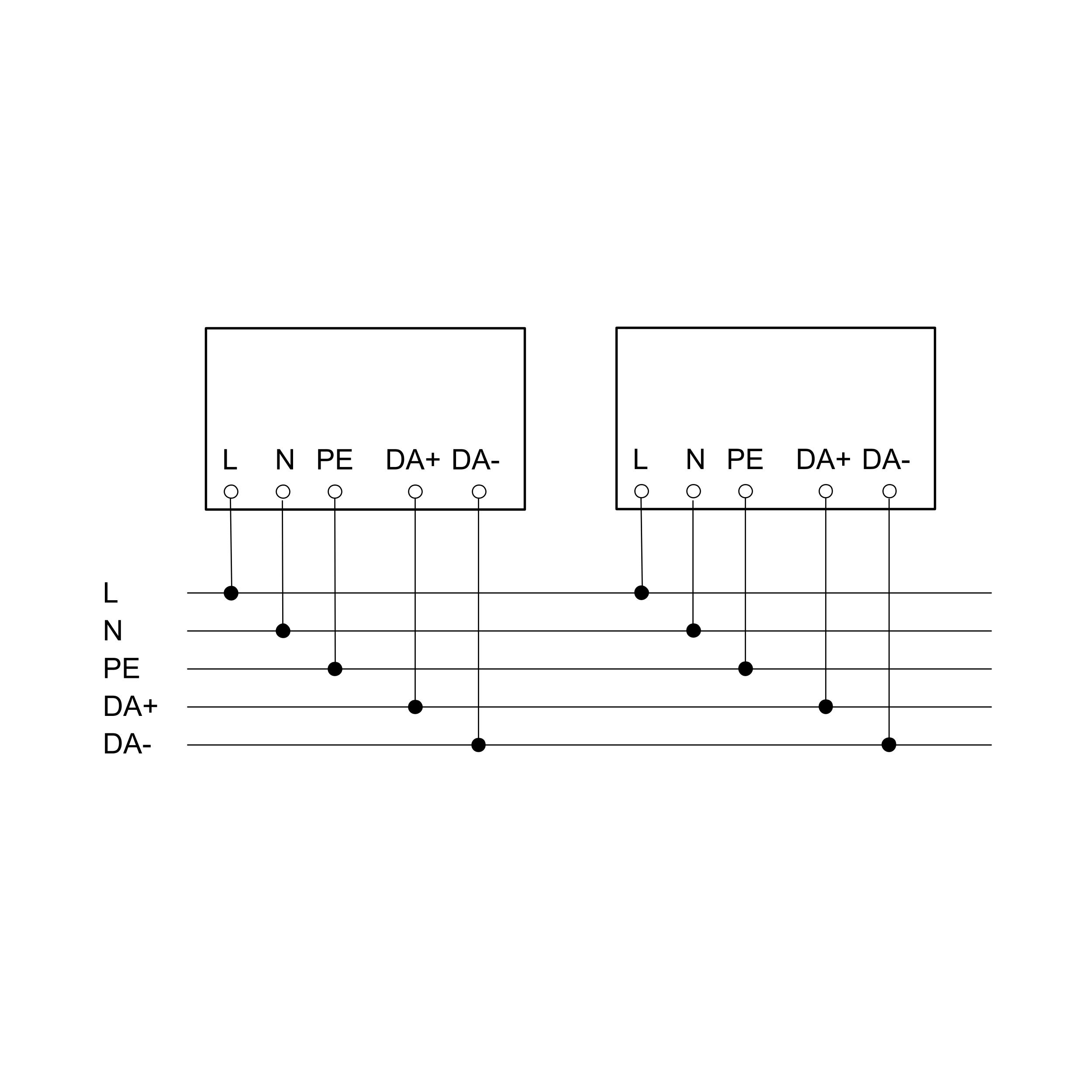

Wiring diagram 1
Wiring diagram
