- For universal use in office and school lighting, Traffic zones etc.
- Flat design and completely homogeneous illumination
- High quality finish
- Direct and indirect light distribution
- Very good glare control values (UGR<17)
- Dimmable DALI
- Housing Aluminium white
Variants
Luminous flux
6000 lm (Down 4000, Up 2000)
Dimensions
Dimensions L × W × H
1200 x 260 x 30 mm
Suspension length
1500 mm
Electrical
Mains connection
200...240 V / 50 – 60 Hz
Power
60 W
Replaceable driver
Yes
Type of wiring
Suitable for through wiring
Sensor technology
With motion detector
No
With light sensor
No
Lighting technology
Colour temperature
4000 K
LED colour deviation
SDCM3
Colour rendering index
80-89
Illuminant
LED
Luminous flux
6000 lm (Down 4000, Up 2000)
Beam angle
Down 90°, Up 110°
Luminaire luminous efficacy
100 lm/W
Glare value
UGR < 19
Lifetime
LED lifespan (25 °C)
50000 h
Settings
DALI dimming
Yes
With emergency light
No
Suitable for light band configuration
No
Direct/indirect ratio separately controllable
No
Constant light output control
Yes
Housing & material
Protection class (IP)
IP20
Protection class
I
Ambient temperature
-20...45 °C
Housing material
Aluminum
Cover material
Microprismatic acrylic glass
Mounting type
Ceiling pendant
Colour
white
Scope of delivery & warranty
Manufacturer warranty
5 years
Certificates & EPREL
EPREL energy efficiency class
F

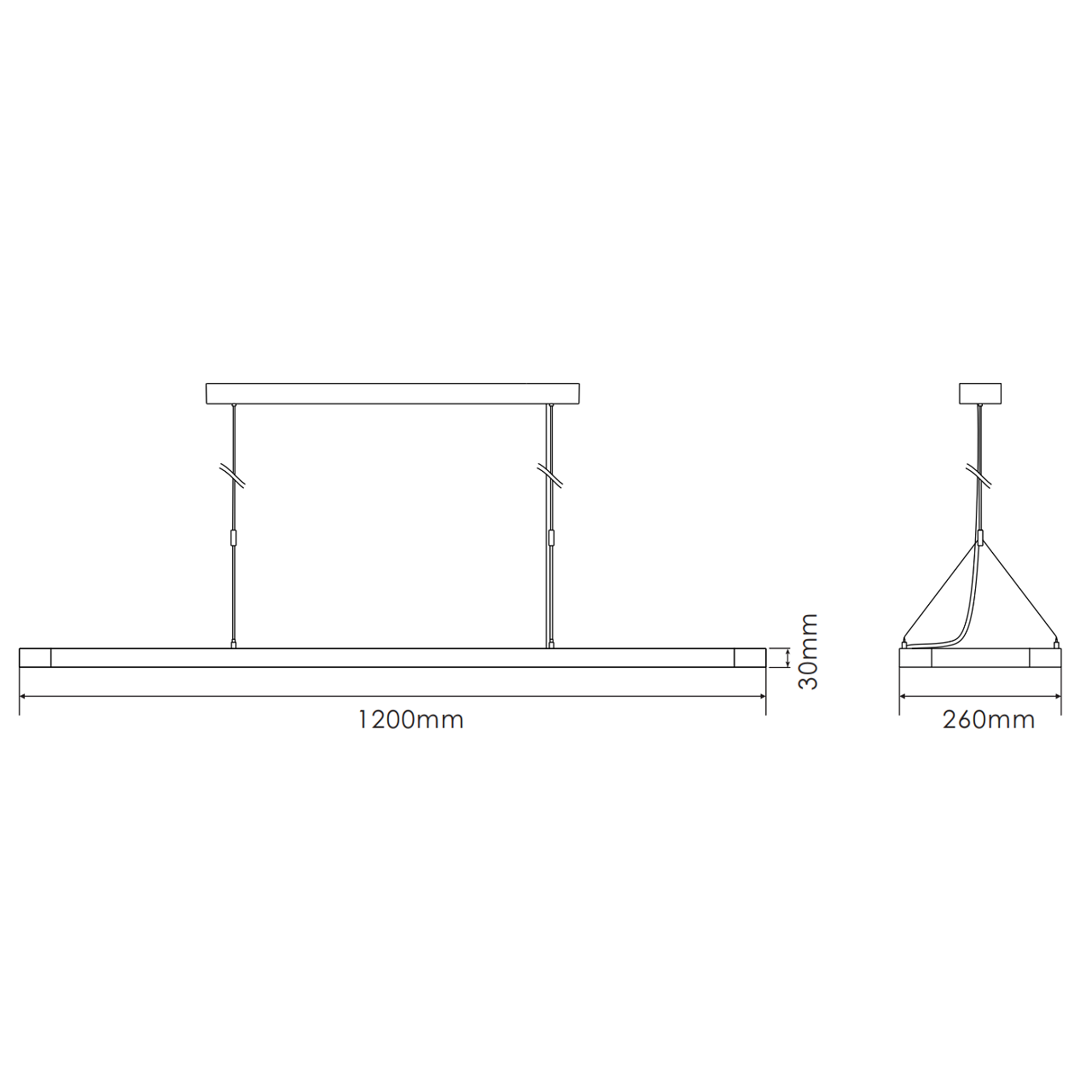

Technical drawing

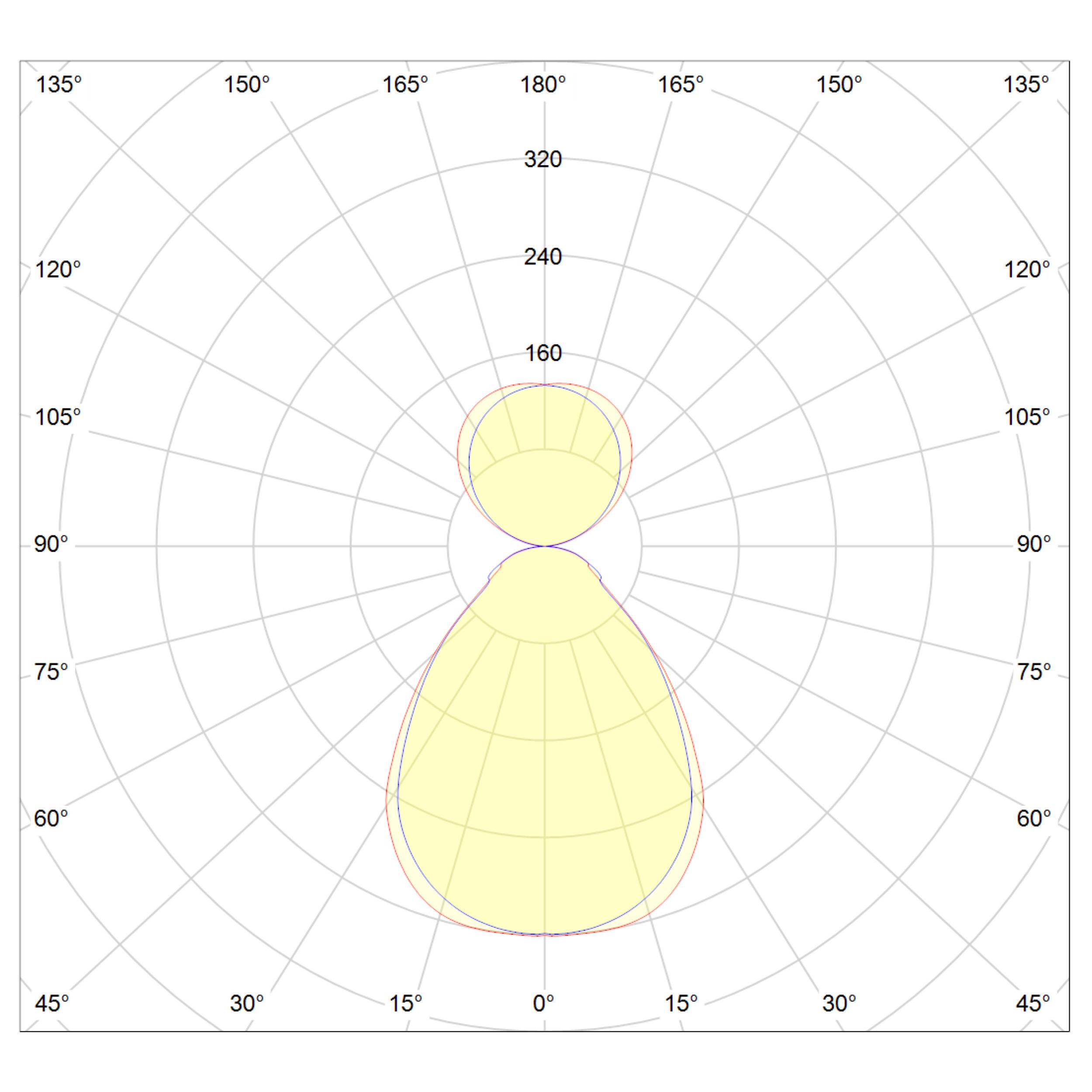

Lichtverteilungskurve
Wiring diagram 1
Wiring diagram
