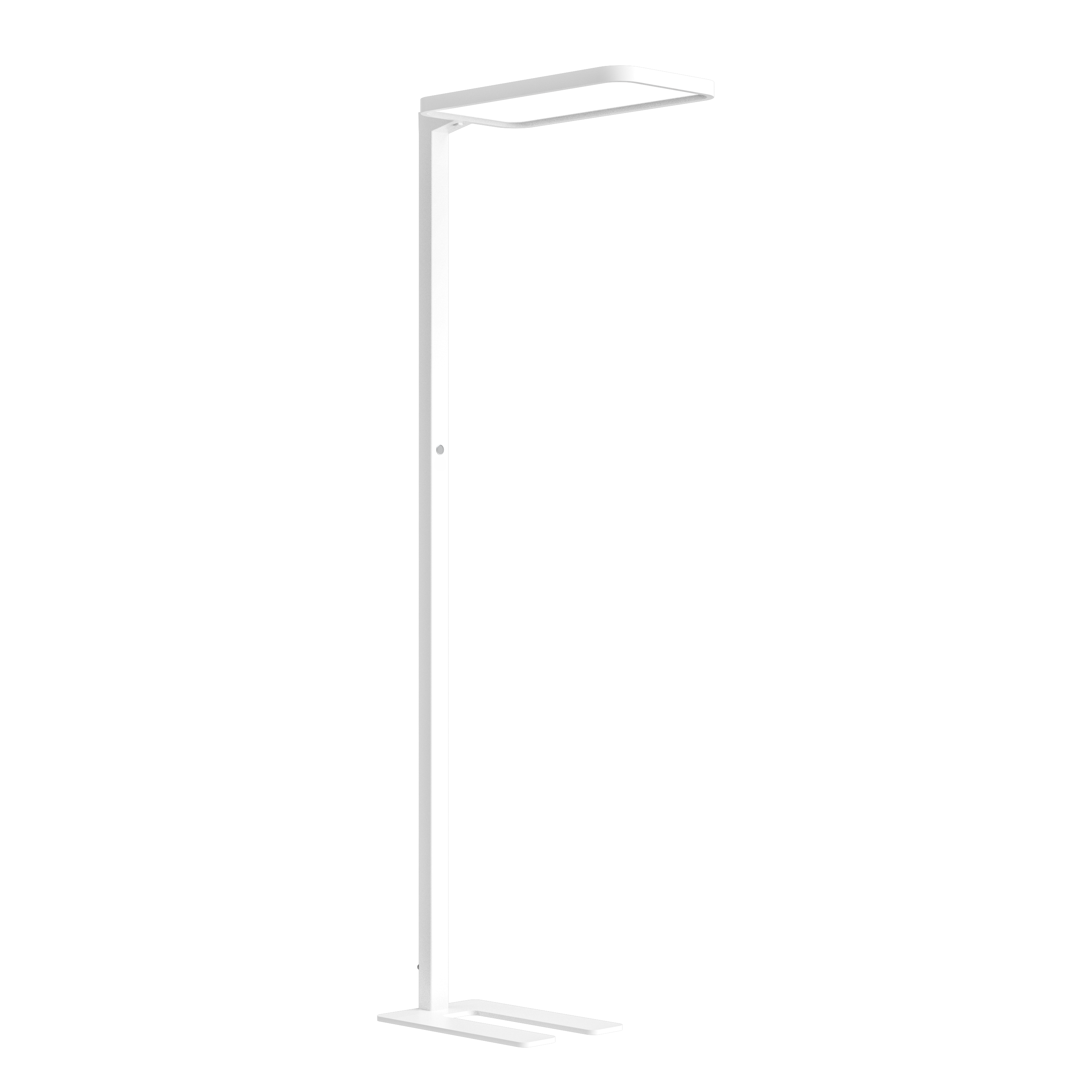

Nevalux nefera S V2 Connect 4K

Product code 221987

Light colour

Neutral white (4000K) 3000...5700 K

Intelligence

Connect incl. networkable light control Basic sensor version

The new nevalux Connect free-standing luminaires impress with their built-in, networkable lighting control system, which is developed in Switzerland. The control system meets all the requirements of a modern lighting management system. Luminaires can be easily combined into groups. The swarm function ensures comfort in open-plan offices and the cleaning light creates the best conditions for cleaning work. The control system is constantly being further developed and fulfils the demands of modern buildings of the future.

For the perfect illumination of one workplace
Flat design and absolutely homogeneous illumination
Available as intelligent Connect or as simple sensor variant
Connect variant with powerful IoT lighting control for next-generation lighting projects (swarm function, grouping, cleaning light, etc.)
Direct and indirect light distribution
Very good glare control values (UGR < 18)
Optionally in a color temperature of 4000K or with manually adjustable color temperature from 3000K to 5700K (CCT)
High quality finish
Housing aluminum white

Variants

Luminous flux 10400 lm (Down 3850, Up 6550)

Dimensions

Dimensions L × W × H 726 x 310 x 1954 mm

Electrical

Mains connection 200...240 V / 50 – 60 Hz

Power 80 W

Replaceable driver Yes

Sensor technology

Sensor technology passive infrared

With motion detector Yes

Detection angle 360 °

Radial range 4 x 4 m (16 m²)

Tangential range 4 x 4 m (16 m²)

Presence range 4 x 4 m (16 m²)

With light sensor Yes

Connectivity

With radio network control Yes

Lighting technology

Colour temperature 4000 K

LED colour deviation SDCM3

Colour rendering index 80-89

Illuminant LED

Luminous flux 10400 lm (Down 3850, Up 6550)

Beam angle Down 80°, Up 115°

Luminaire luminous efficacy 130 lm/W

Glare value UGR < 18

Lifetime

LED lifespan (25 °C) 50000 h

Settings

DALI dimming Yes

Direct/indirect ratio separately controllable No

With program-controlled lighting control Yes

Constant light output control Yes

With switch Yes

Housing & material

Protection class (IP) IP20

Protection class I

Ambient temperature -20...45 °C

Housing material Aluminum

Cover material Microprismatic acrylic glass

Mounting type Free standing floor

Colour white

Scope of delivery & warranty

Manufacturer warranty 5 years

Certificates & EPREL

EPREL energy efficiency class D

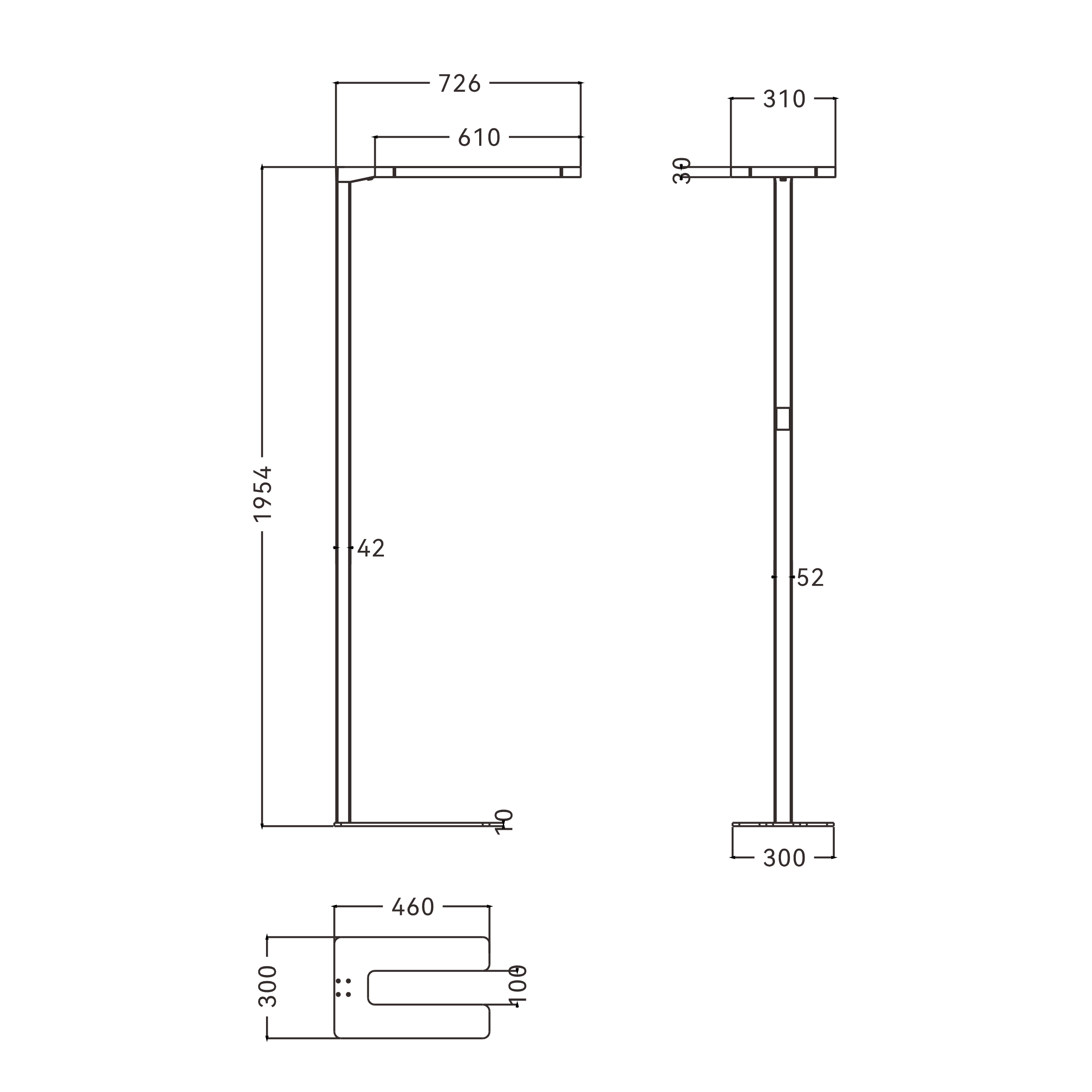

Technical drawing

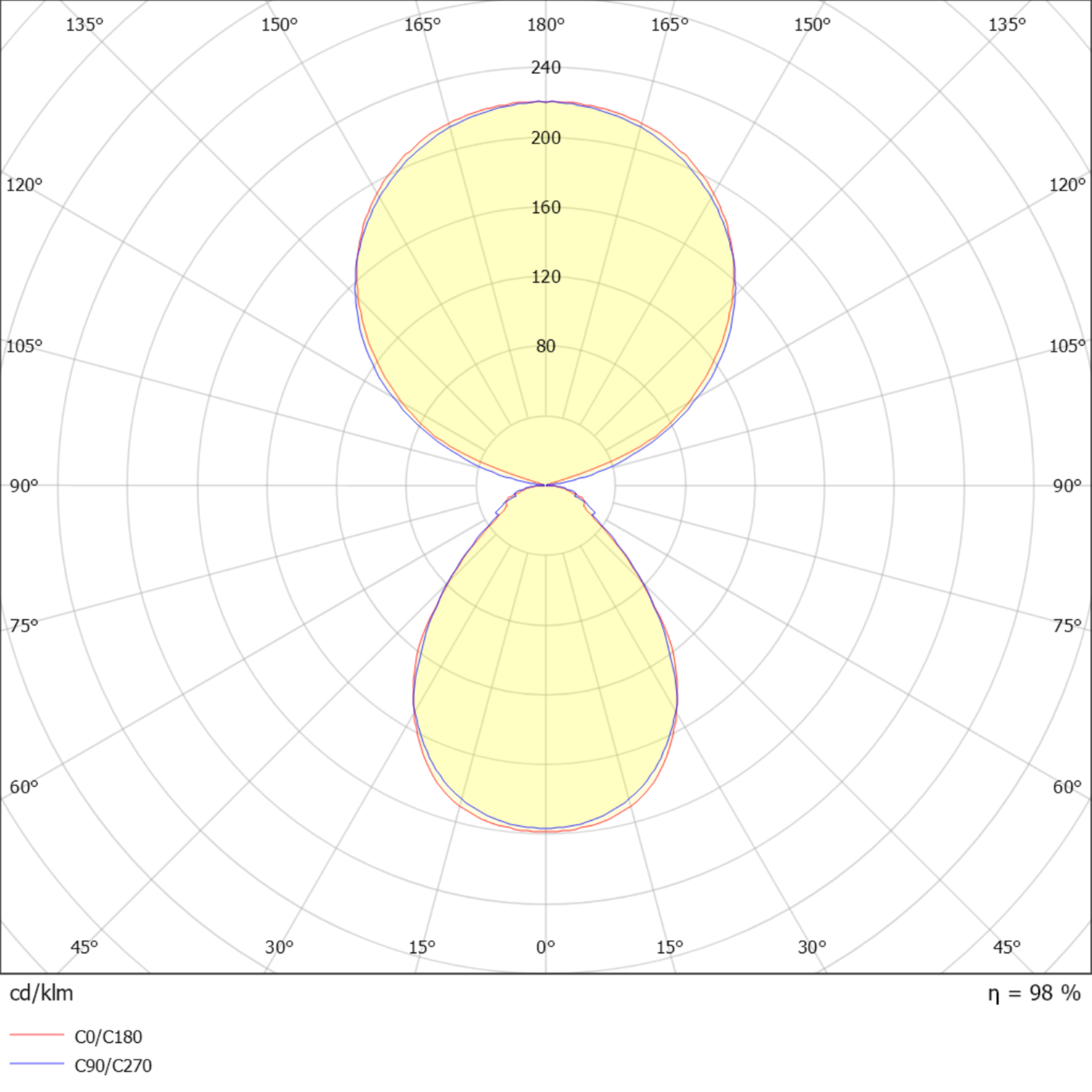

Lichtverteilungskurve

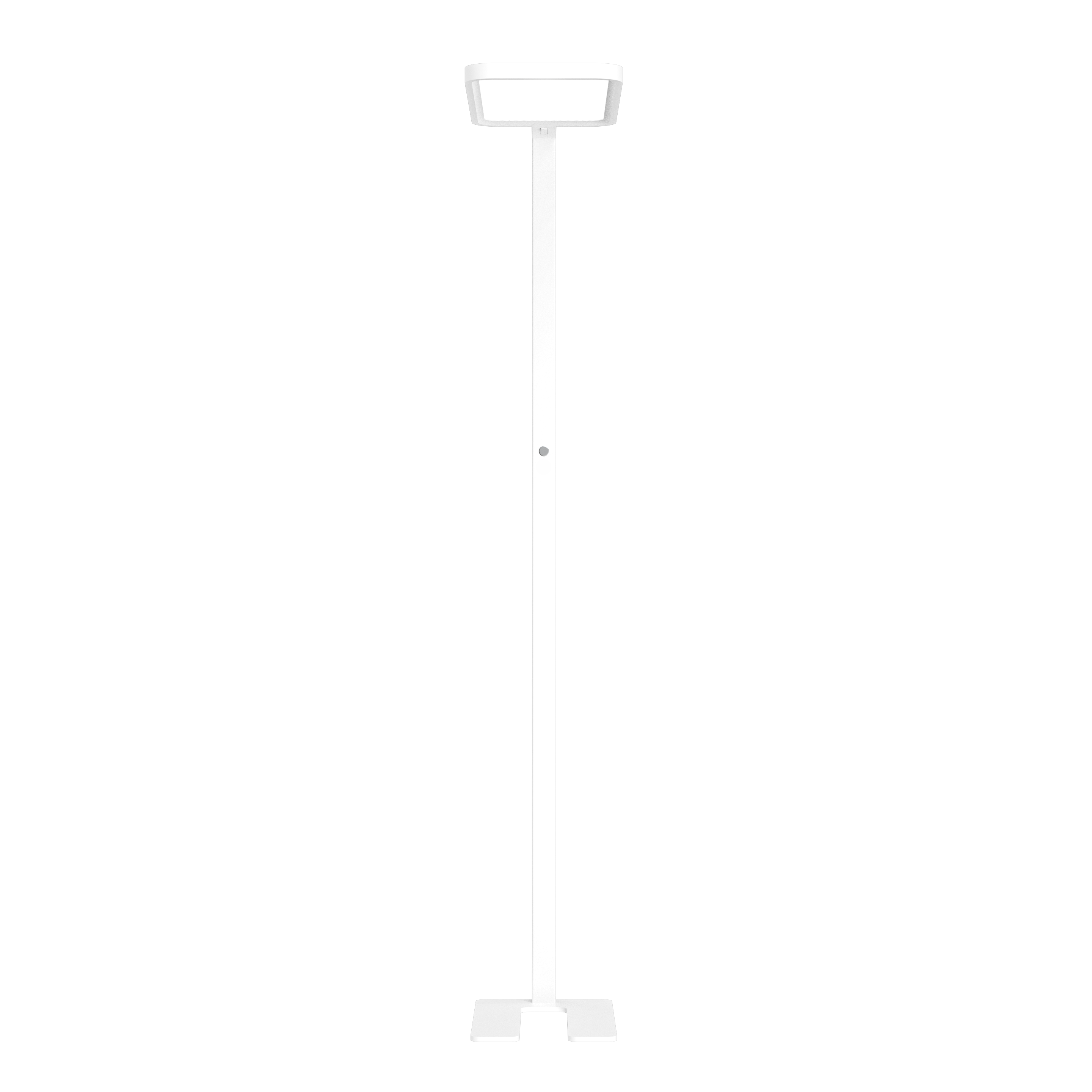

Sensor detection range

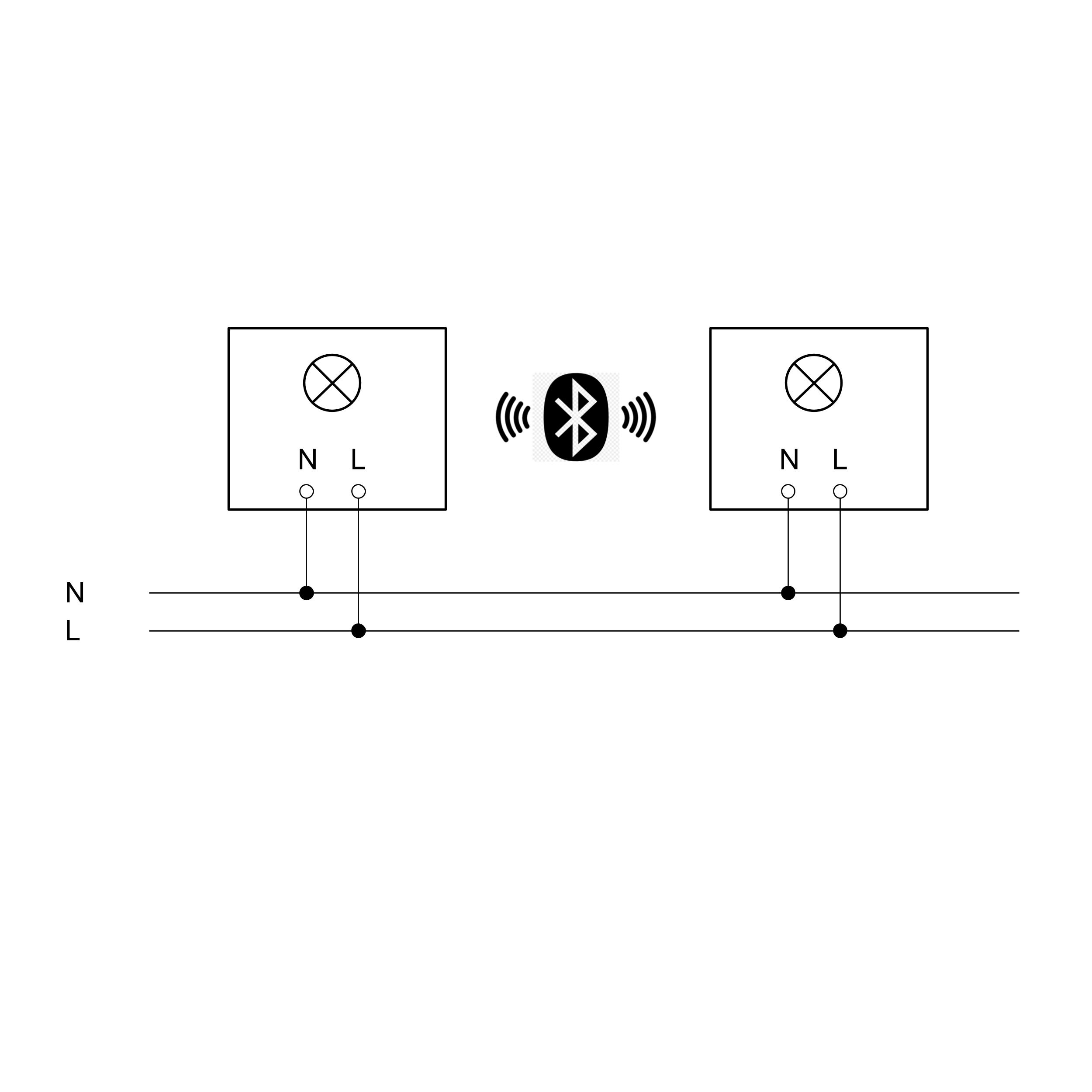

Wiring diagram 1

Wiring diagram networking radio

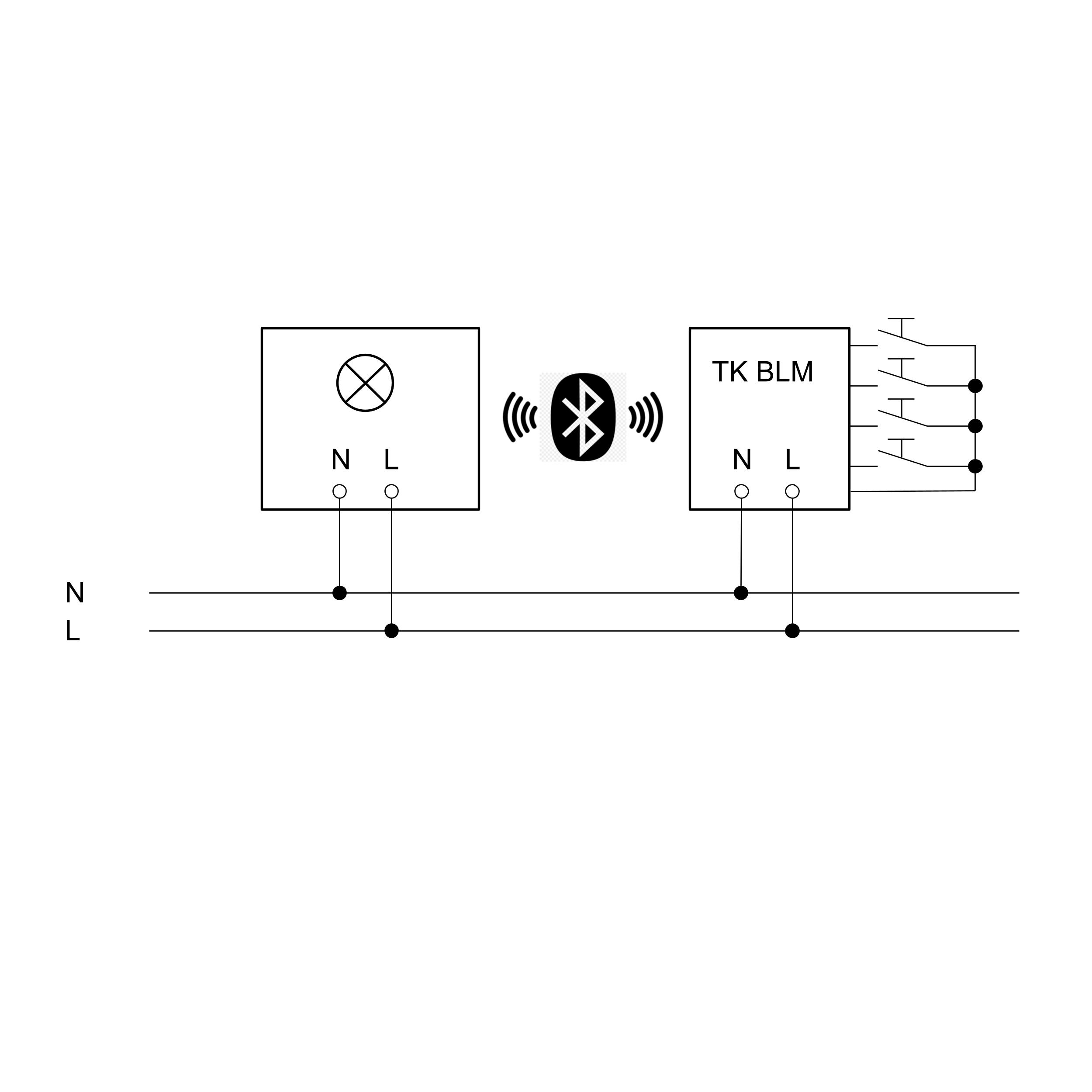

Wiring diagram 2

Wiring diagram pushbutton coupler

Data sheet User manual LDT file (light distribution)
