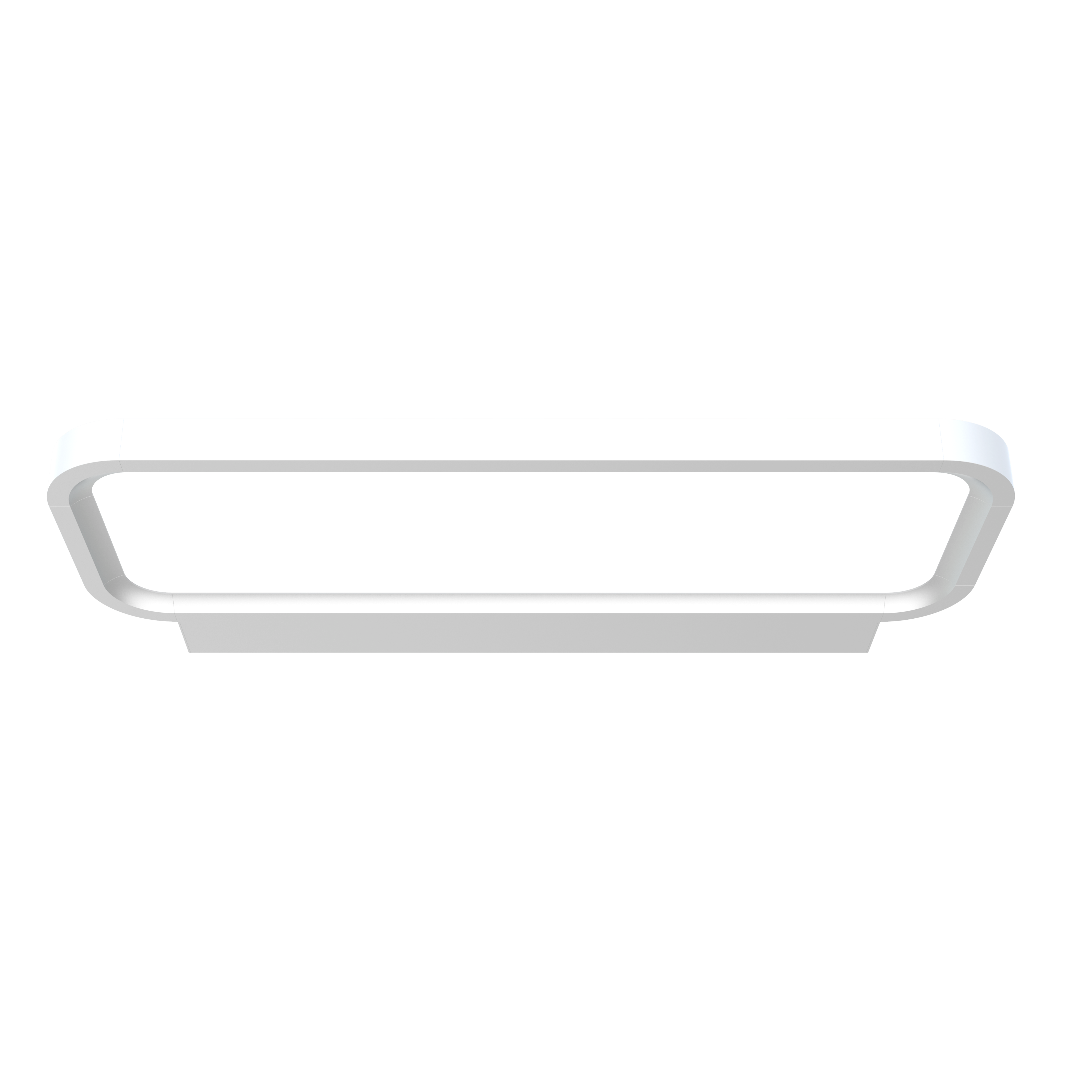

nevalux nefera W60 4K
Direct/indirect wall light for offices, schools and corridors. Low glare, DALI dimmable.
Product code 220560
Price: Please log in to see prices
- For universal use in office and school lighting, Traffic zones etc.
- Flat design and completely homogeneous illumination
- High quality finish
- Direct and indirect light distribution
- Very good glare control values (UGR<17)
- Dimmable DALI
- Housing Aluminium white
Variants
Mounting type
Wall mounted
Luminous flux
3600 lm (Down 1800, Up 1800)
Dimensions
Dimensions L × W × H
610 x 265 x 30 mm
Electrical
Mains connection
230 V / 50 – 60 Hz
Power
40 W
Replaceable driver
Yes
Type of wiring
Suitable for through wiring
LED rated current
950 mA
Sensor technology
With motion detector
No
With light sensor
No
Connectivity
Networking via
DALI 2
Lighting technology
Colour temperature
4000 K
LED colour deviation
SDCM3
Colour rendering index
80 - 89
Illuminant
LED
Luminous flux
3600 lm (Down 1800, Up 1800)
Beam angle
Down 90°, Up 110°
Luminaire luminous efficacy
90 lm/W
Glare value
UGR < 19
Lifetime
LED lifespan (25 °C)
50000 h
Settings
DALI dimming
Yes
With emergency light
No
Housing & material
Protection class (IP)
IP20
Protection class
I
Ambient temperature
-20...+45 °C
Housing material
Aluminium
Cover material
Microprismatic acrylic glass
Mounting type
Wall surface mounted
Colour
White
Scope of delivery & warranty
Manufacturer warranty
5 years
Certificates & EPREL
EPREL energy efficiency class
F

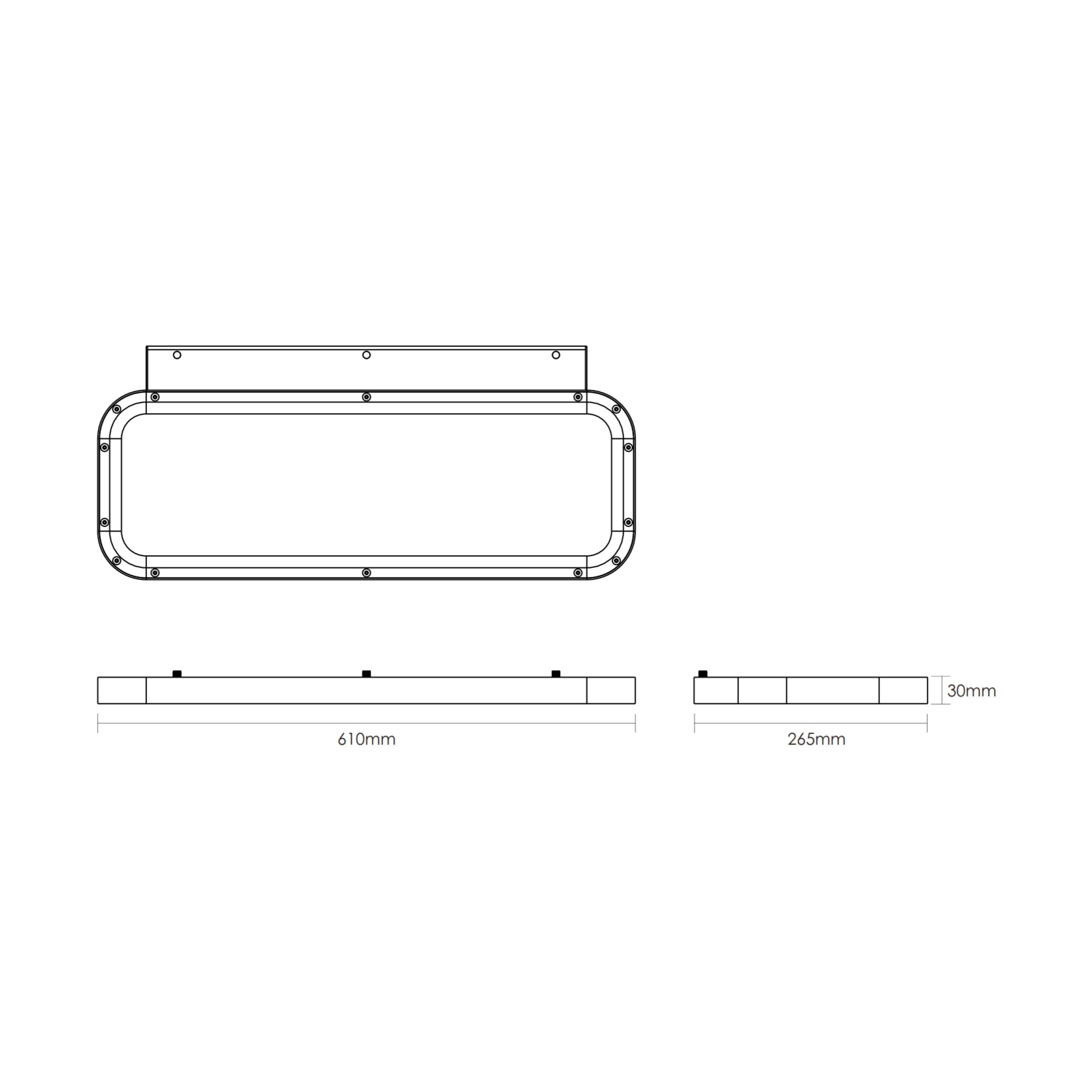

Technical drawing

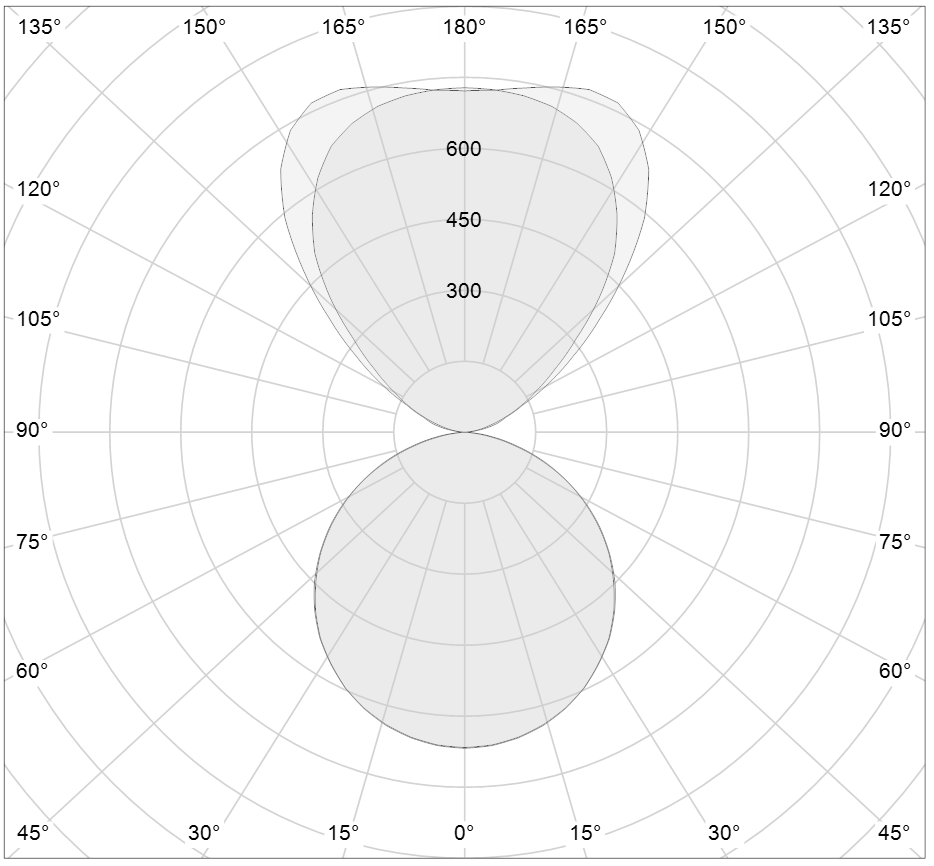

Lichtverteilungskurve

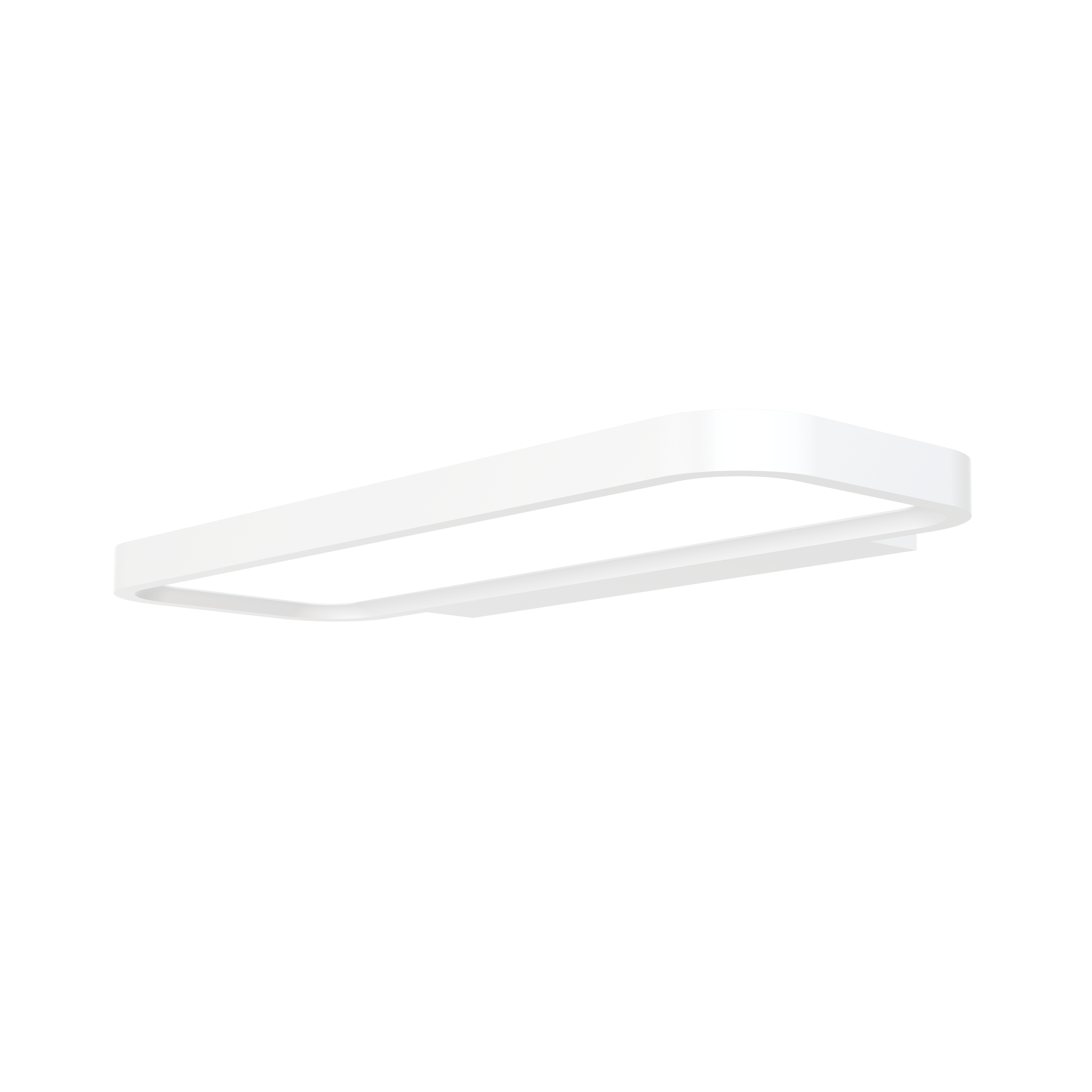

Sensor detection range

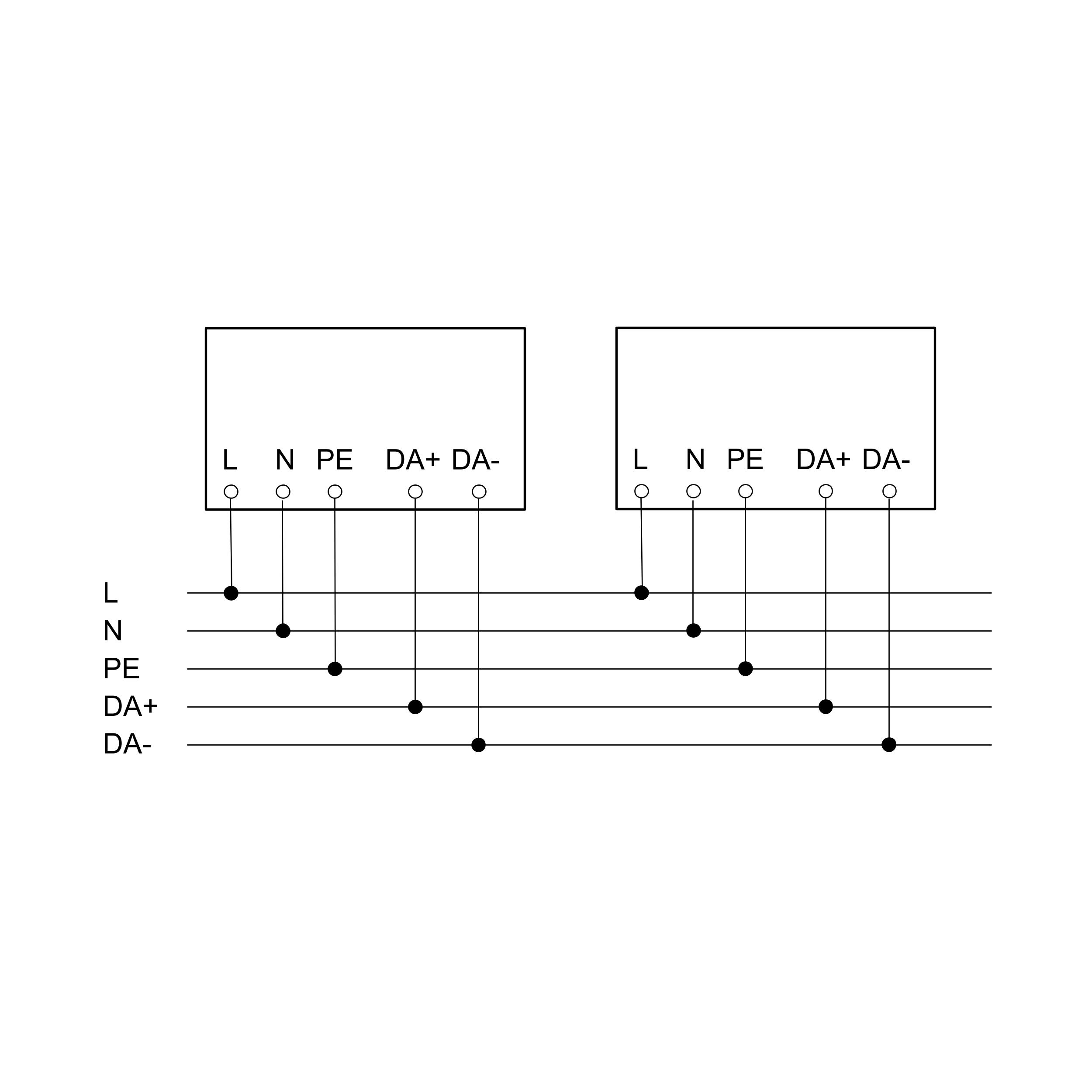

Wiring diagram 1
Wiring diagram
