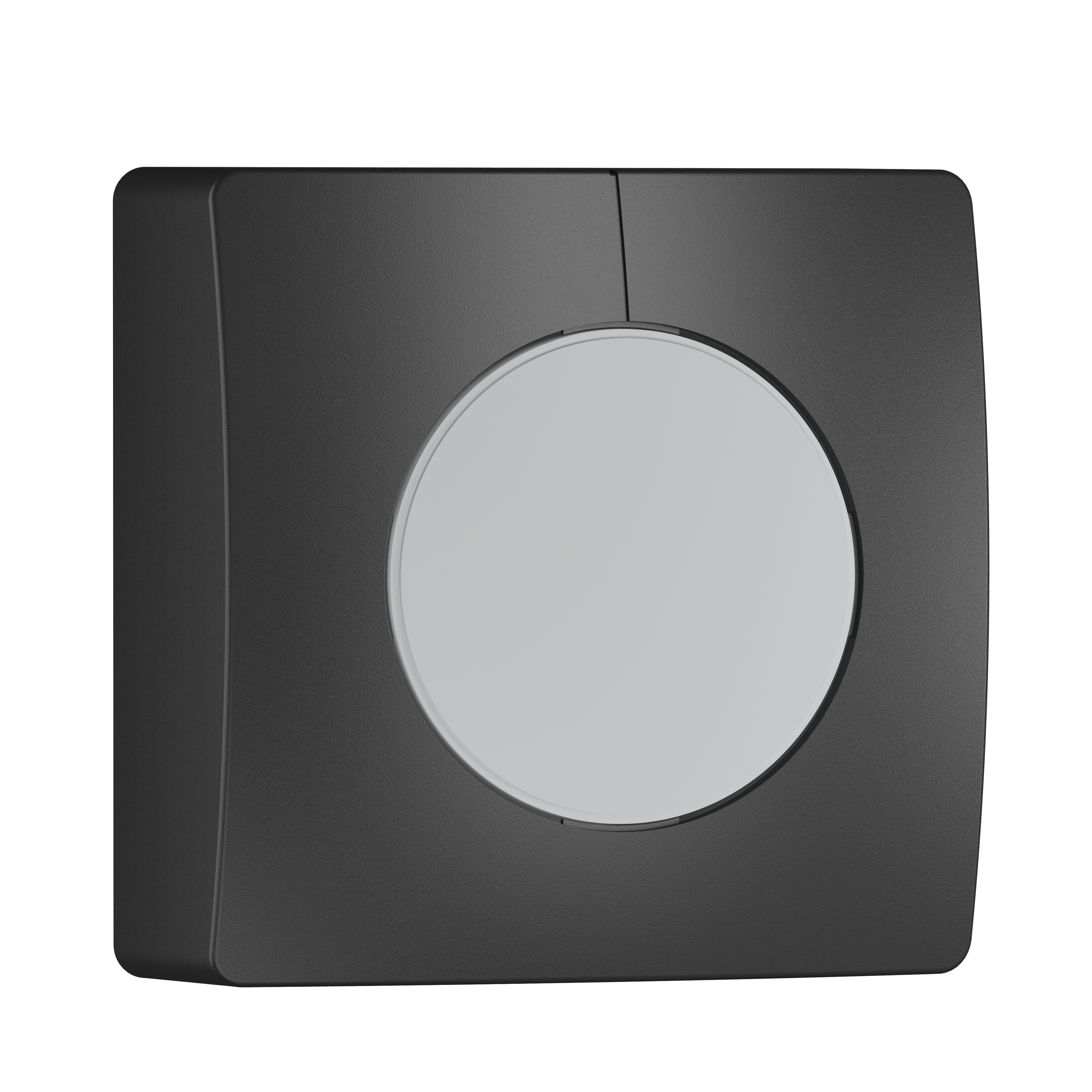

Nevalux NightMatic 5000-3 COM1 - black

Nevalux NightMatic 5000-3 COM1 - black

ELDAS® no. 535 900 320 · EAN-No. 4007841 011680

Technical data Illustrations Wiring diagrams Downloads Accessories
Nevalux

Nevalux NightMatic 5000-3 COM1 - black

ELDAS® no. 535 900 320

EAN-No. 4007841 011680

This product is being replaced by a successor product.

Go to successor product · NightMatic 3000 Vario black (550516)

Intelligent lighting control. NightMatic 5000-3 photo-electric lighting controller for indoors and out, ideal for illuminating shop windows, advertising and specific areas through the night, diffuse light measurement for monitoring the complete ambient brightness, unique night economy mode, heavy-duty relay for high switching capacity.

  • UV-resistant plastic
  • Large terminal compartment
  • Optional corner wall mount bracket
  • Optional remote controls

Identification

Version Photo-cell controller

Dimensions

Dimensions L × W × H 42 x 95 x 95 mm

Electrical

Mains connection 220 – 240 V / 50 – 60 Hz
Power 2000 W
Switching output 1 resistive 2000 W
Fluorescent lamps ECG 1500 W
Fluorescent lamps uncompensated 1000 VA
Fluorescent lamps series-compensated 400 VA
Fluorescent lamps parallel-compensated 400 VA
Switching output 1 low-voltage halogen lamps 2000 VA
LED lamps < 2 W 100 W
LED lamps > 2 W < 8 W 300 W
LED lamps > 8 W 600 W
Capacitive load in µF 176 µF
Switching output 1 number of LED/fluorescent lamps 8 pcs.

Sensor technology

Sensor technology Light sensor

Connectivity

Networking Yes
Type of networking Master/master
Networking via Cable

Lighting technology

Soft light start No
Continuous light selectable, 4h
Constant light regulation No

Settings

Twilight switch Yes
Twilight setting 2 – 1000 lx
Base light function No
Main light adjustable No
Functions Night economy mode\nlight ON / OFF in the morning
Settings via Remote control\nPotentiometers\nSmart Remote
Twilight setting teach Yes

Housing & material

Protection class (IP) IP54
Ambient temperature -20 – 50 °C
Mounting location corner wall
Application location Indoors Outdoors
Mounting type Surface wiring
Material Plastic
Application room outdoors
Colour black
RAL colour 9005

Scope of delivery & warranty

Manufacturer warranty 5 years
Corner wall bracket included No

Technical drawing

Wiring diagram 1

Master circuit diagram

Wiring diagram 2

Master/slave interconnection circuit diagram
