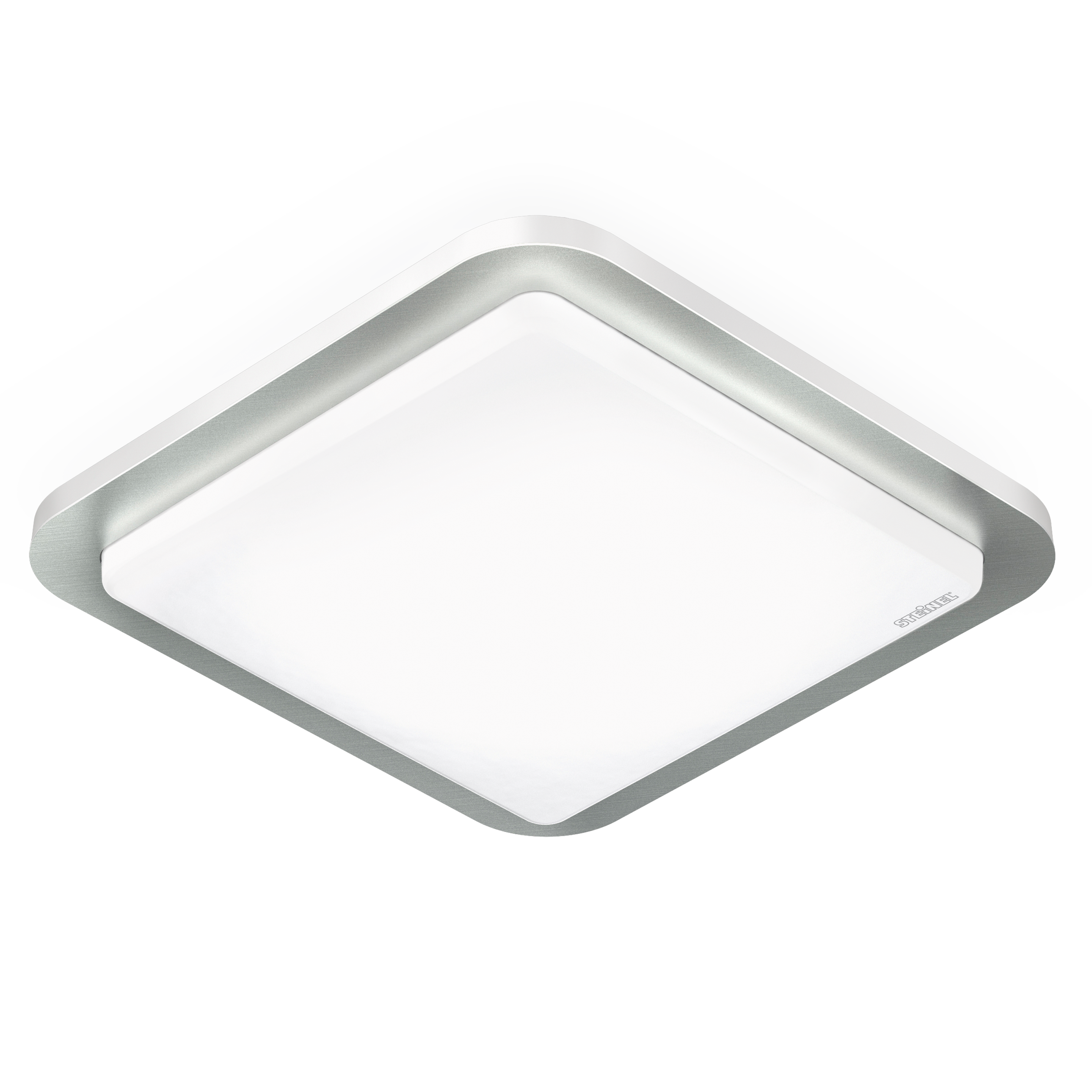

Nevalux RS LED D2 Z-Wave

EAN-No. 4007841 029852

Discontinued

This product is being discontinued and is available while stocks last. No successor product has been announced yet.

Shining light. STEINEL high-frequency sensor-switched indoor light RS LED D2 Z-Wave, can be integrated into the Smart Friends system or any other Z-Wave network, with brushed stainless-steel surround, ideal for corridors, hallways, stairwells and bathrooms. 11 W for 600 lm of light, STEINEL LED lighting system, 360° high-frequency sensor with 3-8 m reach, switches light ON without a sound, with ambient light.

Including STEINEL LED system
LED ambient light
High-quality materials

Variants

Luminous flux 600 lm

Dimensions

Dimensions L × W × H 300 x 300 x 65,5 mm

Electrical

Mains connection 220 – 240 V , 50 / 60 Hz

Power 11 W

Sensor technology

Sensor technology High frequency

Transmission power < 1 mW

With motion detector Yes

Detection also through glass, wood and stud walls

Detection angle 360 °

Opening angle 160 °

Electronic scalability Yes

Mechanical scalability No

Transmission range Up to 100 m in the open, 30 m indoors

Lighting technology

Colour temperature 3000 K

LED colour deviation SDCM3

Colour rendering index 80-89

With illuminant Yes, STEINEL LED system

Illuminant LED cannot be replaced

Base without

LED cooling system Passive Thermo Control

Luminous flux 600 lm

Lifetime

LED lifetime max. °C 50000 h

Luminous flux decline per LM80 L70B10

Settings

Twilight switch Yes

Twilight setting 2 – 2000 lx

Time setting 5 sec – 15 min

Housing & material

Impact resistance IK00

Protection class (IP) IP20

Protection class II

Ambient temperature -10 – 40 °C

Housing material Plastic

Cover material Plastic, opal

Scope of delivery & warranty

Manufacturer warranty 3 years

Sensor detection range

Data sheet User manual

Smartfriends Box

Item no. 4007841029876
