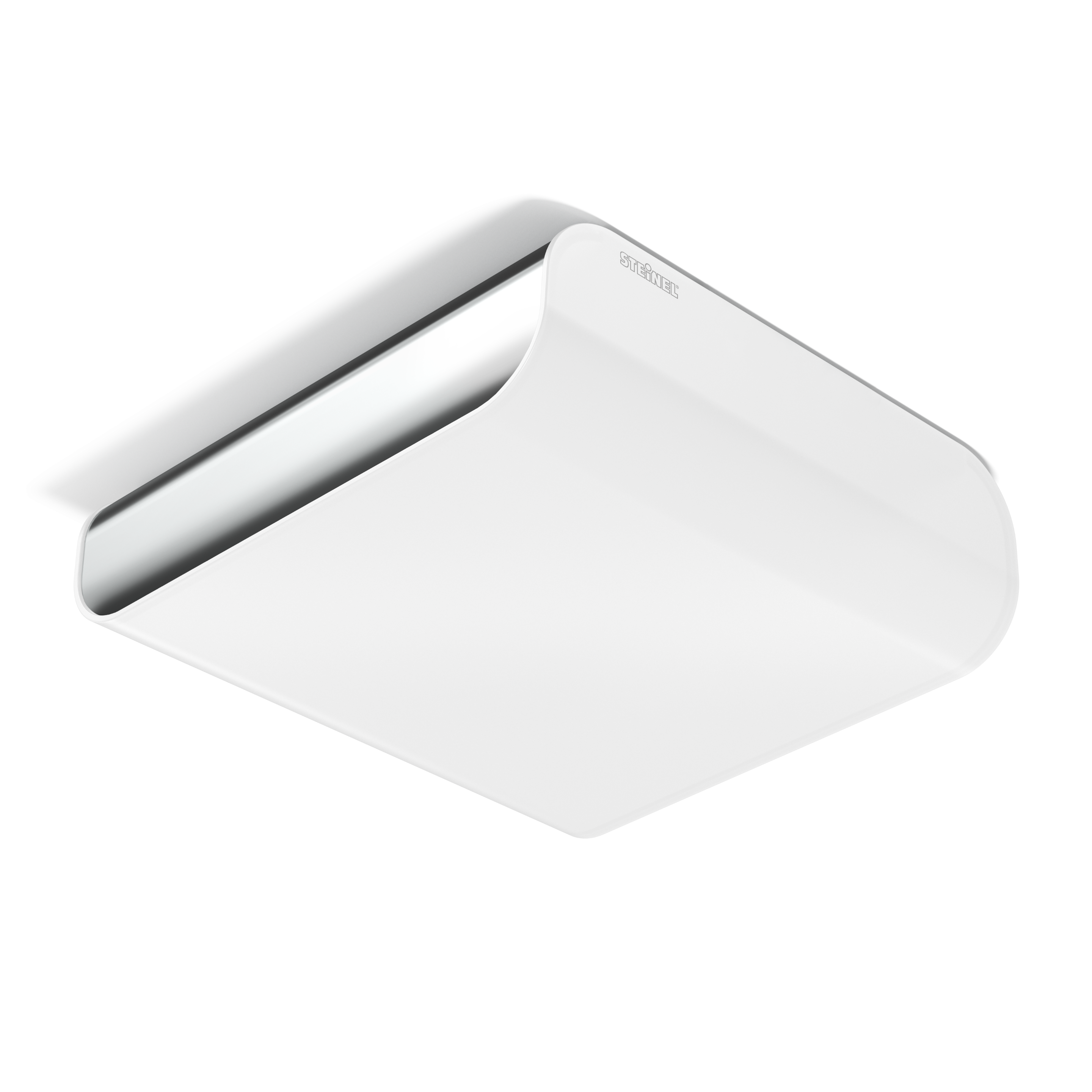

Nevalux RS LED M2 Chrome

ELDAS® no. 941 301 379

EAN-No. 4007841 052508

Discontinued

This product is being discontinued and is available while stocks last. No successor product has been announced yet.

Make elegant statements. Translucent RS LED M2 indoor LED lights for ceiling and wall. With an impressive 873 lm for classy ambient light at a power consumption of just 9,5 W. Integrated high-frequency sensor with an angle of coverage of 360° and reach of up to ø 6 m. Night-light function and 4-hour manual override (3000 K). Available in either chrome or silver.

Including STEINEL LED system
LED ambient light
4-hour manual override (optional)
Optional basic lighting level 10 %
High-quality materials

Identification

Variant Chrome

Variants

Luminous flux 873 lm

Dimensions

Dimensions L × W × H 220 x 220 x 67 mm

Electrical

Mains connection 220 – 240 V , 50 / 60 Hz

Power 9,5 W

Sensor technology

Sensor technology High frequency

With motion detector Yes

Detection also through glass, wood and stud walls

Detection angle 360 °

Opening angle 160 °

Electronic scalability Yes

Mechanical scalability No

Connectivity

Networking Yes

Lighting technology

Colour temperature 3000 K

LED colour deviation SDCM3

Colour rendering index 80-89

With illuminant Yes, STEINEL LED system

Illuminant LED cannot be replaced

Base without

Soft light start Yes

Continuous light selectable, 4h

Luminous flux 873 lm

Lifetime

LED lifetime max. °C 65000 h

Luminous flux decline per LM80 L70B10

Settings

Twilight switch Yes

Twilight setting 2 – 2000 lx

Time setting 5 sec – 15 min

Base light function Yes

Base light function time 10/30 min, all night

Housing & material

Impact resistance IK00

Protection class (IP) IP20

Protection class II

Ambient temperature -10 – 30 °C

Housing material Plastic

Cover material Plastic, opal

Scope of delivery & warranty

Manufacturer warranty 3 years

Sensor detection range
