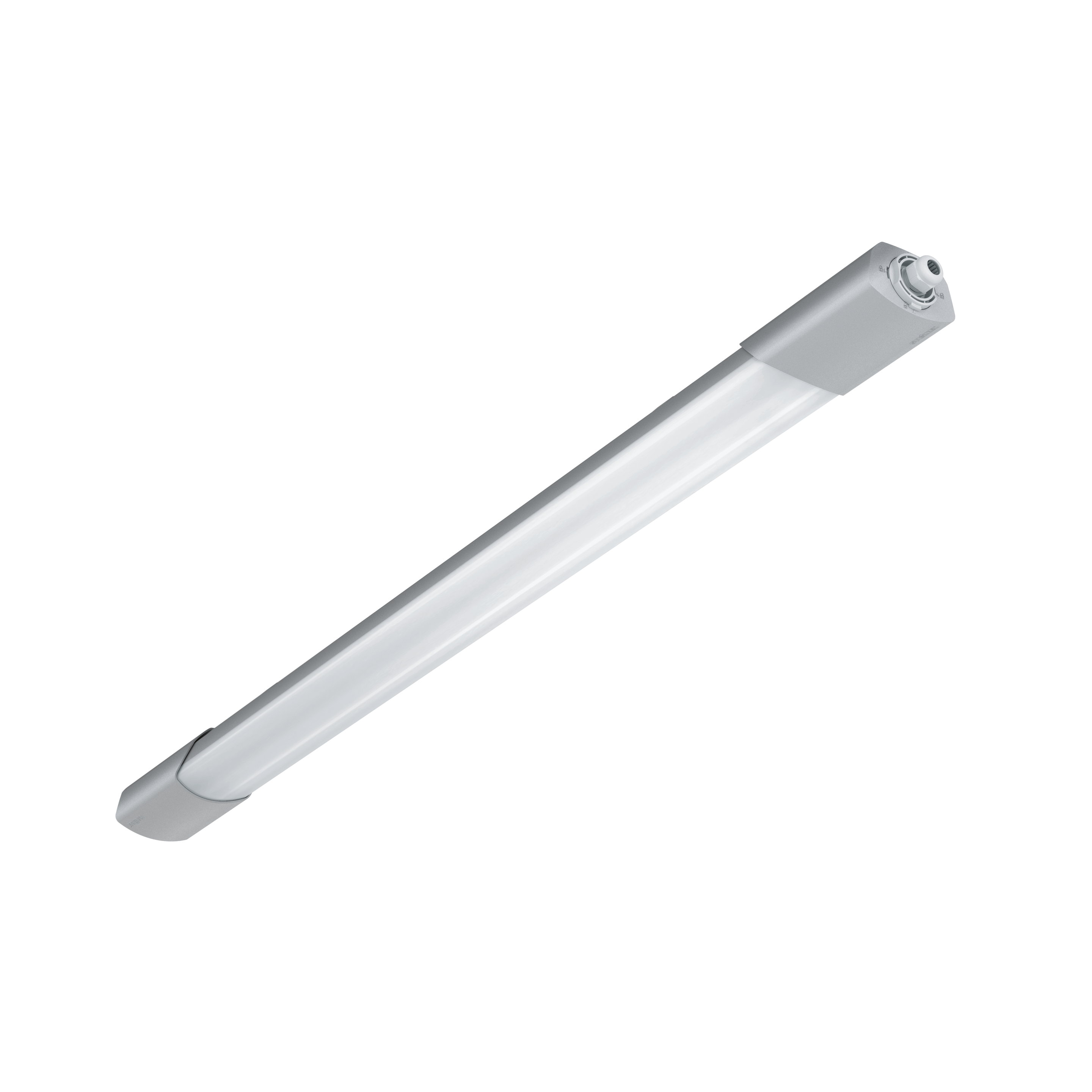

Nevalux RS PRO 5100 SC with motion detector & Bluetooth Verso

Nevalux RS PRO 5100 SC with motion detector & Bluetooth Verso

ELDAS® no. 941 006 359 · EAN-No. 221392

Technical data Illustrations Wiring diagrams Downloads
Nevalux Nevalux Connect

Nevalux RS PRO 5100 SC with motion detector & Bluetooth Verso

ELDAS® no. 941 006 359

EAN-No. 221392

Price: Please log in to see prices

Manufacturer

Steinel Nevalux

Dimensions

RS PRO 5150 Length 1500mm RS PRO 5100 Length 1370mm

Our engineers agreed: The new damp-proof light should be simple and good. Easy to install and maintain, good in energy efficiency, function and quality. The moisture-proof luminaire the world has been waiting for. Robust, highly functional, child's play to install, wireless to network and ultimately convenient to adjust via smartphone. 360° high-frequency sensor, 10 m range. With 4250 lm at 31 W and 4000 K. No unintentional switch-off thanks to presence mode.

  • Including STEINEL LED system
  • Interconnectable and adjustable via Bluetooth
  • Impact-resistant material rated to IK07
  • Optional basic lighting level 10 - 50 %
  • Optional main light level 50 - 100%
  • Adjustable mounts for easy installation

Dimensions

Dimensions L × W × H 1370 x 87 x 58 mm

Electrical

Mains connection 220 – 240 V / 50 – 60 Hz
Power 31 W
Own consumption 0,41 W

Sensor technology

Max. mounting height 3,50 m
Sensor technology High frequency
Transmission power < 1 mW
With motion detector Yes
Detection angle 360 °
Opening angle 160 °
Electronic scalability Yes
Mounting height 3,5 m

Connectivity

Networking Yes

Lighting technology

Measured luminous flux 360° 4250 lm
Colour temperature 4000 K
LED colour deviation SDCM3
Colour rendering index 80-89
With illuminant Yes, LED lamp
Illuminant LED cannot be replaced
LED cooling system Passive Thermo Control

Lifetime

LED lifetime max. °C 60000 h
LED lifetime L70B50 25°C > 60000 h
Luminous flux decline per LM80 L80B10

Settings

Twilight setting 2 – 2000 lx
Time setting 5 sec – 60 min
Base light function Yes
Base light function time 1-60 min
Main light adjustable 10 - 100 %
Settings via Bluetooth
Base light function in percent 10 – 100 %
Base light function percent from 10 %

Housing & material

Impact resistance IK07
Protection class (IP) IP66
Protection class II
Ambient temperature -20 – 40 °C
Housing material Plastic
Cover material Plastic, structured
Colour grey

Scope of delivery & warranty

Manufacturer warranty 5 years

Certificates & EPREL

Certificates DEKRA
EPREL category Surrounded product with integrated light source

Technical drawing

Sensor detection range

Wiring diagram 1

Master circuit diagram

Wiring diagram 2

Master/slave and master/master interconnection circuit diagram
