Nevalux RS PRO Connect R20 SL Neutral white

Nevalux RS PRO Connect R20 SL Neutral white

ELDAS® no. 941 301 269 · EAN-No. 4007841 057084

Technical data Illustrations Wiring diagrams Downloads Accessories
Nevalux

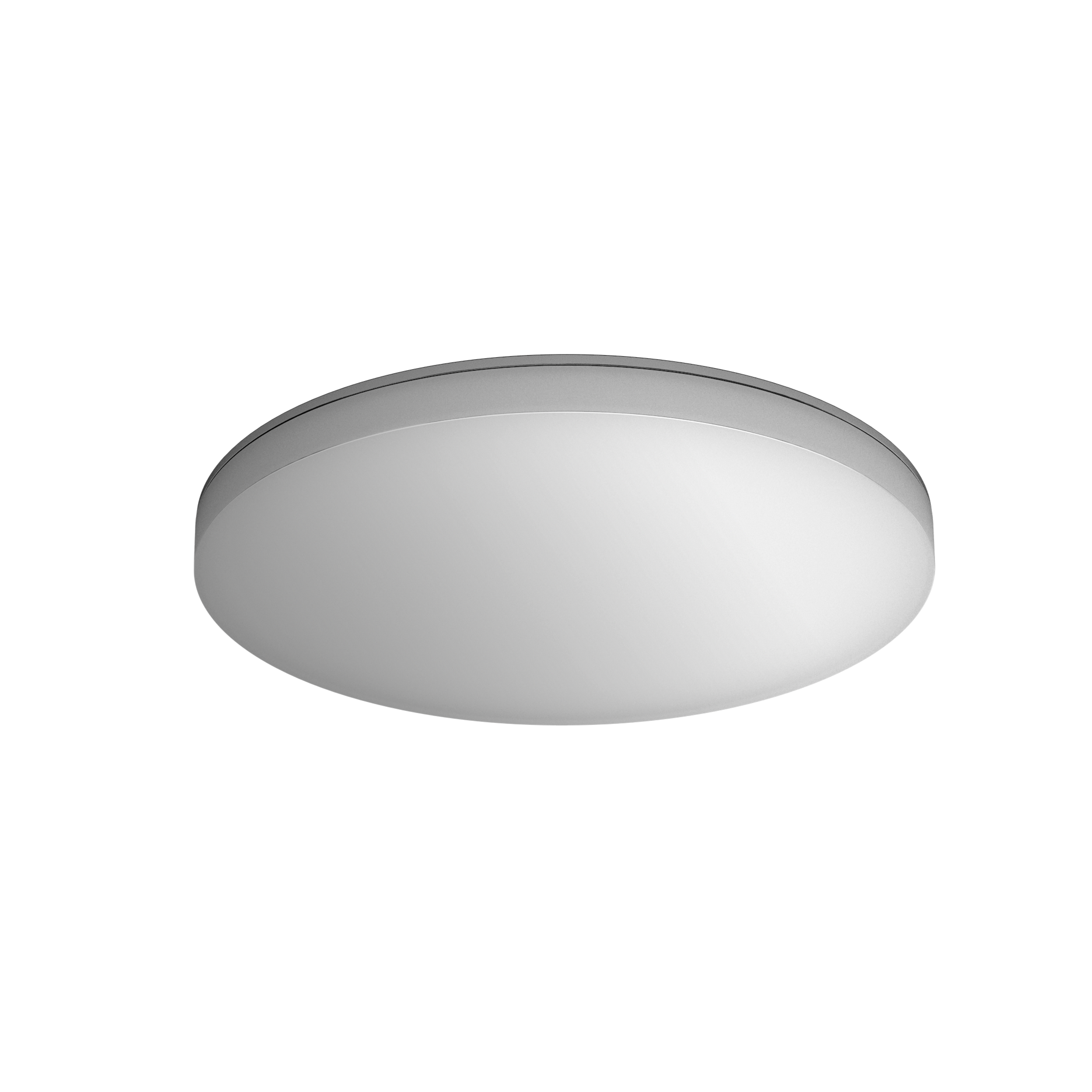

Nevalux RS PRO Connect R20 SL Neutral white

ELDAS® no. 941 301 269

EAN-No. 4007841 057084

This product is being replaced by a successor product.

Go to successor product · RS PRO R20 plus SC Neutral white (067724)

Stylish. Progressive. Practical. The round RS PRO Connect R20 is also available as a slave version without sensor for straightforward interconnection via Bluetooth. For evenly distributed light whenever needed – and optimum illumination for hallways, corridors and stairwells. Output: 16 W providing 2000 lm of light. 4000 K. Dimensions: ø 350 x 55 mm.

  • Including STEINEL LED system
  • Interconnectable and adjustable via Bluetooth
  • Impact-resistant material rated to IK07

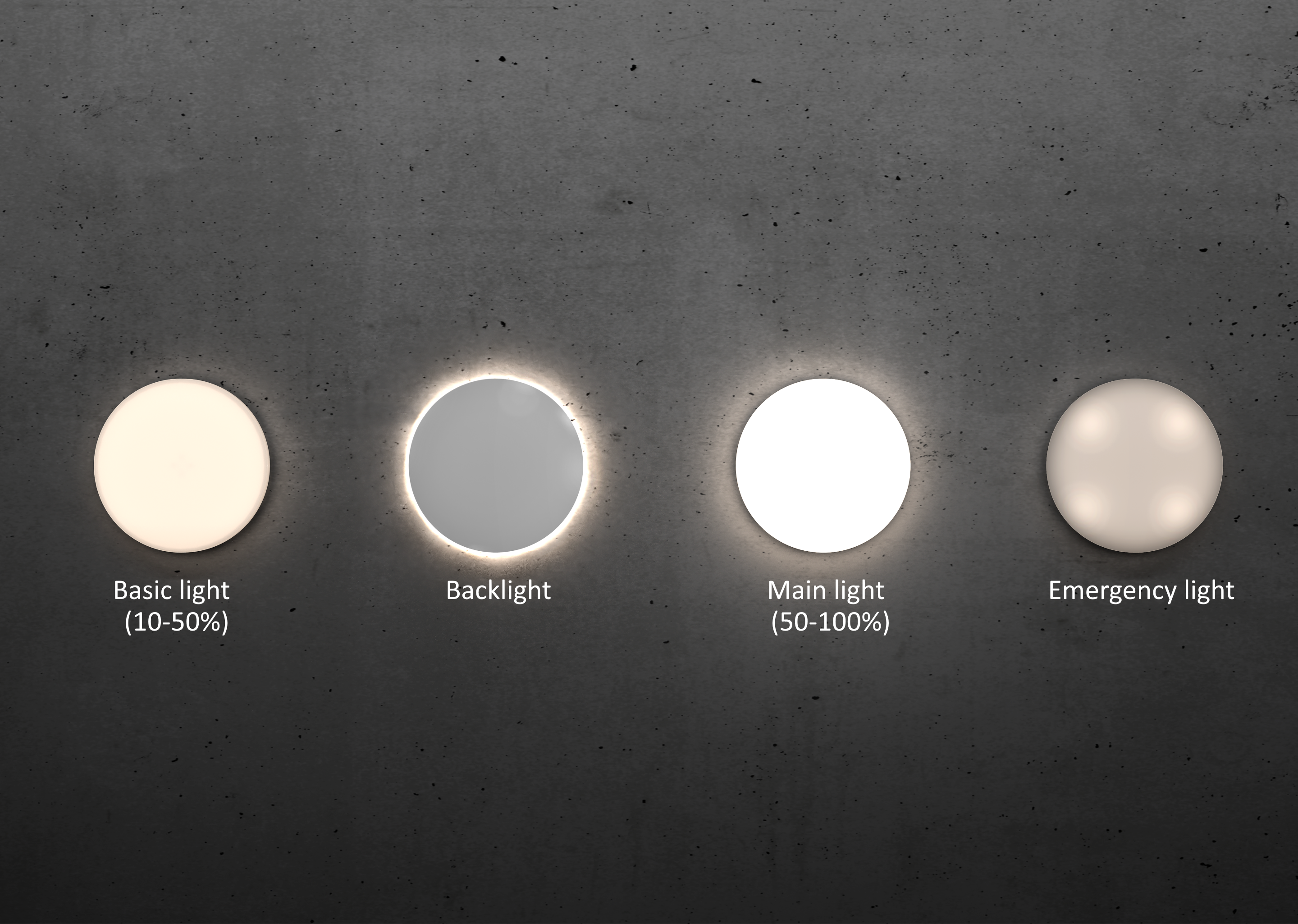

  • Backlight function
  • Optional main light level 50 - 100%
  • Modern plug-in terminals for straightforward installation

Identification

Variant Neutral white

Variants

Version Slave
Luminous flux 2000 lm

Dimensions

Dimensions Ø × H 350 x 55 mm

Electrical

Mains connection 220 – 240 V / 50 – 60 Hz
Power 16 W

Sensor technology

With motion detector No

Lighting technology

Colour temperature 4000 K
LED colour deviation SDCM3
Colour rendering index 80-89
With illuminant Yes, STEINEL LED system
Illuminant LED cannot be replaced
Base without
LED cooling system Passive Thermo Control
Soft light start Yes
Continuous light selectable
Luminous flux 2000 lm

Lifetime

LED lifetime max. °C 50000 h
Luminous flux decline per LM80 L80B50
LED lifespan (25 °C) 60000 h

Settings

Twilight switch No
Base light function detail LED Backlight
Functions Backlight
Settings via Bluetooth
With remote control No

Housing & material

Impact resistance IK07
Protection class (IP) IP40
Protection class II
Ambient temperature -20 – 40 °C
Housing material Plastic
Cover material PC, opal

Scope of delivery & warranty

Manufacturer warranty 5 years

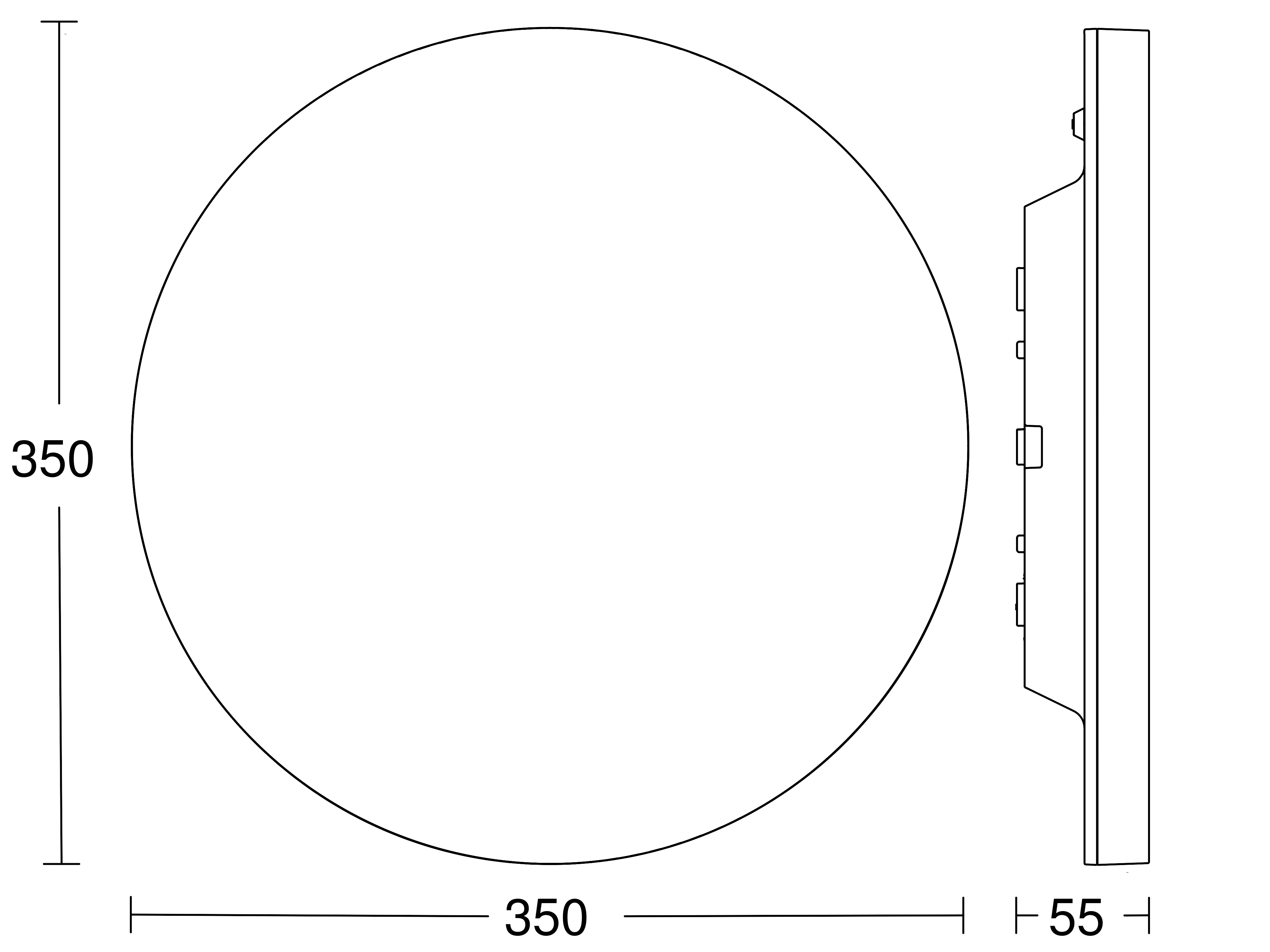

Technical drawing

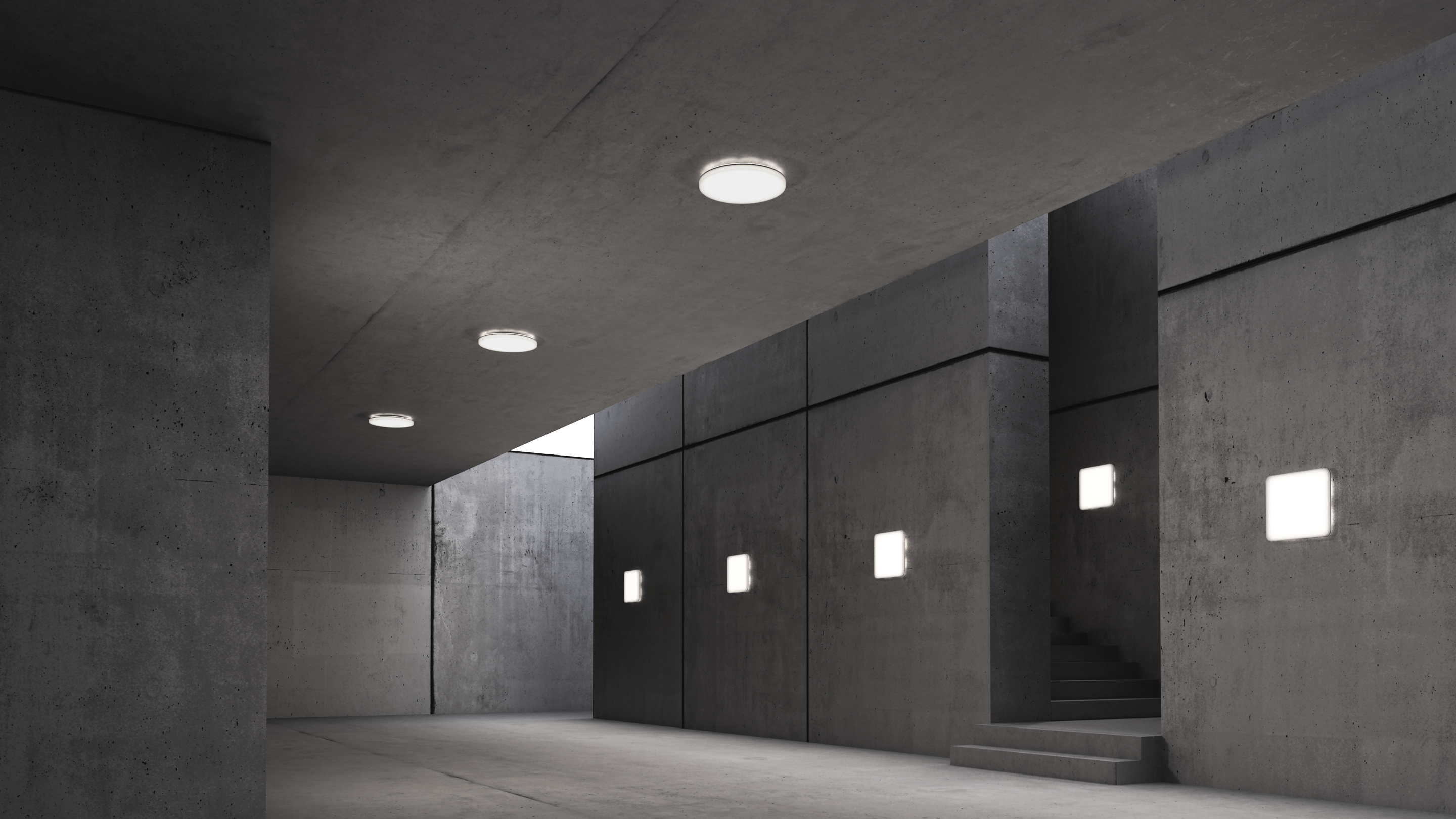

Sensor detection range

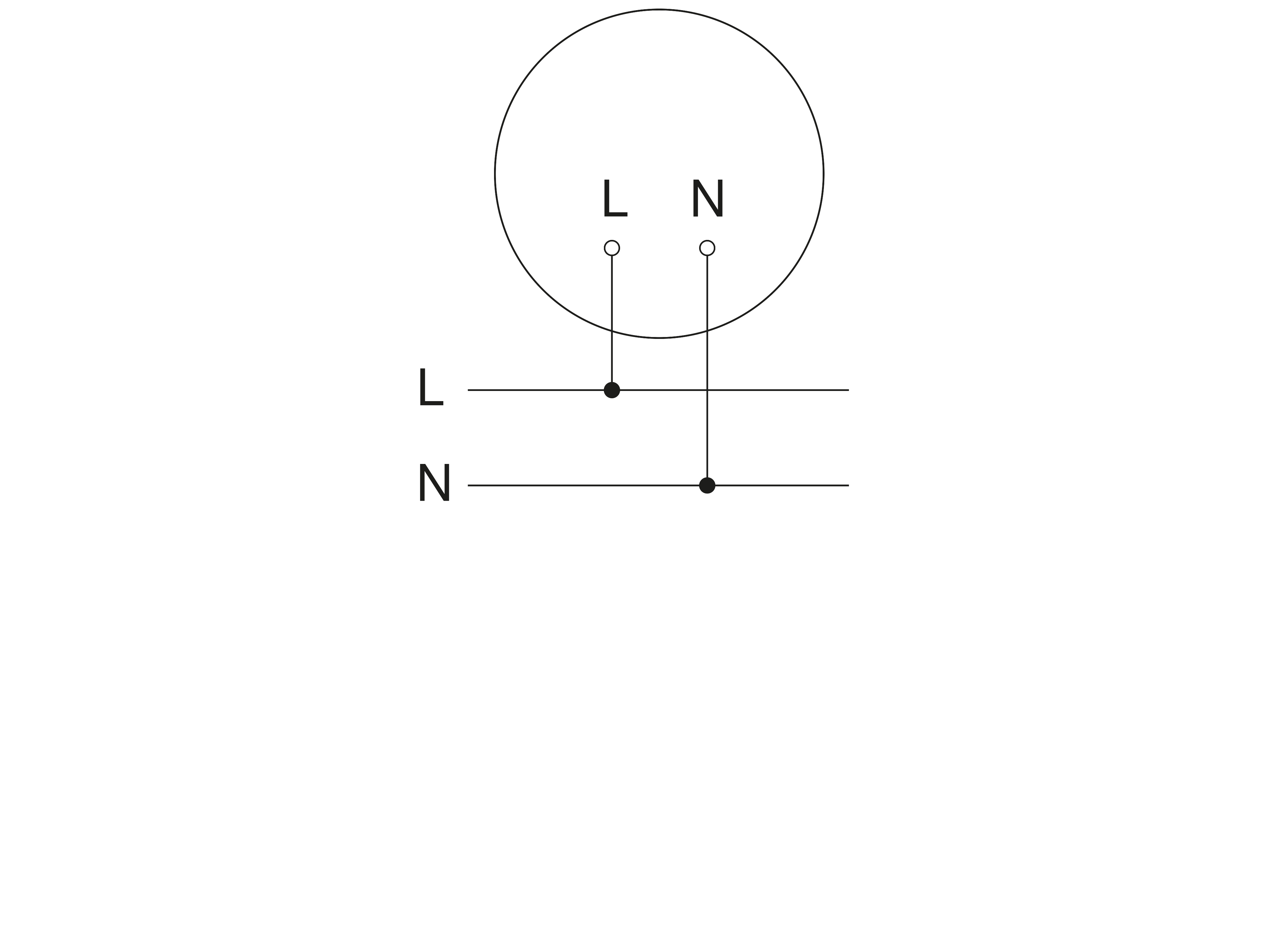

Wiring diagram 1

Slave/wireless master interconnection circuit diagram

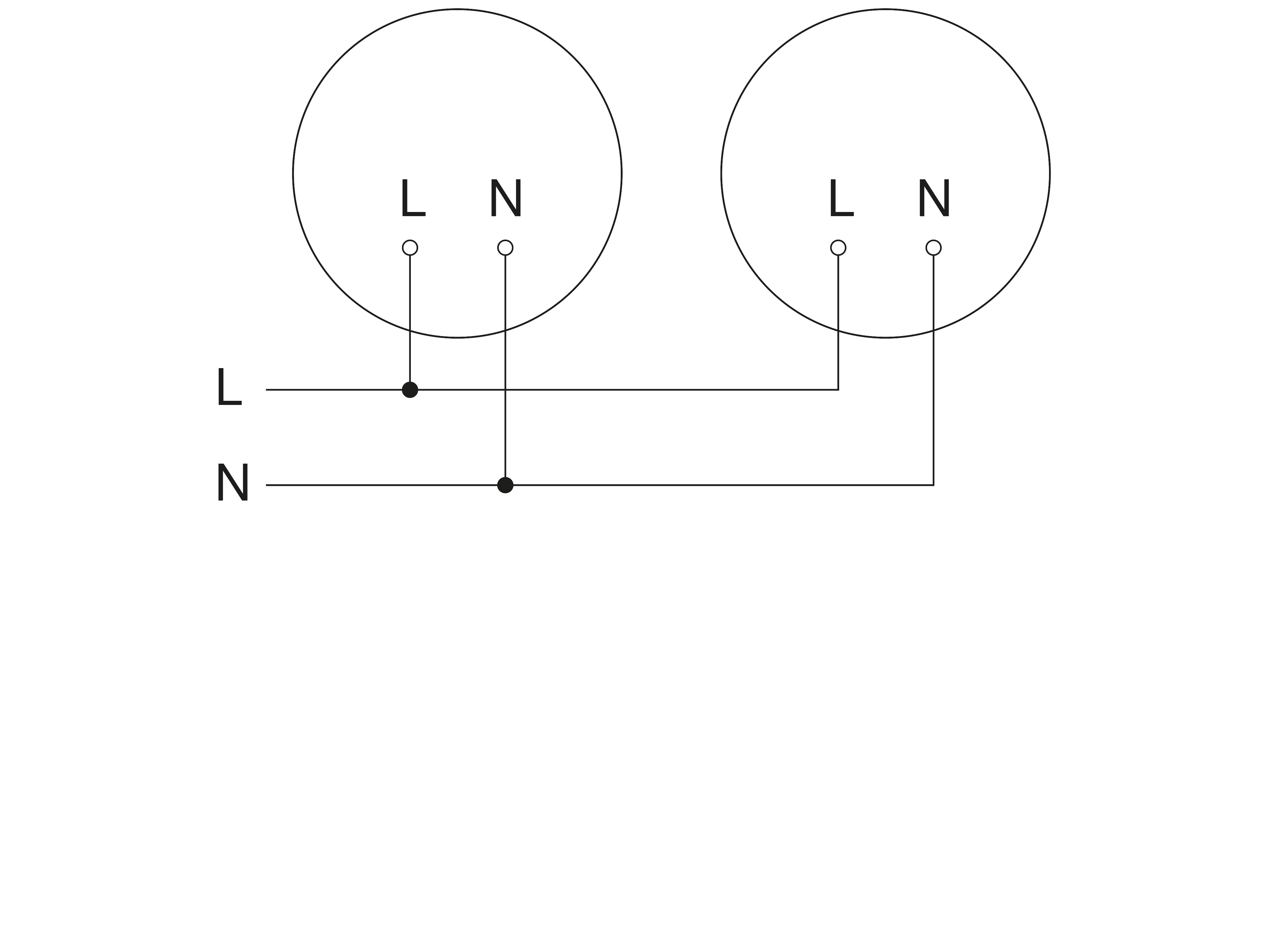

Wiring diagram 2

Master/master interconnection circuit diagram
