Nevalux RS PRO Connect R30 Q SL Neutral white

Nevalux RS PRO Connect R30 Q SL Neutral white

ELDAS® no. 941 301 619 · EAN-No. 4007841 057206

Technical data Illustrations Wiring diagrams Downloads Accessories
Nevalux

Nevalux RS PRO Connect R30 Q SL Neutral white

ELDAS® no. 941 301 619

EAN-No. 4007841 057206

This product is being replaced by a successor product.

Go to successor product · RS PRO R30 plus Q SC Neutral white (067779)

Connected lighting squared. In conjunction with the master version, the slave version of the RS PRO Connect R30 Q without sensor is easily interconnected via Bluetooth to create lighting groups. Perfect light distribution – ideal for corridors, hallways and stairwells. Output: 24,5 W providing 3150 lm of light. 4000 K. Dimensions: 350 x 350 x 55 mm.

  • Including STEINEL LED system
  • Interconnectable and adjustable via Bluetooth
  • Impact-resistant material rated to IK07

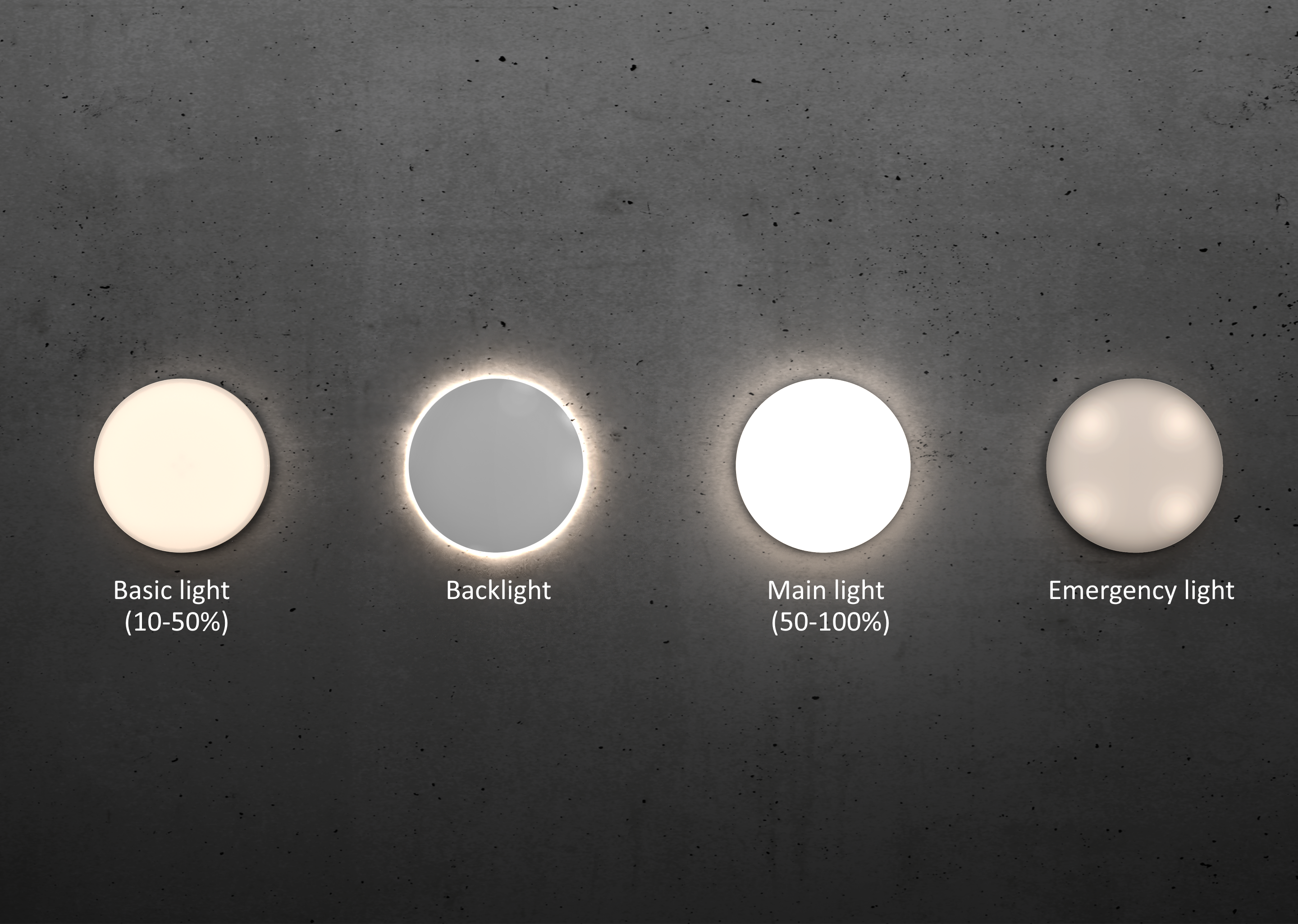

  • Backlight function
  • Optional main light level 50 - 100%
  • Modern plug-in terminals for straightforward installation

Identification

Variant Neutral white

Variants

Version Slave
Luminous flux 3150 lm

Dimensions

Dimensions L × W × H 55 x 350 x 350 mm

Electrical

Mains connection 220 – 240 V / 50 – 60 Hz
Power 24,5 W

Sensor technology

With motion detector No

Lighting technology

Colour temperature 4000 K
LED colour deviation SDCM3
Colour rendering index 80-89
With illuminant Yes, STEINEL LED system
Illuminant LED cannot be replaced
Base without
LED cooling system Passive Thermo Control
Soft light start Yes
Continuous light selectable
Luminous flux 3150 lm

Lifetime

LED lifetime max. °C 50000 h
Luminous flux decline per LM80 L80B50
LED lifespan (25 °C) 60000 h

Settings

Twilight switch No
Base light function detail LED Backlight
Functions Backlight
Settings via Bluetooth
With remote control No

Housing & material

Impact resistance IK07
Protection class (IP) IP40
Protection class II
Ambient temperature -20 – 40 °C
Housing material Plastic
Cover material PC, opal

Scope of delivery & warranty

Manufacturer warranty 5 years

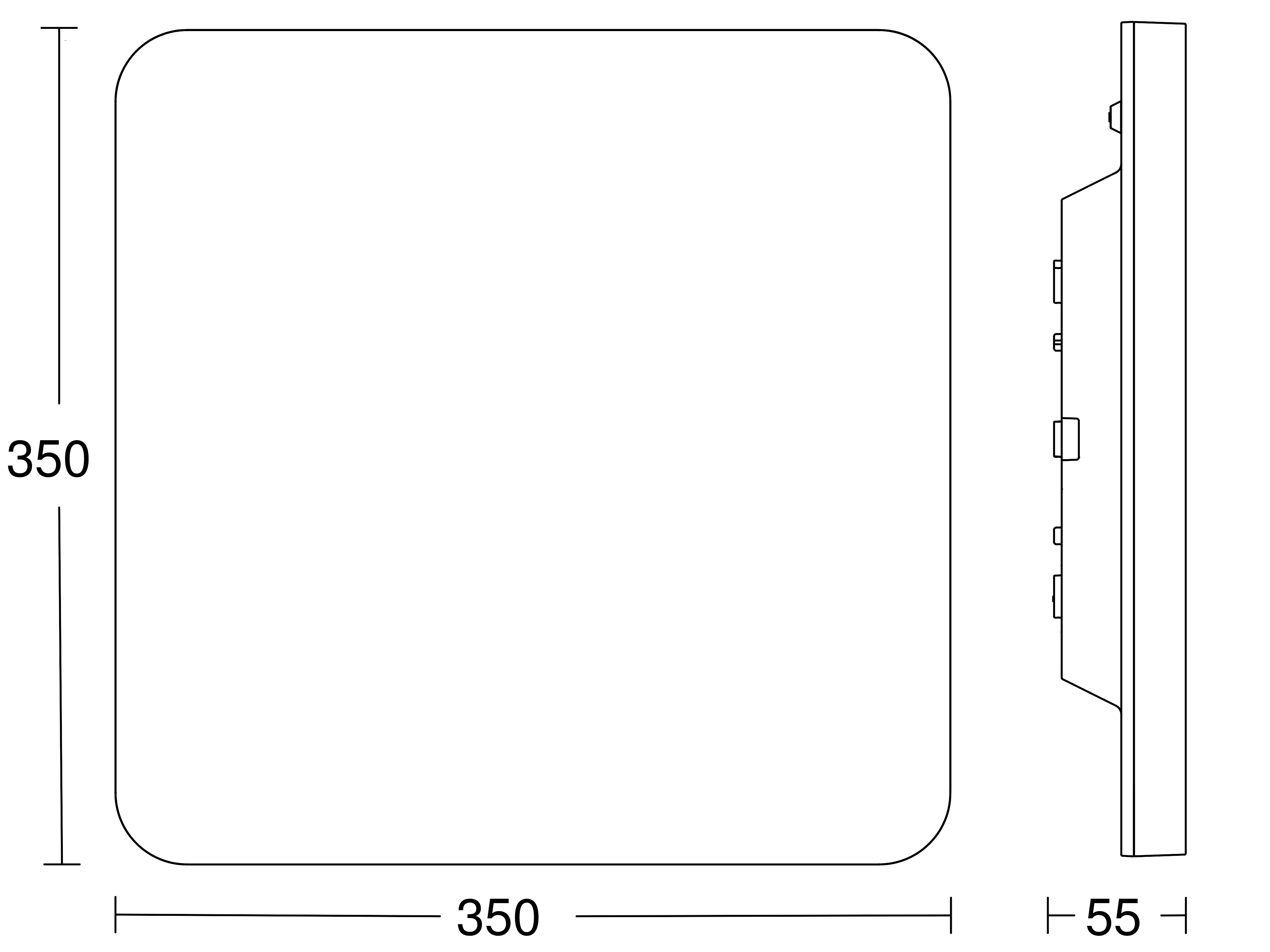

Technical drawing

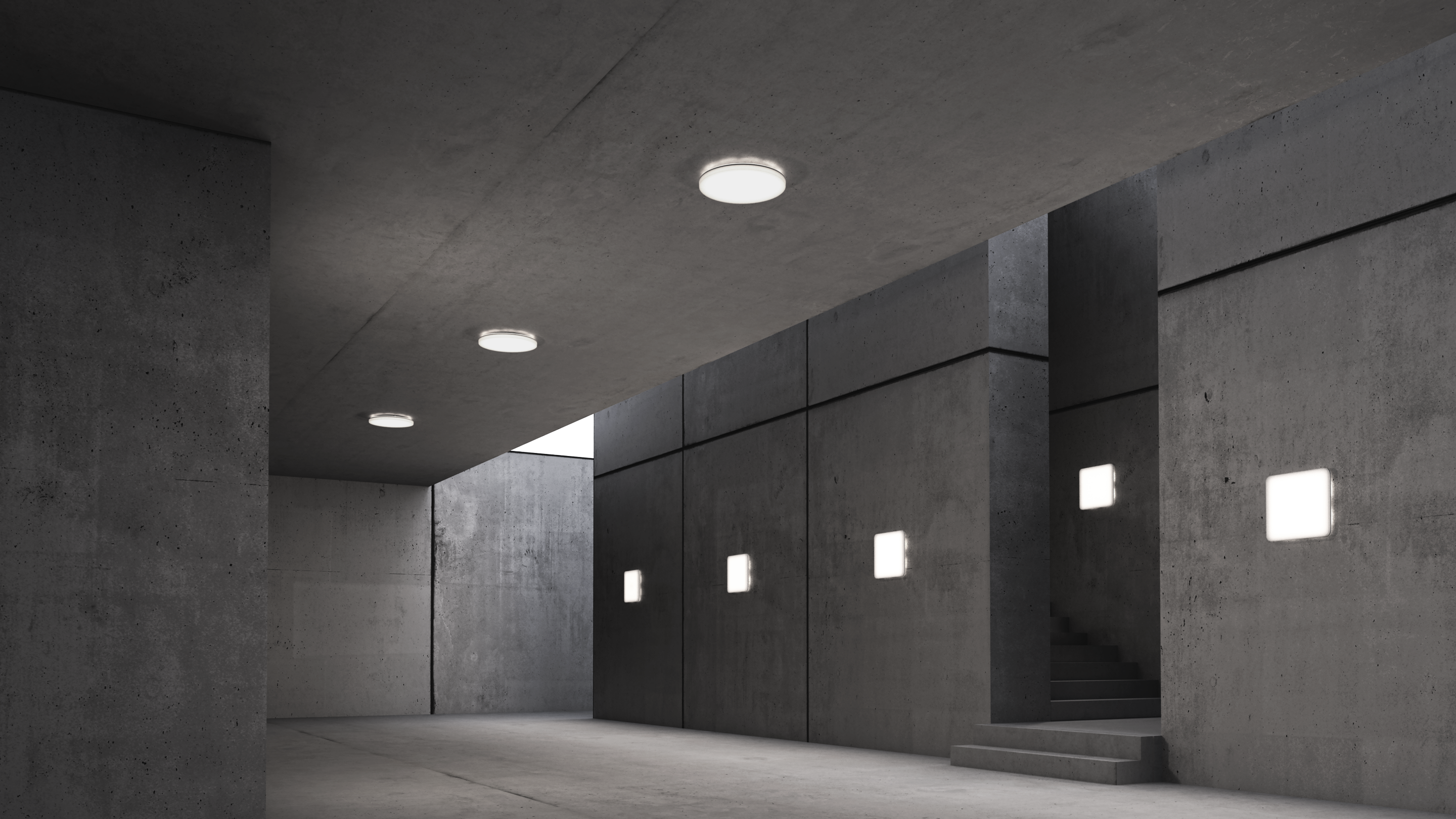

Sensor detection range

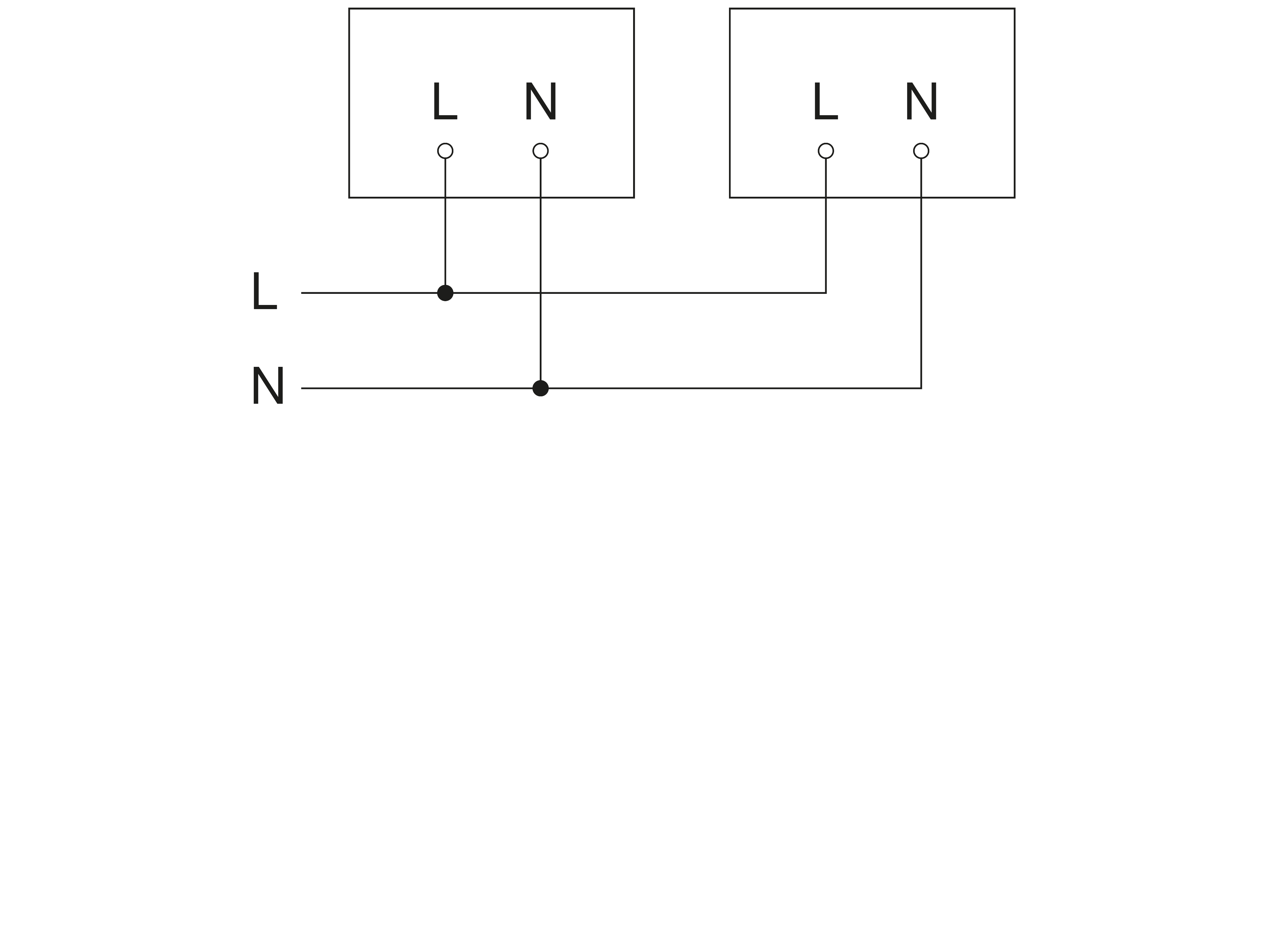

Wiring diagram 1

Slave/wireless master interconnection circuit diagram

Wiring diagram 2

Master/master interconnection circuit diagram
