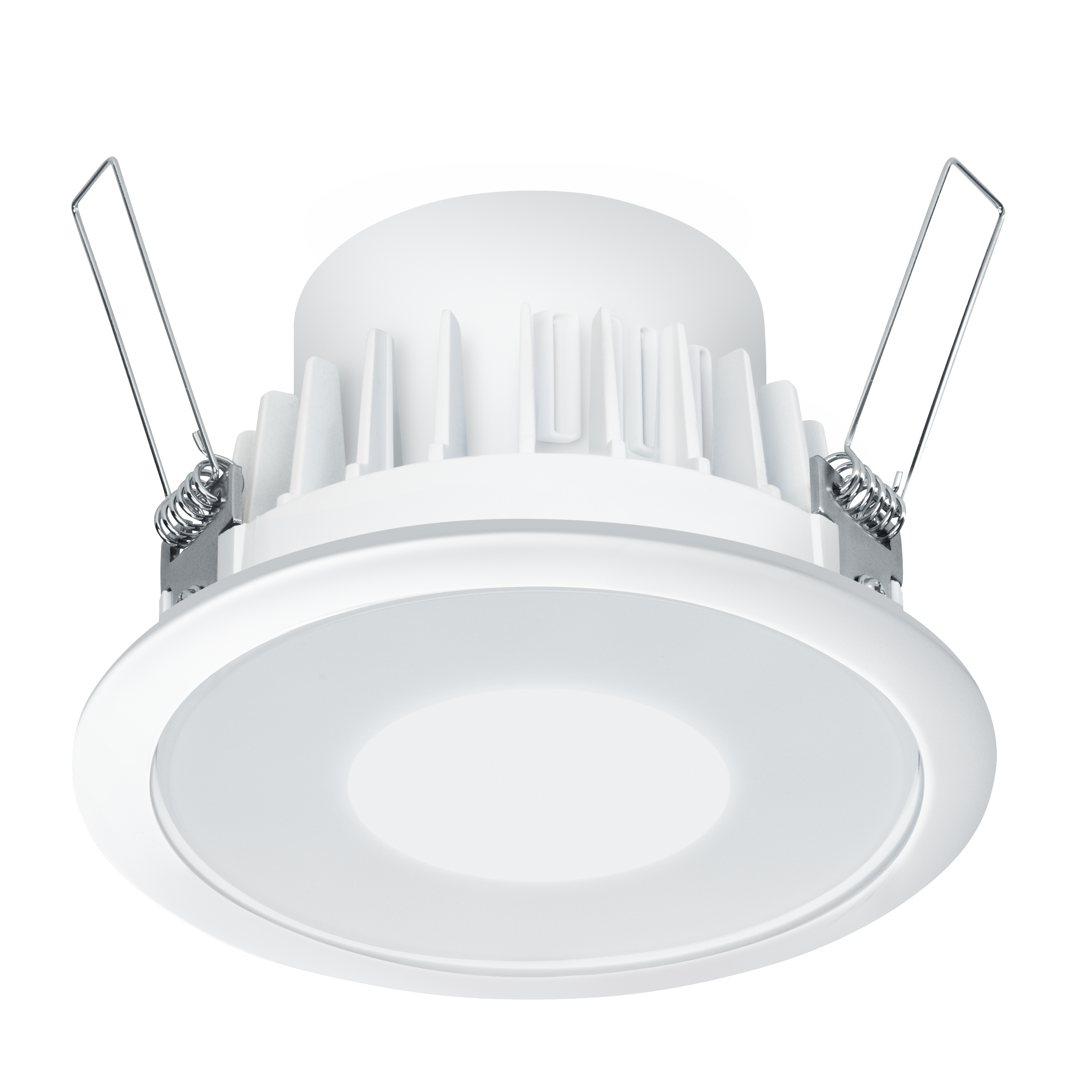

Nevalux RS PRO DL LED 15 W Slave - neutral white

EAN-No. 4007841 007720

Discontinued

This product is being discontinued and is available while stocks last. No successor product has been announced yet.

Professional integrator with LED system. Downlighter RS PRO DL LED Slave, ideal for large installations, e.g. WC facilities at airports, in schools, office buildings or administration centres, interconnectable by cable with RS PRO DL LED, recessed ceiling mounting, 15 W/838 lm, 4000 K, without sensor.

Including STEINEL LED system
Intelligent LED cooling system
Ceiling-flush installation
Interconnectable by cable ?(maximum of 10 units)
Can only be set by optional remote control RC2

Identification

Variant Slave - neutral white

Variants

Luminous flux 838 lm

Dimensions

Dimensions Ø × H 142.5 x 88 mm

Electrical

Mains connection 100 – 240 V , 50 / 60 Hz

Power 15 W

Power detail Only via Eltako ER12DX-UC with basic light function deactivated

Sensor technology

Transmission power < 1 mW

With motion detector No

Lighting technology

Colour temperature 4000 K

LED colour deviation SDCM3

Colour rendering index 80-89

With illuminant Yes, STEINEL LED system

Illuminant LED cannot be replaced

Base without

LED cooling system Passive Thermo Control

Luminous flux 838 lm

Lifetime

LED lifetime max. °C 50000 h

Luminous flux decline per LM80 L70B10

Settings

Twilight switch No

Time setting 60 sec – 60 min

Base light function time 10 min, 30 min, all night

Housing & material

Impact resistance IK00

Protection class (IP) IP20

Protection class II

Ambient temperature -10 – 40 °C

Housing material Aluminium

Cover material Plastic, opal

Scope of delivery & warranty

Manufacturer warranty 5 years

Sensor detection range

Data sheet User manual

RS PRO Remote control RC2

Item no. 4007841737818

Remote control Smart Remote

Item no. 009151

Refurbishment trim for RS PRO DL LED 15 W

Item no. 4007841013677
