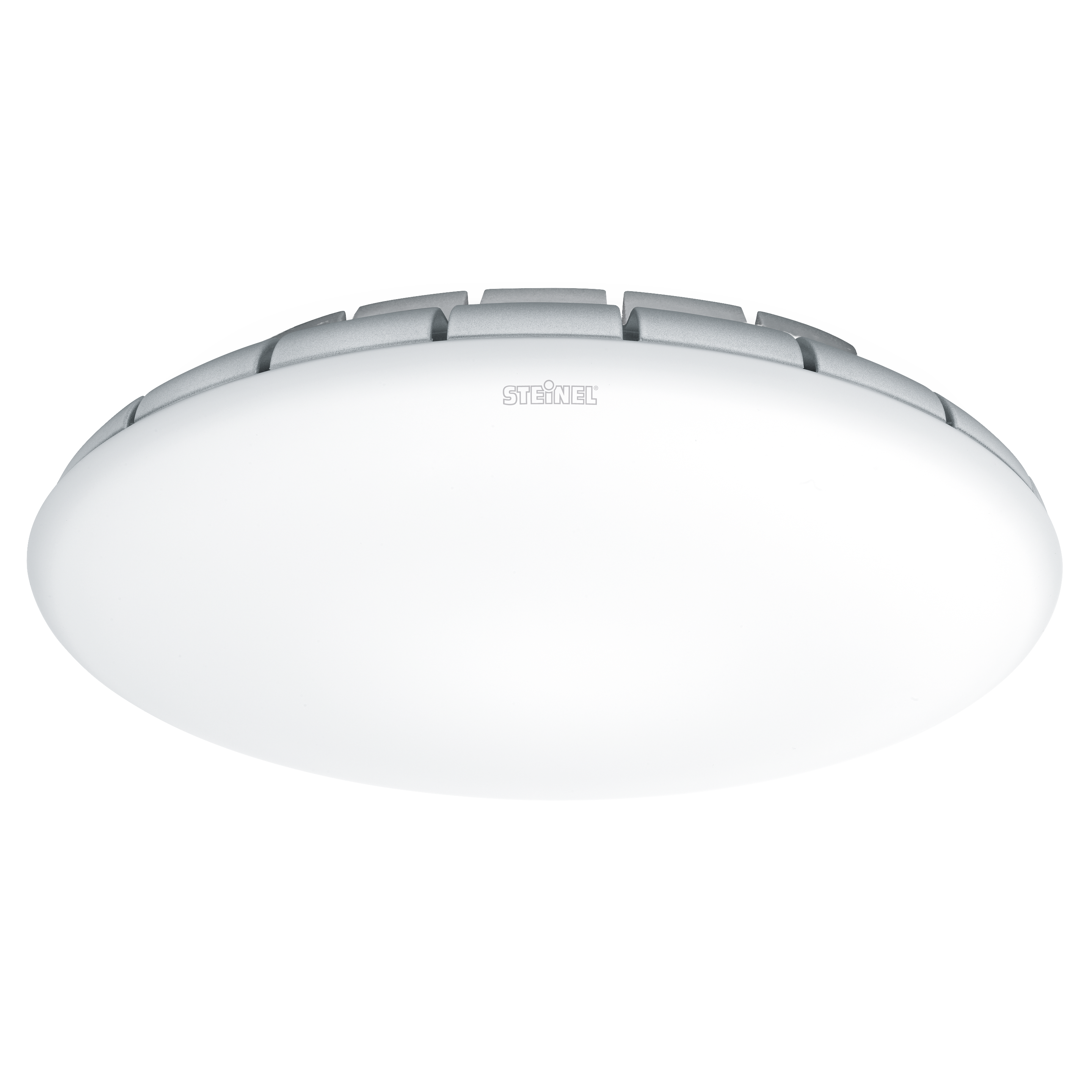

Nevalux RS PRO LED B1 emergency light

Nevalux RS PRO LED B1 emergency light

ELDAS® no. 941 003 449 · EAN-No. 4007841 066000

Technical data Illustrations Wiring diagrams Downloads
Nevalux

Nevalux RS PRO LED B1 emergency light

ELDAS® no. 941 003 449

EAN-No. 4007841 066000

Discontinued

This product is being discontinued and is available while stocks last. No successor product has been announced yet.

Price: Please log in to see prices

Standard-compliant emergency light. High-frequency indoor SensorLight RS PRO LED B1, ideal when there's a need to meet requirements for decentralised emergency lighting in conformity with standards, 13,5 W /1102 lm, PMMA shade, 360° detection, reach from 1 – 8 m.

  • Including STEINEL LED system
  • Intelligent LED cooling system
  • Emergency light module in compliance with EN 60598-2-22
  • High-quality aluminium
  • Interconnectable by cable

Variants

Luminous flux 1102 lm

Dimensions

Dimensions Ø × H 300 x 71 mm

Electrical

Mains connection 230 – 240 V / 50 Hz
Power 13,5 W
Own consumption 82 W

Sensor technology

Sensor technology High frequency
Transmission power < 1 mW
HF technology 5,8 GHz
With motion detector Yes
Detection also through glass, wood and stud walls
Detection angle 360 °
Opening angle 160 °
Segment-by-segment masking Yes
Electronic scalability Yes
Mechanical scalability No
Radial range Ø 8 m (50 m²)

Connectivity

Networking Yes
Type of networking Master/master, Master/slave

Lighting technology

Colour temperature 3000 K
LED colour deviation SDCM3
Colour rendering index 80-89
With illuminant Yes, STEINEL LED system
Illuminant LED cannot be replaced
Base without
LED cooling system Active Thermo Control
Soft light start No
Continuous light selectable
Efficiency without cover 81 lm/W
Luminous flux emergency light 21 lm
Luminous flux 1102 lm

Lifetime

LED lifetime max. °C 50000 h
Luminous flux decline per LM80 L70B10

Settings

Twilight switch Yes
Twilight setting 2 – 2000 lx
Time setting 5 sec – 15 min
Base light function No
Functions Emergency light in compliance with EN 60598-2-22 for 3h
Settings via Potentiometers
With remote control No

Housing & material

Impact resistance IK07
Protection class (IP) IP20
Protection class II
Ambient temperature 0 – 40 °C
Housing material Aluminium
Cover material PC, opal

Scope of delivery & warranty

Manufacturer warranty 5 years

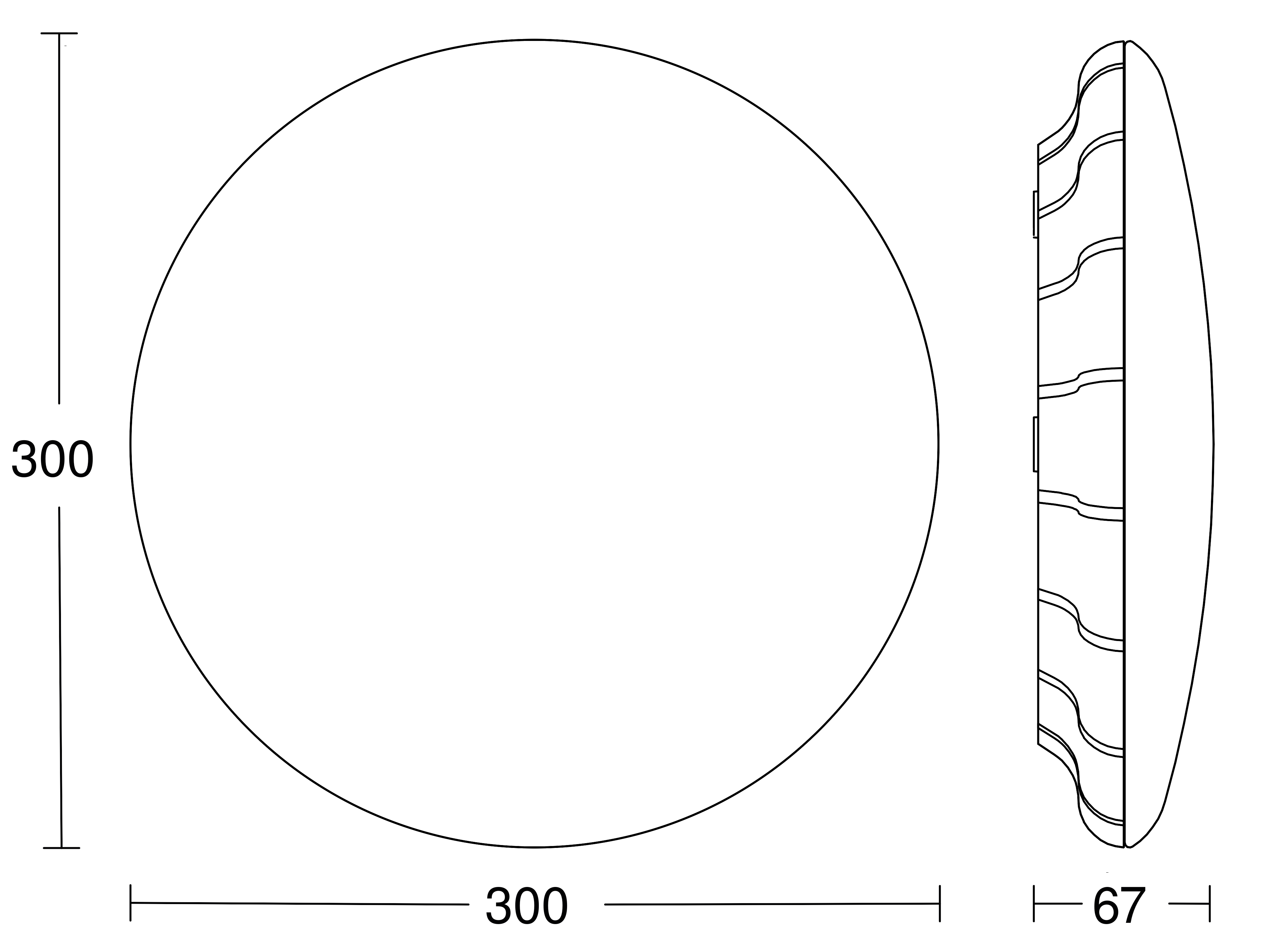

Technical drawing

Sensor detection range

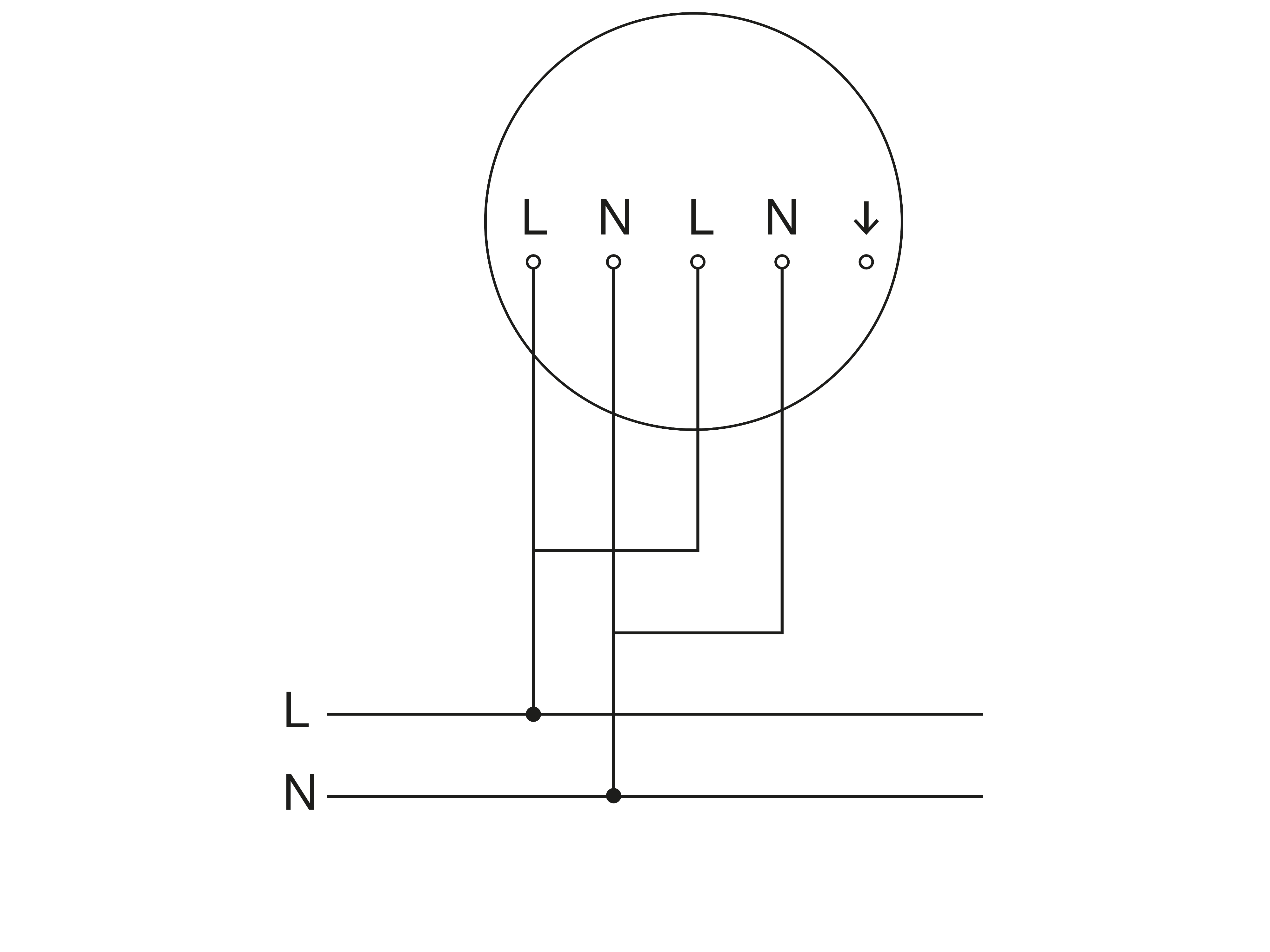

Wiring diagram 1

Schaltplan Master

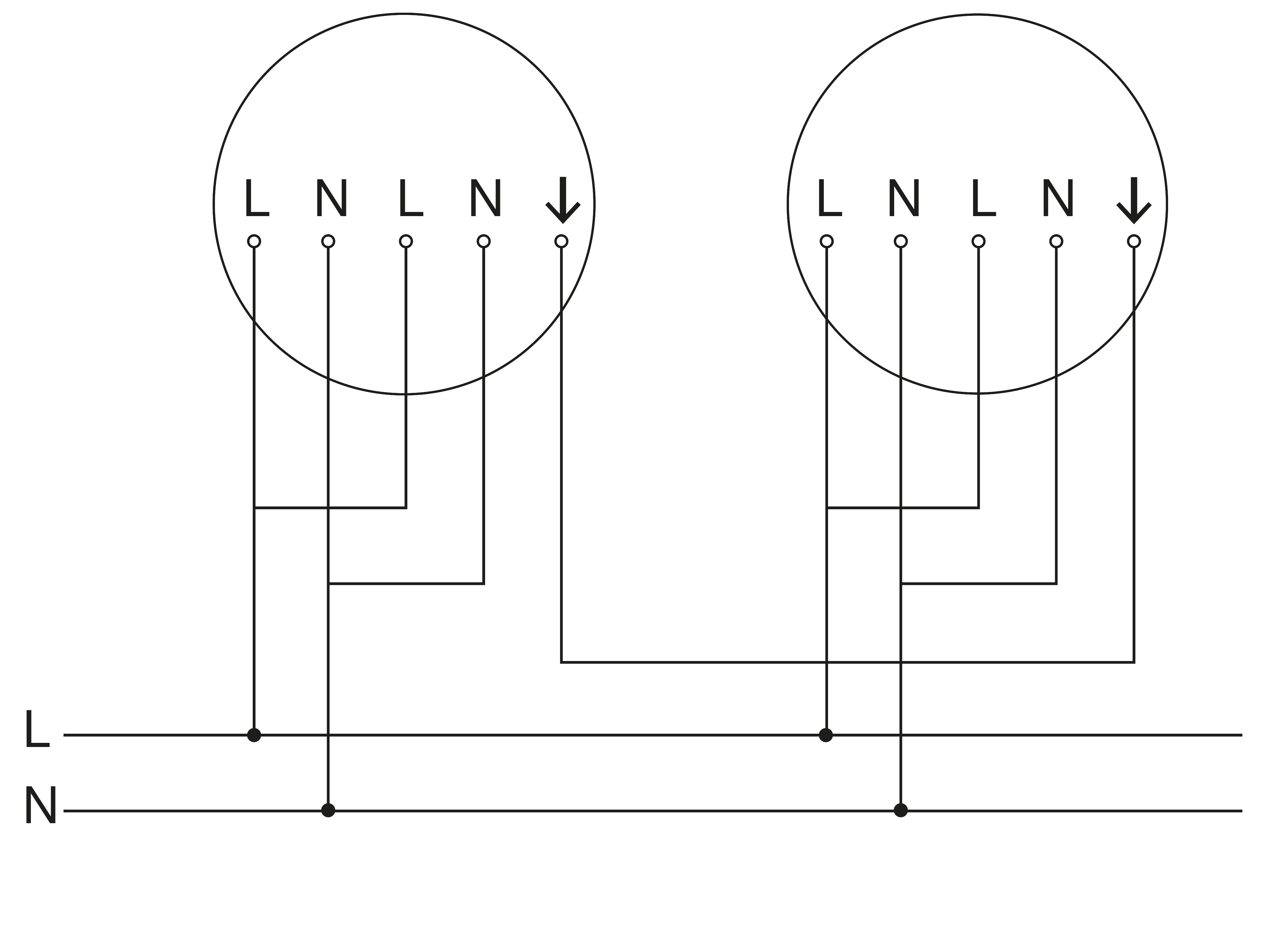

Wiring diagram 2

Schaltplan Master-Master Vernetzung
