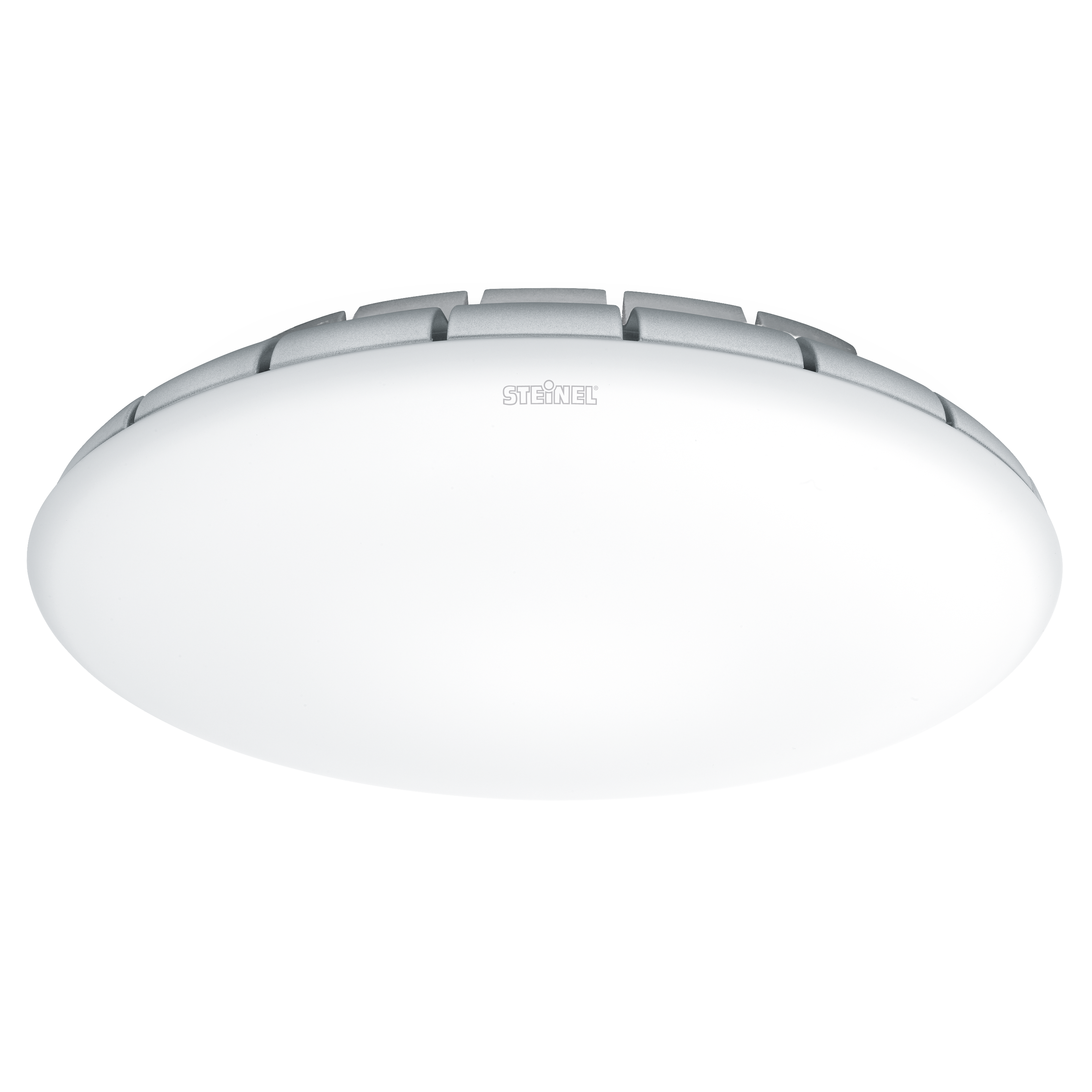

Nevalux RS PRO LED B1 emergency light PMMA Neutral white
ELDAS® no. 941 309 479
EAN-No. 4007841 374723
This product is being replaced by a successor product.
Go to successor product · RS PRO Connect R10 Neutral white (4007841057046)Standard-compliant emergency light. High-frequency indoor SensorLight RS PRO LED B1, ideal when there's a need to meet requirements for decentralised emergency lighting in conformity with standards, 13,5 W /978 lm, PMMA shade, 360° detection, reach from 1 – 8 m.
- Including STEINEL LED system
- Intelligent LED cooling system
- Emergency light module in compliance with EN 60598-2-22
- High-quality aluminium
- Interconnectable by cable
Identification
Variant
PMMA Neutral white
Variants
Luminous flux
978 lm
Dimensions
Dimensions Ø × H
300 x 67 mm
Electrical
Mains connection
230 – 240 V , 50 / 50 Hz
Power
13,5 W
Sensor technology
Sensor technology
High frequency
Transmission power
< 1 mW
With motion detector
Yes
Detection
also through glass, wood and stud walls
Detection angle
360 °
Opening angle
160 °
Electronic scalability
Yes
Mechanical scalability
No
Lighting technology
Colour temperature
4000 K
LED colour deviation
SDCM3
Colour rendering index
80-89
With illuminant
Yes, STEINEL LED system
Illuminant
LED cannot be replaced
Base
without
LED cooling system
Active Thermo Control
Luminous flux
978 lm
Lifetime
LED lifetime max. °C
50000 h
Luminous flux decline per LM80
L70B10
Settings
Twilight switch
Yes
Twilight setting
2 – 2000 lx
Time setting
5 sec – 15 min
Housing & material
Impact resistance
IK03
Protection class (IP)
IP20
Protection class
I
Ambient temperature
0 – 40 °C
Housing material
Aluminium
Cover material
Plastic, opal
Scope of delivery & warranty
Manufacturer warranty
5 years
