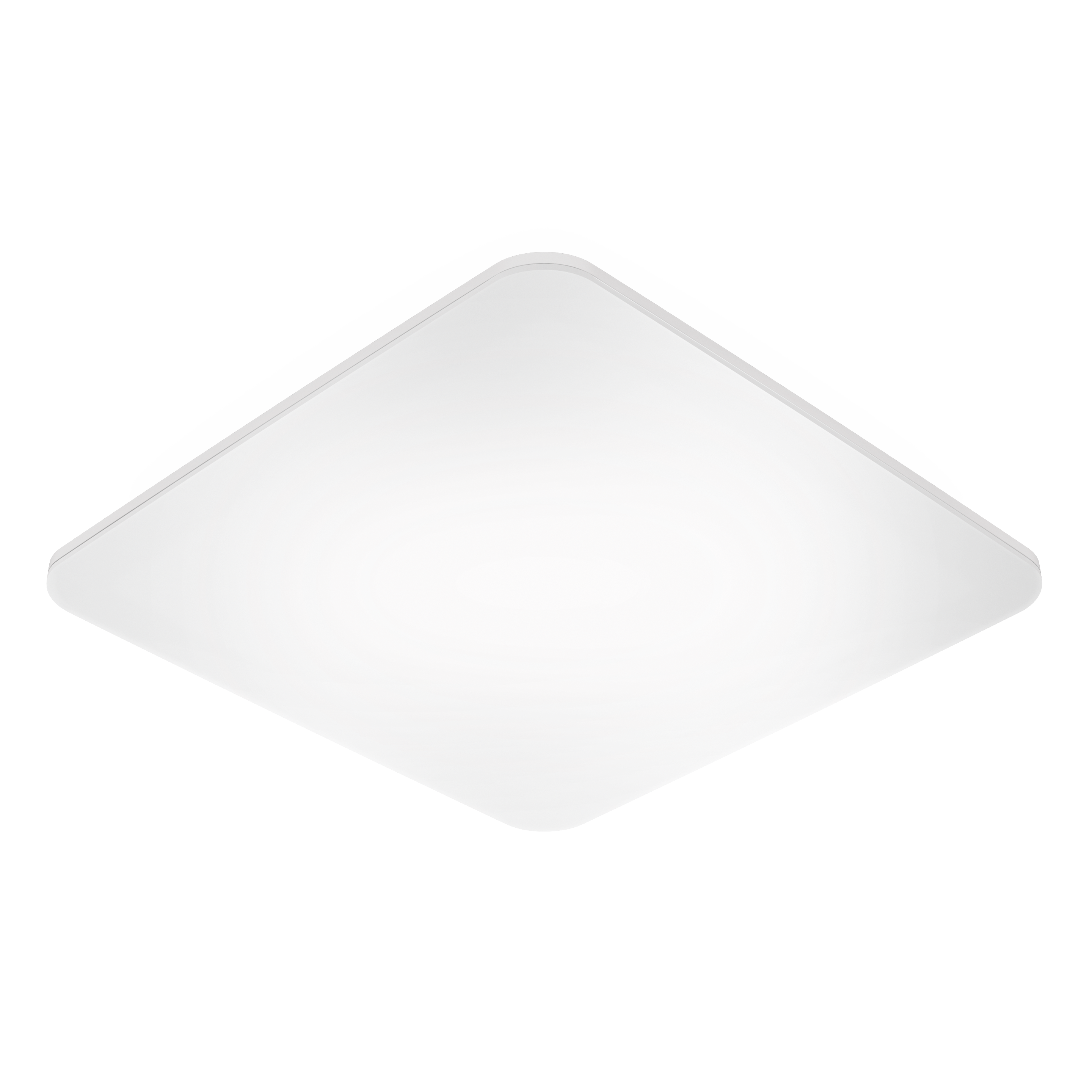

Nevalux RS PRO LED Q1 Neutral white white

ELDAS® no. 941 336 109

EAN-No. 4007841 007119

This product is being replaced by a successor product.

Go to successor product · RS PRO Connect R30 Q Neutral white (4007841057190)

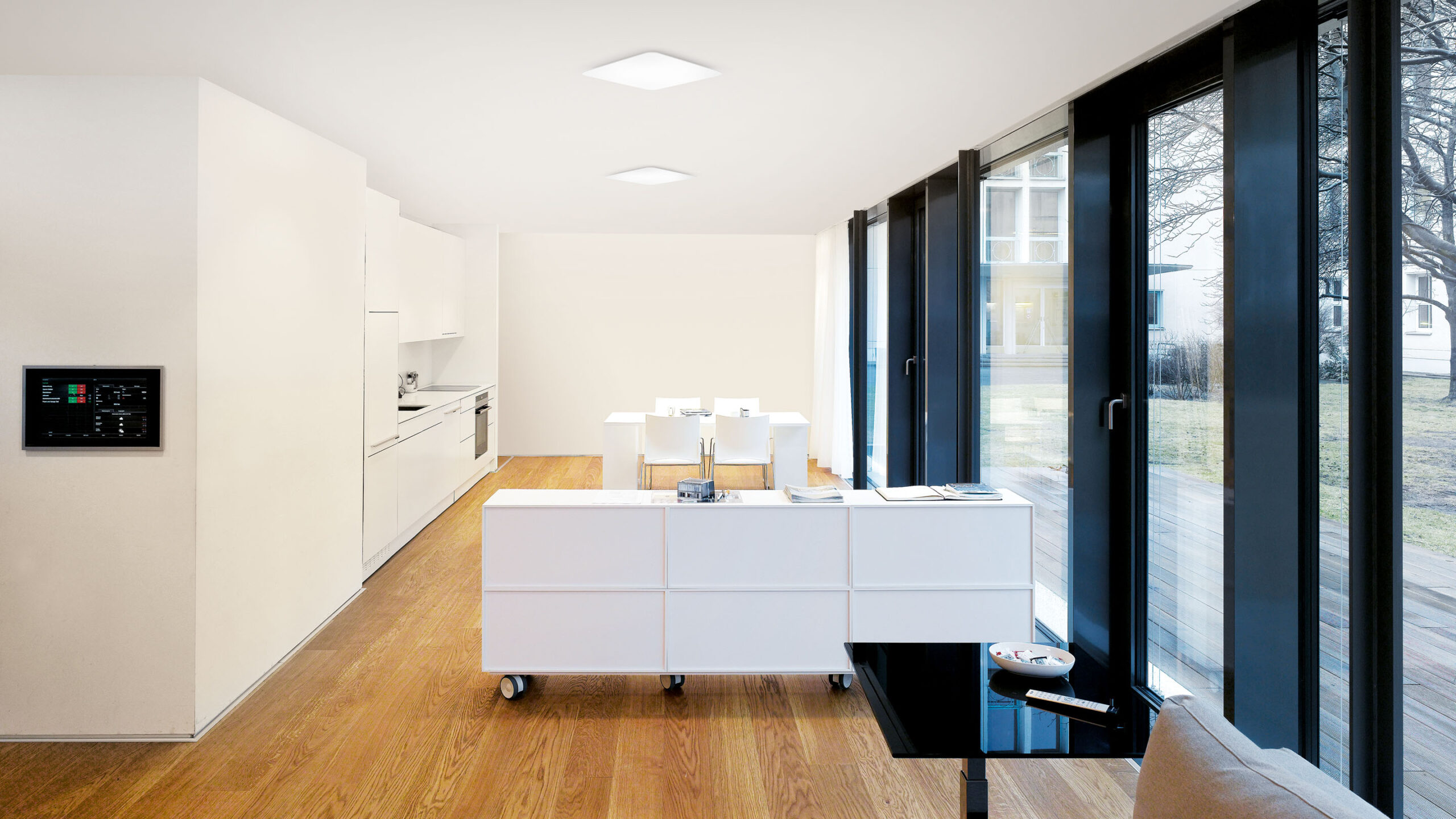

Perfect light pattern. Best technology. RS PRO LED Q1 high-frequency SensorLight, ideal for corridors, thoroughfares and stairwells as well as WC facilities, washrooms and storerooms. 26 W for 2920 lm of light, 360° detection, optional basic light level, integrated wireless interconnection capability, RGS – Remote Group Setting function, lighting groups, including basic light level, can be synchronised, switches OFF in relation to daylight, 4000 K.

Including STEINEL LED system
Intelligent LED cooling system
Intelligent soft light start
Optional basic lighting level 10 - 50 %
Wireless interconnection with Remote Group Setting
High-quality aluminium
Optional remote control RC10
Smart Remote remote control optional

Dimensions

Dimensions L × W × H 56 x 331 x 331 mm

Electrical

Mains connection 220 – 240 V / 50 – 60 Hz

Power 26 W

Sensor technology

Max. mounting height 4,00 m

Sensor technology High frequency

Transmission power < 1 mW

HF technology 5,8 GHz

With motion detector Yes

Detection also through glass, wood and stud walls

Detection angle 360 °

Opening angle 160 °

Segment-by-segment masking Yes

Electronic scalability Yes

Mechanical scalability No

Radial range Ø 8 m (50 m²)

Tangential range Ø 8 m (50 m²)

Mounting height 2,00 – 4,00 m

Optimal mounting height 2,5 m

Connectivity

Networking Yes

Type of networking Master/master\nMaster/slave

Networking via Wireless

Lighting technology

Measured luminous flux 360° 2920 lm

Colour temperature 4000 K

LED colour deviation SDCM3

With illuminant Yes, STEINEL LED system

Illuminant LED cannot be replaced

Base without

LED cooling system Passive Thermo Control

Soft light start Yes

Continuous light selectable

Lifetime

LED lifetime max. °C 50000 h

LED lifetime L70B50 25°C > 60000 h

Luminous flux decline per LM80 L70B10

Settings

Twilight switch Yes

Twilight setting 2 – 2000 lx

Time setting 5 s – 15 Min.

Base light function Yes

Base light function time 10/30 min, all night

Main light adjustable 50 - 100 %

Functions Group parameterisation\nManual ON / ON-OFF\nMaster/slave override\nNeighbouring group function

Settings via DIP switches\nPotentiometers\nRemote control\nSmart Remote

With remote control No

Twilight setting teach Yes

Base light function in percent 10 – 50 %

Base light function percent from 10 %

Housing & material

Impact resistance IK03

Protection class (IP) IP20

Protection class II

Ambient temperature -10 – 50 °C

Housing material Aluminium

Cover material Plastic, opal

Mounting location ceiling wall

Application location Indoors

Mounting type Surface wiring

Application room Indoors WC / washroom changing room corridor / aisle function room / ancillary room kitchenette outdoors stairwell

Colour white

Scope of delivery & warranty

Manufacturer warranty 5 years

Technical drawing

Lichtverteilungskurve

Sensor detection range

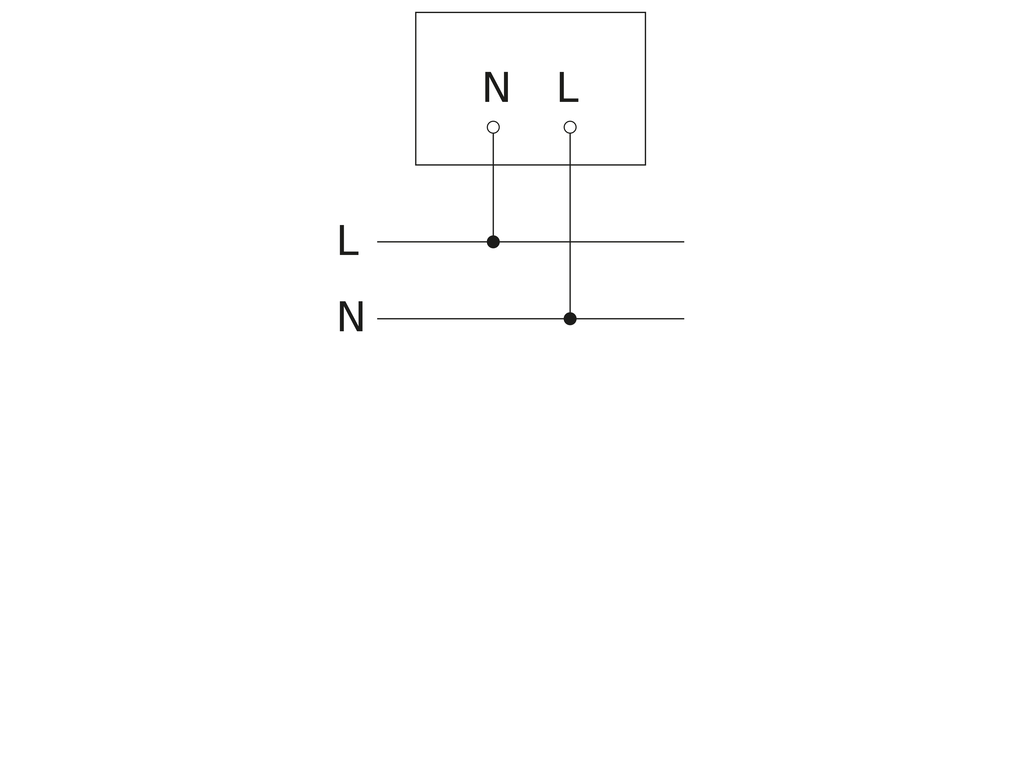

Wiring diagram 1

Slave/wireless master interconnection circuit diagram

Wiring diagram 2

Master/master interconnection circuit diagram

Data sheet Declaration of conformity LDT file (light distribution)

Remote control Smart Remote

Item no. 009151

RC10 for RS PRO LED Q1

Item no. 007645
