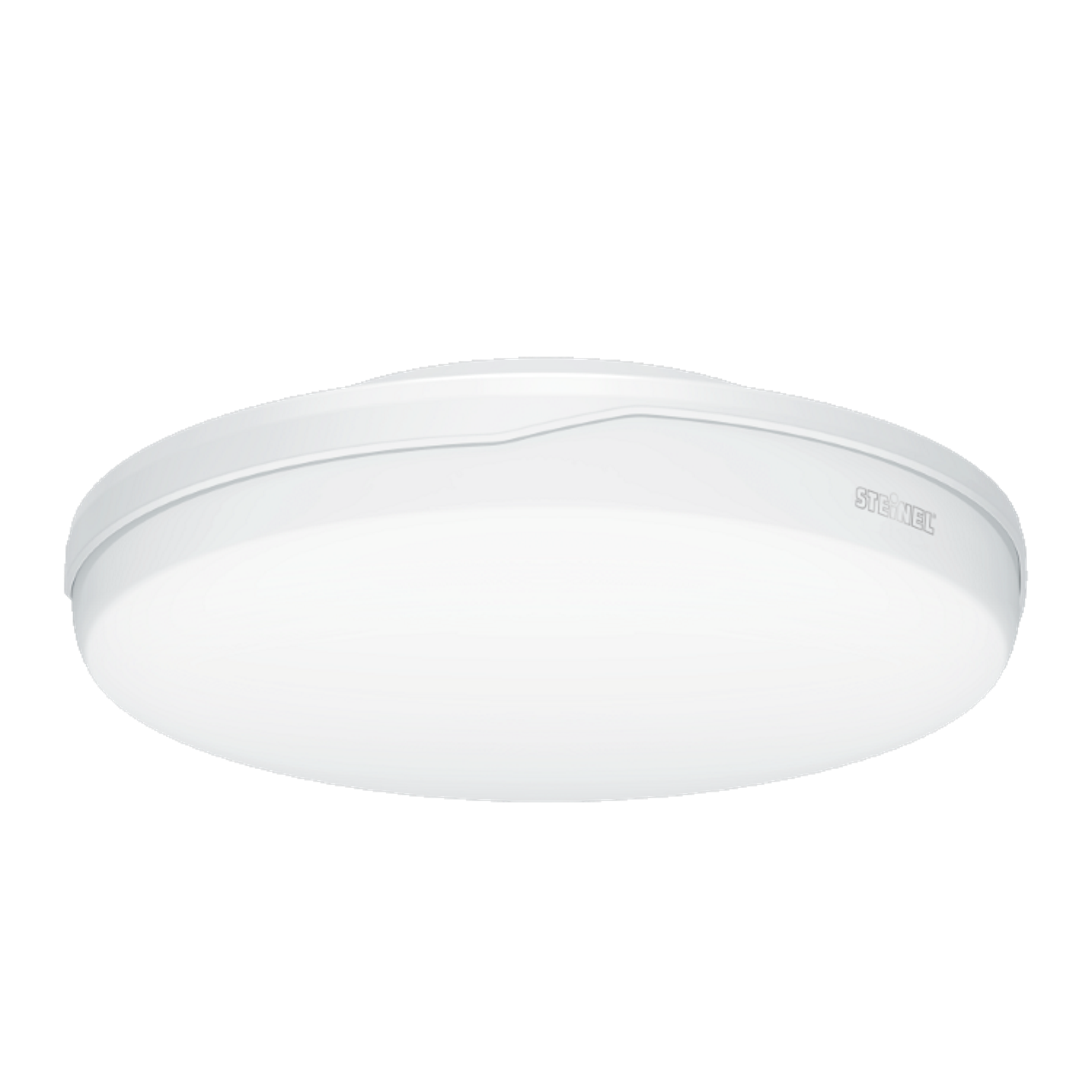

Nevalux RS PRO LED R1 warm white white
ELDAS® no. 941 301 909
EAN-No. 4007841 033323
This product is being replaced by a successor product.
Go to successor product · RS PRO Connect R10 warm white (4007841057039)The new benchmark. Now with basic light. RS PRO LED R1 indoor light with state-of-the-art high-frequency sensor technology in STEINEL quality. 950 lm at an incredibly energy-efficient 11 W. Easy-install concept for fast installation. Soft light start. Pleasant basic light level (optional 20%). Twilight setting: 2 - 2000 lux. Angle of coverage: 360°. Maximum reach: 8 m.
- Including STEINEL LED system
- Optional basic lighting level 20 %
- Intelligent soft light start
- Interconnectable by cable
Identification
Variant
warm white white
Variants
Luminous flux
950 lm
Dimensions
Dimensions Ø × H
270 x 70 mm
Electrical
Mains connection
220 – 240 V , 50 / 60 Hz
Power
11 W
Switching output 1 resistive
800 W
Sensor technology
Sensor technology
High frequency
Transmission power
< 1 mW
With motion detector
Yes
Detection
also through glass, wood and stud walls
Detection angle
360 °
Opening angle
160 °
Electronic scalability
Yes
Mechanical scalability
No
Connectivity
Networking
Yes
Type of networking
Sensor/slave
Networking quantity
10 lights max.
Lighting technology
Colour temperature
3000 K
LED colour deviation
SDCM3
Colour rendering index
80-89
With illuminant
Yes, STEINEL LED system
Illuminant
LED cannot be replaced
Base
without
LED cooling system
Passive Thermo Control
Soft light start
Yes
Continuous light
selectable, 4h
Luminous flux
950 lm
Lifetime
LED lifetime max. °C
50000 h
Luminous flux decline per LM80
L70B10
Settings
Twilight switch
Yes
Twilight setting
2 – 2000 lx
Time setting
5 sec – 15 min
Housing & material
Impact resistance
IK00
Protection class (IP)
IP20
Protection class
II
Ambient temperature
-10 – 50 °C
Housing material
Plastic
Cover material
Plastic, opal
Scope of delivery & warranty
Manufacturer warranty
5 years
