Nevalux RS PRO LED S2 Glass Neutral white

Nevalux RS PRO LED S2 Glass Neutral white

ELDAS® no. 941 309 769 · EAN-No. 4007841 035860

Technical data Illustrations Wiring diagrams Downloads Accessories
Nevalux

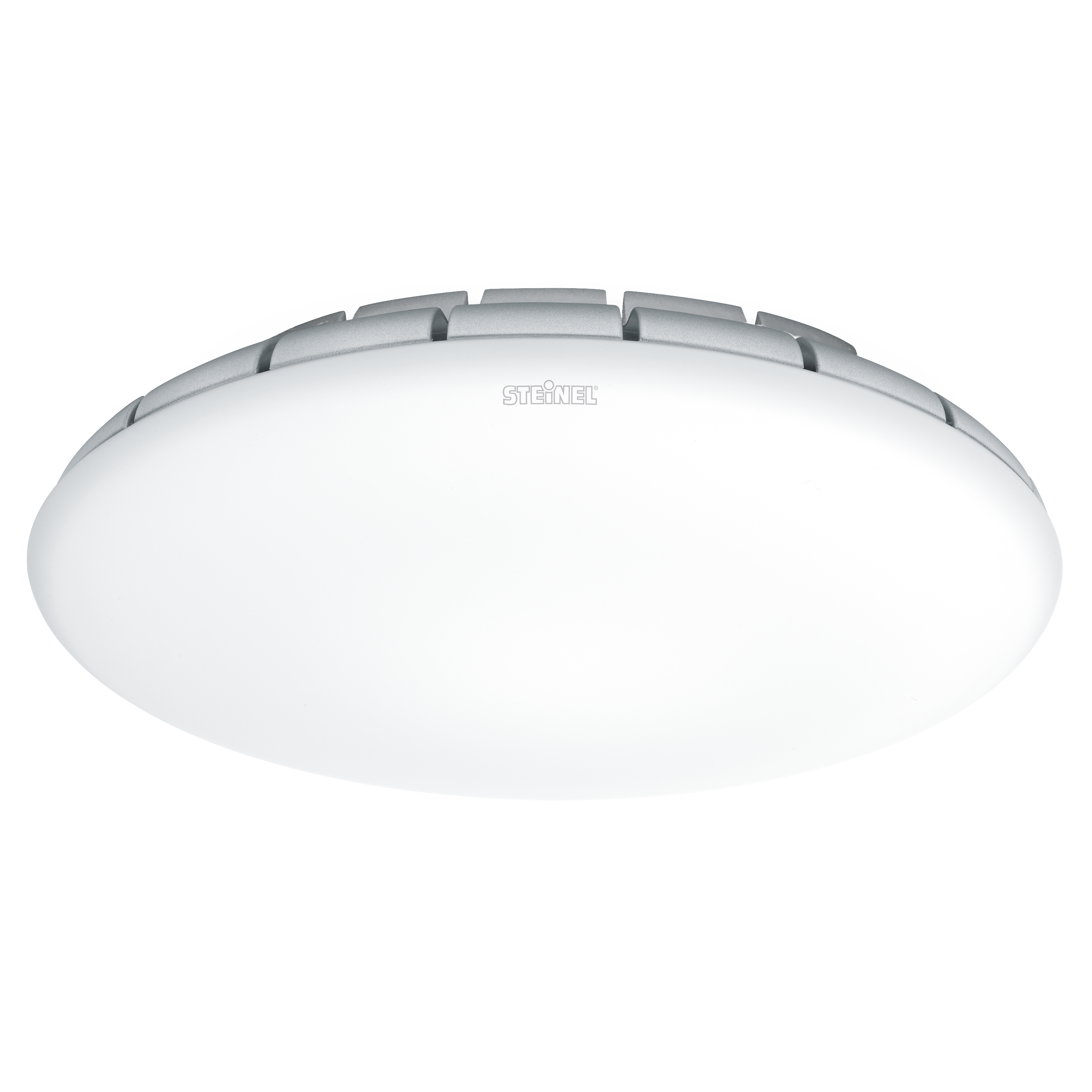

Nevalux RS PRO LED S2 Glass Neutral white

ELDAS® no. 941 309 769

EAN-No. 4007841 035860

This product is being replaced by a successor product.

Go to successor product · RS PRO S30 SC PMMA Neutral white (068042)

The smartest light in the world. High-frequency sensor-switched light RS PRO LED S2, ideal for office corridors, passageways, WC facilities, stairwells, can be wirelessly interconnected with RS PRO LED S1 and S2, 26 W LED/2054 lm, glass shade, 4000 K, 360° detection, reach 1 – 8 m, basic light-level function, presence mode and neighbouring light function.

  • Including STEINEL LED system
  • Intelligent LED cooling system
  • Smart Remote remote control optional
  • Optional basic lighting level 10 - 20%
  • Wireless interconnection
  • High-quality aluminium

Identification

Variant Glass Neutral white

Variants

Luminous flux 2054 lm

Dimensions

Dimensions Ø × H 350 x 83 mm

Electrical

Mains connection 230 – 240 V / 50 – 60 Hz
Power 26 W
Own consumption 1,2 W

Sensor technology

Sensor technology High frequency
Transmission power < 1 mW
HF technology 5,8 GHz
With motion detector Yes
Detection also through glass, wood and stud walls
Detection angle 360 °
Opening angle 160 °
Segment-by-segment masking Yes
Electronic scalability Yes
Mechanical scalability No
Radial range Ø 8 m (50 m²)

Connectivity

Networking Yes
Type of networking Master/master, Master/slave

Lighting technology

Colour temperature 4000 K
LED colour deviation SDCM3
Colour rendering index 80-89
With illuminant Yes, STEINEL LED system
Illuminant LED cannot be replaced
Base without
LED cooling system Active Thermo Control
Soft light start Yes
Continuous light selectable, 4h
Luminous flux 2054 lm

Lifetime

LED lifetime max. °C 70000 h
Luminous flux decline per LM80 L80B10

Settings

Twilight switch Yes
Twilight setting 2 – 2000 lx
Time setting 5 sec – 15 min
Base light function Yes
Base light function time 10/30 min, all night
Functions Neighbouring-group function, Presence function, Group parameterisation, Manual ON / ON-OFF
Settings via DIP switches, Potentiometers, Remote control, Smart Remote
With remote control No

Housing & material

Impact resistance IK03
Protection class (IP) IP20
Protection class II
Ambient temperature -10 – 50 °C
Housing material Aluminium
Cover material Glass opal

Scope of delivery & warranty

Manufacturer warranty 5 years

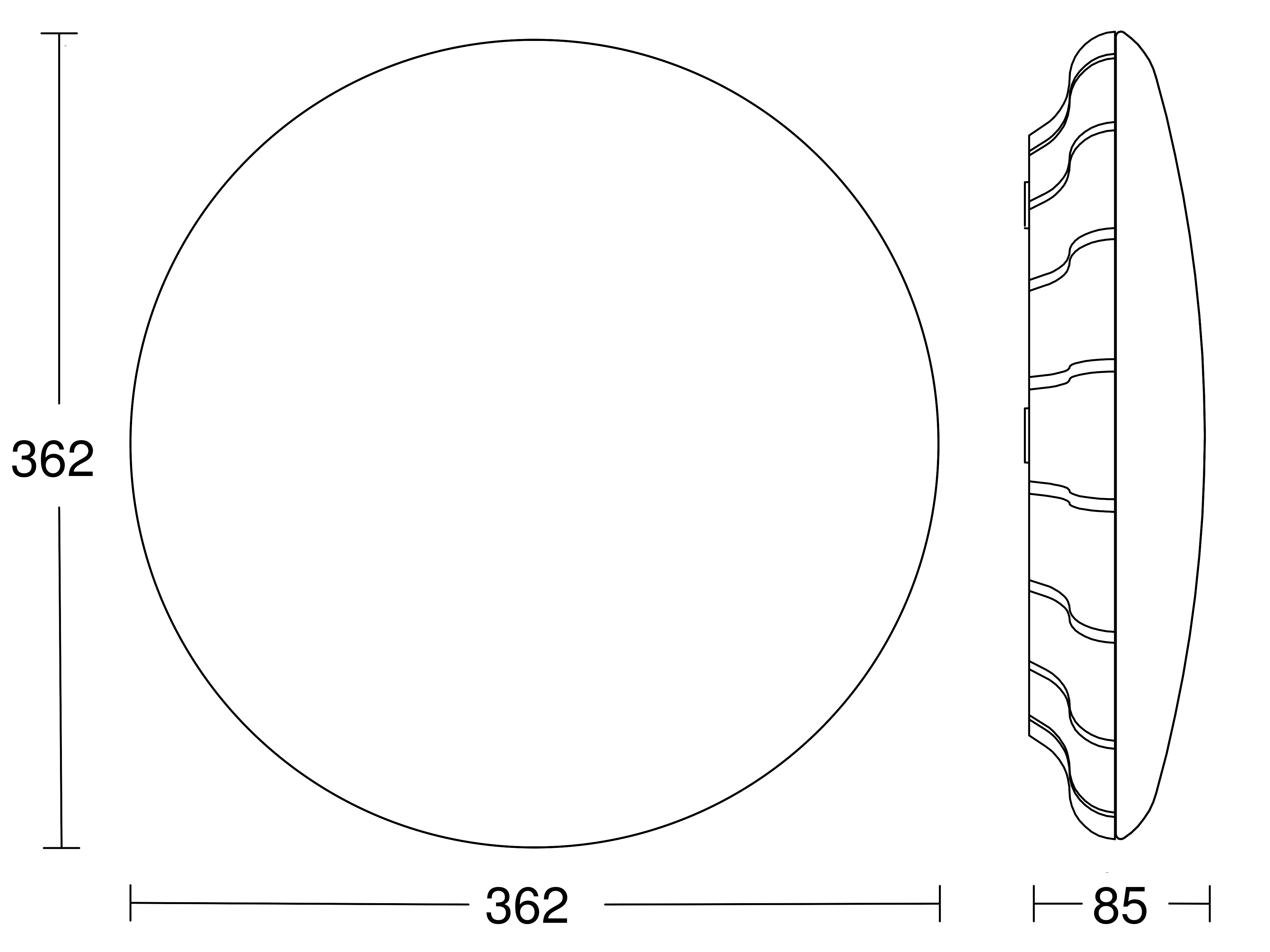

Technical drawing

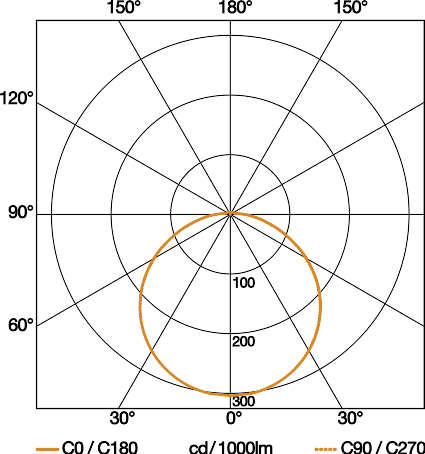

Lichtverteilungskurve

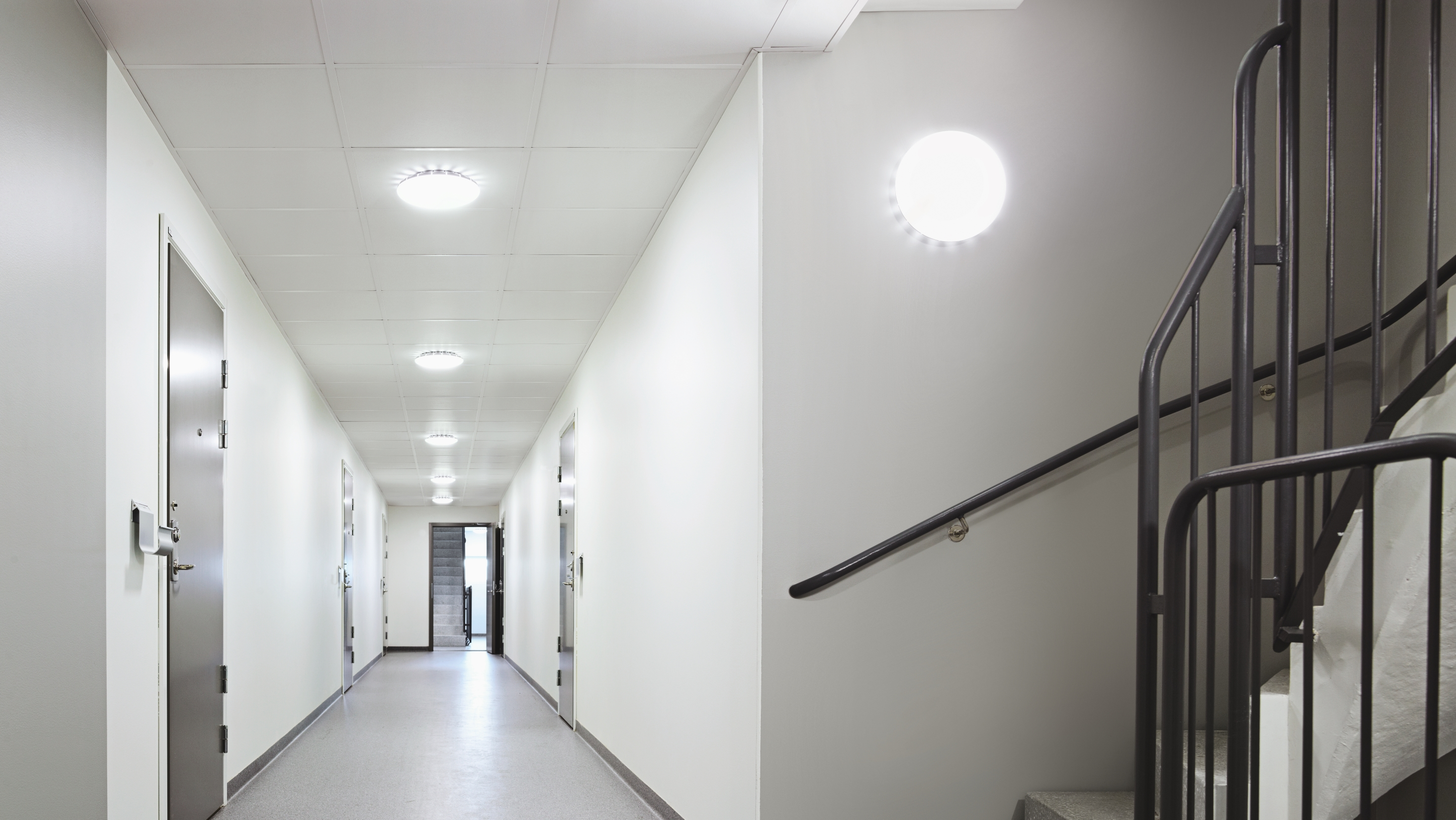

Sensor detection range

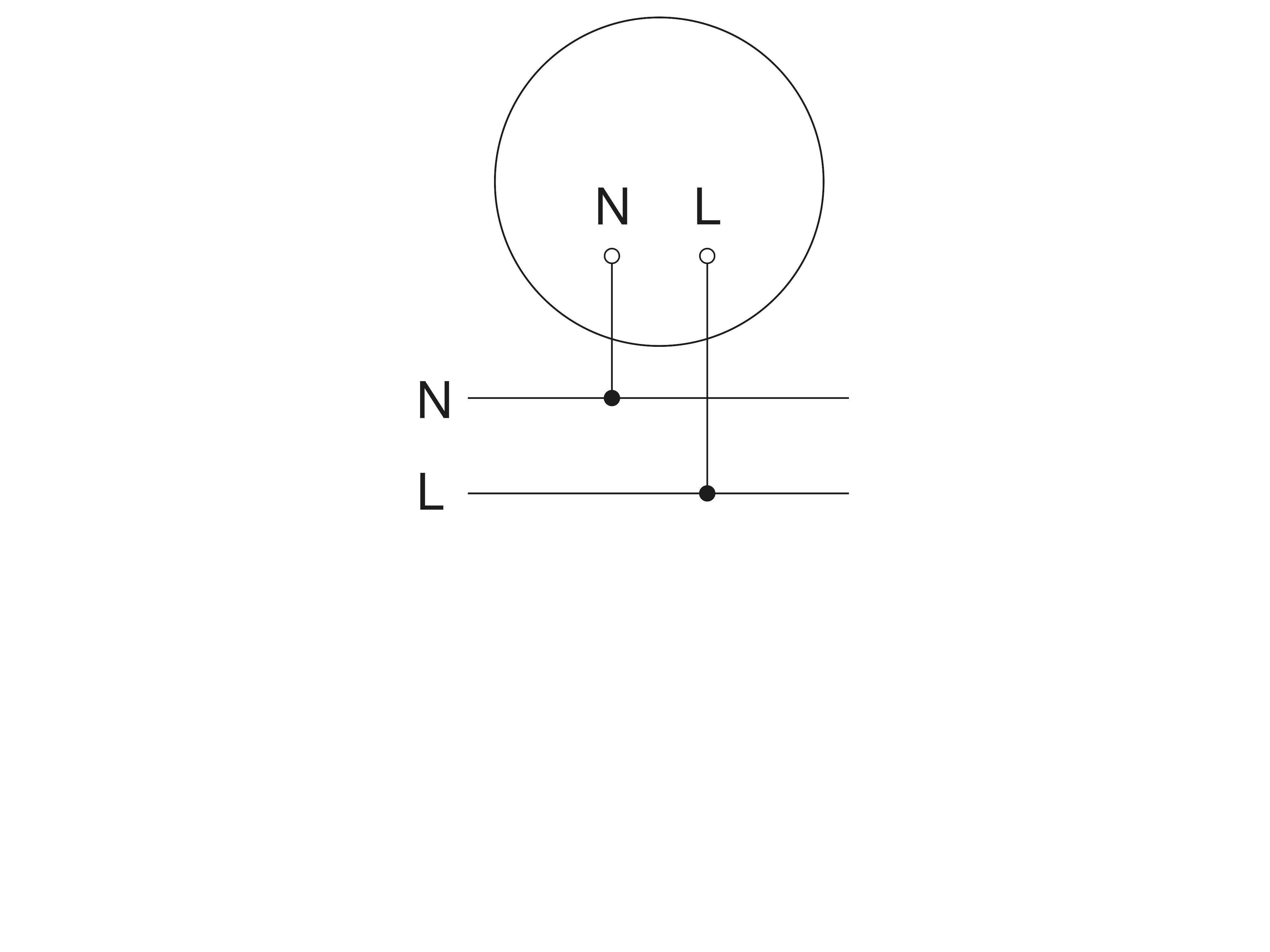

Wiring diagram 1

Slave/wireless master interconnection circuit diagram

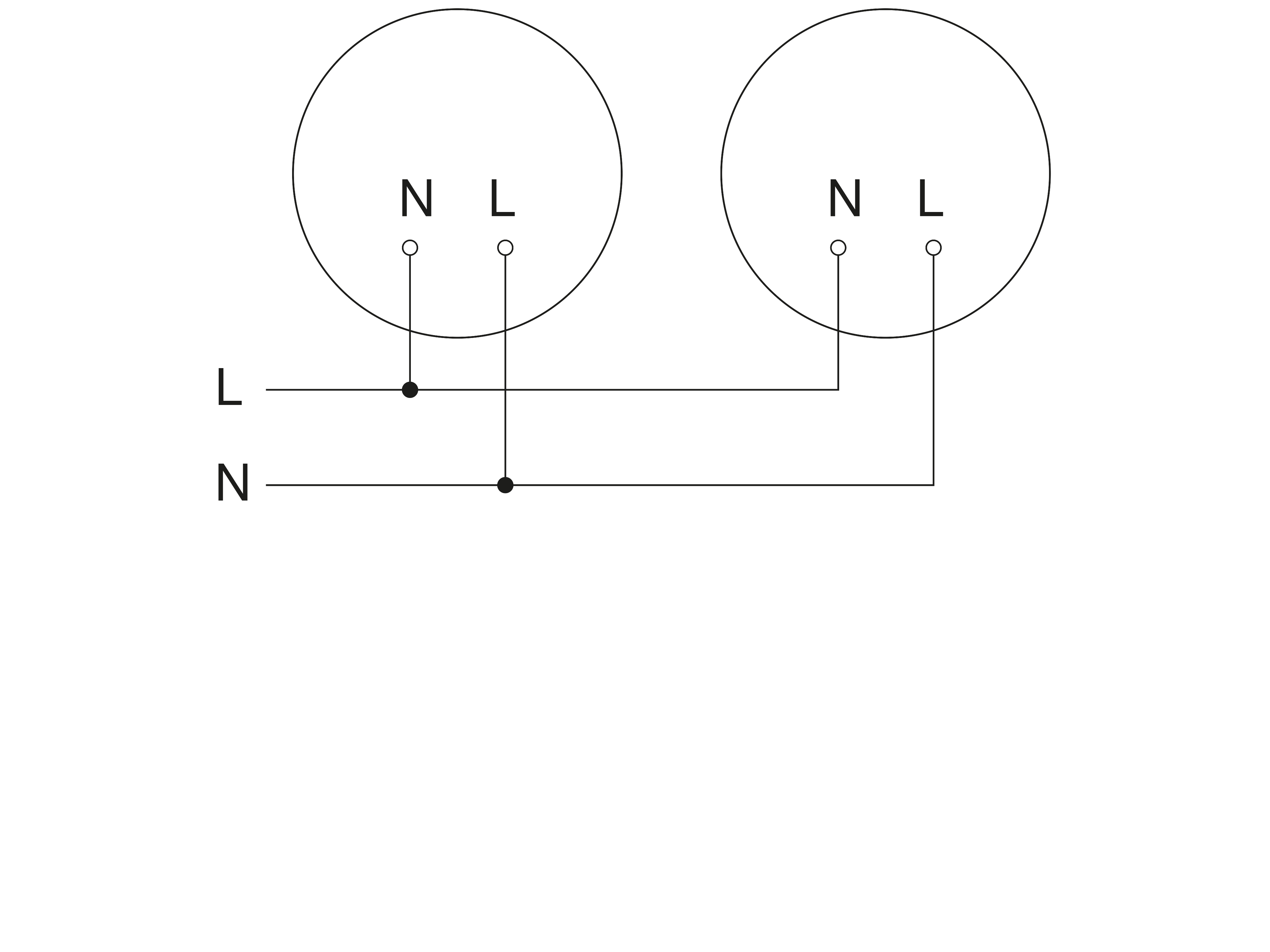

Wiring diagram 2

Master/master interconnection circuit diagram

Remote control Smart Remote

Remote control Smart Remote

Item no. 009151
