Nevalux RS PRO LED S2 Glass warm white

Nevalux RS PRO LED S2 Glass warm white

ELDAS® no. 941 309 669 · EAN-No. 4007841 035853

Technical data Illustrations Wiring diagrams Downloads Accessories
Nevalux

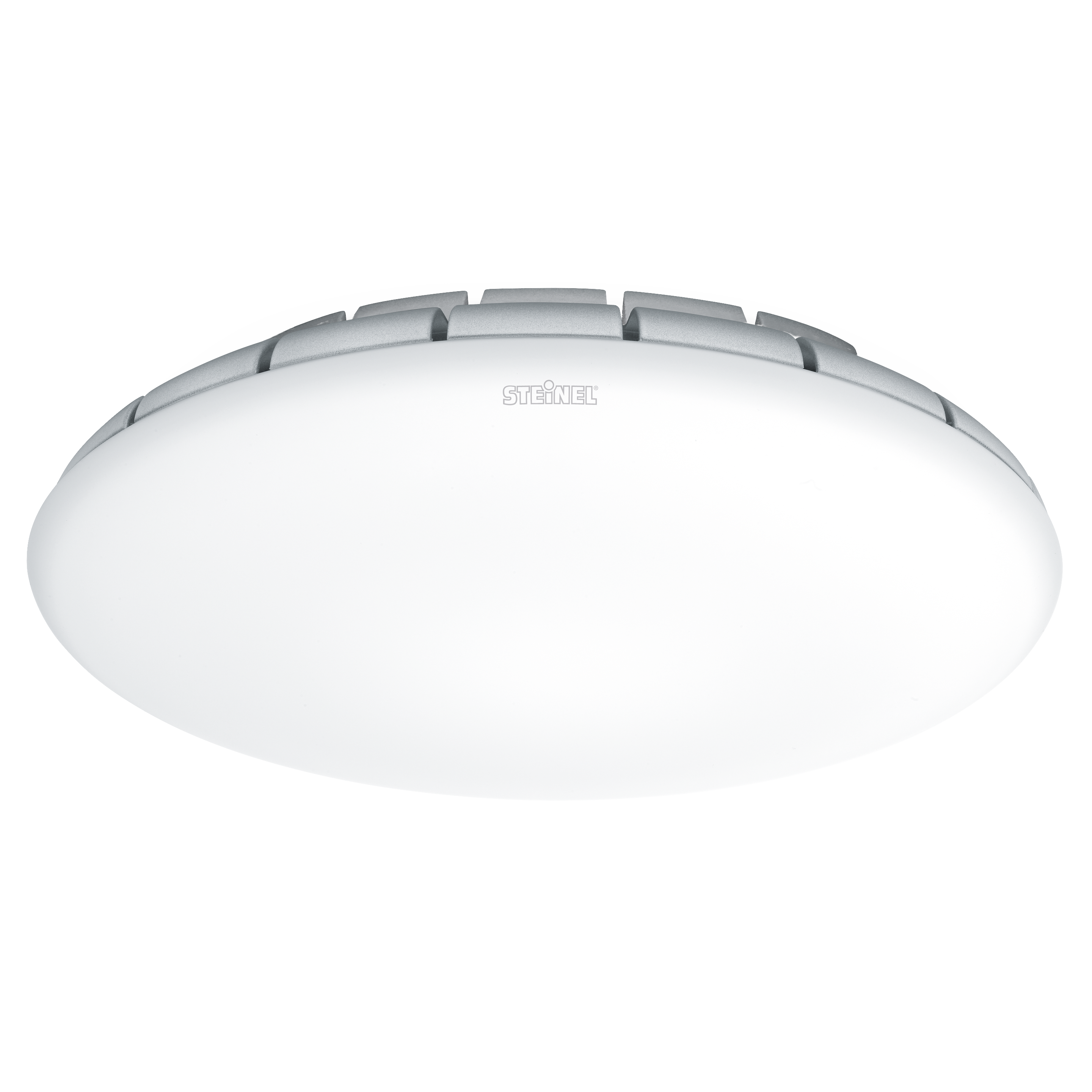

Nevalux RS PRO LED S2 Glass warm white

ELDAS® no. 941 309 669

EAN-No. 4007841 035853

This product is being replaced by a successor product.

Go to successor product · RS PRO S30 SC PMMA warm white (068059)

The smartest light in the world. High-frequency sensor-switched light RS PRO LED S2, ideal for office corridors, passageways, WC facilities, stairwells, can be wirelessly interconnected with RS PRO LED S1 and S2, 26 W LED/1950 lm, glass shade, 3000 K, 360° detection, reach 1 – 8 m, basic light-level function, presence mode and neighbouring light function.

  • Including STEINEL LED system
  • Intelligent LED cooling system
  • Smart Remote remote control optional
  • Optional basic lighting level 10 - 20%
  • Wireless interconnection
  • High-quality aluminium

Identification

Variant Glass warm white

Variants

Luminous flux 1950 lm

Dimensions

Dimensions Ø × H 362 x 85 mm

Electrical

Mains connection 230 – 240 V / 50 – 60 Hz
Power 26 W
Own consumption 1,2 W

Sensor technology

Sensor technology High frequency
Transmission power < 1 mW
HF technology 5,8 GHz
With motion detector Yes
Detection also through glass, wood and stud walls
Detection angle 360 °
Opening angle 160 °
Segment-by-segment masking Yes
Electronic scalability Yes
Mechanical scalability No
Radial range Ø 8 m (50 m²)

Connectivity

Networking Yes
Type of networking Master/master, Master/slave

Lighting technology

Colour temperature 3000 K
LED colour deviation SDCM3
Colour rendering index 80-89
With illuminant Yes, STEINEL LED system
Illuminant LED cannot be replaced
Base GX24d-3
LED cooling system Active Thermo Control
Soft light start Yes
Continuous light selectable, 4h
Luminous flux 1950 lm

Lifetime

LED lifetime max. °C 70000 h
Luminous flux decline per LM80 L80B10

Settings

Twilight switch Yes
Twilight setting 2 – 2000 lx
Time setting 5 sec – 15 min
Base light function Yes
Base light function time 10/30 min, all night
Functions Neighbouring-group function, Presence function, Group parameterisation, Manual ON / ON-OFF
Settings via DIP switches, Potentiometers, Remote control, Smart Remote
With remote control No

Housing & material

Impact resistance IK03
Protection class (IP) IP20
Protection class II
Ambient temperature -10 – 50 °C
Housing material Aluminium
Cover material Glass opal

Scope of delivery & warranty

Manufacturer warranty 5 years

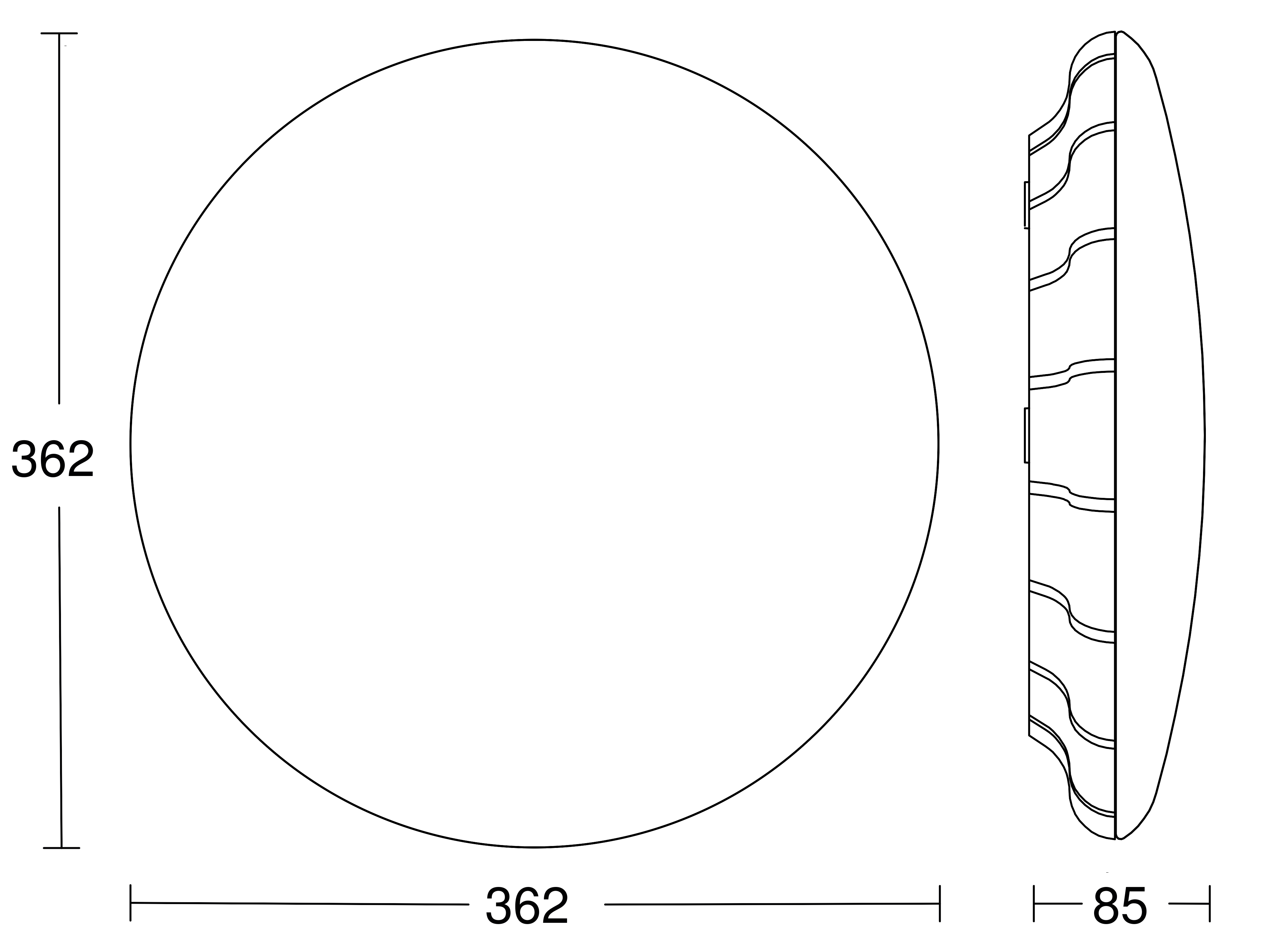

Technical drawing

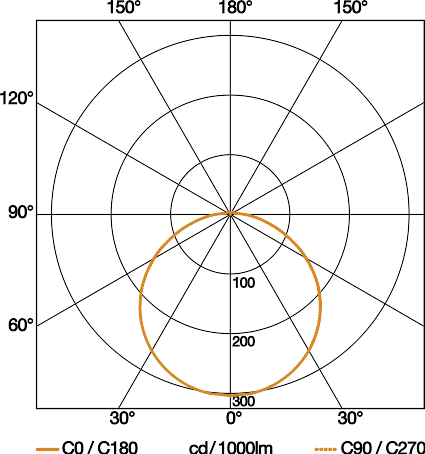

Lichtverteilungskurve

Sensor detection range

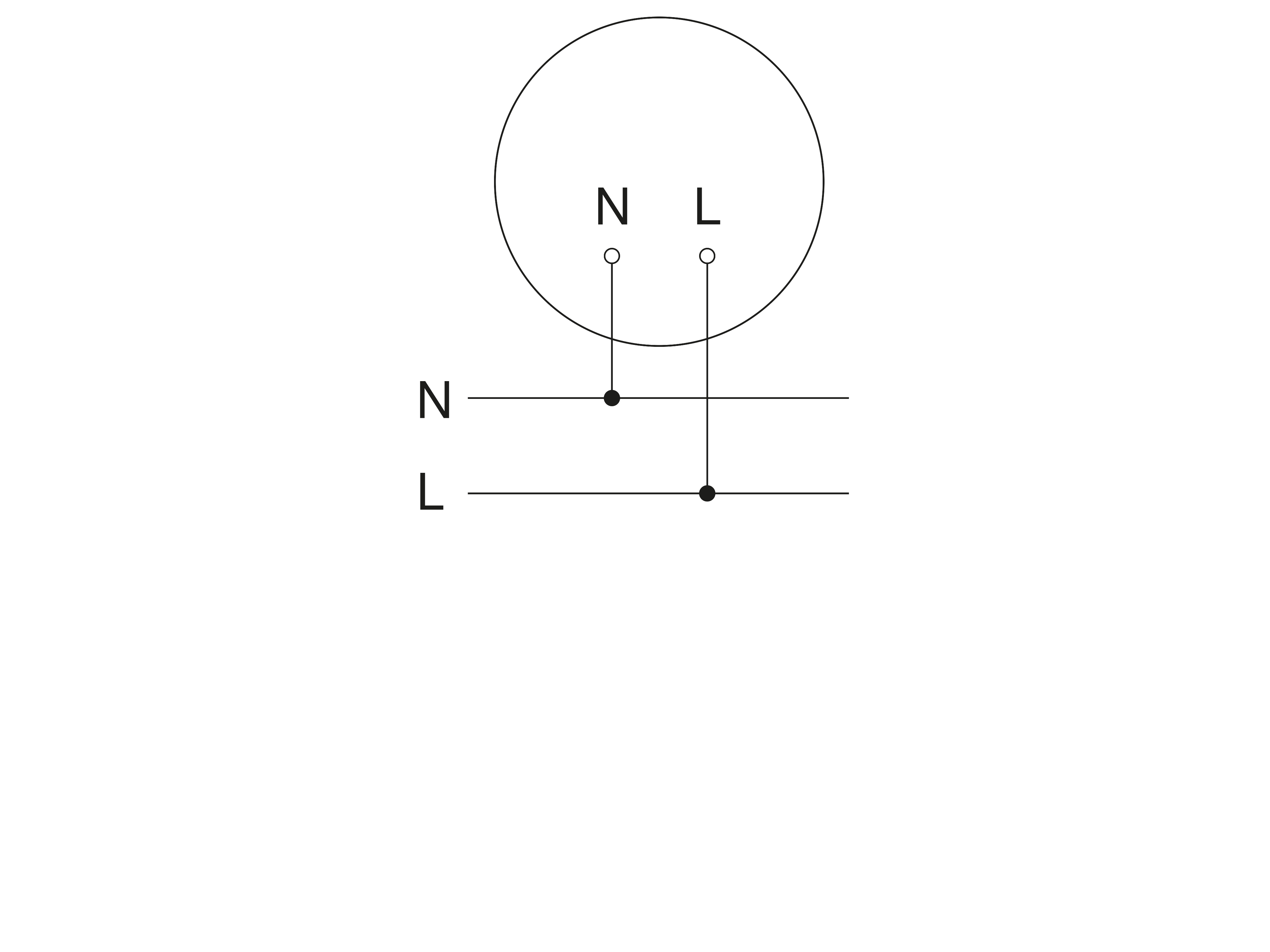

Wiring diagram 1

Slave/wireless master interconnection circuit diagram

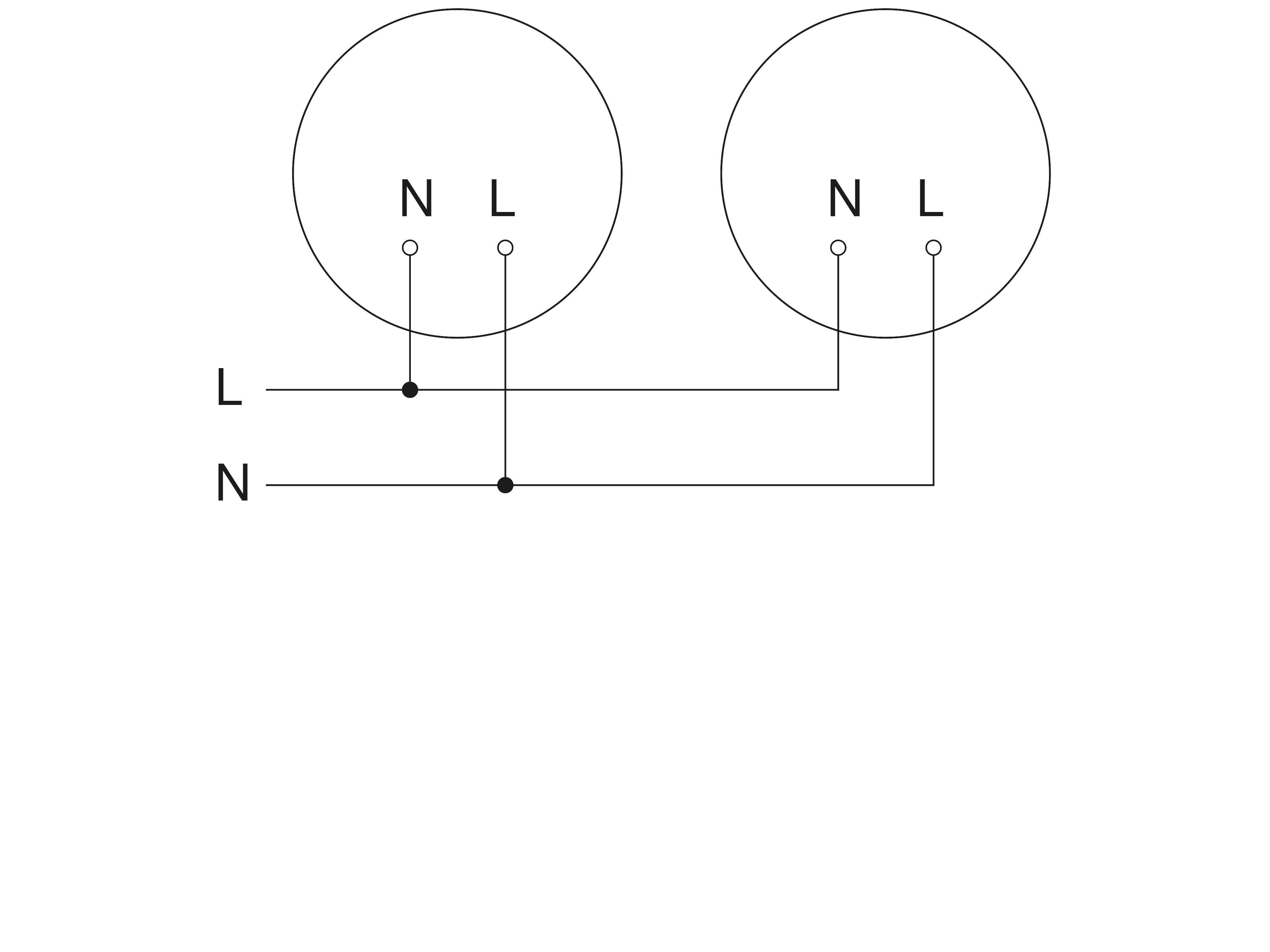

Wiring diagram 2

Master/master interconnection circuit diagram
