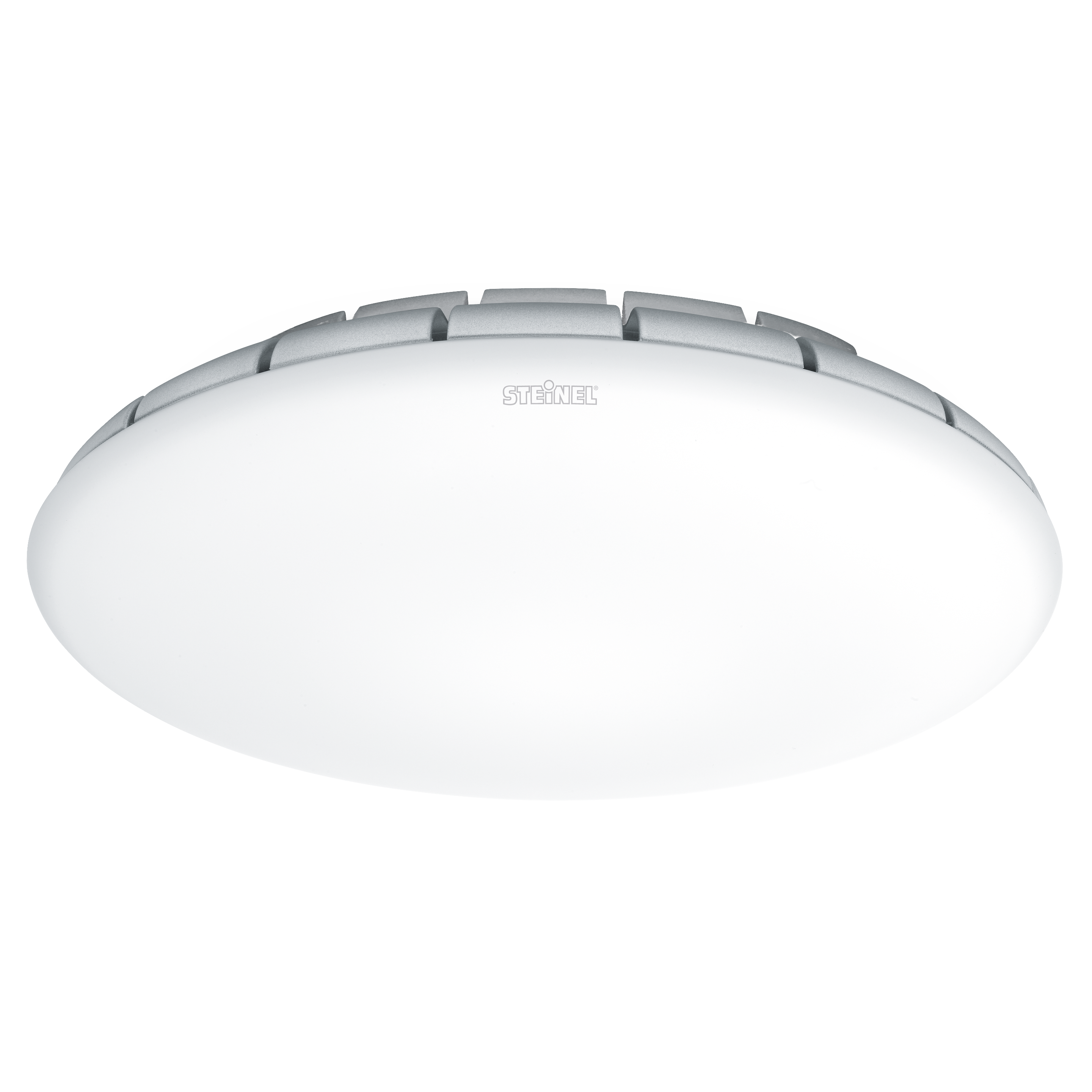

Nevalux RS PRO LED S2 PMMA Neutral white

ELDAS® no. 941 309 759

EAN-No. 4007841 035839

Discontinued

This product is being discontinued and is available while stocks last. No successor product has been announced yet.

The smartest light in the world. High-frequency sensor-switched light RS PRO LED S2, ideal for office corridors, passageways, WC facilities, stairwells, can be wirelessly interconnected with RS PRO LED S1 and S2, 26 W LED/2626 lm, PMMA shade, 4000 K, 360° detection, reach 1 – 8 m, basic light-level function, presence mode and neighbouring light function.

Including STEINEL LED system
Intelligent LED cooling system
Smart Remote remote control optional
Optional basic lighting level 10 - 20%
Wireless interconnection
High-quality aluminium

Identification

Variant PMMA Neutral white

Variants

Luminous flux 2626 lm

Dimensions

Dimensions Ø × H 350 x 83 mm

Electrical

Mains connection 230 – 240 V / 50 – 60 Hz

Power 26 W

Own consumption 1,2 W

Sensor technology

Sensor technology High frequency

Transmission power < 1 mW

HF technology 5,8 GHz

With motion detector Yes

Detection also through glass, wood and stud walls

Detection angle 360 °

Opening angle 160 °

Segment-by-segment masking Yes

Electronic scalability Yes

Mechanical scalability No

Radial range Ø 8 m (50 m²)

Connectivity

Networking Yes

Type of networking Master/master, Master/slave

Lighting technology

Colour temperature 4000 K

LED colour deviation SDCM3

Colour rendering index 80-89

With illuminant Yes, STEINEL LED system

Illuminant LED cannot be replaced

Base without

LED cooling system Active Thermo Control

Soft light start Yes

Continuous light selectable, 4h

Luminous flux 2626 lm

Lifetime

LED lifetime max. °C 70000 h

Luminous flux decline per LM80 L80B10

Settings

Twilight switch Yes

Twilight setting 2 – 2000 lx

Time setting 5 sec – 15 min

Base light function Yes

Base light function time 10/30 min, all night

Functions Neighbouring-group function, Presence function, Group parameterisation, Manual ON / ON-OFF

Settings via DIP switches, Potentiometers, Remote control, Smart Remote

With remote control No

Housing & material

Impact resistance IK03

Protection class (IP) IP20

Protection class II

Ambient temperature -10 – 50 °C

Housing material Aluminium

Cover material Plastic, opal

Scope of delivery & warranty

Manufacturer warranty 5 years

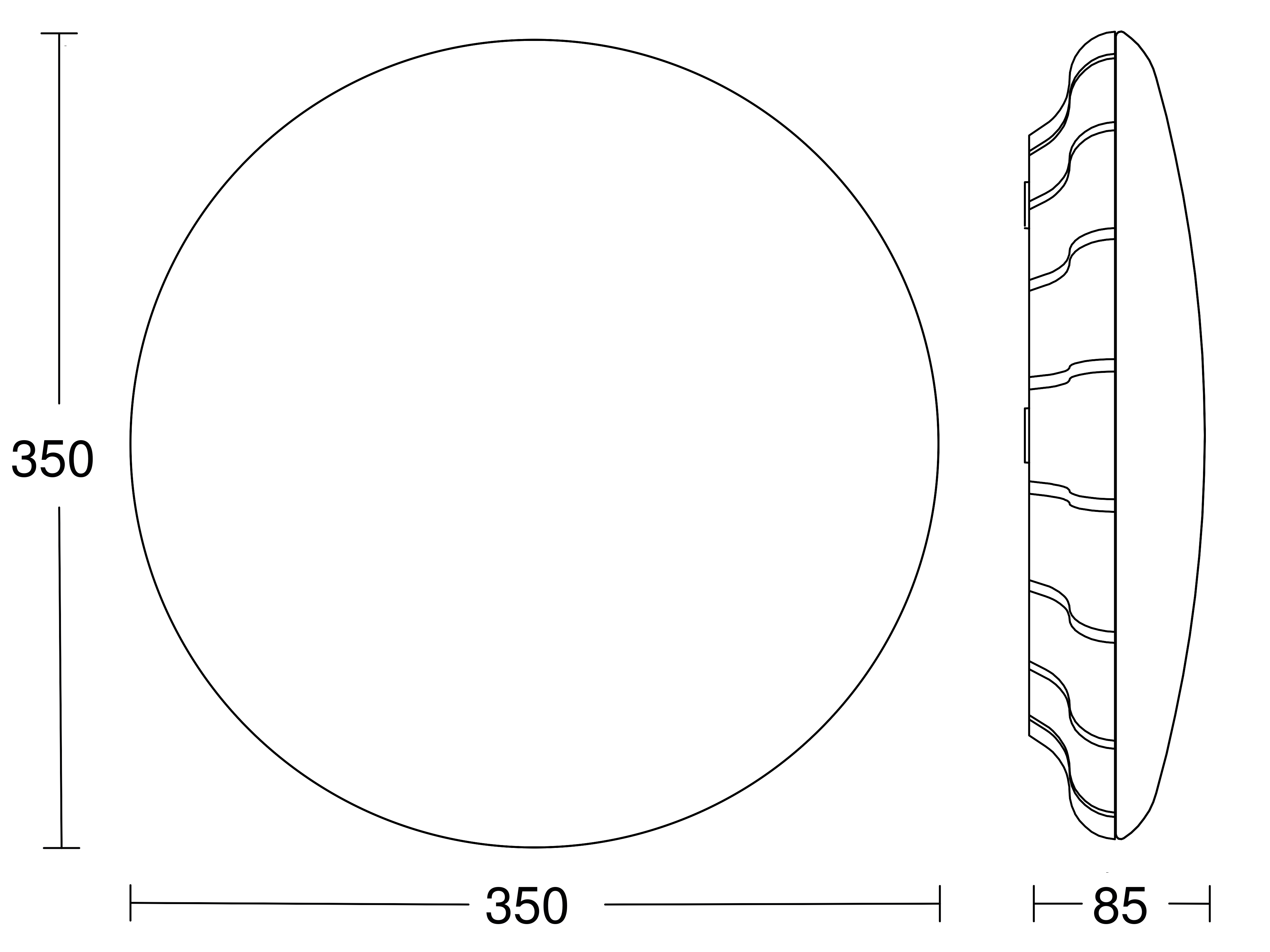

Technical drawing

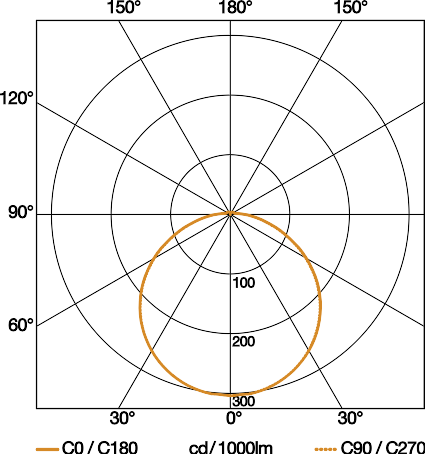

Lichtverteilungskurve

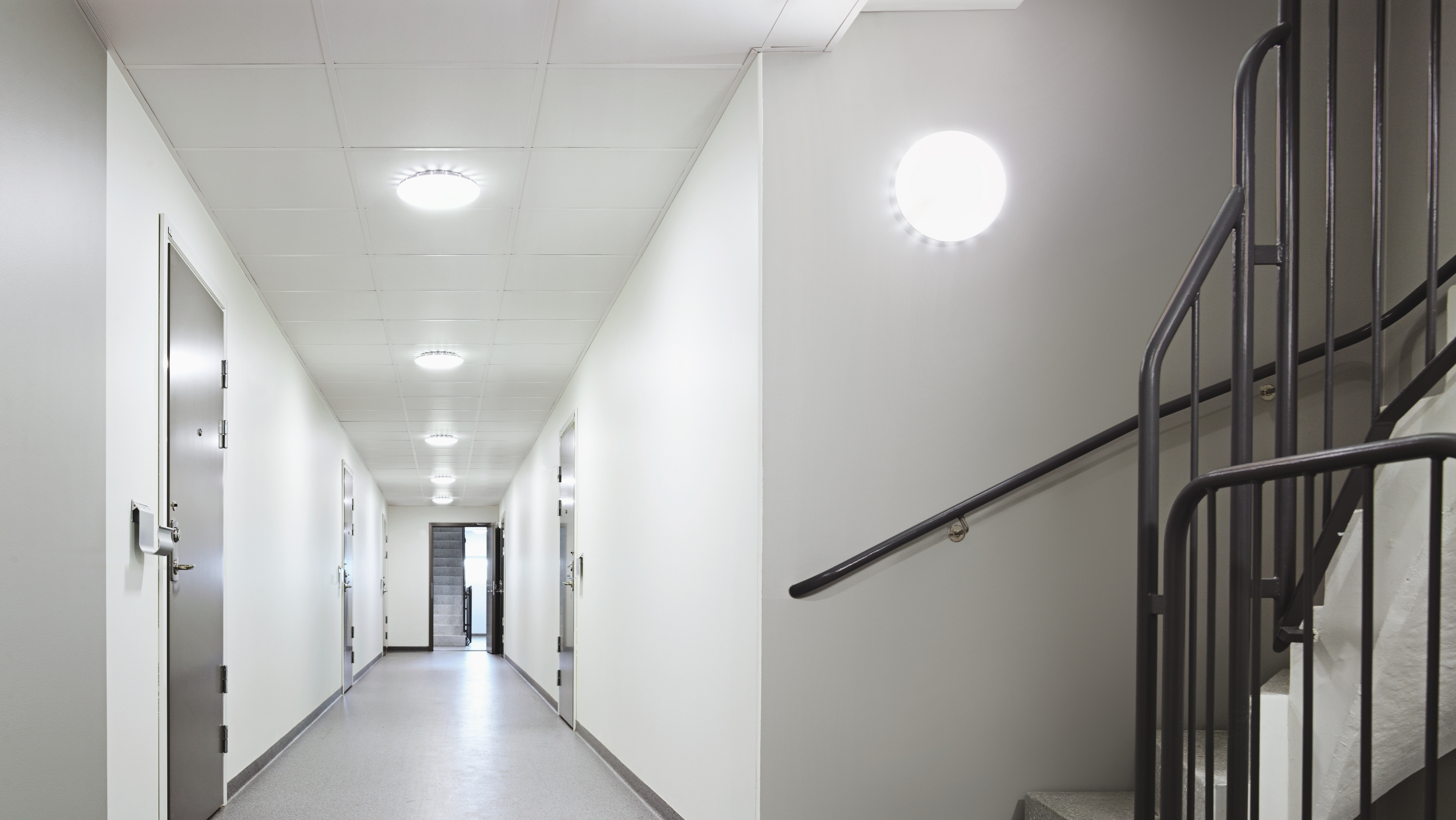

Sensor detection range

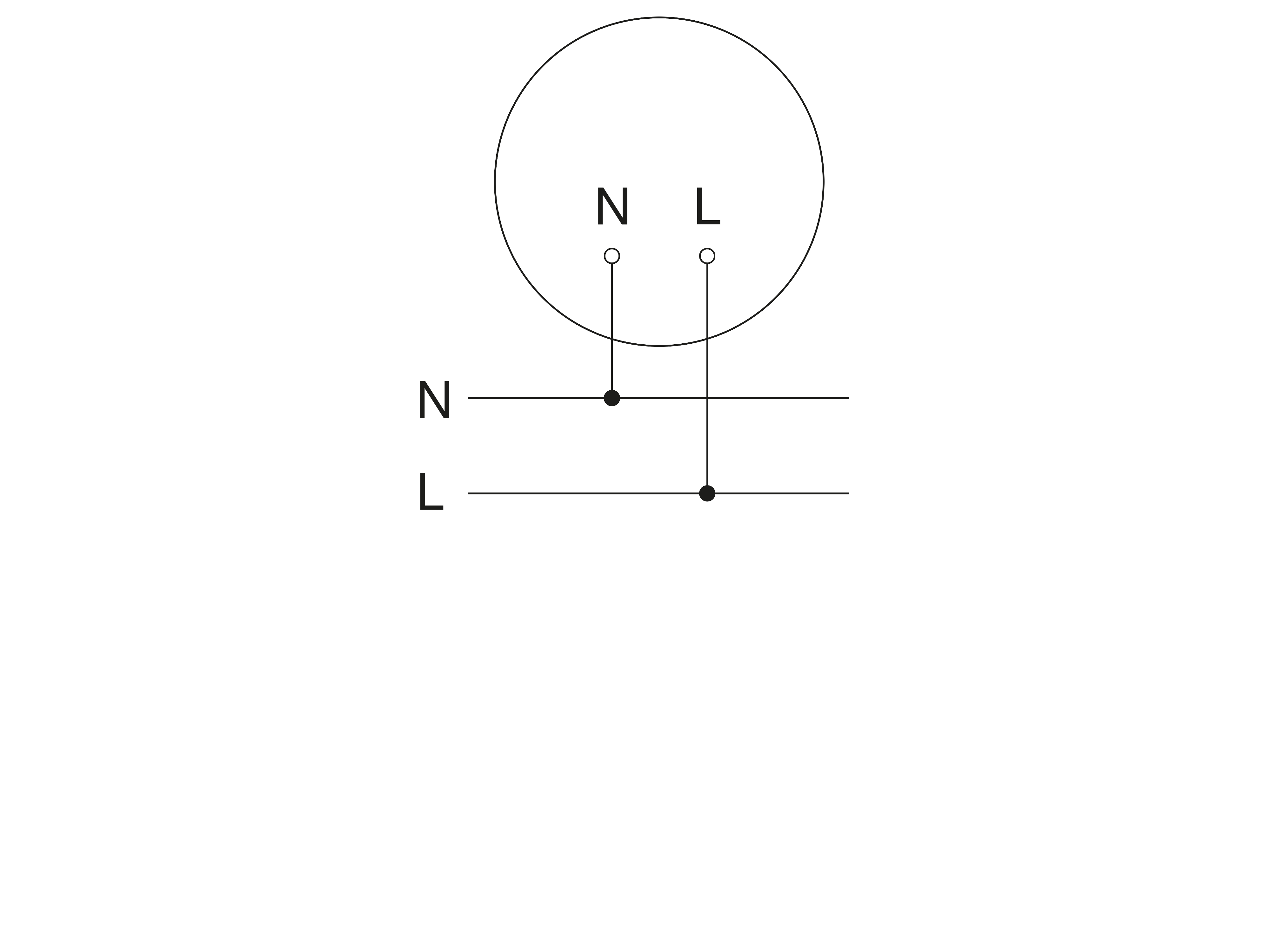

Wiring diagram 1

Slave/wireless master interconnection circuit diagram

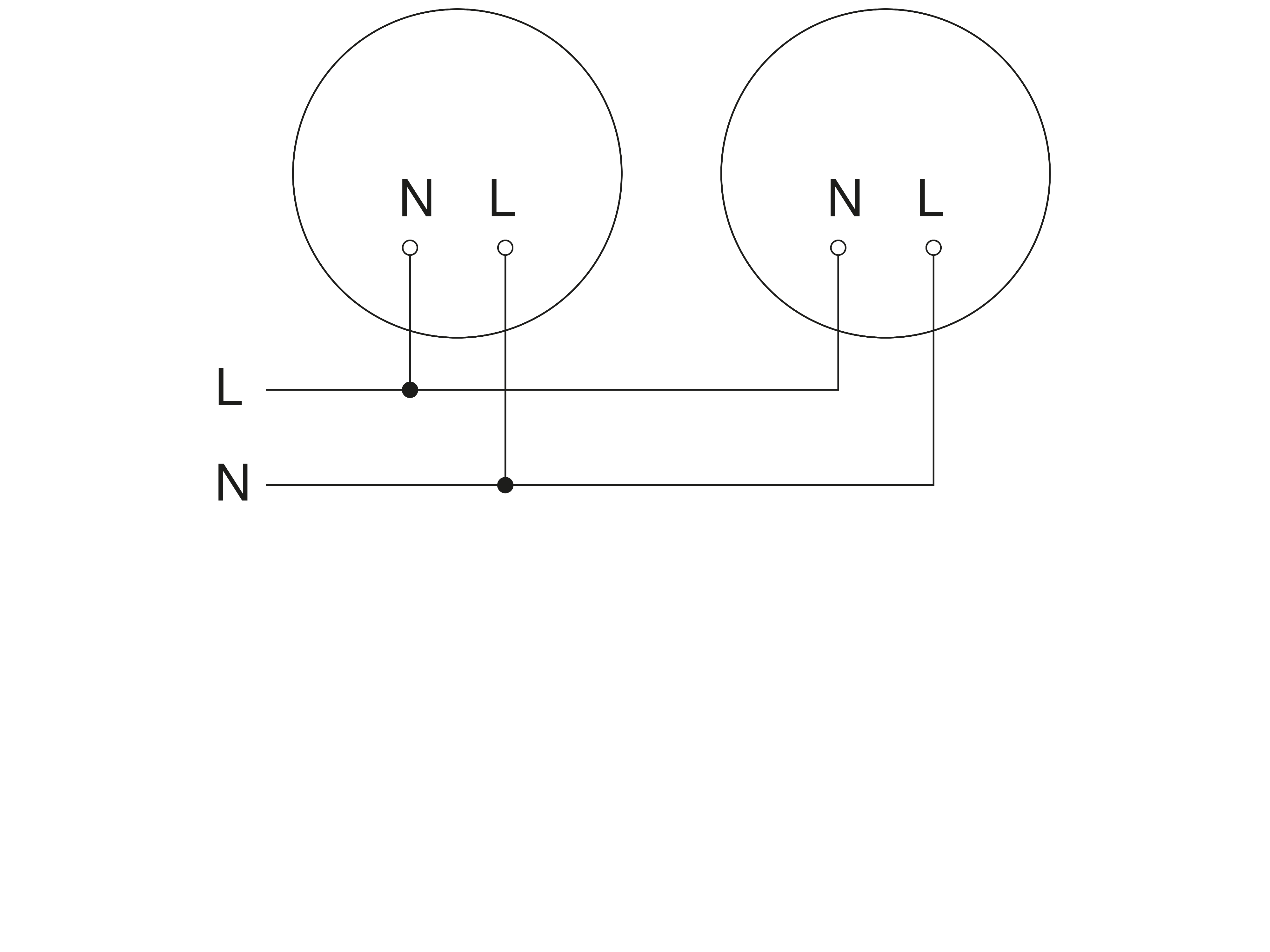

Wiring diagram 2

Master/master interconnection circuit diagram

Data sheet User manual

Remote control Smart Remote

Item no. 009151
