Nevalux RS PRO P1 FLAT S SP warm white

Nevalux RS PRO P1 FLAT S SP warm white

EAN-No. 221819

Technical data Illustrations Wiring diagrams Downloads
Nevalux

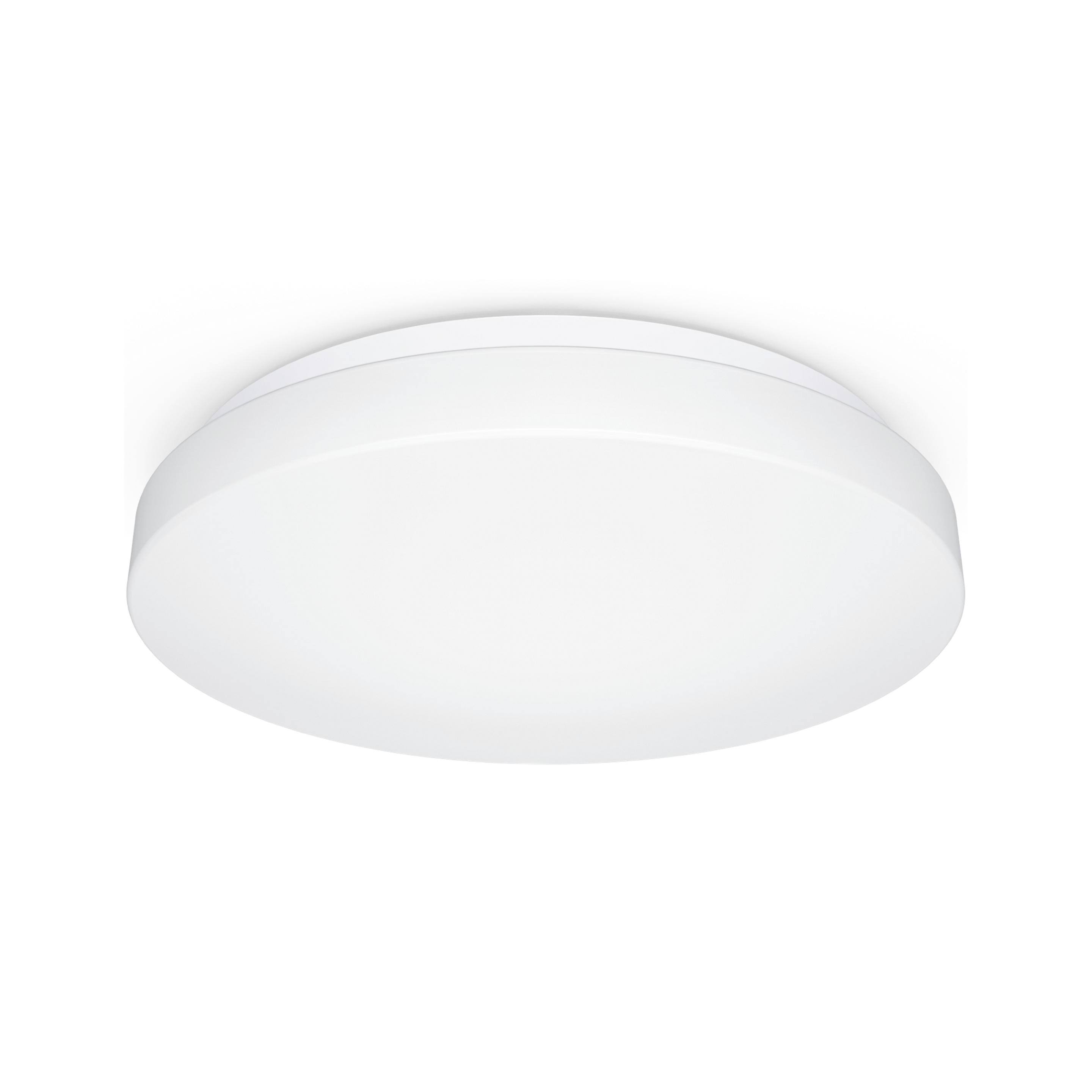

Nevalux RS PRO P1 FLAT S SP warm white

EAN-No. 221819

Price: Please log in to see prices

Dimension

Ø272mm Ø322mm

Light colour

3000K Warm white 4000K Neutral white

Version

Without sensor With sensor

Equipment

Standard Shock-tested Emergency light Shock-tested with emergency light

Colour

white Weiß

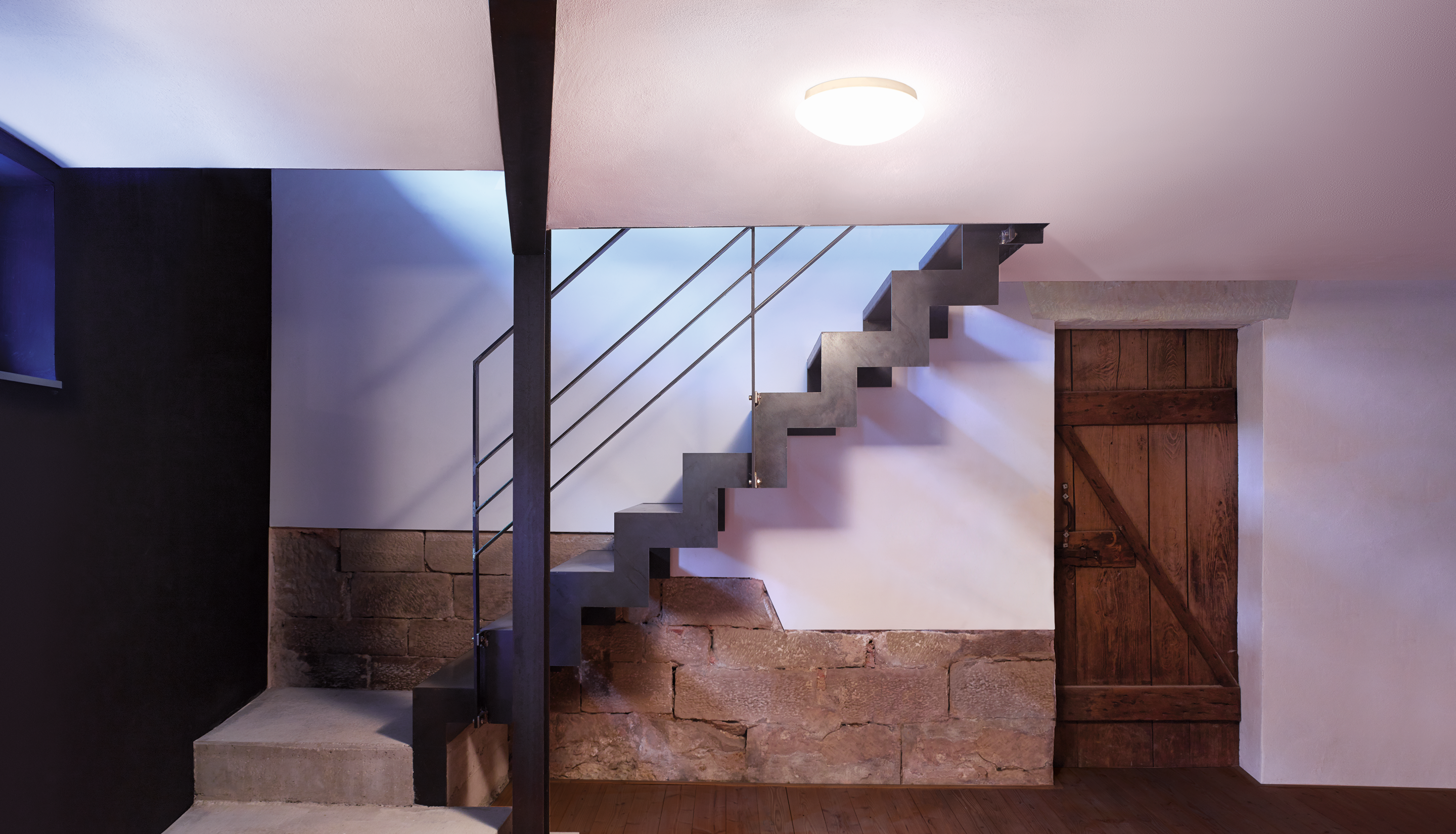

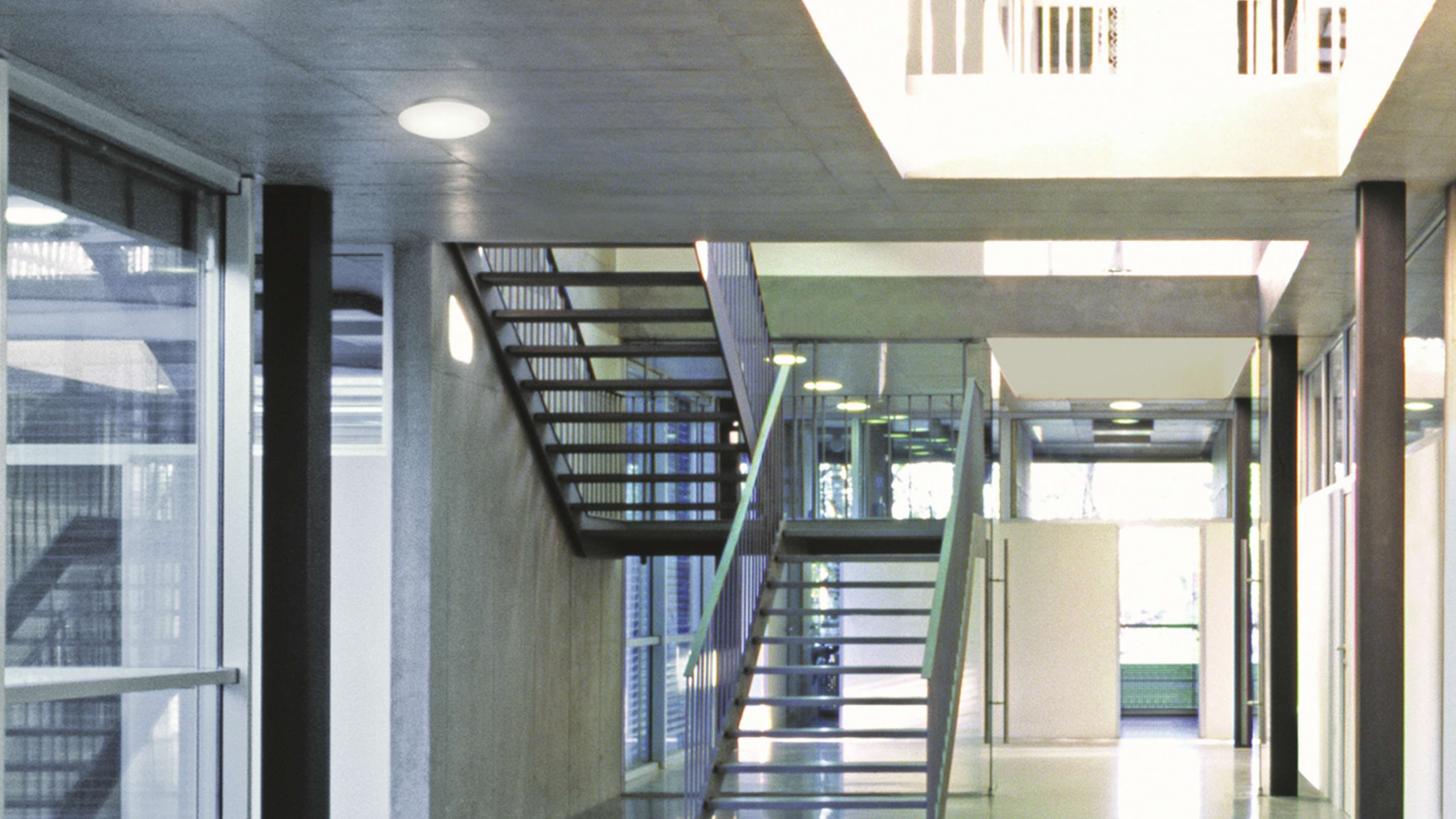

Circular classic. Perfect shape. Perfect efficiency. The perfect switched indoor light. The RS PRO P1 flat S integrates harmoniously into corridors, hallways and stairwells. It combines timeless design and extremely easy installation with pioneering technology and unbeatable efficiency. High-precision 360° HF sensor for reliable detection (8 m reach). In addition, two metal discs are always included to further limit the sensor in certain directions. As many as ten lights can be interconnected by cable. Output: 9,4 W with 942 lm, 3000 K.

  • Including STEINEL LED system
  • Intelligent soft light start
  • Interconnectable by cable (maximum of 10 units)
  • Optional basic lighting level 10 %

Dimensions

Dimensions Ø × H 272 x 64 mm

Electrical

Mains connection 220 – 240 V / 50 – 60 Hz
Power 9,4 W
Fluorescent lamps ECG 400 W
Fluorescent lamps uncompensated 400 VA
Fluorescent lamps series-compensated 400 VA
Fluorescent lamps parallel-compensated 400 VA
Switching output 1 low-voltage halogen lamps 800 VA

Sensor technology

Max. mounting height 4,00 m
Sensor technology Hochfrequenz
With motion detector Yes
Electronic scalability Yes
Mechanical scalability No
Radial range Ø 8 m (50 m²)
Tangential range Ø 8 m (50 m²)
Mounting height 2 – 4 m
Optimal mounting height 2,8 m

Connectivity

Networking Ja
Networking via Kabel

Lighting technology

Measured luminous flux 360° 942 lm
Colour temperature 3000 K
With illuminant Ja, STEINEL LED-System
Illuminant LED nicht austauschbar
Base Ohne
LED cooling system Passive Thermo Control
Soft light start Yes
Continuous light schaltbar, 4 h

Lifetime

LED lifetime max. °C 60000 Std
LED lifetime L70B50 25°C > 60000 Std
Luminous flux decline per LM80 L80B10

Settings

Twilight setting 2 – 2000 lx
Time setting 5 s – 15 Min.
Base light function Ja
Base light function time 10/30 Min., ganze Nacht
Base light function in percent 10 %
Base light function percent from 10

Housing & material

Impact resistance IK03
Protection class (IP) IP54
Protection class II
Ambient temperature von -10 bis 40 °C
Housing material Kunststoff
Cover material Kunststoff opal
Mounting location Wand Decke
Colour Weiß

Scope of delivery & warranty

Manufacturer warranty 5 Jahre

Certificates & EPREL

Certificates DEKRA
EPREL category Umgebenes Produkt mit integrierter Lichtquelle

Technical drawing

Lichtverteilungskurve

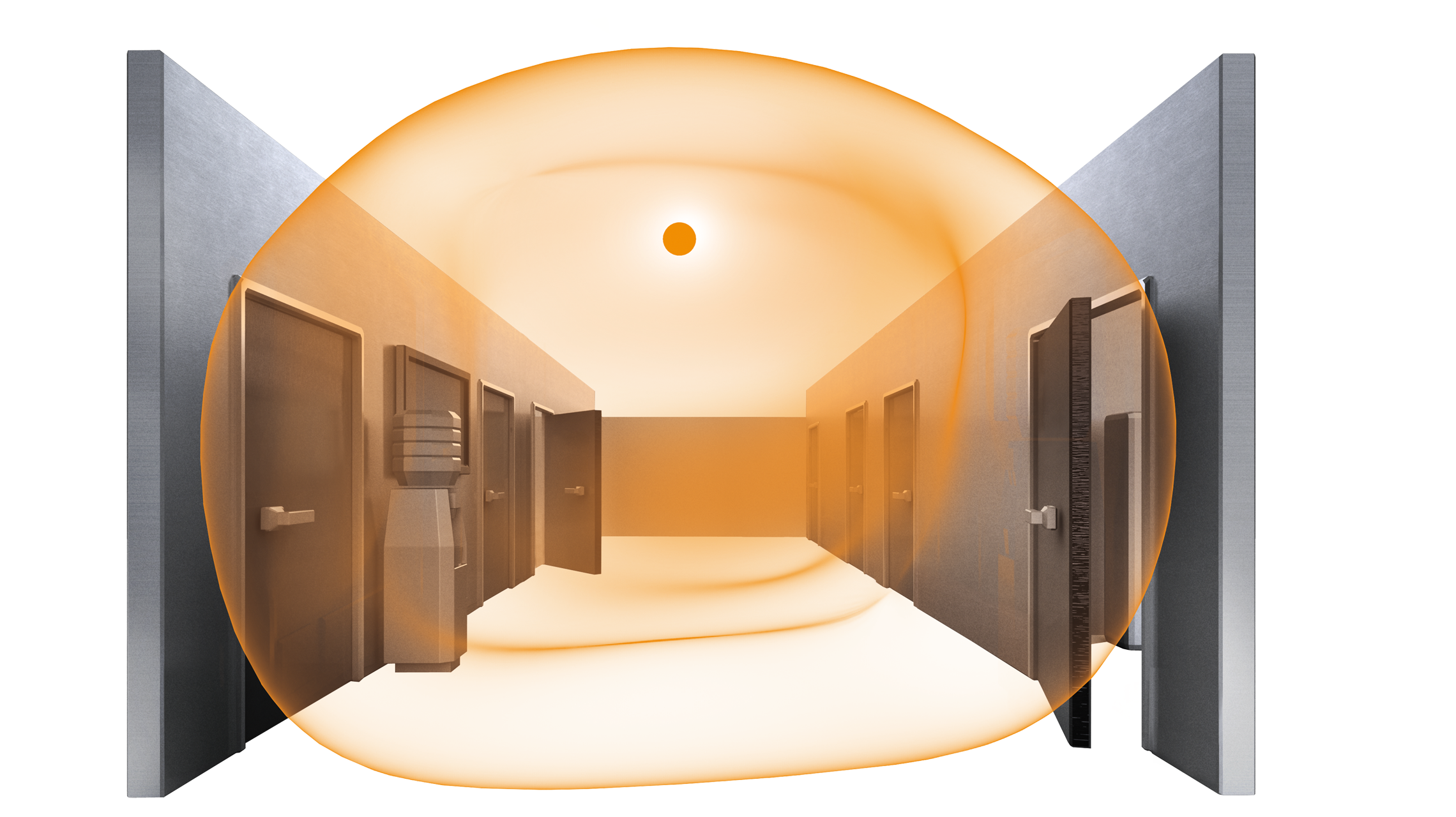

Sensor detection range

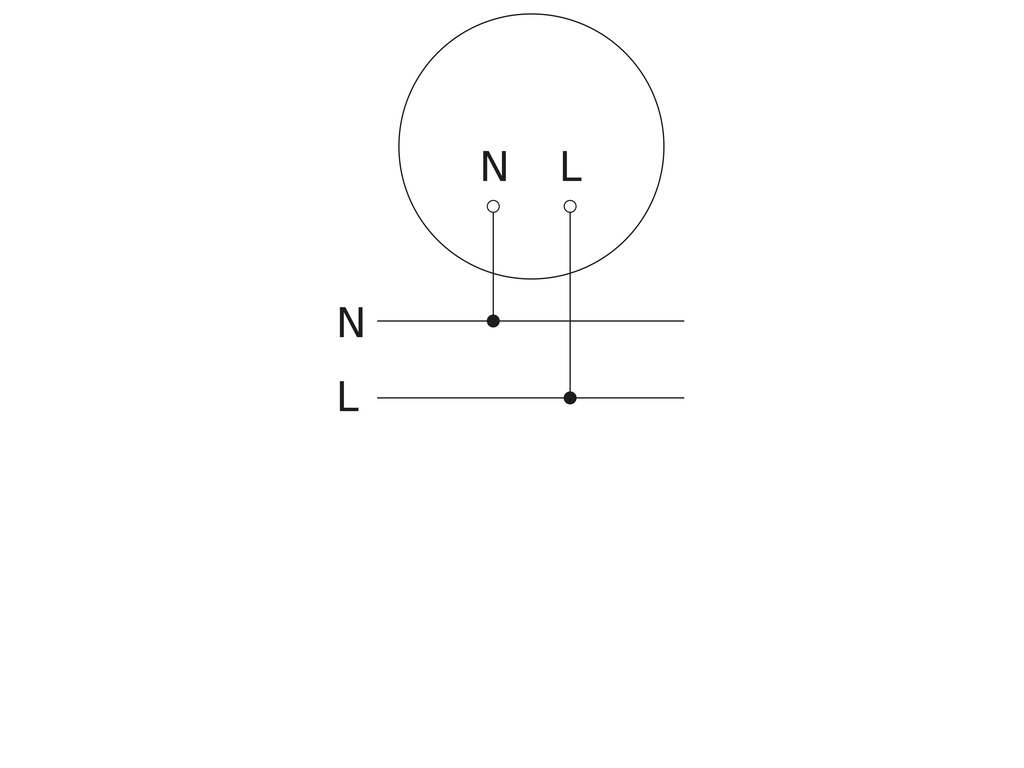

Wiring diagram 1

Master circuit diagram

Wiring diagram 2

Master/master interconnection circuit diagram
