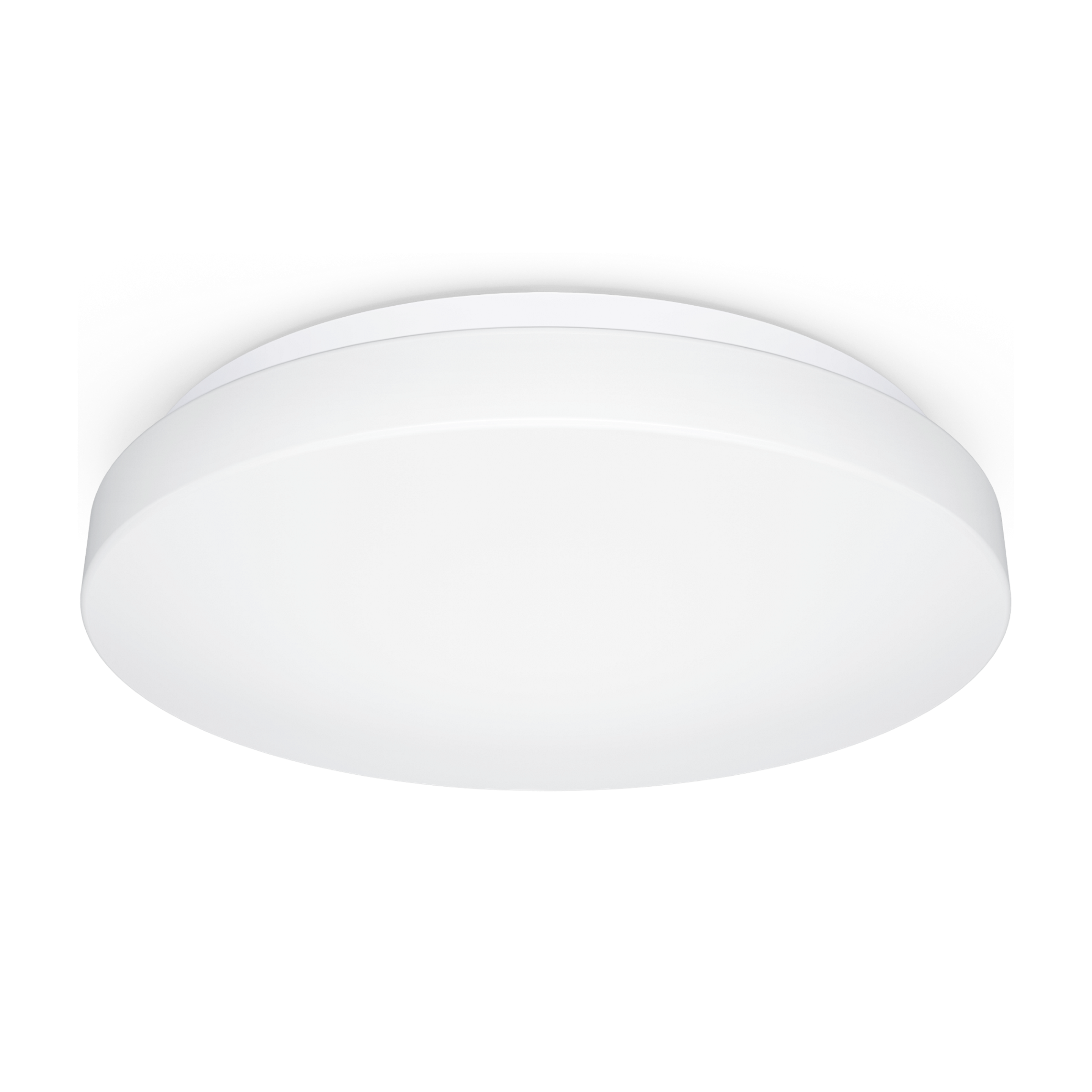

nevalux RS PRO P2 FLAT S SP warm white EM

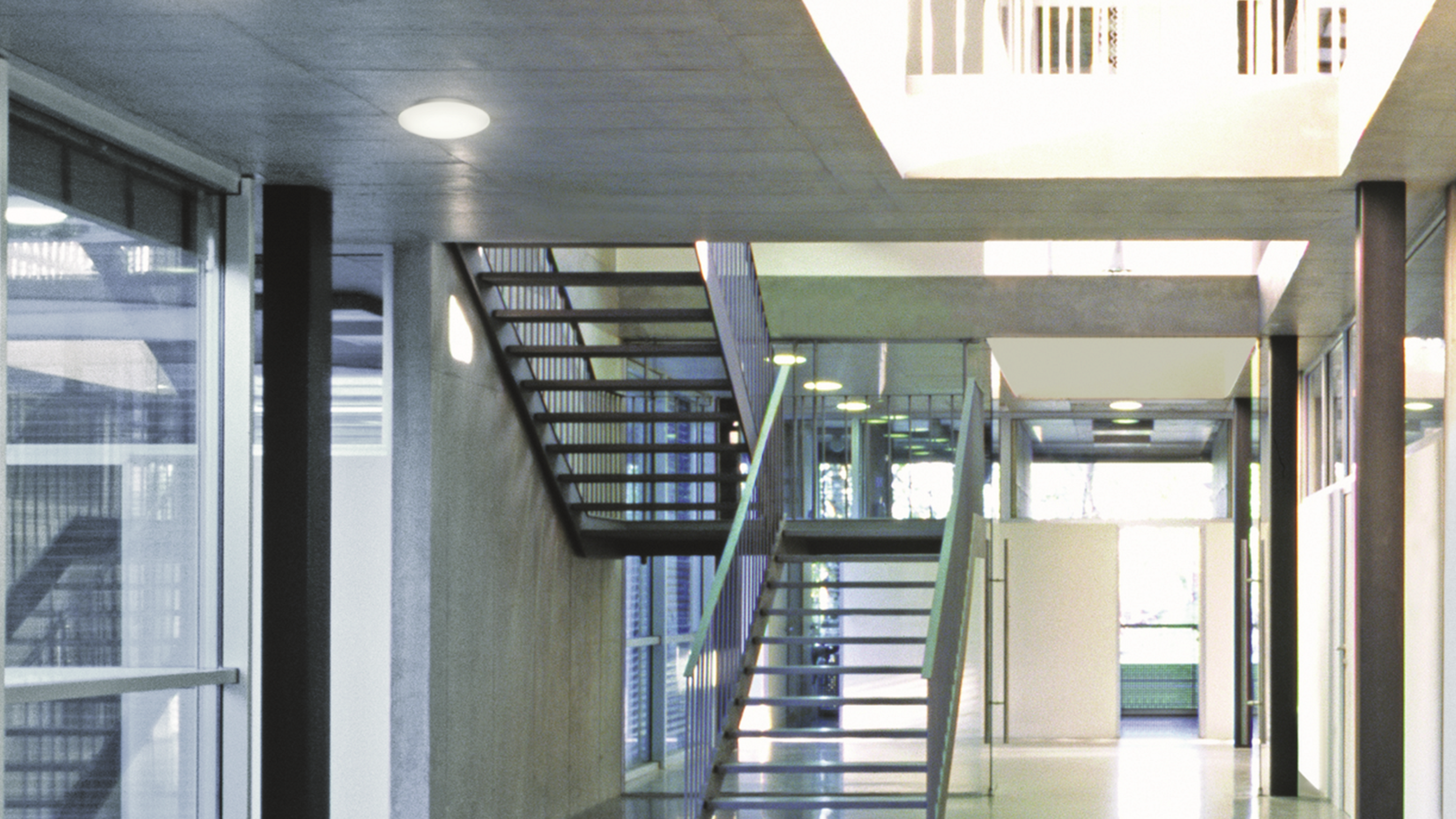

Round light for stairwells, cellars and storerooms. Optionally with sensor and integrated emergency light.

EAN-No. 221825

Price: Please log in to see prices

Variant

P2 convex P2 flat P3 convex

With motion detector

Yes

Colour temperature

3000 K 4000 K

With emergency light

No Yes

Version

Shock-tested Standard

Circular classic. Perfect shape. Perfect efficiency. The perfect switched indoor light. The emergency-light version of the RS PRO P2 flat S integrates harmoniously into corridors, hallways and stairwells. It combines timeless design and extremely easy installation with pioneering technology and unbeatable efficiency. High-precision 360° HF sensor for reliable detection (8 m reach). As many as ten lights can be interconnected by cable. Output: 15,1 W with 1608 lm, 3000 K.

  • Including STEINEL LED system
  • Intelligent soft light start
  • Interconnectable by cable (maximum of 10 units)
  • Optional basic lighting level 10 %

Variants

Version With sensor

Dimensions

Dimensions Ø × H 322 x 68 mm

Electrical

Mains connection 230 V / 50 – 60 Hz
Power 15,1 W
Switching output 1 low-voltage halogen lamps 800 VA
Capacitive load in µF 88 µF
Switching output 1 number of LED/fluorescent lamps 50 pcs.

Sensor technology

Max. mounting height 4,00 m
Sensor technology High frequency
Electronic scalability Yes
Mechanical scalability No
Radial range Ø 8 m (50 m²)
Tangential range Ø 8 m (50 m²)
Mounting height 2,0 – 4,0 m
Optimal mounting height 2,8 m

Connectivity

Networking Yes
Networking via Cable

Lighting technology

Measured luminous flux 360° 1608 lm
Colour temperature 3000 K
With illuminant Yes, STEINEL LED system
Illuminant LED cannot be replaced
Base without
LED cooling system Passive Thermo Control
Soft light start Yes
Luminous flux emergency light 38 lm

Lifetime

LED lifetime max. °C 50000 h
LED lifetime L70B50 25°C > 60000 h
Luminous flux decline per LM80 L80B10

Settings

Twilight setting 2 – 2000 lx
Time setting 5 s – 15 min
Base light function Yes
Base light function time 10/30 Min., ganze Nacht
Main light adjustable No
Functions Notlicht nach EN 60598-2-22 für 3 Stunden
Base light function in percent 10 %
Base light function percent from 10 %

Housing & material

Impact resistance IK03
Protection class (IP) IP54
Protection class II
Ambient temperature -10...+30 °C
Housing material Plastic
Cover material Opal plastic
Mounting location ceiling, wall
Colour White

Scope of delivery & warranty

Manufacturer warranty 5 years

Certificates & EPREL

Certificates DEKRA
EPREL category Surrounded product with integrated light source

Technical drawing

Lichtverteilungskurve

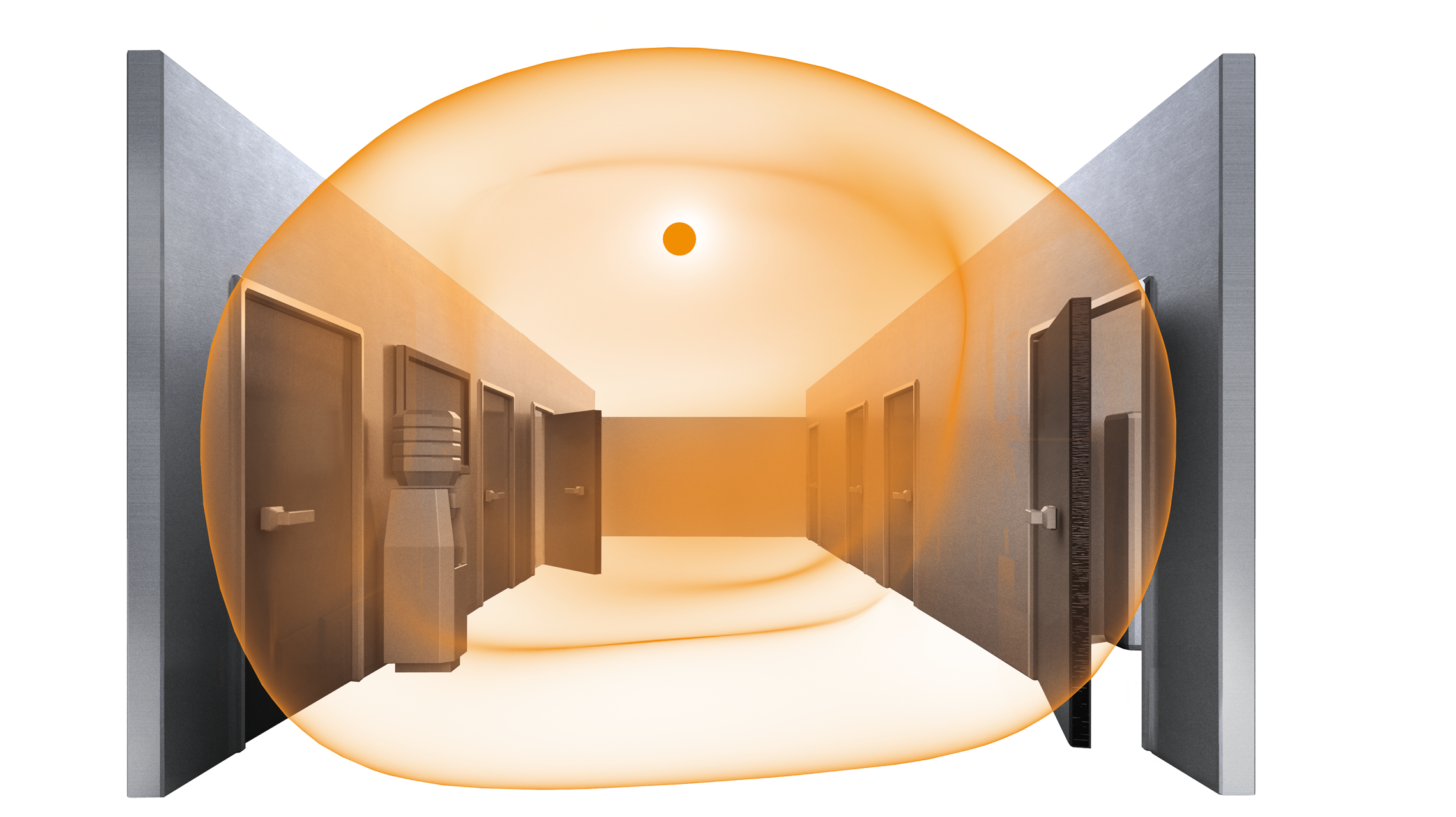

Sensor detection range

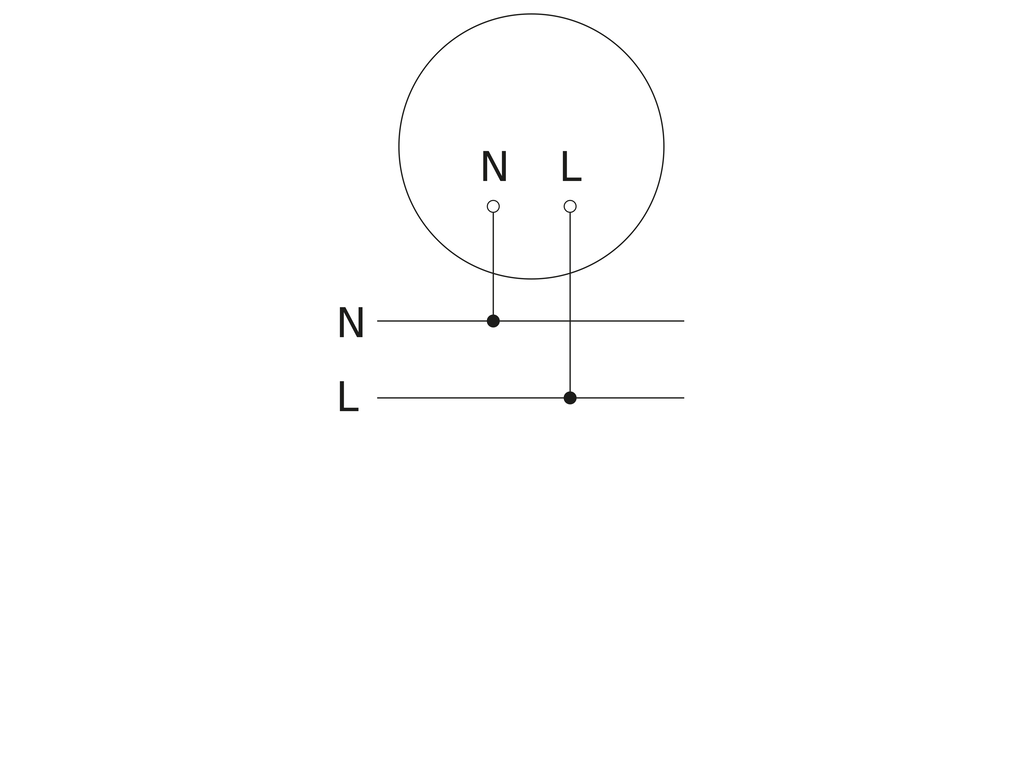

Wiring diagram 1

Master circuit diagram

Wiring diagram 2

Master/master interconnection circuit diagram
