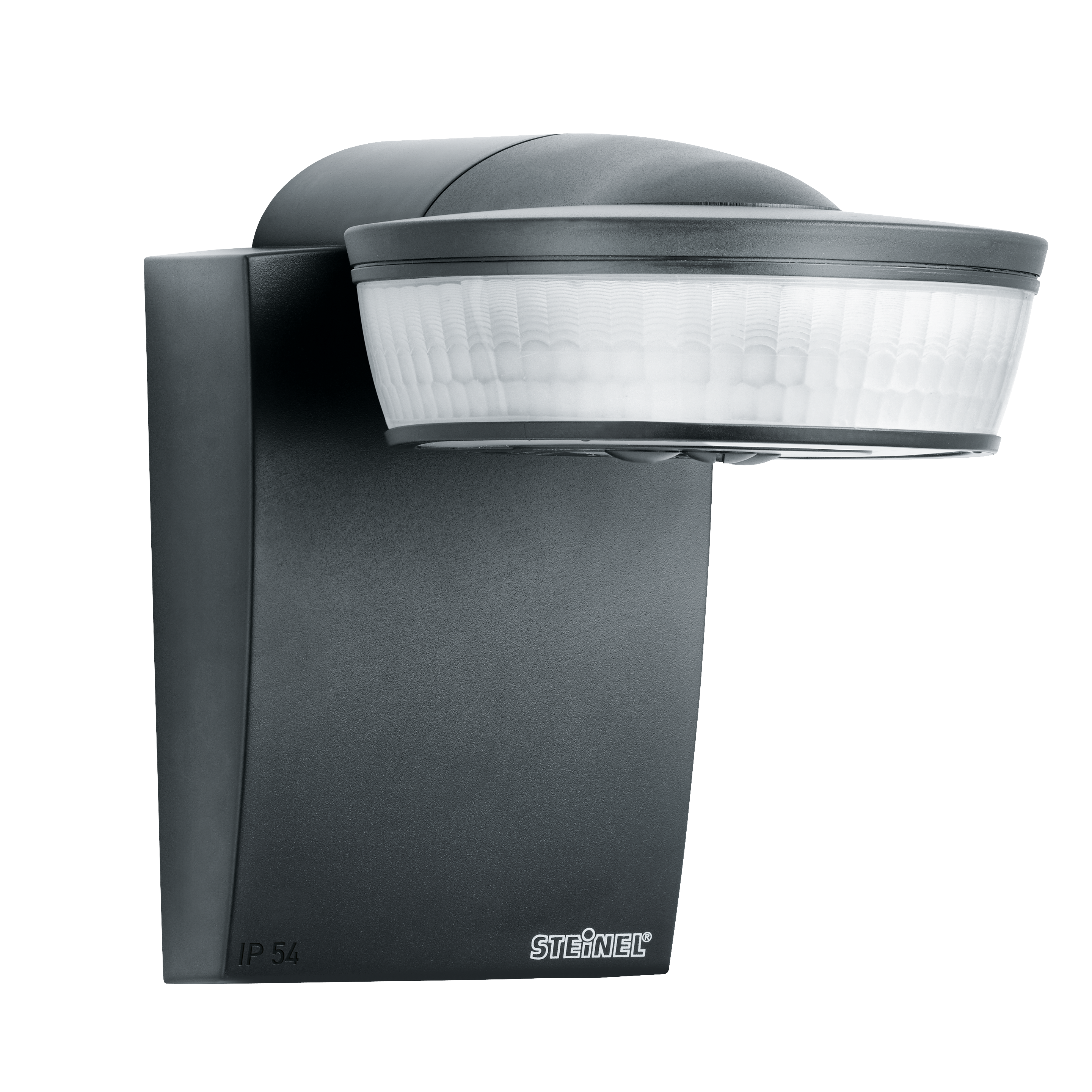

Nevalux sensIQ eNet - black

EAN-No. 4007841 020422

Discontinued

This product is being discontinued and is available while stocks last. No successor product has been announced yet.

King of the infrared motion detectors. The revolutionary sensIQ for indoors and out, ideal for building entrances, loading bays, installation height up to 5 m, quadruple sensor system for optimum coverage over a 300° detection angle, 20 m range (tangential), metre-precision reach setting in 3 different directions, heavy-duty relay for high switching capacity. Corner wall mount bracket included. For integrating into the eNet system using eNet wireless standard.

4x pyro system
Suitable for mounting on ceilings
UV-resistant plastic
Wireless interconnection
Including corner wall mount
Smart Remote remote control optional
Remote control RC9 included

Identification

Variant eNet - black

Version Motion detectors

Type of accessory Corner adapter

Dimensions

Dimensions L × W × H 144 x 113 x 172 mm

Electrical

Mains connection 220 – 240 V , 50 / 60 Hz

Switching output 1 number of LED/fluorescent lamps 8 pcs.

Sensor technology

Sensor technology passive infrared

Detection angle 300 °

Opening angle 90 °

Sneak-under protection Yes

Segment-by-segment masking Yes

Electronic scalability No

Mechanical scalability Yes

Range detail Reach adjustable from 2 - 20 m in 3 directions (100° in each)

Radial range r = 4 m (42 m²)

Tangential range r = 20 m (1047 m²)

Switching zones 1360 switching zones

Mounting height 2,00 – 5,00 m

Optimal mounting height 2 m

Connectivity

Networking Yes

With bus coupler No

Lighting technology

Constant light regulation No

Settings

Twilight setting 2 – 2000 lx

Time setting 5 sec – 15 min

Base light function No

With remote control Yes

Twilight setting teach Yes

Housing & material

Ambient temperature -20 – 50 °C

Mounting location ceiling corner wall

Application location Indoors Outdoors

Mounting type Surface wiring

Material Plastic

Colour black

RAL colour 9005

Scope of delivery & warranty

Manufacturer warranty 5 years

Certificates & EPREL

Certificates VDE

Other

Application, location, room multi-storey car park, underground car park

Data sheet User manual

sensIQ floating module MPF1

Item no. 4007841609115

Remote control Smart Remote

Item no. 009151

eNet wireless hand-held transmitter 2x

Item no. 4007841032821

eNet switching actuator

Item no. 4007841032838
