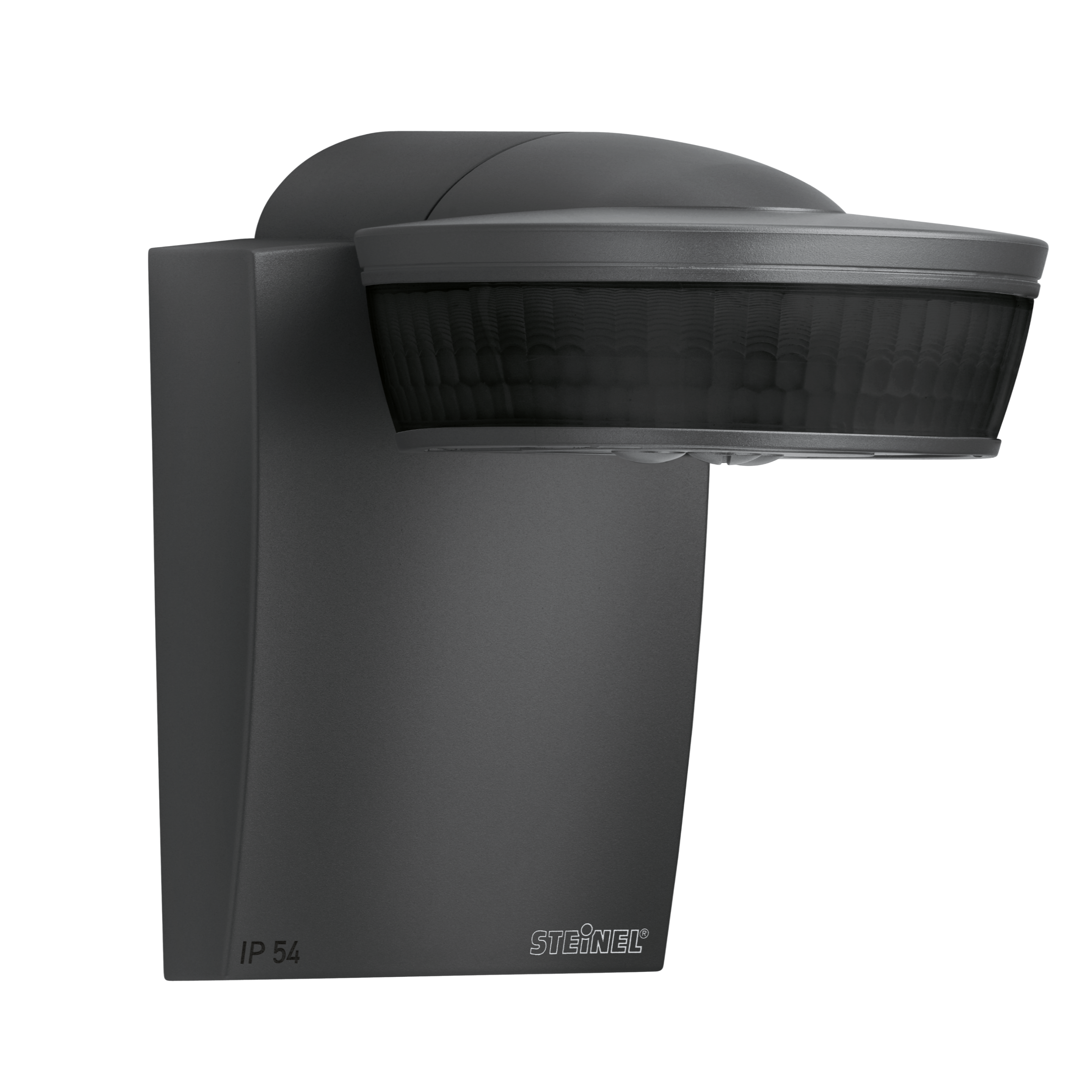

Nevalux SensIQ KNX Anthracite

ELDAS® no. 535 940 358

EAN-No. 4007841 056643

Discontinued

This product is being discontinued and is available while stocks last. No successor product has been announced yet.

The king of motion detectors. The revolutionary sensIQ for indoors and outdoors, ideal for building entrances, loading bays, for mounting heights of up to 5 m, quadruple sensor system for optimum surveillance over a 300° coverage angle, 20 m reach (tangential), reach setting to the accuracy of a metre in 3 independent directions, powerful relay for high switching capacity. Including remote control and corner wall mount.

4x pyro system
Suitable for mounting on ceilings
UV-resistant plastic
Remote control RC9 included
Including corner wall mount
Smart Remote remote control optional

Identification

Variant Anthracite

Version Motion detectors

Type of accessory Corner adapter

Model KNX

Dimensions

Dimensions L × W × H 144 x 113 x 172 mm

Sensor technology

Sensor technology passive infrared

Detection angle 300 °

Opening angle 90 °

Sneak-under protection Yes

Segment-by-segment masking Yes

Electronic scalability No

Mechanical scalability Yes

Range detail Reach adjustable from 2 - 20 m in 3 directions (100° in each)

Radial range r = 20 m (1047 m²)

Tangential range r = 20 m (1047 m²)

Switching zones 1360 switching zones

Mounting height 2,00 – 2,50 m

Optimal mounting height 5 m

Connectivity

Networking Yes

With bus coupler Yes

Lighting technology

Constant light regulation Yes

Settings

Twilight setting 2 – 2000 lx

Base light function Yes

Base light function time 1-255 min

With remote control Yes

Twilight setting teach Yes

Housing & material

Protection class (IP) IP54

Ambient temperature -20 – 50 °C

Mounting location ceiling corner wall

Application location Indoors Outdoors

Mounting type Surface wiring

Material Plastic

Colour Anthracite

Scope of delivery & warranty

Manufacturer warranty 5 years

Certificates & EPREL

Certificates VDE

Data sheet User manual

Remote control RC9

Item no. 4007841007638

Remote control Smart Remote

Item no. 009151
