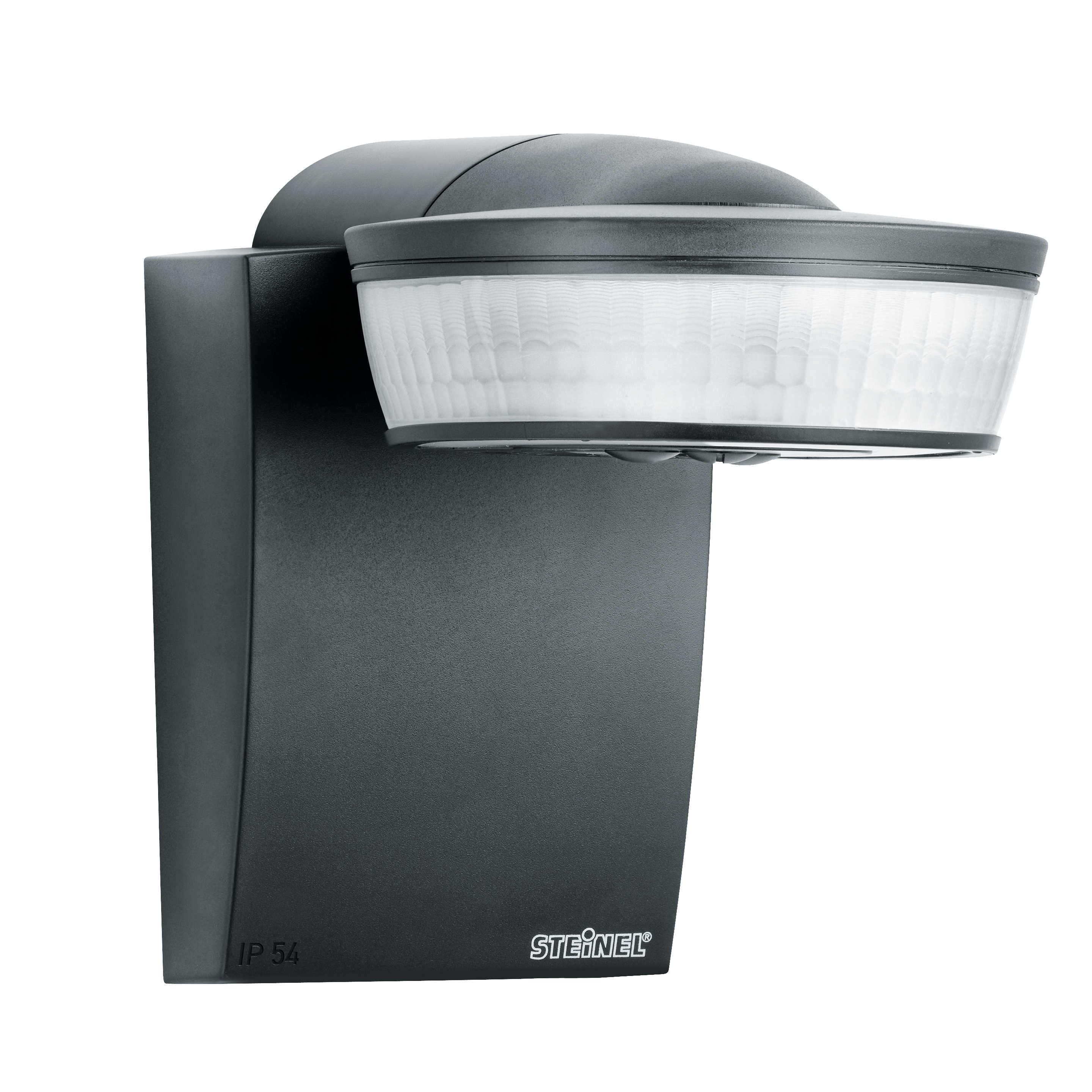

Nevalux sensIQ KNX black

ELDAS® no. 535 941 828

EAN-No. 4007841 029609

Discontinued

This product is being discontinued and is available while stocks last. No successor product has been announced yet.

King of the infrared motion detectors. The revolutionary sensIQ KNX for indoors and out, ideal for building entrances, loading bays, installation height up to 5 m, quadruple sensor system for optimum coverage over a 300° detection angle, 20 m range (tangential), metre-precision reach setting in 3 different directions. Remote control and corner wall mount bracket included.

Remote control RC9 included
4x pyro system
Suitable for mounting on ceilings
UV-resistant plastic
Including corner wall mount

Identification

Variant black

Version Motion detectors

Type of accessory Corner adapter

Model KNX

Dimensions

Dimensions L × W × H 144 x 113 x 172 mm

Electrical

Supply voltage detail KNX bus

Sensor technology

Sensor technology passive infrared

Detection angle 300 °

Opening angle 90 °

Sneak-under protection Yes

Segment-by-segment masking Yes

Electronic scalability No

Mechanical scalability Yes

Range detail Reach adjustable from 2 - 20 m in 3 directions (100° in each)

Radial range r = 20 m (1047 m²)

Tangential range r = 20 m (1047 m²)

Switching zones 304 switching zones

Mounting height 2,00 – 5,00 m

Optimal mounting height 2 m

Connectivity

Networking Yes

KNX functions Light output 2x, Presence output, Light level, Constant-lighting control, Basic light level function, Photo-cell controller, Close range, Individual pyro evaluation

With bus coupler Yes

Lighting technology

Constant light regulation Yes

Settings

Twilight setting 2 – 2000 lx

Time setting 60 sec – 255 min

Base light function Yes

Base light function time 1-255 min

Settings via ETS software, Remote control, Bus

With remote control Yes

Twilight setting teach Yes

Housing & material

Protection class (IP) IP54

Ambient temperature -20 – 50 °C

Mounting location ceiling corner wall

Application location Indoors Outdoors

Mounting type Surface wiring

Material Plastic

Colour black

RAL colour 9005

Scope of delivery & warranty

Manufacturer warranty 5 years

Certificates & EPREL

Certificates VDE

Data sheet User manual

Remote control RC9

Item no. 4007841007638
