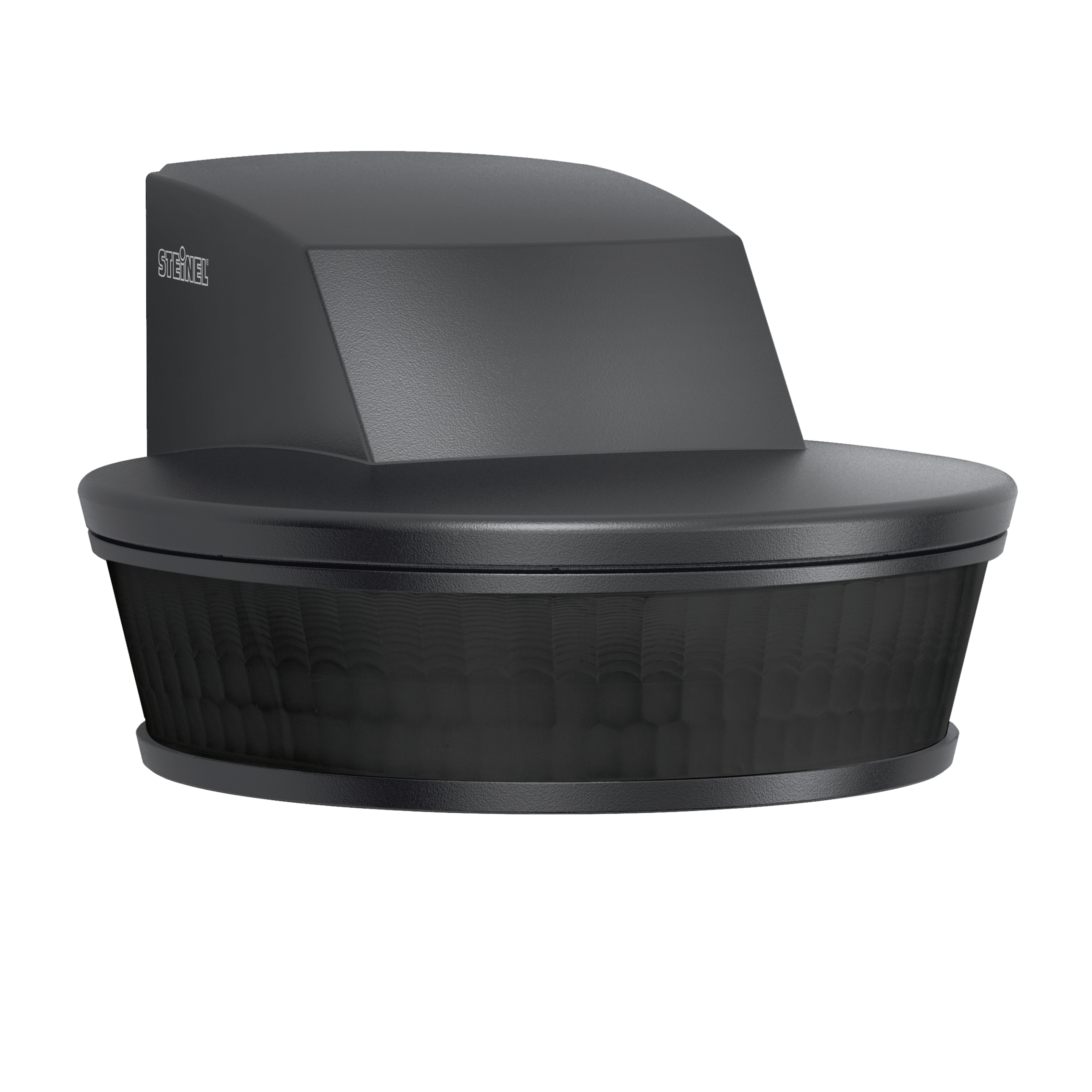

Nevalux SensIQ S KNX Anthracite

ELDAS® no. 535 940 458

EAN-No. 4007841 056667

Discontinued

This product is being discontinued and is available while stocks last. No successor product has been announced yet.

The evolution of perfection. The sensIQ S is just as perfect as its larger role model. For indoors and outdoors, ideal for building entrances, loading bays, for mounting heights of up to 5 m, quadruple sensor system for optimum surveillance over 3 x 100° coverage angle, 20 m reach (tangential), reach setting to the accuracy of a metre in 3 independent directions. Including remote control and corner wall mount.

4x pyro system
Remote control RC1 included

Identification

Variant Anthracite

Version Motion detectors

Type of accessory Corner adapter

Model KNX

Dimensions

Dimensions L × W × H 128 x 74 x 114 mm

Sensor technology

Sensor technology passive infrared

Detection angle 300 °

Opening angle 90 °

Sneak-under protection Yes

Segment-by-segment masking Yes

Electronic scalability No

Mechanical scalability Yes

Range detail Reach adjustable from 2 - 20 m in 3 directions (100° in each)

Radial range r = 4 m (42 m²)

Tangential range r = 20 m (1047 m²)

Switching zones 1360 switching zones

Mounting height 2,00 – 2,50 m

Optimal mounting height 2 m

Connectivity

Networking Yes

With bus coupler Yes

Lighting technology

Constant light regulation Yes

Settings

Twilight setting 2 – 2000 lx

Time setting 5 sec – 15 min

Base light function Yes

Base light function time 1-255 min

Settings via ETS software

With remote control Yes

Twilight setting teach Yes

Housing & material

Protection class (IP) IP54

Ambient temperature -20 – 50 °C

Mounting location corner wall

Application location Outdoors

Mounting type Surface wiring

Material Plastic

Colour Anthracite

Scope of delivery & warranty

Manufacturer warranty 5 years

Certificates & EPREL

Certificates VDE

Sensor detection range

Data sheet User manual

Remote control RC1

Item no. 4007841601416
