Nevalux sensIQ white

EAN-No. 4007841 020439

Discontinued

This product is being discontinued and is available while stocks last. No successor product has been announced yet.

King of the infrared motion detectors. The revolutionary sensIQ for indoors and out, ideal for building entrances, loading bays, installation height up to 5 m, quadruple sensor system for optimum coverage over a 300° detection angle, 20 m range (tangential), metre-precision reach setting in 3 different directions, heavy-duty relay for high switching capacity. Corner wall mount bracket included. For integrating into the eNet system using eNet wireless standard.

4x pyro system
Suitable for mounting on ceilings
UV-resistant plastic
Wireless interconnection
Including corner wall mount
Smart Remote remote control optional
Remote control RC9 included

Identification

Version Motion detectors

Type of accessory Corner adapter

Dimensions

Dimensions L × W × H 172 x 113 x 144 mm

Electrical

Mains connection 220 – 240 V / 50 – 60 Hz

Power 2500 W

Fluorescent lamps ECG 1500 W

Fluorescent lamps uncompensated 1000 VA

Fluorescent lamps series-compensated 1800 VA

Fluorescent lamps parallel-compensated 500 VA

Switching output 1 low-voltage halogen lamps 2300 VA

LED lamps < 2 W 16 W

LED lamps > 2 W < 8 W 64 W

LED lamps > 8 W 64 W

Capacitive load in µF 176 µF

Switching output 1 number of LED/fluorescent lamps 8 pcs.

Sensor technology

Max. mounting height 5,00 m

Sensor technology passive infrared

With motion detector Yes

Detection angle 300 °

Opening angle 180 °

Sneak-under protection Yes

Segment-by-segment masking Yes

Electronic scalability No

Mechanical scalability Yes

Range detail Reach adjustable from 2 - 20 m in 3 directions (100° in each)

Radial range r = 4 m (42 m²)

Tangential range r = 20 m (1047 m²)

Switching zones 1360 switching zones

Mounting height 2,00 – 5,00 m

Optimal mounting height 2 m

Connectivity

Networking Yes

Networking via Wireless

Lighting technology

Soft light start No

Continuous light selectable, 4h

Constant light regulation No

Settings

Twilight switch Yes

Twilight setting 2 – 2000 lx

Time setting 5 sec – 15 min

Base light function No

Main light adjustable No

Functions Connection to eNet server\nPush button configuration

Settings via Remote control\nPotentiometers\neNet

With remote control Yes

Twilight setting teach Yes

Housing & material

Ambient temperature -20 – 50 °C

Mounting location ceiling corner wall

Application location Indoors Outdoors

Mounting type Surface wiring

Material Plastic

Application room Indoors all round the building courtyard & driveway front door multi-storey / underground car park outdoors warehouse

Colour white

RAL colour 9010

Scope of delivery & warranty

Manufacturer warranty 5 years

Corner wall bracket included Yes

Certificates & EPREL

Certificates VDE

Technical drawing

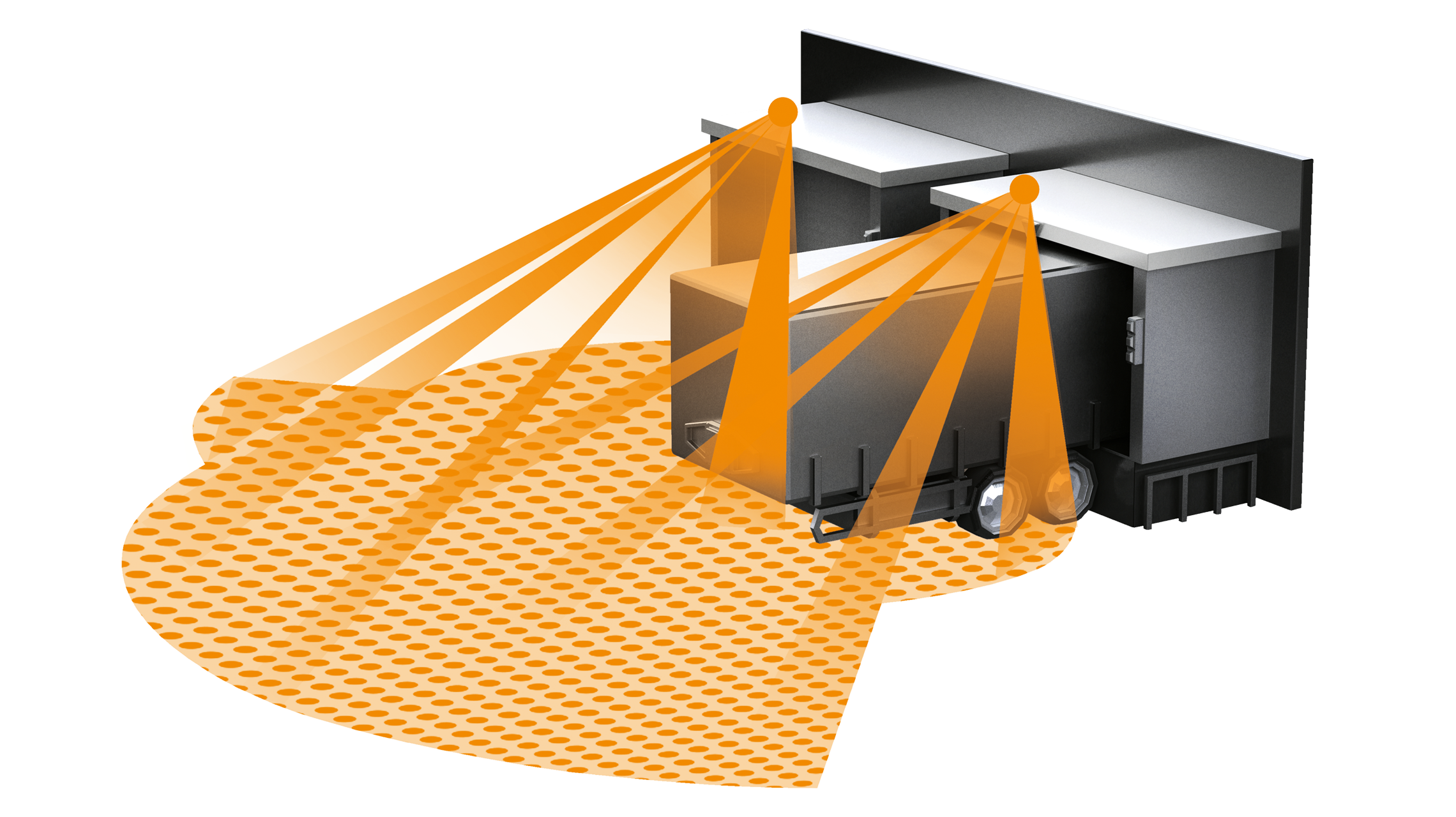

Sensor detection range

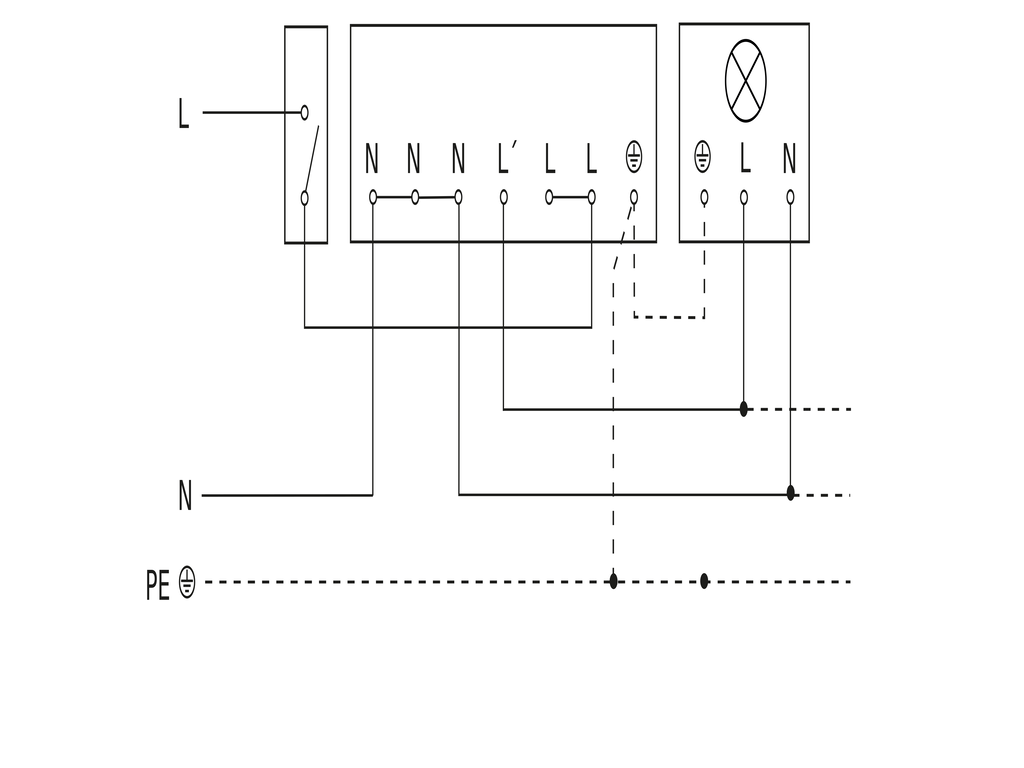

Wiring diagram 1

Light without neutral conductor

Wiring diagram 2

Light with neutral conductor

Data sheet User manual Declaration of conformity LDT file (light distribution)

Remote control Smart Remote

Item no. 009151
