Nevalux Single US KNX

Nevalux Single US KNX

ELDAS® no. 535 933 320 · EAN-No. 4007841 059507

Technical data Illustrations Downloads
Nevalux

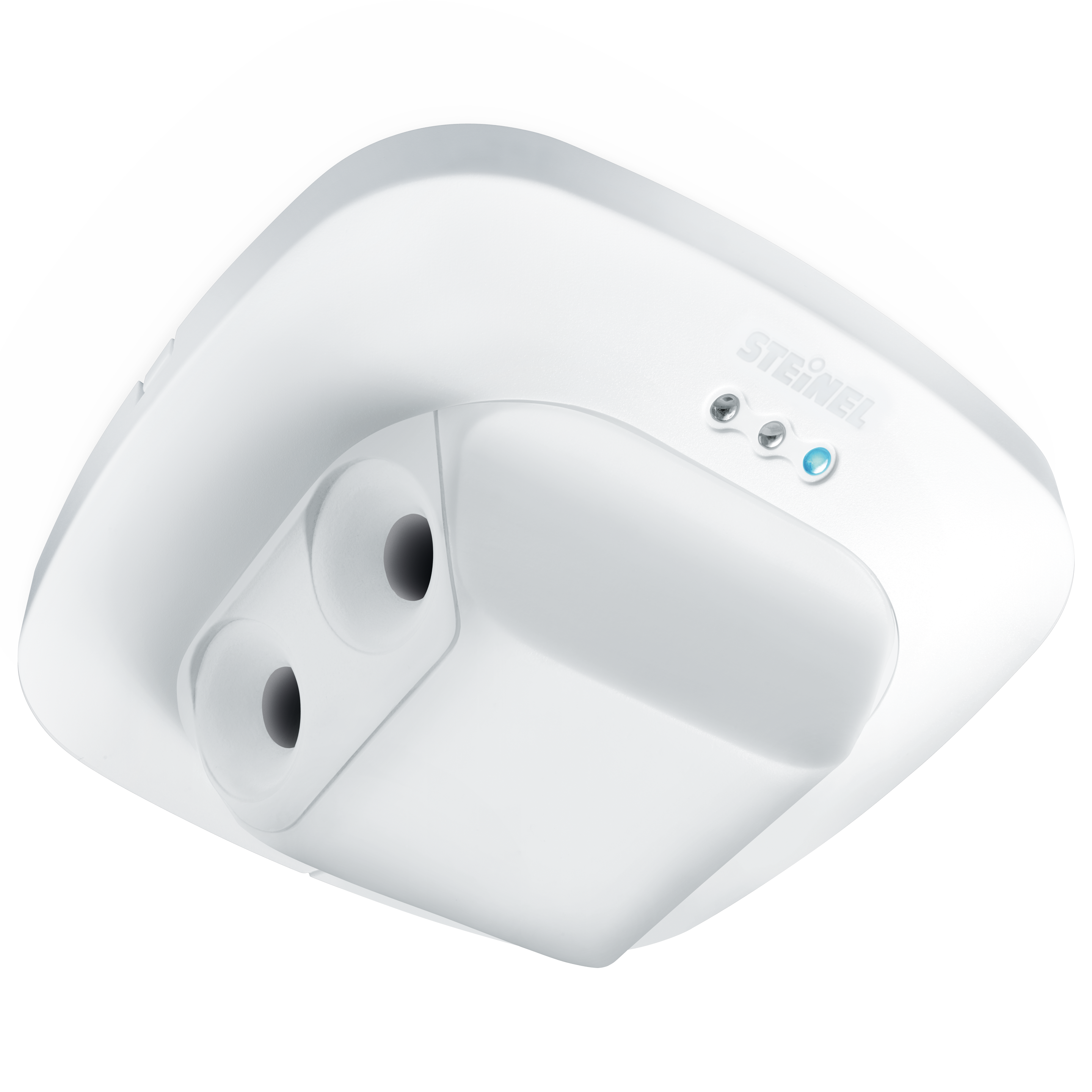

Nevalux Single US KNX

ELDAS® no. 535 933 320

EAN-No. 4007841 059507

Price: Please log in to see prices

The ideal sensor for small corridors. Single US KNX ultrasonic motion detector, ideal for corridors, thoroughfares and stairwells as well as WC facilities, washrooms and store rooms Detection within 10 m in one direction, both radially and tangentially, envelops objects as opposed to penetrating them, detection regardless of temperature, electronically adjustable reach, with digital BUS interface for controlling 4 lighting channels and HVAC.

  • Optional remote controls
  • Smart Remote remote control optional
  • Optional surface-mounting adapter
  • Optional guard cage

Identification

Version Presence detector

Dimensions

Dimensions L × W × H 70 x 120 x 120 mm

Electrical

Mains connection 24 – 29 V
Supply voltage detail KNX bus

Sensor technology

Max. mounting height 3,50 m
Sensor technology Ultrasonic
With motion detector Yes
Detection angle 180 °
Opening angle 180 °
Sneak-under protection Yes
Segment-by-segment masking No
Electronic scalability Yes
Mechanical scalability No
Radial range 10 x 3 m (30 m²)
Tangential range 10 x 3 m (30 m²)
Mounting height 2,50 – 3,50 m
US technology 40 kHz
Optimal mounting height 2,8 m

Connectivity

Networking Yes
Type of networking Master/master\nMaster/slave
Networking via KNX bus
KNX functions Photo-cell controller\nBasic light level function\nLight level\nHVAC output\nConstant-lighting control\nLight output 4x\nPresence output\nDay / night function\nLogic gate
With bus coupler Yes

Lighting technology

Soft light start Yes
Continuous light selectable
Constant light regulation Yes

Settings

Twilight switch Yes
Twilight setting 10 – 1000 lx
Time setting 10 s – 1092 Min.
Base light function Yes
Base light function time 1-30 min, all day
Main light adjustable 0 - 100 %
Settings via ETS software\nRemote control\nBus\nSmart Remote
With remote control No
Twilight setting teach Yes

Housing & material

Protection class (IP) IP20
Ambient temperature -25 – 55 °C
Mounting location ceiling
Application location Indoors
Mounting type Concealed wiring
Material Plastic
Application room Indoors corridor / aisle stairwell
Colour white
RAL colour 9010

Scope of delivery & warranty

Manufacturer warranty 5 years
Corner wall bracket included No

Technical drawing
