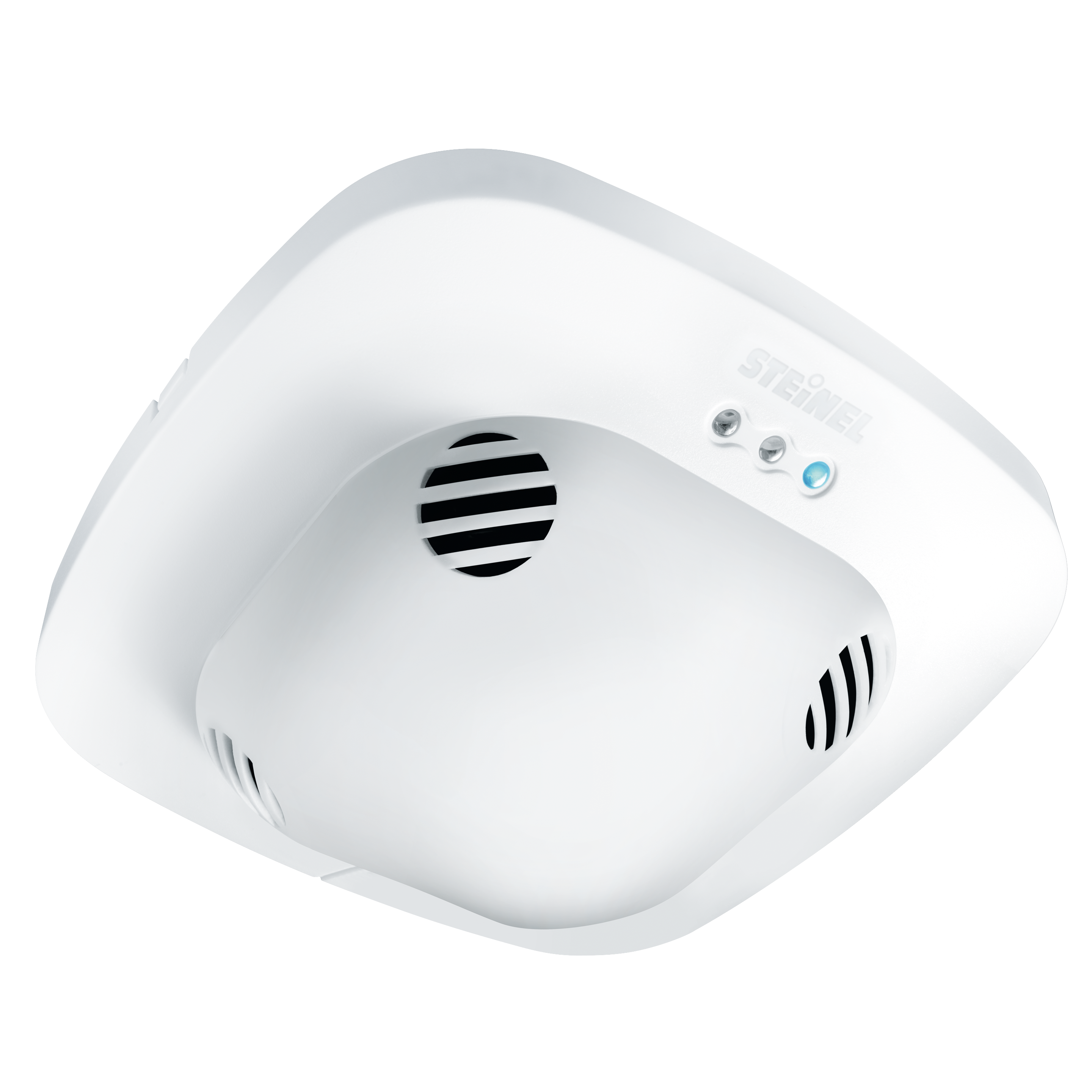

Nevalux US 360 COM2 - Concealed wiring

ELDAS® no. 535 933 310

EAN-No. 4007841 007942

Discontinued

This product is being discontinued and is available while stocks last. No successor product has been announced yet.

Detects without obstructions. 360° ultrasonic presence detector US 360, ideal for offices, conference rooms, store rooms and class rooms. 36 sq.m. presence detection zone, immune to obstacles, envelops objects as opposed to penetrating them, detection regardless of temperature, electronically adjustable reach, COM2 for switching light ON and OFF and well as for operating HVAC.

Optional remote controls
Optional surface-mounting adapter
Optional guard cage

Identification

Version Presence detector

Dimensions

Dimensions L × W × H 67 x 120 x 120 mm

Electrical

Mains connection 230 V / 50 – 60 Hz

Power 2000 W

Fluorescent lamps ECG 1500 W

Fluorescent lamps uncompensated 1000 VA

Fluorescent lamps series-compensated 1000 VA

Fluorescent lamps parallel-compensated 1000 VA

Switching output 1 low-voltage halogen lamps 2000 VA

LED lamps < 2 W 100 W

LED lamps > 2 W < 8 W 300 W

LED lamps > 8 W 600 W

Capacitive load in µF 176 µF

Sensor technology

Max. mounting height 3,50 m

Sensor technology Ultrasonic

Detection angle 360 °

Opening angle 180 °

Sneak-under protection Yes

Segment-by-segment masking No

Electronic scalability Yes

Mechanical scalability No

Radial range Ø 10 m (79 m²)

Tangential range Ø 6 m (28 m²)

Mounting height 2,50 – 3,50 m

Presence range Ø 6 m (28 m²)

US technology 40 kHz

Optimal mounting height 2,8 m

Connectivity

Networking Yes

Type of networking Master/master\nMaster/slave

Networking via Cable

Lighting technology

Soft light start No

Continuous light selectable

Constant light regulation No

Settings

Twilight switch Yes

Twilight setting 10 – 1000 lx

Time setting 30 s – 30 Min.

Base light function No

Main light adjustable No

Functions Normal / test mode\nSemi-/fully automatic\nPushbutton / switch mode\nManual ON / ON-OFF

Settings via Remote control\nDIP switches\nPotentiometers\nSmart Remote

With remote control No

Twilight setting teach Yes

Housing & material

Protection class (IP) IP20

Ambient temperature -25 – 55 °C

Mounting location ceiling

Application location Indoors

Mounting type Concealed wiring

Material Plastic

Application room Indoors WC / washroom classroom conference room / meeting room duty room function room / ancillary room one-person office open-plan office recreation room stairwell

Colour white

RAL colour 9010

Scope of delivery & warranty

Manufacturer warranty 5 years

Corner wall bracket included No

Technical drawing

Sensor detection range

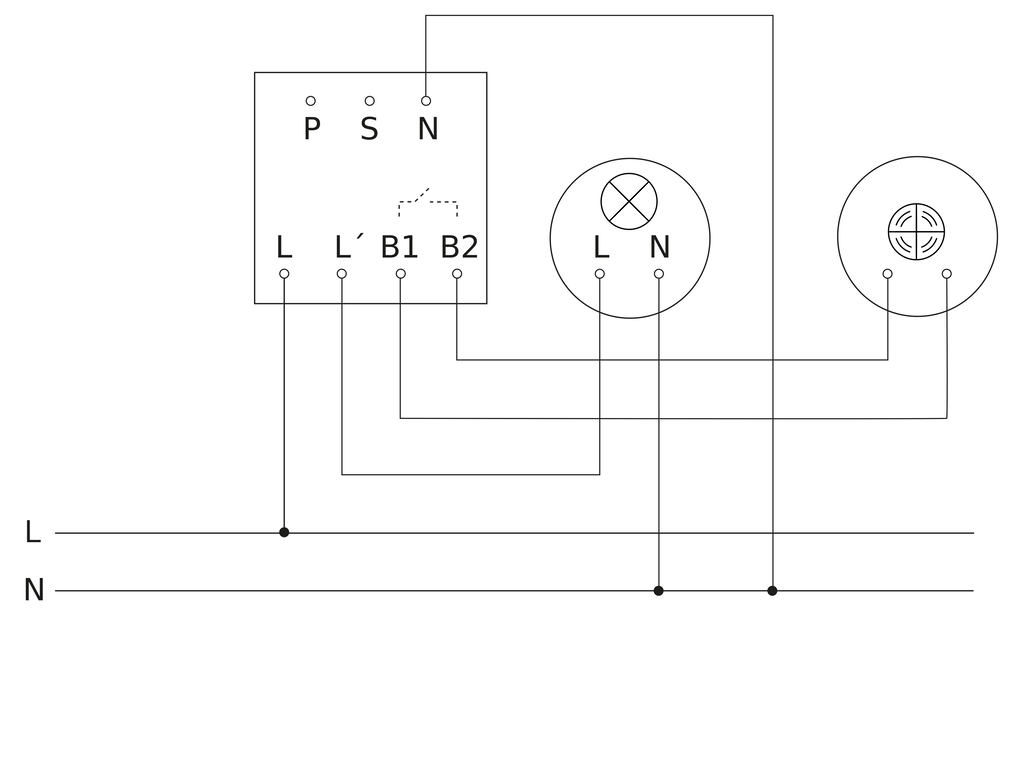

Wiring diagram 1

Master circuit diagram

Wiring diagram 2

Master/slave interconnection circuit diagram
