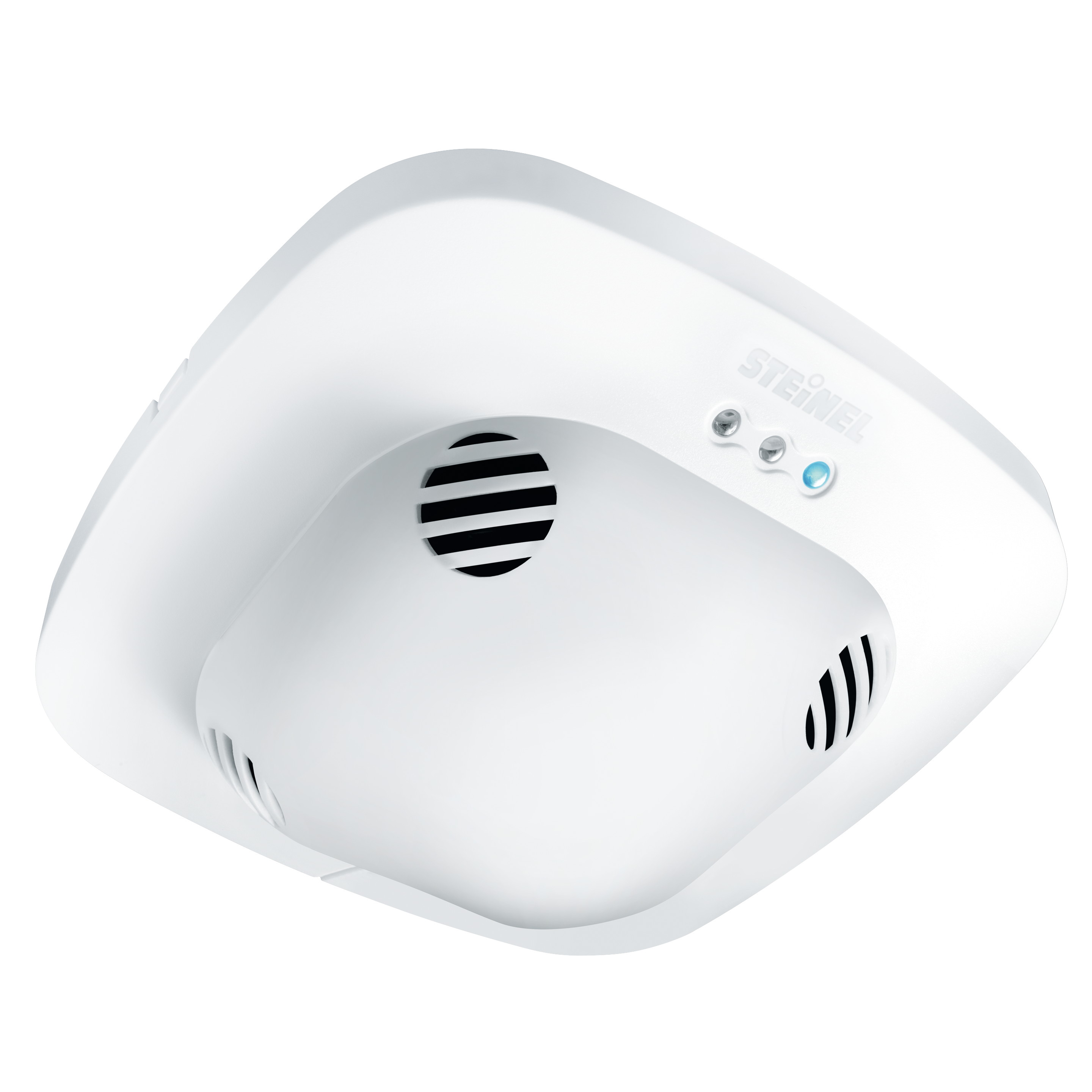

Nevalux US 360 KNX
EAN-No. 4007841 029463
This product is being replaced by a successor product.
Go to successor product · US 360 KNX - Concealed wiring (059514)Detects without obstructions. 360° ultrasonic presence detector US 360, ideal for offices, conference rooms, store rooms and class rooms. 36 sq.m. presence detection zone, immune to obstacles, envelops objects as opposed to penetrating them, detection regardless of temperature, electronically adjustable reach, with digital BUS interface for controlling 4 lighting channels and HVAC.
- Optional remote controls
- Optional surface-mounting adapter
- Optional guard cage
Identification
Variant
KNX
Version
Presence detector
Model
KNX
Dimensions
Dimensions L × W × H
68 x 120 x 120 mm
Electrical
Supply voltage detail
KNX bus
Sensor technology
Sensor technology
Ultrasonic
Detection angle
360 °
Opening angle
180 °
Sneak-under protection
Yes
Electronic scalability
Yes
Mechanical scalability
No
Radial range
Ø 10 m (79 m²)
Tangential range
Ø 10 m (79 m²)
Mounting height
2,50 – 3,50 m
Presence range
Ø 6 m (28 m²)
US technology
40 kHz
Optimal mounting height
2,8 m
Connectivity
KNX functions
Light output 4x, Presence output, Light level, Constant-lighting control, Basic light level function, HVAC output
With bus coupler
Yes
Settings
Twilight setting
10 – 1000 lx
Time setting
60 sec – 255 min
Settings via
ETS software, Remote control, Bus
Twilight setting teach
Yes
Housing & material
Protection class (IP)
IP20
Ambient temperature
-25 – 55 °C
Mounting location
ceiling
Application location
Indoors
Mounting type
Concealed wiring
Material
Plastic
Colour
white
RAL colour
9010
Scope of delivery & warranty
Manufacturer warranty
5 years
Other
Application, location, room
classroom, One-person office, Open-plan office, conference room, side room, stairwell, washroom, wc, equipment room
