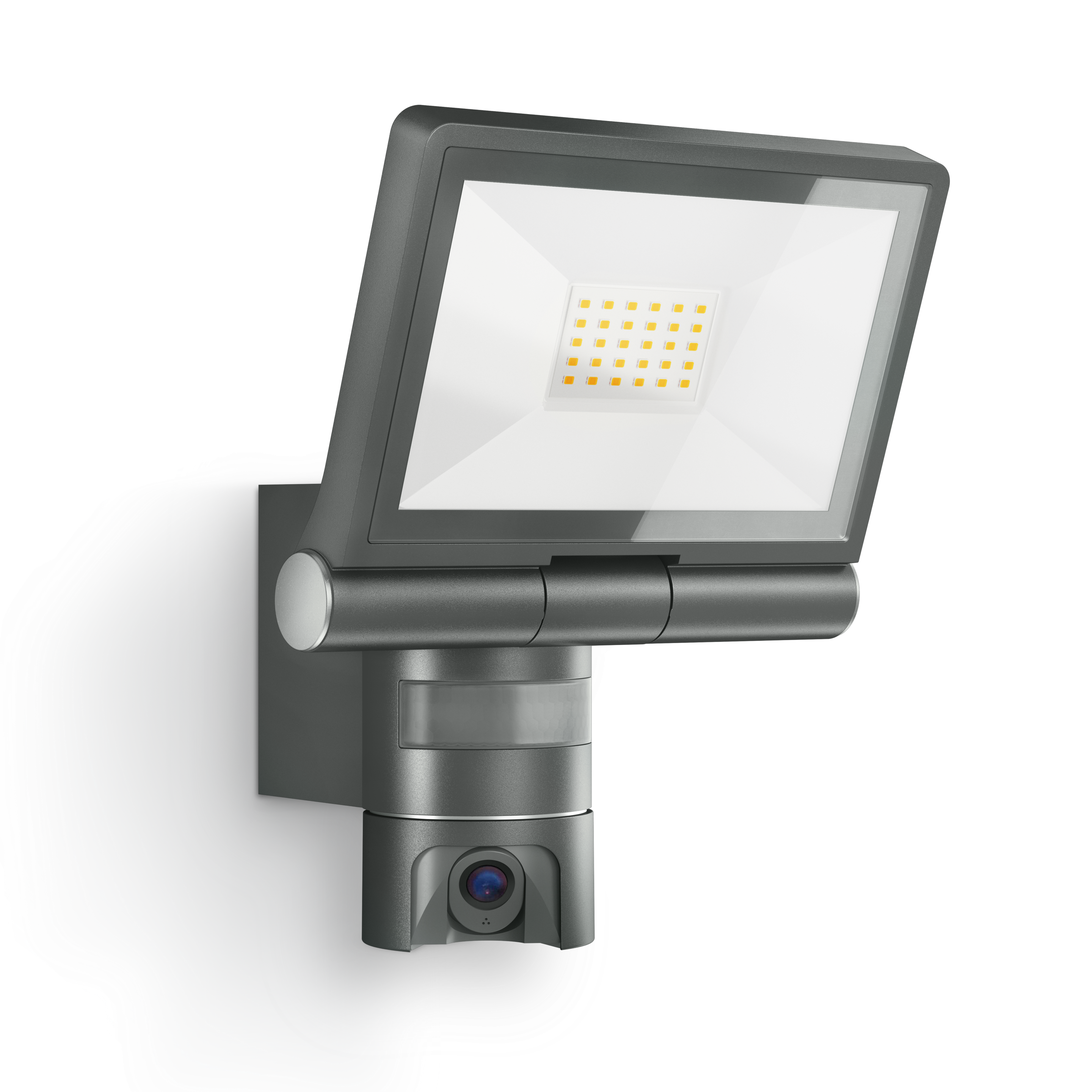

Nevalux XLED CAM1 SC Anthracite

Nevalux XLED CAM1 SC Anthracite

ELDAS® no. 941 905 159 · EAN-No. 4007841 065294

Technical data Illustrations Wiring diagrams Downloads
Nevalux

Nevalux XLED CAM1 SC Anthracite

ELDAS® no. 941 905 159

EAN-No. 4007841 065294

Price: Please log in to see prices

Multi-talent with a focus on security. The XLED CAM1 SC is an outdoor spotlight, motion detector, surveillance camera and intercom all in one. The 180° infrared motion sensor with 10 m range detects every movement. With warm white 3000 K and 2310 lm, the spotlight is amazingly bright with 21 W and economical in consumption. Wireless networking via WLAN and individual settings via free STEINEL CAM App.

  • HD wide-angle colour camera
  • Integrated intercom unit
  • Communication via smartphone
  • Micro SD card (16 GB included)
  • High-precision sensor
  • High-quality aluminium
  • Optional basic lighting level 0 - 40%

Dimensions

Dimensions L × W × H 167 x 210 x 275 mm

Electrical

Mains connection 220 – 240 V / 50 – 60 Hz
Power 21 W

Sensor technology

Max. mounting height 2,00 m
Sensor technology Passiv Infrarot
With motion detector Yes
Opening angle 45 °
Sneak-under protection No
Segment-by-segment masking No
Electronic scalability Yes
Mechanical scalability No
Radial range r = 2 m (6 m²)
Tangential range r = 10 m (157 m²)
Mounting height 1,80 – 2 m
Optimal mounting height 2 m

Connectivity

Networking via WLAN

Lighting technology

Measured luminous flux 360° 2310 lm
Colour temperature 3000 K
LED colour deviation SDCM3
Colour rendering index = 80
With illuminant Ja, LED-Leuchtmittel
Illuminant LED nicht austauschbar
Base Ohne
LED cooling system Passive Thermo Control
Soft light start No
Continuous light schaltbar

Lifetime

LED lifetime max. °C 50000 Std
LED lifetime L70B50 25°C > 36000 Std

Settings

Twilight switch Ja
Twilight setting 10 – 10000 lx
Time setting 60 s – 15 Min.
Base light function Ja
Base light function time Ganze Nacht
Main light adjustable 30 - 100 %
Functions Gegensprechanlage Kamera
Settings via WLAN
Twilight setting teach No
Base light function in percent 0 %
Base light function percent from 0

Housing & material

Impact resistance IK03
Protection class (IP) IP44
Protection class I
Ambient temperature -10 – 40 °C
Housing material Aluminium
Cover material Glas transparent
Mounting location Wand
Application location Außenbereich
Mounting type Aufputz
Application room Außenbereich Rund ums Haus Terrasse / Balkon Hof & Einfahrt
Colour Anthrazit

Scope of delivery & warranty

Manufacturer warranty 3 Jahre
Corner wall bracket included No

Certificates & EPREL

EPREL category Lichtquelle

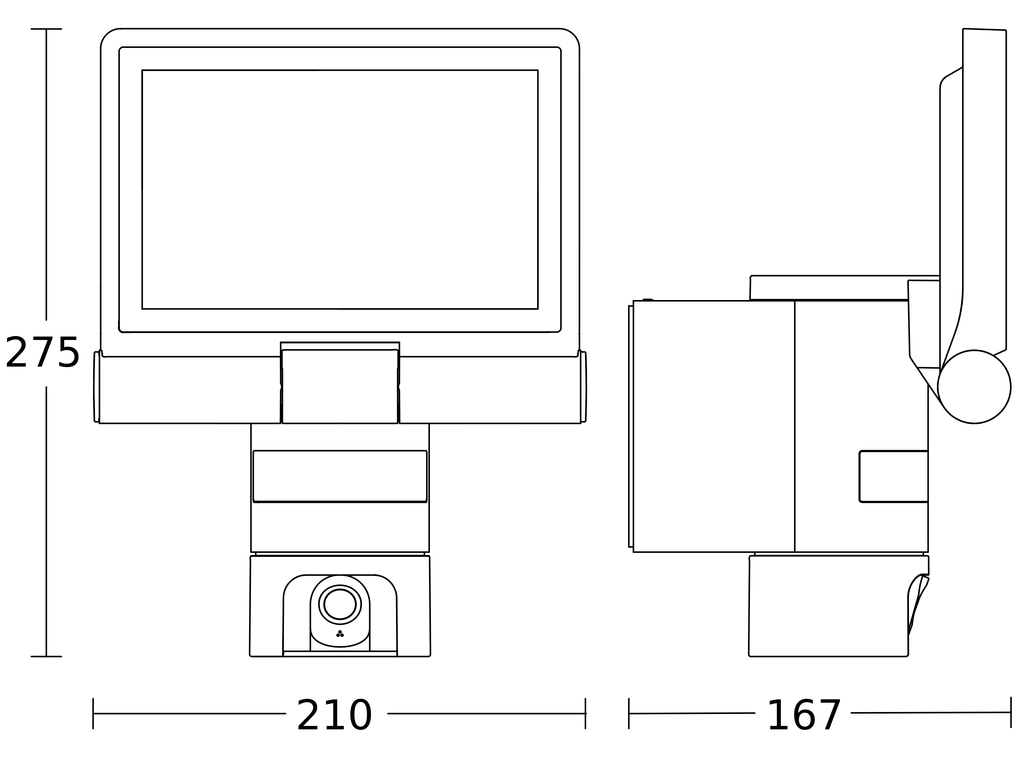

Technical drawing

Sensor detection range

Wiring diagram 1

Circuit diagram
