Nevalux XLED curved S white
ELDAS® no. 941 200 269
EAN-No. 4007841 012083
This product is being replaced by a successor product.
Go to successor product · XLED curved S Anthracite (012076)Illuminating compact model. Sensor LED floodlight XLED curved S with 9,3 W, compact and discreet lighting solution for building entrances, pathways and co., attractive luminous efficiency (862 lm) requiring very little energy, sensor reach of up to 8 m, tilting range of +-30°.
- Including STEINEL LED system
- HCMC cooling system
- UV-resistant plastic
- Colour rendering index Ra ≥ 80

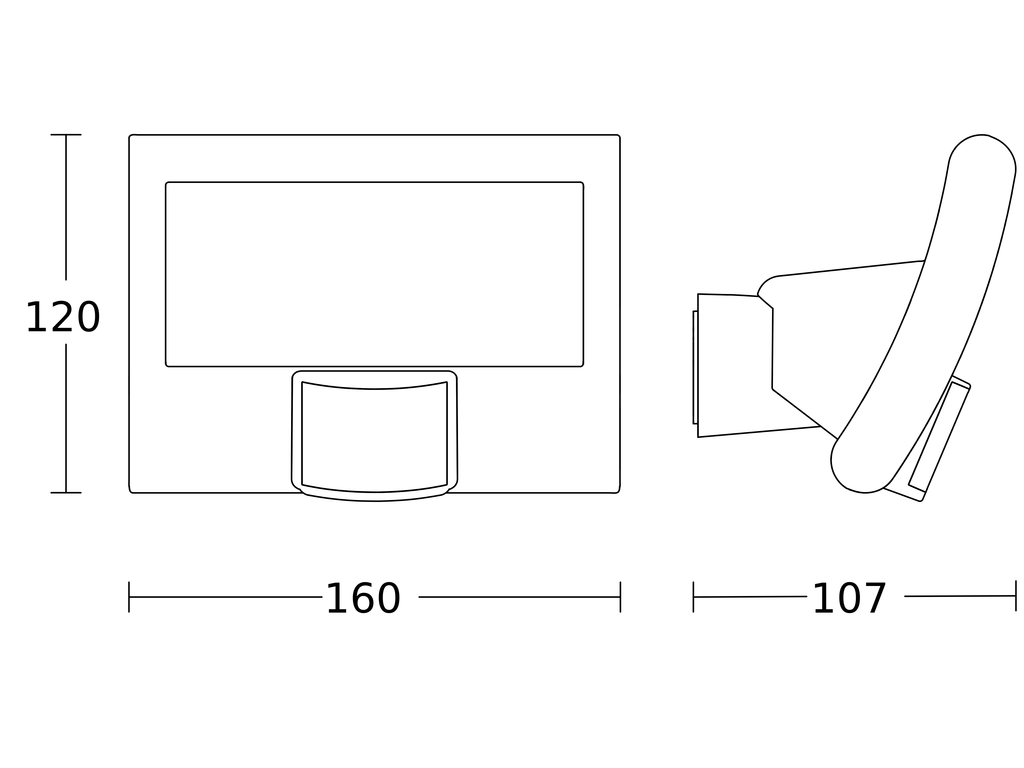

Dimensions
Dimensions L × W × H
120 x 160 x 107 mm
Electrical
Mains connection
220 – 240 V / 50 – 60 Hz
Power
9,3 W
Own consumption
0,5 W
Sensor technology
Max. mounting height
4,00 m
Sensor technology
Passiv Infrarot
With motion detector
Yes
Sneak-under protection
Yes
Segment-by-segment masking
No
Electronic scalability
No
Mechanical scalability
No
Mounting height
1,8 – 4 m
Optimal mounting height
2 m
Connectivity
Networking
Nein
Lighting technology
Measured luminous flux 360°
862 lm
Colour temperature
3000 K
Colour rendering index
80-89
With illuminant
Ja, STEINEL LED-System
Illuminant
LED nicht austauschbar
Base
Ohne
LED cooling system
Passive Thermo Control
Soft light start
No
Lifetime
LED lifetime max. °C
50000 Std
LED lifetime L70B50 25°C
> 60000 Std
Luminous flux decline per LM80
L70B10
Settings
Twilight switch
Ja
Twilight setting
2 – 1000 lx
Time setting
2 s – 70 Min.
Base light function
Nein
Twilight setting teach
No
Housing & material
Impact resistance
IK03
Protection class (IP)
IP44
Protection class
II
Ambient temperature
von -20 bis zu 40 °C
Housing material
Kunststoff
Cover material
Kunststoff opal
Mounting location
Wand
Application location
Außenbereich
Mounting type
Aufputz
Application room
Außenbereich
Rund ums Haus
Terrasse / Balkon
Scope of delivery & warranty
Manufacturer warranty
3 Jahre
Certificates & EPREL
Certificates
EMV
EPREL category
Lichtquelle
