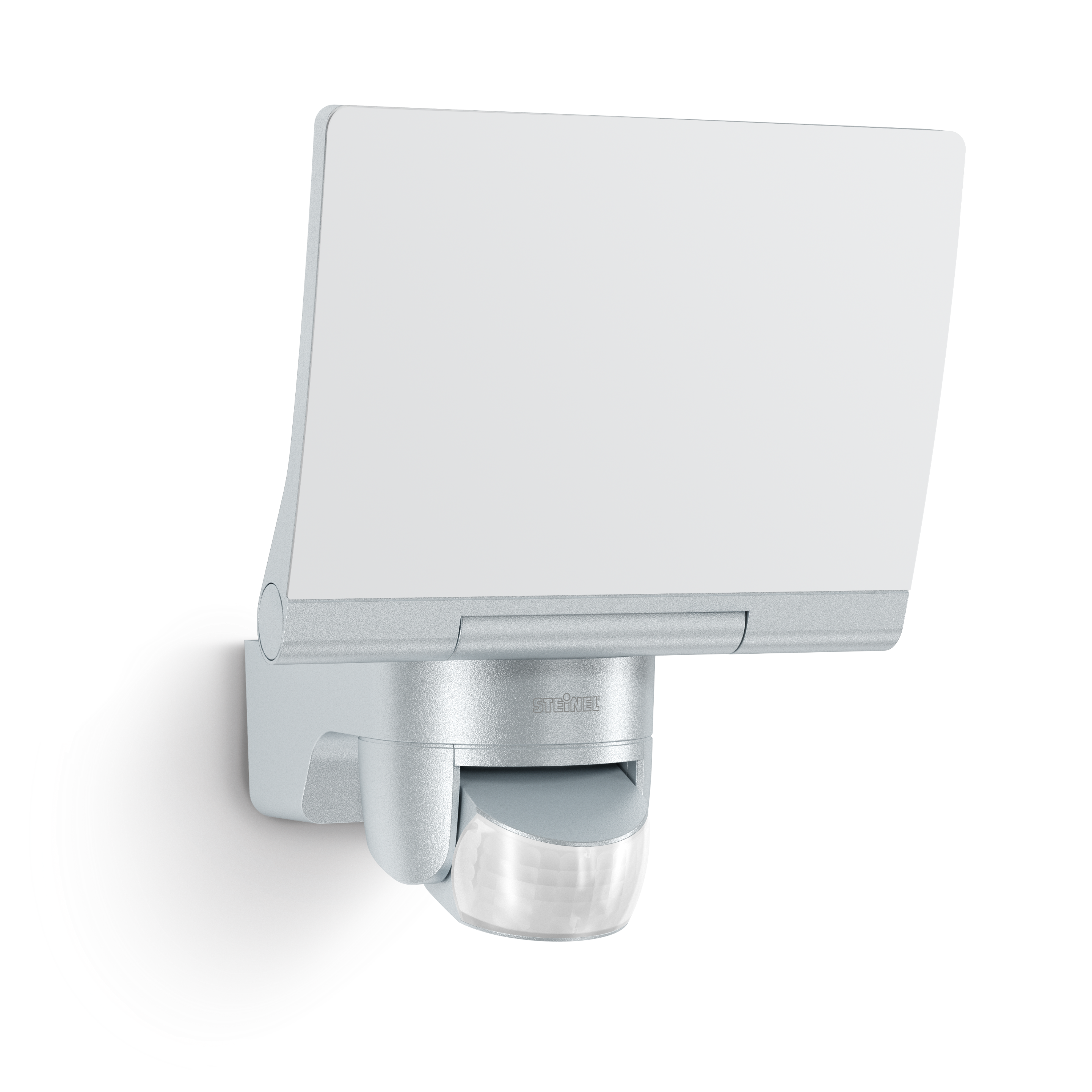

Nevalux XLED home 2 XL Silver
EAN-No. 4007841 030063
This product is being replaced by a successor product.
Go to successor product · XLED home 2 XL S white (030070)Day-bright light in XL size. Powerful XLED home 2 XL sensor-switched outdoor floodlight with 14 m sensor reach. Ideal for illuminating larger areas such as driveways, courtyards and gardens. Swivelling precision IR sensor covering 140°. Fully swivelling LED panel (180°, horizontally and vertically). Superior opal cover for optimum lighting. 1608 lm, 20 W, 140° angle of coverage, high thermal conductivity magnesium composite cooling system (HCMC).
- Including STEINEL LED system
- HCMC cooling system
- UV-resistant plastic
- Colour rendering index Ra =80
Identification
Variant
Silver
Variants
Luminous flux
1608 lm
Dimensions
Dimensions L × W × H
214 x 180 x 161 mm
Electrical
Mains connection
230 – 240 V
Power
20 W
Sensor technology
Max. mounting height
4,00 m
Sensor technology
passive infrared
With motion detector
Yes
Detection angle
140 °
Sneak-under protection
Yes
Segment-by-segment masking
Yes
Tangential range
r = 14 m (239 m²)
Lighting technology
Colour temperature
4000 K
LED colour deviation
SDCM3
Colour rendering index
80-89
With illuminant
Yes, STEINEL LED system
Illuminant
LED cannot be replaced
LED cooling system
HCMC (High Conductive Magnesium Composite)
Continuous light
selectable
Luminous flux
1608 lm
Lifetime
LED lifetime max. °C
50000 h
Luminous flux decline per LM80
L70B10
Settings
Twilight switch
Yes
Twilight setting
2 – 2000 lx
Time setting
8 sec – 35 min
Base light function
No
Housing & material
Impact resistance
IK00
Protection class (IP)
IP44
Protection class
II
Ambient temperature
-20 – 40 °C
Housing material
Plastic
Cover material
Plastic, opal
Scope of delivery & warranty
Manufacturer warranty
5 years
