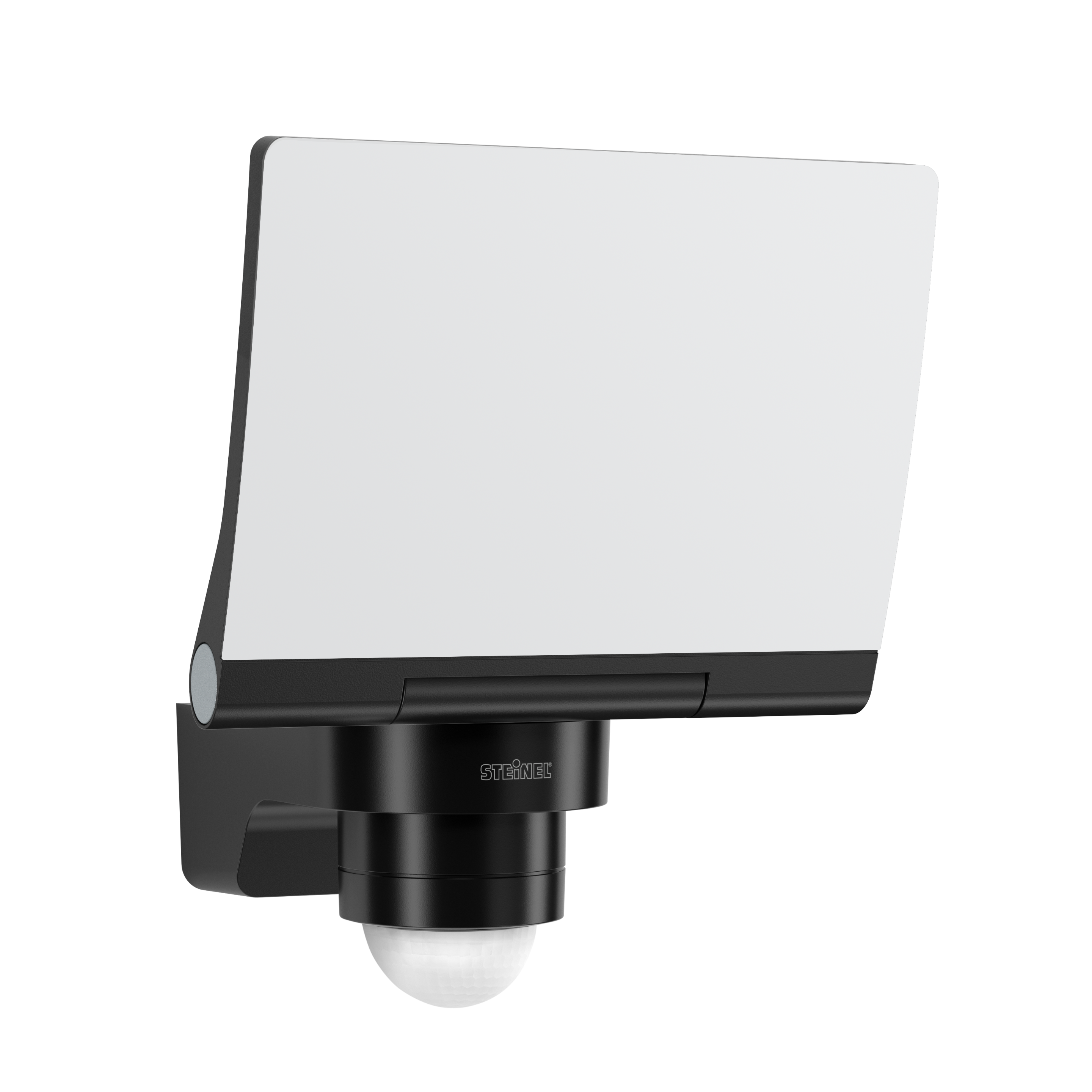

Nevalux XLED PRO 240 S Neutral white black
ELDAS® no. 941 502 189
EAN-No. 4007841 068363
This product is being replaced by a successor product.
Go to successor product · XLED PRO 240 S warm white black (068110)Day-bright illumination throughout: the XLED PRO 240 S sensor-switched outdoor floodlight. With fully swivelling LED flat panel and opal diffuser. 2124 lm, 4000 K, 19,3 W. With a 240° infrared sensor for reliable motion detection over a reach of up to 12 m.
- Including STEINEL LED system
- HCMC cooling system
- UV-resistant plastic
- Colour rendering index Ra ≥80
- Optional corner wall mount bracket
- Interconnectable by cable (maximum of 10 units)
Dimensions
Dimensions L × W × H
161 x 180 x 223 mm
Electrical
Mains connection
220 – 240 V / 50 – 60 Hz
Power
19,3 W
Sensor technology
Max. mounting height
6,00 m
Sensor technology
passive infrared
With motion detector
Yes
Detection angle
240 °
Opening angle
180 °
Sneak-under protection
Yes
Segment-by-segment masking
Yes
Electronic scalability
No
Mechanical scalability
No
Radial range
r = 3 m (19 m²)
Tangential range
r = 12 m (302 m²)
Mounting height
1,80 – 6 m
Optimal mounting height
2 m
Connectivity
Networking
Yes
Networking via
Cable
Networking quantity
maximum of 10 floodlights
Lighting technology
Measured luminous flux 360°
2124 lm
Colour temperature
4000 K
LED colour deviation
SDCM3
With illuminant
Yes, STEINEL LED system
Illuminant
LED cannot be replaced
Base
without
LED cooling system
HCMC (High Conductive Magnesium Composite)
Soft light start
No
Continuous light
selectable
Lifetime
LED lifetime L70B50 25°C
> 60000 h
Settings
Twilight switch
Yes
Twilight setting
2 – 2000 lx
Time setting
10 s – 15 Min.
Base light function
No
Main light adjustable
No
Settings via
Potentiometers
Twilight setting teach
No
Housing & material
Impact resistance
IK03
Protection class (IP)
IP44
Protection class
II
Ambient temperature
-20 – 40 °C
Housing material
HCMC
Cover material
Plastic, opal
Cover material (scope of delivery)
shrouds
Mounting location
corner
wall
Application location
Outdoors
Mounting type
Surface wiring
Application room
all round the building
courtyard & driveway
outdoors
terrace / balcony
Scope of delivery & warranty
Manufacturer warranty
5 years
Corner wall bracket included
No
Certificates & EPREL
EPREL category
Light source
Technical drawing
Lichtverteilungskurve

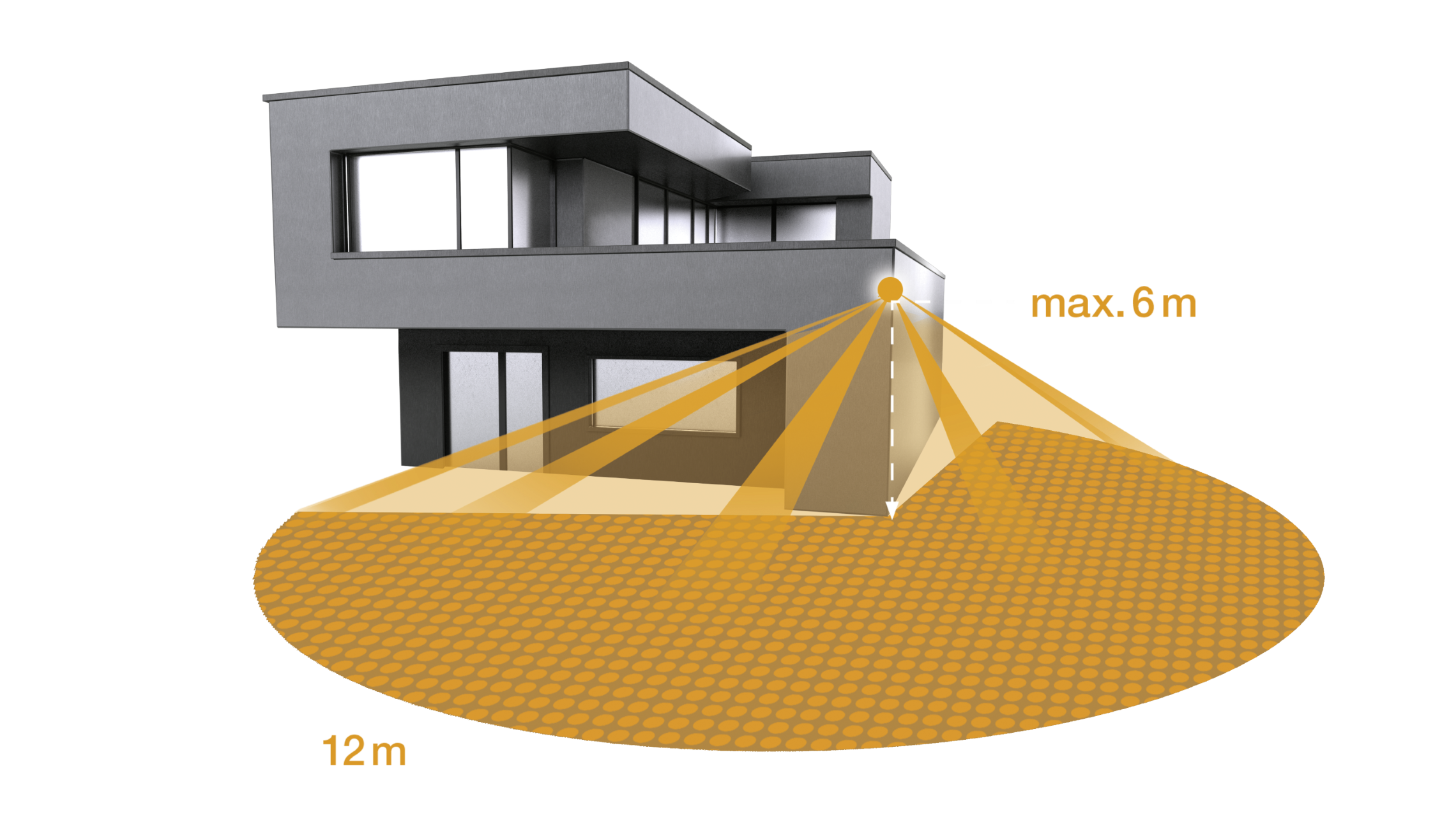

Sensor detection range
Wiring diagram 1
Master circuit diagram
Wiring diagram 2
Master/master interconnection circuit diagram
