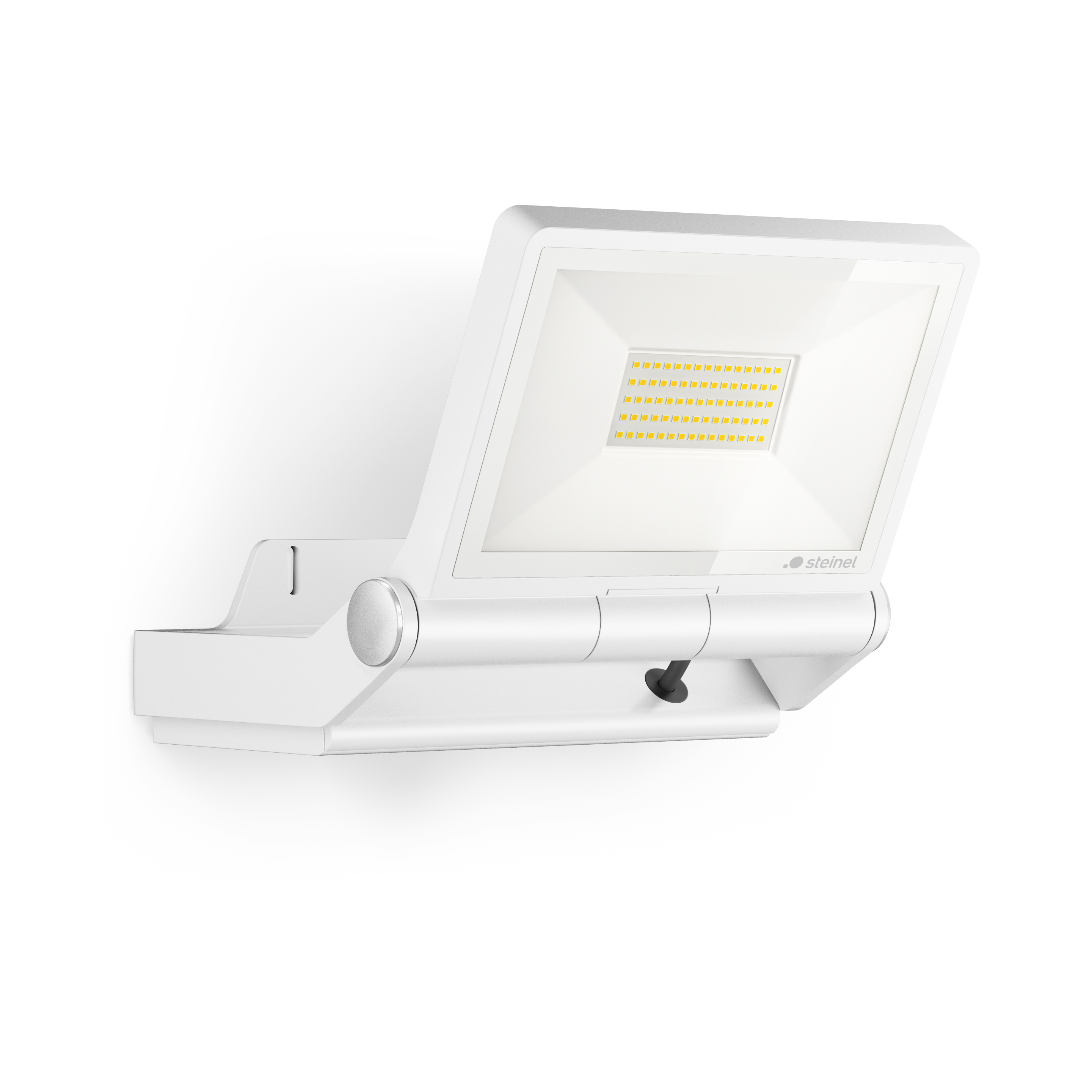

Nevalux XLED PRO ONE Max without motion detector - white
EAN-No. 4007841 086824
Floodlight redefined. The XLED PRO ONE floodlight without sensor, which can be swivelled vertically through 180° and comes in a stylish aluminium housing, ensures daylight illumination of large areas with warm white 3000 K and 6093 lm at 49,4 W. Suitable for manual switch operation and for cable-based networking in conjunction with a sensor version. With optional surface-mounted adapter. Available in white or anthracite. 5-year guarantee.
- Floodlight redefined. The XLED PRO ONE floodlight without sensor, which can be swivelled vertically through 180° and comes in a stylish aluminium housing, ensures daylight illumination of large areas with warm white 3000 K and 6093 lm at 49,4 W. Suitable for manual switch operation and for cable-based networking in conjunction with a sensor version. With optional surface-mounted adapter. Available in white or anthracite. 5-year guarantee.
Dimensions
Dimensions L × W × H
202 x 259 x 226 mm
Electrical
Mains connection
220 – 240 V / 50 – 60 Hz
Power
49,4 W
Sensor technology
With motion detector
No
Connectivity
Networking
Yes
Type of networking
Master/slave
Networking via
Cable
Lighting technology
Measured luminous flux 360°
6093 lm
Colour temperature
3000 K
LED colour deviation
SDCM3
Colour rendering index
80-89
With illuminant
Yes, STEINEL LED system
Illuminant
LED cannot be replaced
Base
without
LED cooling system
Passive Thermo Control
Lifetime
LED lifetime L70B50 25°C
> 36000 h
Settings
Twilight switch
No
Base light function
No
Main light adjustable
No
Functions
Relay output
Twilight setting teach
No
Housing & material
Impact resistance
IK03
Protection class (IP)
IP44
Protection class
I
Ambient temperature
-20 – 40 °C
Housing material
Aluminium
Cover material
Glass transparent
Cover material (scope of delivery)
shrouds
Mounting location
ceiling
wall
Application location
Outdoors
Mounting type
Surface wiring
Application room
all round the building
courtyard & driveway
front door
garden
outdoors
Colour
white
Scope of delivery & warranty
Manufacturer warranty
5 years
Corner wall bracket included
No
Certificates & EPREL
EPREL category
Light source
Technical drawing
Sensor detection range

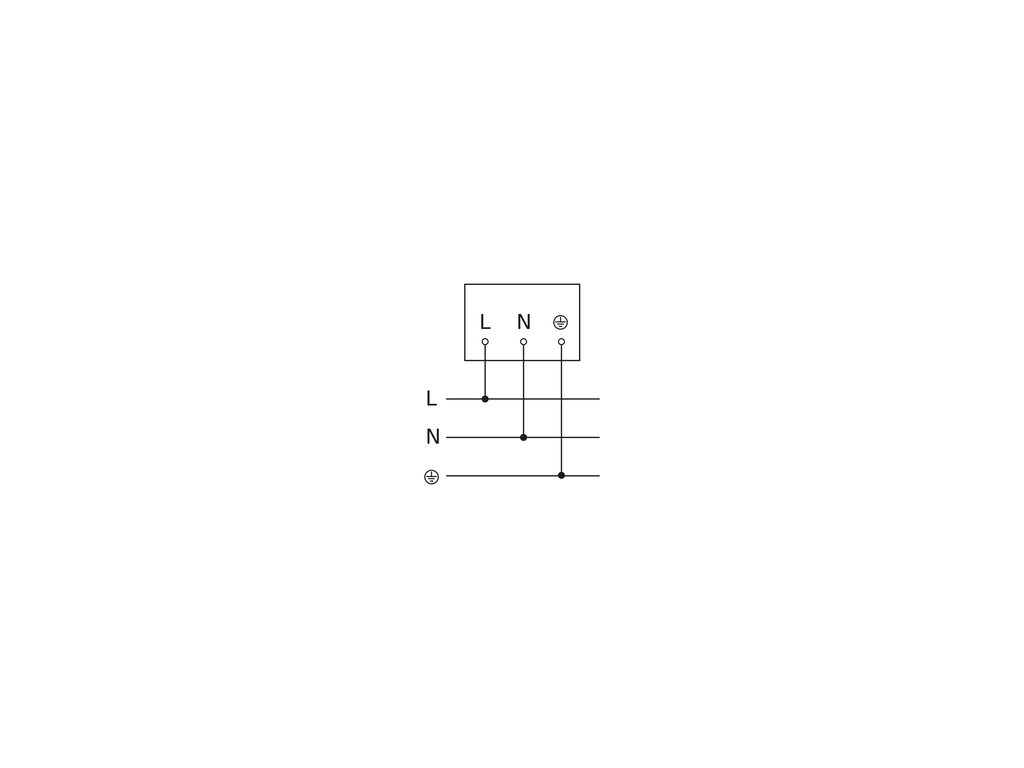

Wiring diagram 1
Slave circuit diagram
Wiring diagram 2
Master/slave interconnection circuit diagram
