Nevalux XLED PRO ONE Plus without motion detector - anthracite

Nevalux XLED PRO ONE Plus without motion detector - anthracite

ELDAS® no. 941 502 149 · EAN-No. 4007841 069544

Technical data Illustrations Wiring diagrams Downloads Accessories
Nevalux

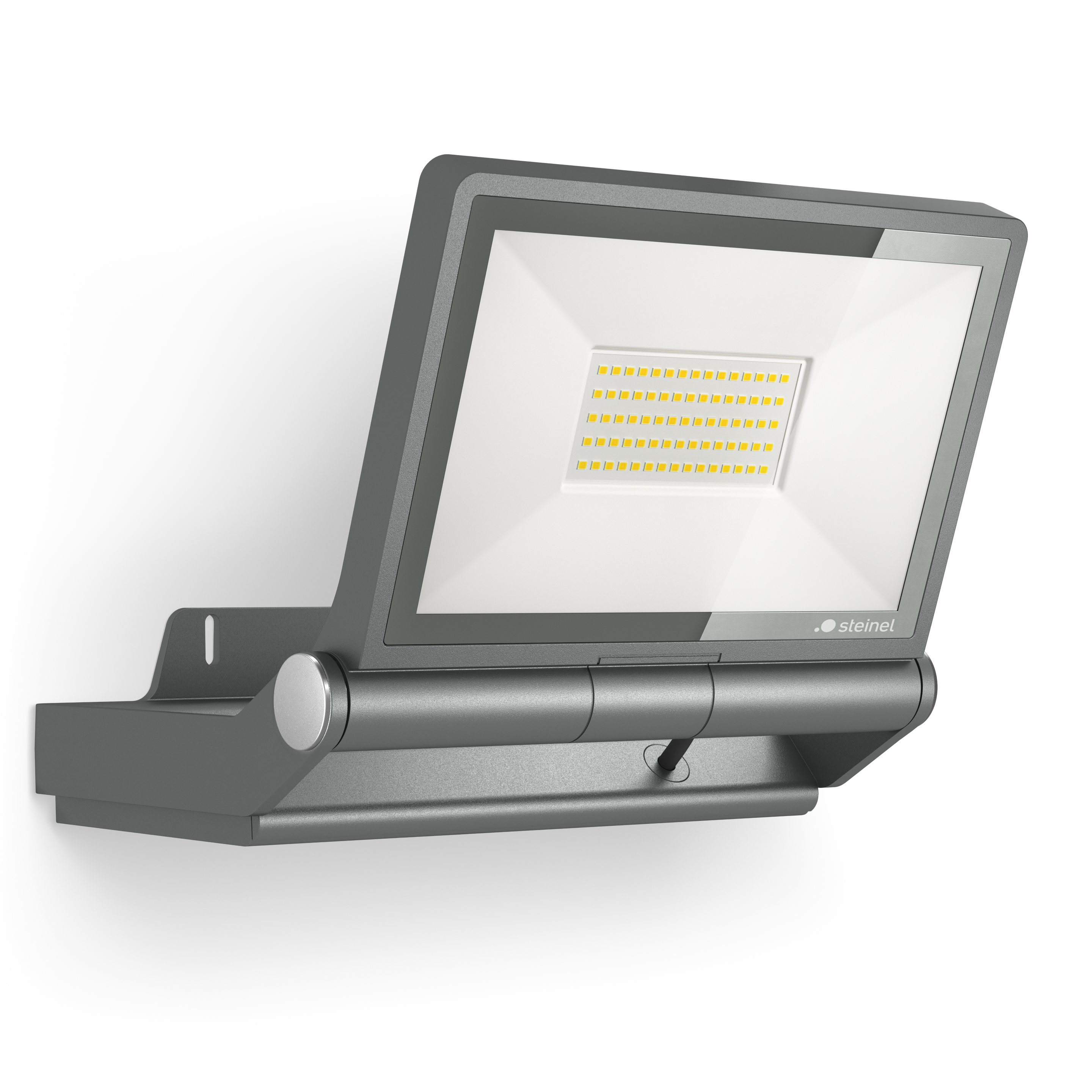

Nevalux XLED PRO ONE Plus without motion detector - anthracite

ELDAS® no. 941 502 149

EAN-No. 4007841 069544

This product is being replaced by a successor product.

Go to successor product · XLED PRO ONE without motion detector - anthracite (4007841069513)

Floodlights redefined. Housed in a sophisticated aluminium enclosure, the 180° vertically swivelling floodlight XLED PRO ONE Plus without sensor guarantees daylight-bright illumination across large areas with warm white 3000 K and 4370 lm at 33,1 W. Suitable for manual switch operation and for cable-based networking in conjunction with a sensor version. With optional surface-mounting adapter. 5-year guarantee.

  • High-quality aluminium
  • Panel can be moved to the top or bottom
  • UV resistant material
  • Optional surface-mounting adapter

Variants

Luminous flux 4600 lm

Dimensions

Dimensions L × W × H 202 x 259 x 226 mm

Electrical

Mains connection 220 – 240 V / 50 – 60 Hz
Power 33,1 W
LED lamps < 2 W 16 W

Sensor technology

With motion detector No

Connectivity

Networking Yes
Networking via Cable

Lighting technology

Measured luminous flux 360° 4370 lm
Colour temperature 3000 K
LED colour deviation SDCM3
Colour rendering index 80-89
With illuminant Yes, STEINEL LED system
Illuminant LED cannot be replaced
Base without
LED cooling system Passive Thermo Control

Lifetime

LED lifetime L70B50 25°C > 36000 h

Settings

Twilight switch No
Base light function No
Main light adjustable No
Functions Relay output
Twilight setting teach No

Housing & material

Impact resistance IK03
Protection class (IP) IP44
Protection class I
Ambient temperature -20 – 40 °C
Housing material Aluminium
Cover material Glass transparent
Cover material (scope of delivery) shrouds
Mounting location ceiling wall
Application location Outdoors
Mounting type Surface wiring
Application room all round the building courtyard & driveway front door garden outdoors
Colour Anthracite

Scope of delivery & warranty

Manufacturer warranty 5 years
Corner wall bracket included No

Certificates & EPREL

EPREL category Light source

Technical drawing

Sensor detection range

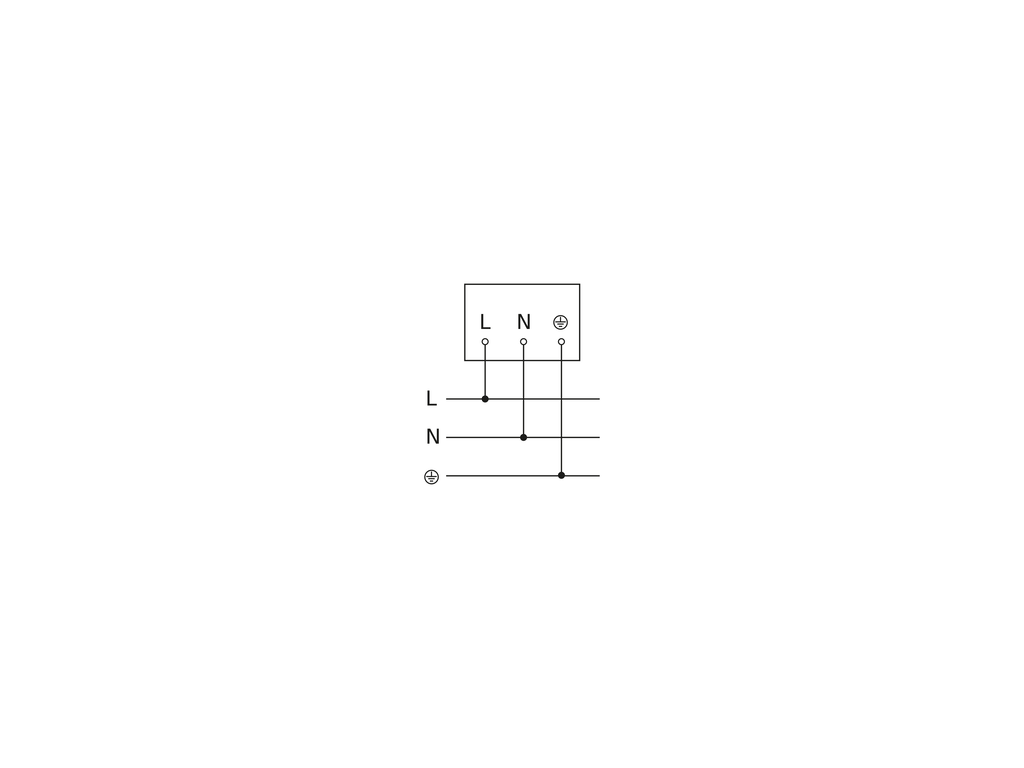

Wiring diagram 1

Slave circuit diagram

Wiring diagram 2

Master/slave interconnection circuit diagram
