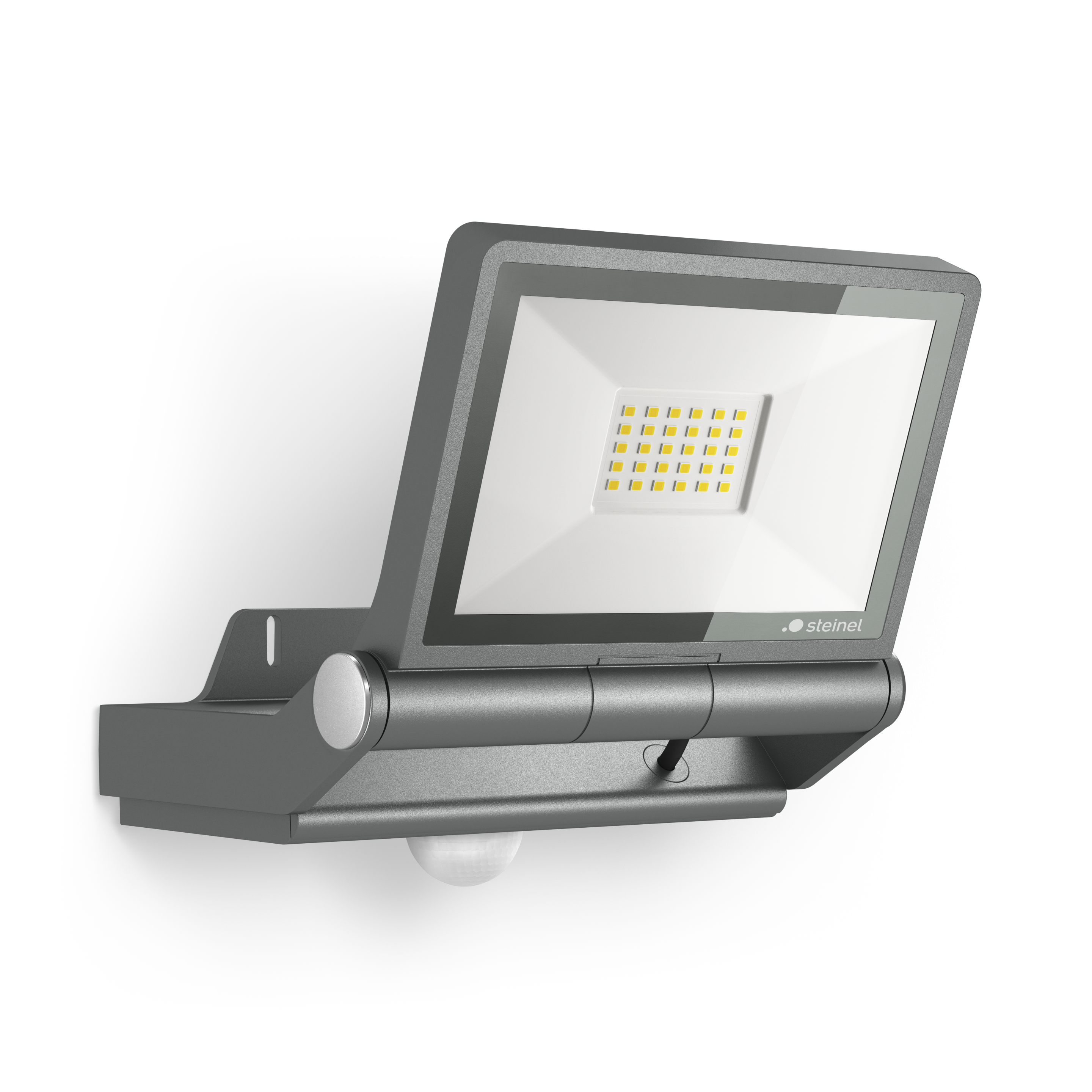

Nevalux XLED PRO ONE S with motion detector - anthracite

ELDAS® no. 941 502 169

EAN-No. 4007841 069568

Discontinued

This product is being discontinued and is available while stocks last. No successor product has been announced yet.

Floodlight redefined. The XLED PRO ONE S floodlight, which can be swivelled vertically through 180° and comes in an elegant aluminium housing, guarantees daylight illumination of large areas with warm white 3000 K and at. Features include a 240° infrared sensor (10 m range), plug-in cover caps to limit the detection area, a basic light function (10%) and an optional surface-mounted adapter. Networking via cable. Adjustment via potentiometers and remote control. RC 12 remote control included for sensor version. Maximum mounting height: 6 m. Available in white or anthracite. 5-year guarantee.

UV resistant material
Panel can be moved to the top or bottom
Interconnectable by cable
Optional basic lighting level 10 %
High-quality aluminium
Remote control RC12 included
Smart Remote remote control optional
Optional surface-mounting adapter

Variants

Luminous flux 2200 lm

Dimensions

Dimensions L × W × H 182 x 229 x 230 mm

Electrical

Mains connection 220 – 240 V / 50 – 60 Hz

Power 18,4 W

Sensor technology

Max. mounting height 6,00 m

Sensor technology Passiv Infrarot

With motion detector Yes

Opening angle 180 °

Sneak-under protection Yes

Segment-by-segment masking No

Electronic scalability No

Mechanical scalability No

Radial range r = 3 m (19 m²)

Tangential range r = 10 m (209 m²)

Mounting height 1,80 – 6,00 m

Optimal mounting height 2 m

Connectivity

Networking Ja

Type of networking Master/Slave

Networking via Kabel

Slave mode adjustable No

Lighting technology

Measured luminous flux 360° 2204 lm

Colour temperature 3000 K

LED colour deviation SDCM3

Colour rendering index 80-89

With illuminant Ja, STEINEL LED-System

Illuminant LED nicht austauschbar

Base Ohne

LED cooling system Passive Thermo Control

Soft light start Yes

Lifetime

LED lifetime L70B50 25°C > 36000 Std

Settings

Twilight switch Ja

Twilight setting 2 – 2000 lx

Time setting 8 s – 35 Min.

Base light function Ja

Base light function time 10/30 Min., ganze Nacht

Main light adjustable No

Functions DIM-FunktionLichtsensorBewegungssensorOrientierungslicht

Settings via FernbedienungPotisSmart Remote

Twilight setting teach Yes

Base light function in percent 10 %

Base light function percent from 10

Housing & material

Impact resistance IK03

Protection class (IP) IP44

Protection class I

Ambient temperature -20 – 40 °C

Housing material Aluminium

Cover material Glas transparent

Cover material (scope of delivery) Abdeckschalen

Mounting location DeckeWand

Application location Außenbereich

Mounting type Aufputz

Application room AußenbereichGartenHauseingangHof & EinfahrtRund ums HausInnenbereich

Colour Anthrazit

Scope of delivery & warranty

Manufacturer warranty 5 Jahre

Corner wall bracket included No

Certificates & EPREL

EPREL category Lichtquelle

Technical drawing

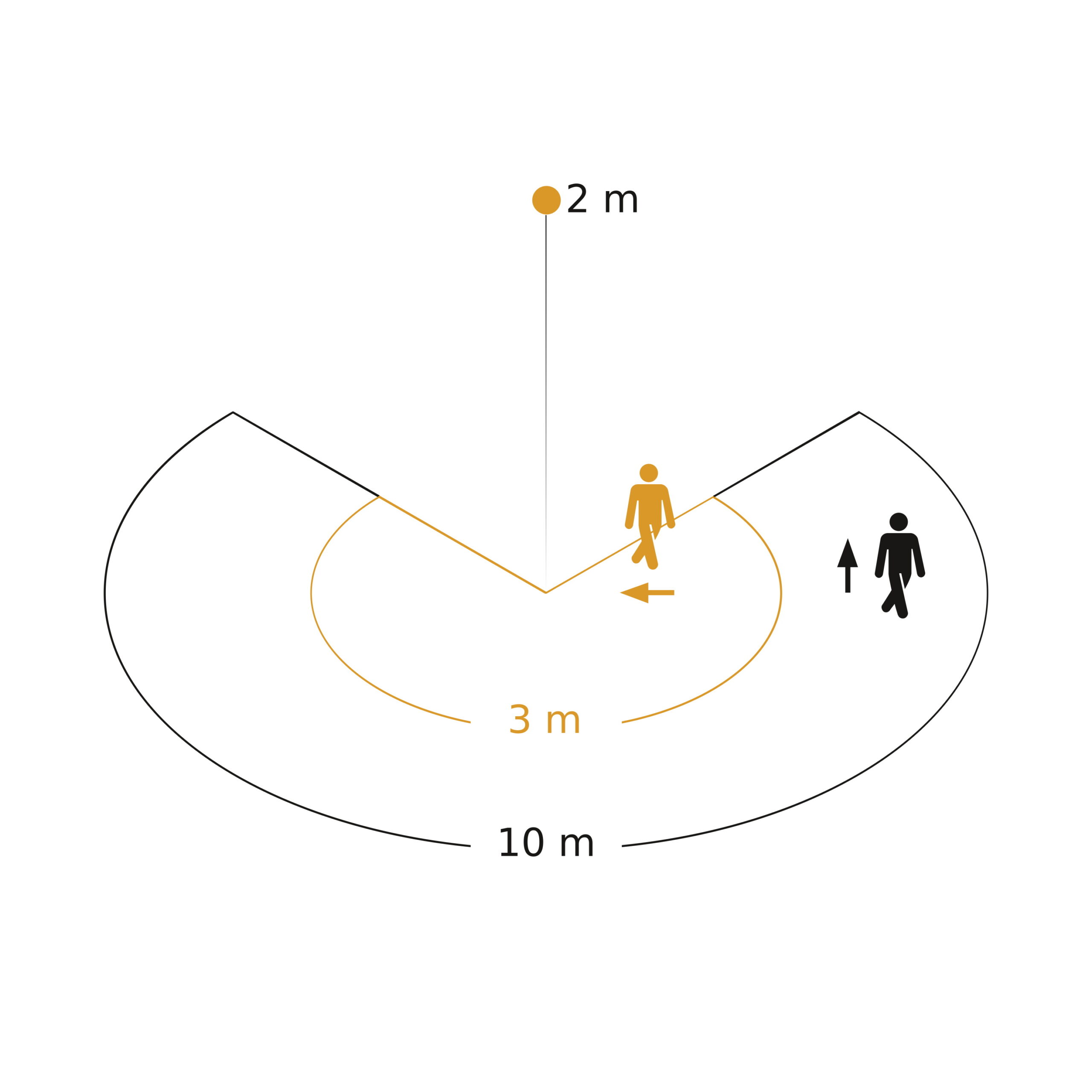

Sensor detection range

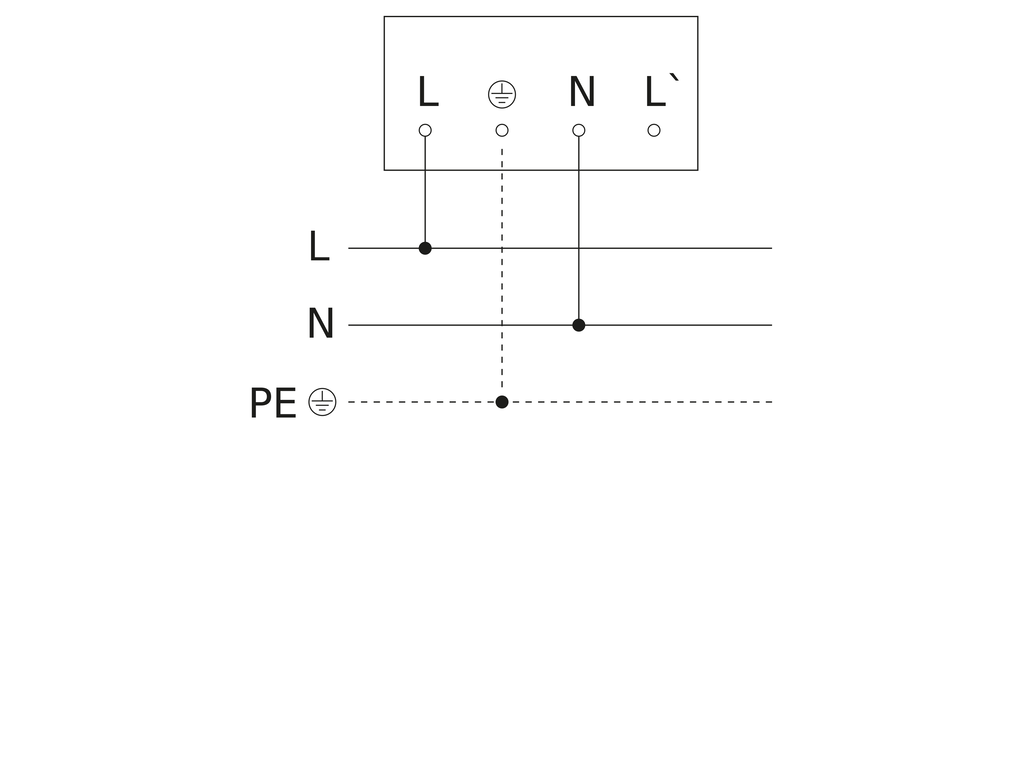

Wiring diagram 1

Master circuit diagram

Wiring diagram 2

Master/slave interconnection circuit diagram
