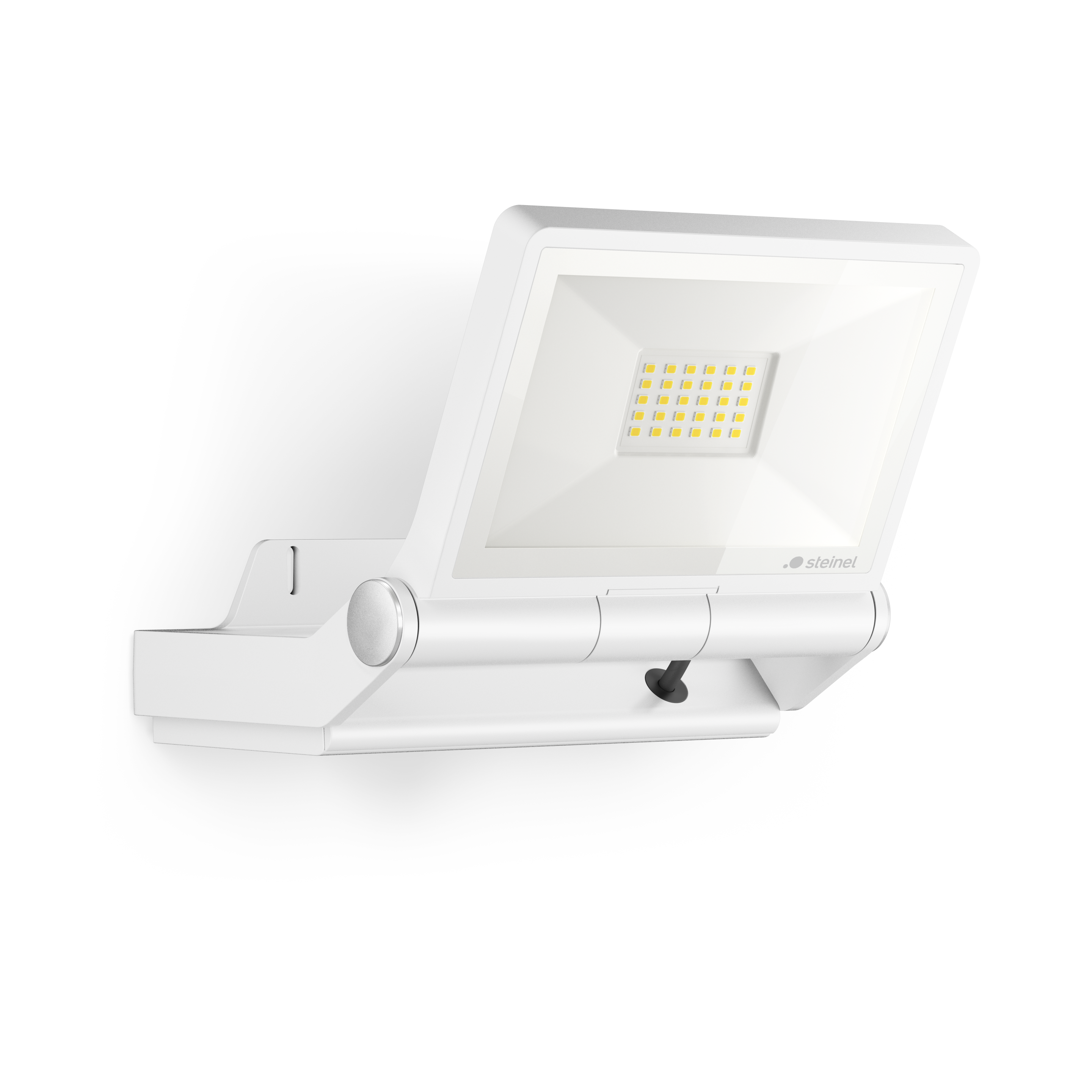

Nevalux XLED PRO ONE without motion detector - white

EAN-No. 4007841 086855

This product is being replaced by a successor product.

Go to successor product · XLED PRO ONE without motion detector - anthracite (4007841069513)

Floodlight redefined. The floodlight XLED PRO ONE, which can be swivelled vertically through 180° without a sensor and comes in a stylish aluminium housing, ensures daylight illumination of large areas with warm white 3000 K and 2236 lm at 17,7 W. Suitable for manual switch operation and for cable-based networking in conjunction with a sensor version. With optional surface-mounted adapter. Available in white or anthracite. 5-year guarantee.

Floodlight redefined. The floodlight XLED PRO ONE, which can be swivelled vertically through 180° without a sensor and comes in a stylish aluminium housing, ensures daylight illumination of large areas with warm white 3000 K and 2236 lm at 17,7 W. Suitable for manual switch operation and for cable-based networking in conjunction with a sensor version. With optional surface-mounted adapter. Available in white or anthracite. 5-year guarantee.

Dimensions

Dimensions L × W × H 182 x 229 x 206 mm

Electrical

Mains connection 220 – 240 V / 50 – 60 Hz

Power 17,7 W

Sensor technology

With motion detector No

Connectivity

Networking Yes

Type of networking Master/slave

Networking via Cable

Lighting technology

Measured luminous flux 360° 2236 lm

Colour temperature 3000 K

LED colour deviation SDCM3

Colour rendering index 80-89

With illuminant Yes, STEINEL LED system

Illuminant LED cannot be replaced

Base without

LED cooling system Passive Thermo Control

Lifetime

LED lifetime L70B50 25°C > 36000 h

Settings

Twilight switch No

Base light function No

Main light adjustable No

Functions Relay output

Twilight setting teach No

Housing & material

Impact resistance IK03

Protection class (IP) IP44

Protection class I

Ambient temperature -20 – 40 °C

Housing material Aluminium

Cover material Glass transparent

Cover material (scope of delivery) shrouds

Mounting location ceiling wall

Application location Outdoors

Mounting type Surface wiring

Application room all round the building courtyard & driveway front door garden outdoors

Colour white

Scope of delivery & warranty

Manufacturer warranty 5 years

Corner wall bracket included No

Certificates & EPREL

EPREL category Light source

Technical drawing

Sensor detection range

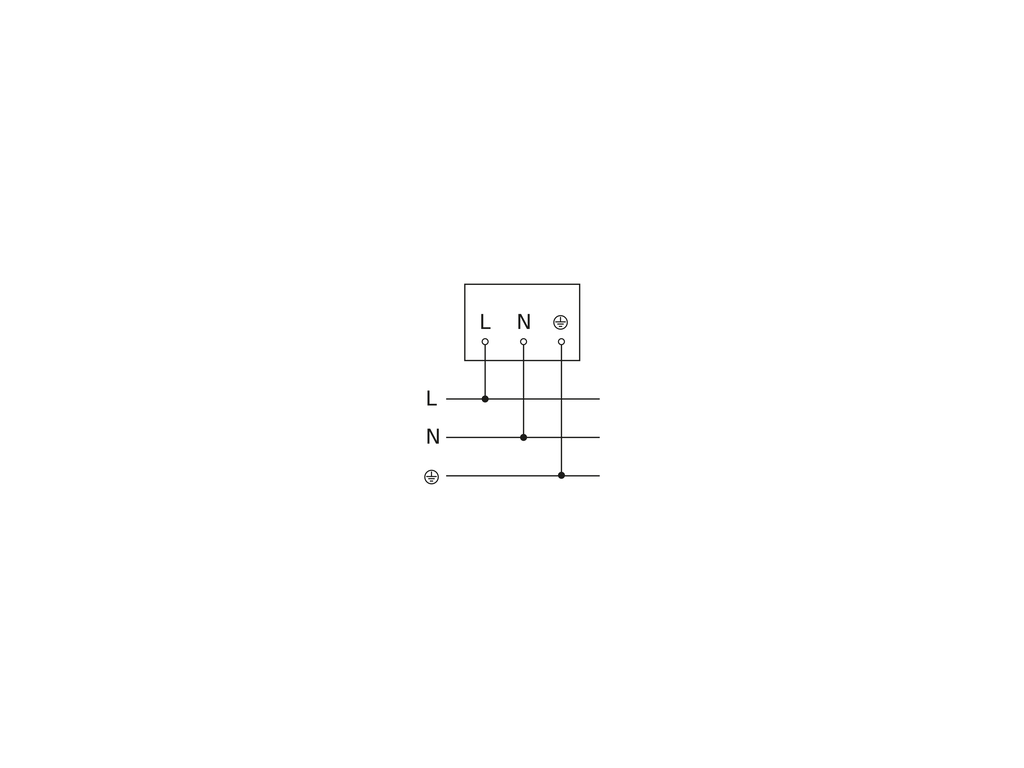

Wiring diagram 1

Slave circuit diagram

Wiring diagram 2

Master/slave interconnection circuit diagram

Data sheet User manual Declaration of conformity
