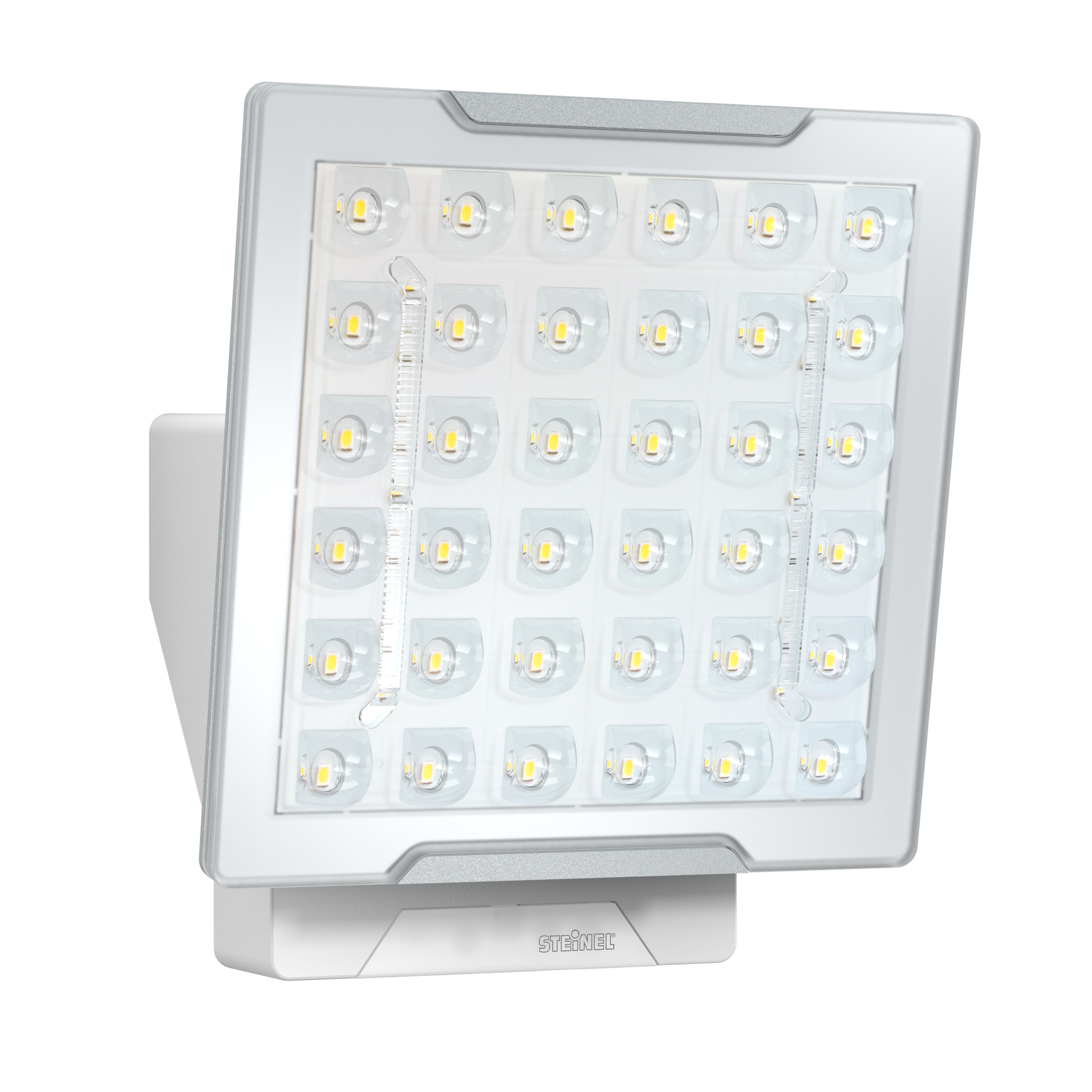

Nevalux XLED PRO Square SL white

ELDAS® no. 924 700 230

EAN-No. 4007841 010010

Discontinued

This product is being discontinued and is available while stocks last. No successor product has been announced yet.

Full illumination in the slave version. XLED PRO Square without sensor. Extra-flexible flat-design light head for illuminating large, square areas on demand. 2400 lm, 24,8 Ws. High-quality aluminium heat sink. Simple interconnection via cable.

Including STEINEL LED system
Intelligent LED cooling system
Optional basic lighting level
UV resistant material
Interconnectable by cable

Identification

Variant white

Variants

Luminous flux 2400 lm

Dimensions

Dimensions L × W × H 208 x 178 x 130 mm

Electrical

Mains connection 220 – 240 V , 50 / 60 Hz

Power 24,8 W

Sensor technology

Max. mounting height 6,00 m

With motion detector No

Lighting technology

Colour temperature 4000 K

LED colour deviation SDCM3

Colour rendering index 80-89

With illuminant Yes, STEINEL LED system

Illuminant LED cannot be replaced

LED cooling system Passive Thermo Control

Continuous light selectable, 4h

Luminous flux 2400 lm

Lifetime

LED lifetime max. °C 50000 h

Luminous flux decline per LM80 L70B10

Settings

Twilight switch No

Base light function time 10 min, 30 min, all night

Housing & material

Impact resistance IK00

Protection class (IP) IP54

Protection class I

Ambient temperature -20 – 40 °C

Housing material Aluminium

Cover material Plastic, transparent

Scope of delivery & warranty

Manufacturer warranty 5 years

Sensor detection range

Data sheet User manual

Remote control RC9

Item no. 4007841007638
