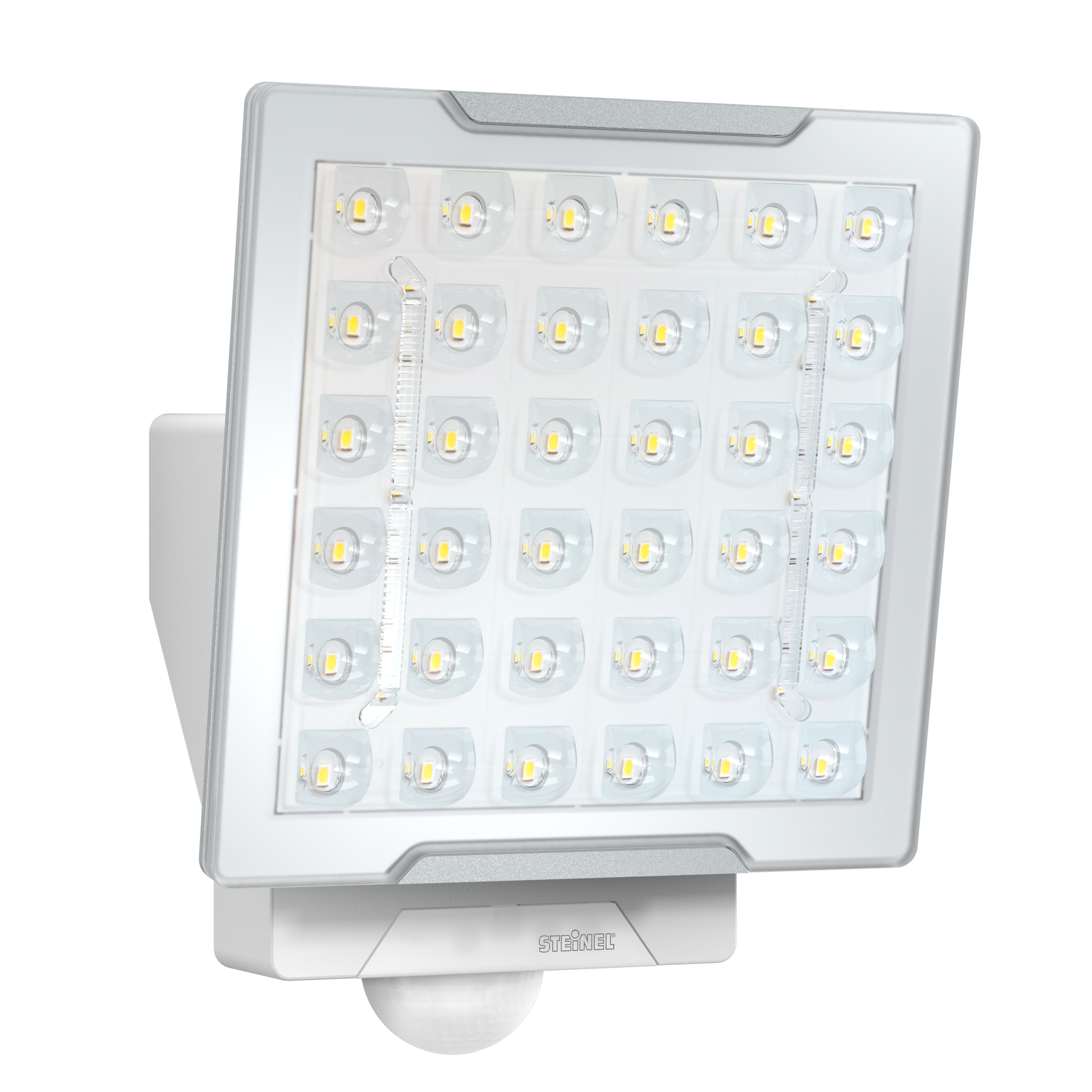

Nevalux XLED PRO Square white

ELDAS® no. 924 700 220

EAN-No. 4007841 009953

Discontinued

This product is being discontinued and is available while stocks last. No successor product has been announced yet.

Lighting efficiency squared. XLED PRO Square with 2400 lm, 24,8 W, 240° angle of coverage and 12 m reach. High-quality aluminium heat sink. Precision-calculated lens matrix for even light pattern over large, square areas. Flat-design light head swivelling in all directions for maximum lighting efficiency and precision illumination. Including basic-light LEDs. Max. mounting height 6 m.

Including STEINEL LED system
Intelligent LED cooling system
Optional basic lighting level
UV resistant material
Interconnectable by cable
RC9 remote control optional
Smart Remote remote control optional

Identification

Variant white

Variants

Luminous flux 2400 lm

Dimensions

Dimensions L × W × H 230 x 178 x 130 mm

Electrical

Mains connection 220 – 240 V , 50 / 60 Hz

Power 24,8 W

Sensor technology

Max. mounting height 6,00 m

Sensor technology passive infrared

With motion detector Yes

Detection angle 240 °

Opening angle 180 °

Sneak-under protection Yes

Segment-by-segment masking Yes

Tangential range r = 12 m (302 m²)

Connectivity

Networking Yes

Type of networking Sensor/slave

Networking quantity maximum of 10 floodlights

Lighting technology

Colour temperature 4000 K

LED colour deviation SDCM3

Colour rendering index 80-89

With illuminant Yes, STEINEL LED system

Illuminant LED cannot be replaced

LED cooling system Passive Thermo Control

Continuous light selectable, 4h

Luminous flux 2400 lm

Lifetime

LED lifetime max. °C 50000 h

Luminous flux decline per LM80 L70B10

Settings

Twilight switch Yes

Twilight setting 2 – 1000 lx

Time setting 5 sec – 15 min

Base light function Yes

Base light function time 10 min, 30 min, all night

Housing & material

Impact resistance IK00

Protection class (IP) IP54

Protection class I

Ambient temperature -20 – 40 °C

Housing material Aluminium

Cover material Plastic, transparent

Scope of delivery & warranty

Manufacturer warranty 5 years

Sensor detection range

Data sheet User manual

Remote control RC9

Item no. 4007841007638

Remote control Smart Remote

Item no. 009151
